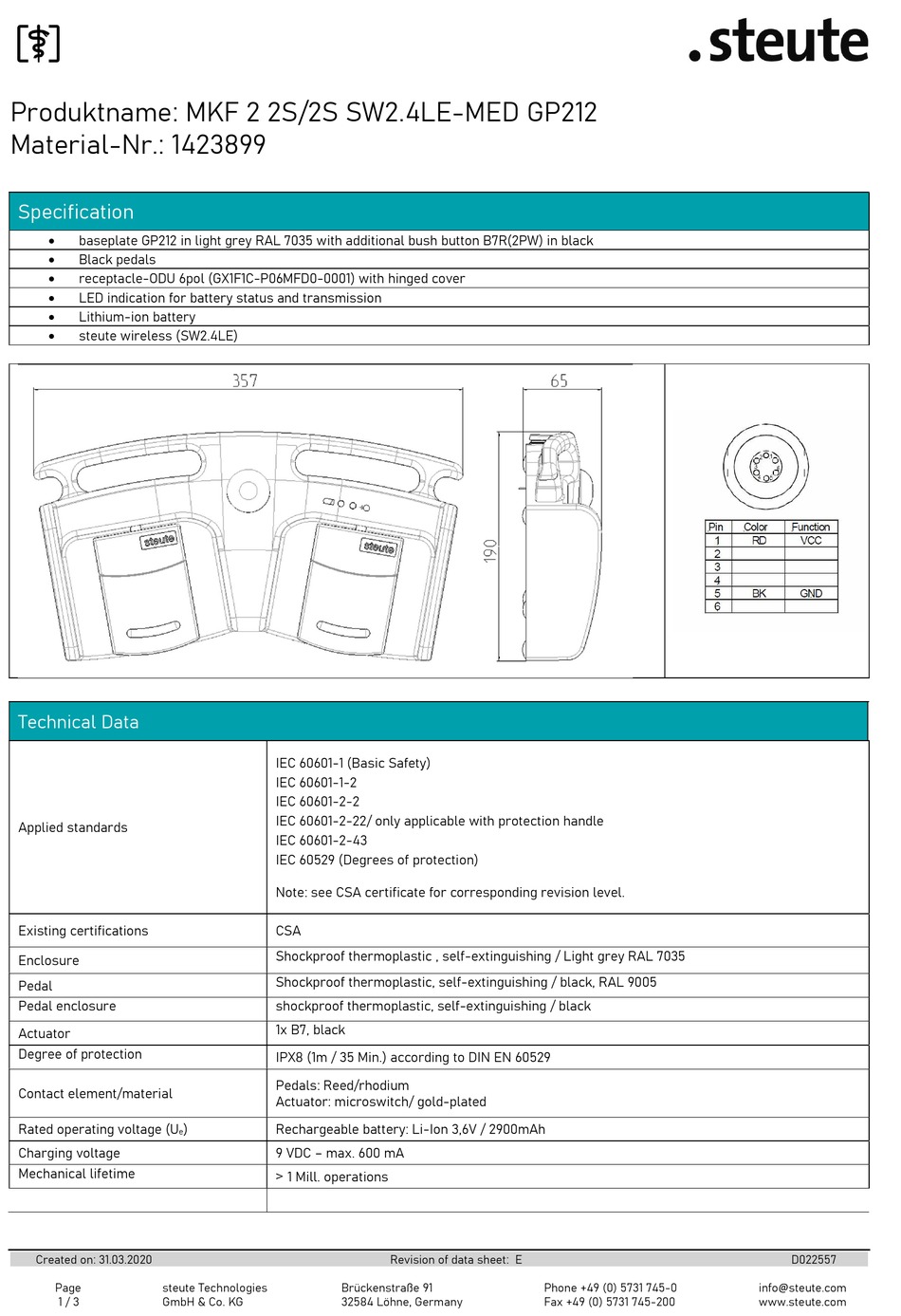

steute MKF 2 2S/2S SW2.4LE-MED GP212 Manual

Produktname: MKF 2 2S/2S SW2.4LE-MED GP212
Material-Nr.: 1423899

Specification


baseplate GP212 in light grey RAL 7035 with additional bush button B7R(2PW) in black

Black pedals

receptacle-ODU 6pol (GX1F1C-P06MFD0-0001) with hinged cover

LED indication for battery status and transmission

Lithium-ion battery

steute wireless (SW2.4LE)

Technical Data

Applied standards
Existing certifications
Enclosure
Pedal
Pedal enclosure
Actuator
Degree of protection
Contact element/material
Rated operating voltage (U
e
Charging voltage
Mechanical lifetime
Created on: 31.03.2020
Page steute Technologies
1 / 3 GmbH & Co. KG
IEC 60601-1 (Basic Safety)
IEC 60601-1-2
IEC 60601-2-2
IEC 60601-2-22/ only applicable with protection handle
IEC 60601-2-43
IEC 60529 (Degrees of protection)
Note: see CSA certificate for corresponding revision level.
CSA
Shockproof thermoplastic , self-extinguishing / Light grey RAL 7035
Shockproof thermoplastic, self-extinguishing / black, RAL 9005
shockproof thermoplastic, self-extinguishing / black
1x B7, black
IPX8 (1m / 35 Min.) according to DIN EN 60529
Pedals: Reed/rhodium
Actuator: microswitch/ gold-plated
) Rechargeable battery: Li-Ion 3,6V / 2900mAh
9 VDC – max. 600 mA
> 1 Mill. operations
Brückenstraße 91
32584 Löhne, Germany
Revision of data sheet: E
Phone +49 (0) 5731 745-0
Fax +49 (0) 5731 745-200
D022557
