Summary of Contents for Defy DMO392

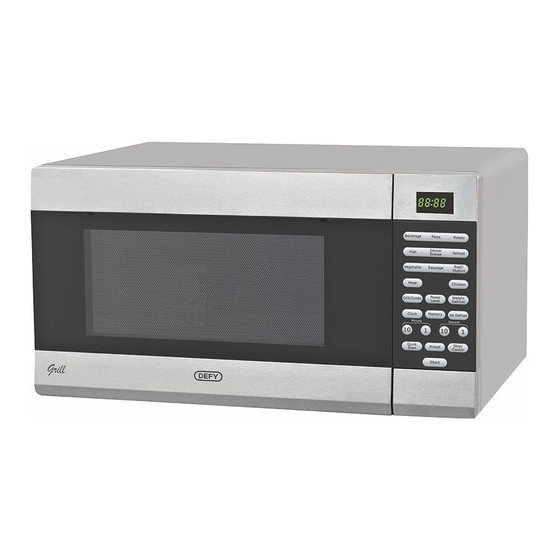

  • Page 1 DMO392 Microwave oven Microwave PAGE OF 23 Instruction manual...

  • Page 2: Table Of Contents

    CONTENTS AND PAGE NUMBER IMPORTANT SAFETY INSTRUCTIONS SPECIFICATIONS EXAMINING YOUR MICROWAVE OVEN AFTER UNPACKING REDUCE THE RISK OF INJURY TO PERSONS EARTHING INSTALLATION RADIO INTERFERENCE ARCING UTENSIL AND COOKWARE GUIDE OVEN PARTS AND ACCESSORIES COUNTERTOP INSTALLATION THE CONTROL PANEL OPERATING INSTRUCTIONS SETTING THE CLOCK QUICK START MICROWAVE COOKING...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS his appliance is classified as Group 2 Class B ISM. Defined as (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment.
  • Page 4 o not put foreign material between the oven surface and door. It could • result in excessive leakage of microwave energy. o not use recycled paper products for cooking. They may contain • impurities which could cause sparks and/or fires when used during cooking.
  • Page 5 Microwave heating of beverages can result in delayed eruptive • boiling, therefore care must be taken when handling the container. o reduce the risk of injury to persons: a) Do not overheat liquids. b) Stir the liquid both before and halfway through heating it. c) Do not use straight-sided containers with narrow necks.
  • Page 6 Make sure that the power supply cord is undamaged and does not • run under the oven or over any hot or sharp surface. The wall socket must be readily accessible so that the Microwaves • plug can be easily unplugged in an emergency. Do not use the oven outdoors.

  • Page 7: Specifications

    SPECIFICATIONS Model: DMO392 Rated Voltage: 230-240V~50Hz Rated input (Microwave) 1500W Rated input (Grill) 1300W Rated Output Power (Microwave): 1000 W Operating Frequency 2450MHz External Dimensions: (H x W x D) 300mm(H)×539mm(W)×474mm(D) Oven Cavity Dimensions: (H x W x D) 240mm(H)×376mm(W)×404mm(D)

  • Page 8: Reduce The Risk Of Injury To Persons

    REDUCE THE RISK OF INJURY TO PERSONS DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

  • Page 9: Radio Interference

    RADIO INTERFERENCE Microwave ovens can cause radio and TV interference. This may be reduced or eliminated by taking the following measures: 1. Clean the door and sealing surfaces of the oven. 2. Reorient the receiving antenna of the radio or the television. 3.

  • Page 10: Oven Parts And Accessories

    OVEN PARTS AND ACCESSORIES Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray x 1 - Turntable ring assembly x 1 - Instruction Manual x 1 1. Door Safety Lock System 2.

  • Page 11: Countertop Installation

    COUNTERTOP INSTALLATION Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. Installation 1.Select a level surface that provides enough open space for the intake and/or outlet vents.

  • Page 12: The Control Panel

    The control panel DISPLAY SCREEN Cooking time, power, indicators and present time are displayed. AUTO COOK MENUS Press to set auto menu cooking program. NUMBER PADS 10 Minutes (1000g) ; 1 Minute (100g) 10 Seconds (10g) ; 1 Second (1g) Press to set clock, cooking time or enter food weight.

  • Page 13: Setting The Clock

    Setting the Clock This is a 12 and 24 hour clock. You can choose to set the clock time in 12 or 24 hour cycle by pressing the CLOCK button in standby mode. 1. Press the CLOCK pad once or twice to select 12 or 24 hour clock. 2.

  • Page 14: Jet Defrost

    The maximum allowable weight for each category is shown below. DISPLAY FOOD TYPE MAXIMUM WEIGHT Meat 2300g Poultry 4000g Seafood 900g NOTE: During the defrosting program, the system will pause to remind the user to turn food over, press the START pad to resume the defrosting. Jet defrost 1.

  • Page 15: Auto Cook

    AUTO COOK In this cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you want to cook as well as the weight or portions of this food. 1.

  • Page 16: Trouble Shooting

    TROUBLE SHOOTING Normal occurrences. These are not a fault. Microwave oven interfering with TV reception. Radio and TV reception may be interfered with when microwave oven is operating. This is normal. Dim oven light. In low power microwave cooking, the oven light may become dim.

  • Page 17: Cleaning And Care

    4) The oven should not be adjusted or repaired by anyone except a properly trained service technician. If it becomes necessary to replace the oven lamp, consult a Defy Service Centre to have it replaced. Replacement lamps are not covered by the warranty. The oven should be cleaned regularly and any food deposits removed.

  • Page 18: General Guidelines

    GENERAL GUIDELINES As microwave cooking differs from traditional cooking, the following guidelines should be considered whenever you use your microwave oven If the food is undercooked. Check if: • You have selected the correct power level. • The selected time is sufficient. Selected times depend on initial temperature, weight and density of the food etc.

  • Page 19: Microwave Recipes

    MICROWAVE RECIPES Apricot Chicken Cooking Time: 22 minutes Serves: 4 people. Ingredients: Chicken breast fillets, quartered. 750 grams Can apricot halves, drained (set juice aside). 410 grams Large onion, chopped.1 large Garlic, Crushed. 1 clove(s) Butter or Margarine. 30 grams (1 tbs) mild curry powder.15 ml Cake Flour.
  • Page 20 MICROWAVE RECIPES Easy Whole wheat Loaf Cooking Time: 17 minutes. An easy step by step method of making your own bread. Helpful Hints: Sunflower seeds may turn green if used untoasted. To toast, place in flat glass container, microwave on 100% (High) power, 10 minutes per 125ml of seeds or until brown, stirring frequently.

  • Page 21: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS Q : I accidentally ran my microwave oven without any food in it. Is it damaged? A : Running the oven empty for a short time will not damage the oven. However, it is not recommended. Q : Can the oven be used with the tray or tray rack removed? A : No.

  • Page 22: Customer Care

    If you have followed the instructions and still have a problem or have any service or spares queries, please contact the customer care line by sending an email to service@defy.co.za or by calling 0861 00 3339. They will be able to advise you on any aspect of the appliance.

  • Page 23: Warranty

    WARRANTY 1 This certificate is issued by DEFY APPLIANCES (PTY) LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
