StarTech.com DKT30CHVSDPD Quick Start Manual

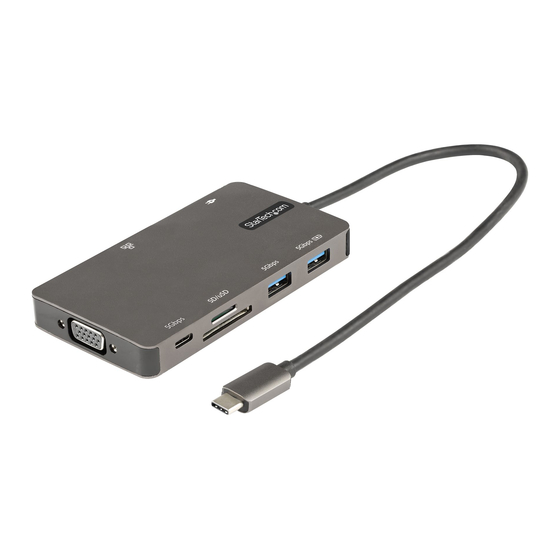

USB-C Multiport Adapter - HDMI & VGA - 3 x USB - SD/uSD - GbE- 100W
Product Diagram (DKT30CHVSDPD)
1
2
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
5
4
3
6
7 8
Port
1 VGA Output Port
2 USB-C Data Port
Micro SD-Card Slot (Top)
3
SD-Card Slot (Bottom)
4 USB-A Device Port
5 USB-A Charging Port
6
USB-C Host Connector
9
USB-C Power Delivery
7
Passthrough Port
8 RJ45 Port
9
HDMI
Quick-Start Guide
Function
Resolution of up to 1920x1080 60Hz
•
Connect the Multiport Adapter to a VGA
•
Display Device, using a VGA Cable
SuperSpeed USB 5Gbps (USB 3.2 Gen 1)
•
Connect a USB-C Peripheral Device to the
•
USB-C Multiport Adapter
Supports Secure Digital (SD) v3.0 UHS-I
•
SD and Micro SD cards can transfer data
•
simultaneously
SuperSpeed USB 5Gbps (USB 3.2 Gen 1)
•
Connect a USB Peripheral Device to the USB-C
•
Multiport Adapter
SuperSpeed USB 5Gbps (USB 3.2 Gen 1)
•
Connect a USB-A Peripheral Device to the
•
USB-C Multiport Adapter
Fast-charge USB Peripheral Devices that
•
comply with USB Battery Charging specification
Revision 1.2
Supports up to 5V at 1.5A, 7.5W charging
•
SuperSpeed USB 5Gbps (USB 3.2 Gen 1)
•
USB Power Delivery (PD) 3.0
•
DP 1.2 Alt Mode
•
Charge the Host Device while using the USB-C
•
Multiport Adapter (Max 85W Available to the
Host)
Connect the Multiport Adapter to a Laptop,
•
using the SuperSpeed USB-C Host Connector
USB Power Delivery (PD) 3.0
•
Connect a USB-C Charger of up to 100W to
•
charge the Host Laptop
10/100/1000 Mbps
•
Connect the Multiport Adapter to a Network
•
Device, using a Network Cable
Resolutions of up to 4K 30hz
•
Connect the Multiport Adapter to an HDMI
•
Enabled Display Device, using an HDMI Cable
Manual Revision: September 14, 2021 2:56 PM
