StarTech.com DKT30CHVCM Quick Start Manual

USB-C Multiport Adapter with HDMI | VGA

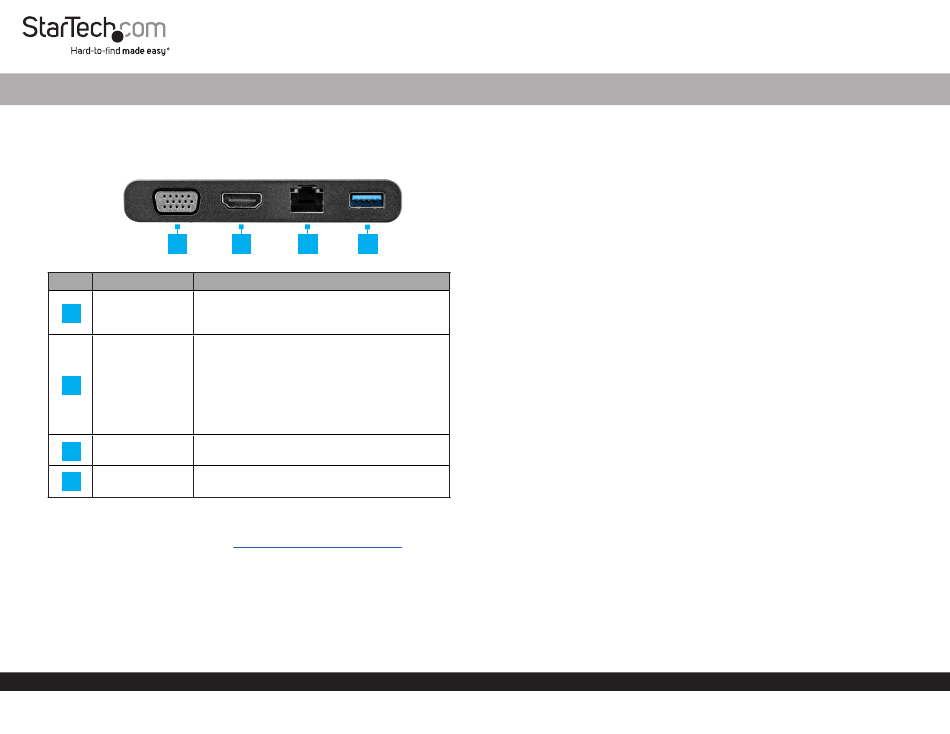

Product Diagram (DKT30CHVCM)
Front View
1
Port
• Connect a VGA Video Display Device to the
1 VGA Port
• Max resolution 1920x1200@60Hz.
• Connect an HDMI Video Display Device to
• Max resolution 4096 x 2160p @ 24Hz or 3860 x
2
HDMI Port
• Connect a Network Device to the Host
3 RJ45 Port
• Connect a USB Device to the Multiport
4
USB-A Port
Requirements
For the latest requirements, please visit www.startech.com/DKT30CHVCM.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2 4
3
Function
Host Computer.
the Host Computer.
2160p @ 30Hz.
Note: The Multiport Adapter is a single video
display adapter. You can connect either an
HDMI Display or a VGA Display.
Computer.
Adapter (Flash Drive, Mouse, etc.).
Connecting the Multiport Adapter
Note: The Multiport Adapter is a single video display adapter. You can connect
either an HDMI Display or a VGA Display. If you connect a Display to both the
HDMI Port and VGA Port only the Display connected to the HDMI Port will function
correctly.
VGA Port
The VGA Port is used to connect the Multiport Adapter to a VGA Device.
1. Connect a VGA Cable to the VGA Port on the Multiport Adapter.
2. Connect the other end of the VGA Cable to the VGA Port on a Video Display
Device and (if applicable) tighten the two screws on either side on the VGA
Connector.
HDMI Port
The HDMI Port is used to connect the Multiport Adapter to an HDMI Device.
1. Connect an HDMI Cable to the HDMI Port on the Multiport Adapter.
2. Connect the other end of the HDMI Cable to an HDMI In Port on a Video Display
Device.
RJ45 Port
The RJ45 Port is used to connect a Network Device to the Multiport Adapter.
1. Connect a CAT5e/CAT6 Cable to the RJ45 Port on the Multiport Adapter.
2. Connect the other end of the CAT5e/CAT6 cable to an RJ45 Port on a compatible
Network Device.
USB-A Port
The USB-A Port can be used to connect a USB storage device (e.g. Flash Drive) or other
USB peripheral device (e.g. Keyboard, Mouse, etc.).
• Connect a USB-A Connector/Device to the USB-A Port on the Multiport Adapter.
Quick-Start Guide
