StarTech.com DKT30CHVPD2 Quick Start Manual

USB-C™ Multiport Adapter - HDMI & VGA - 3 x USB - GbE- 100W PD - Extended Cable

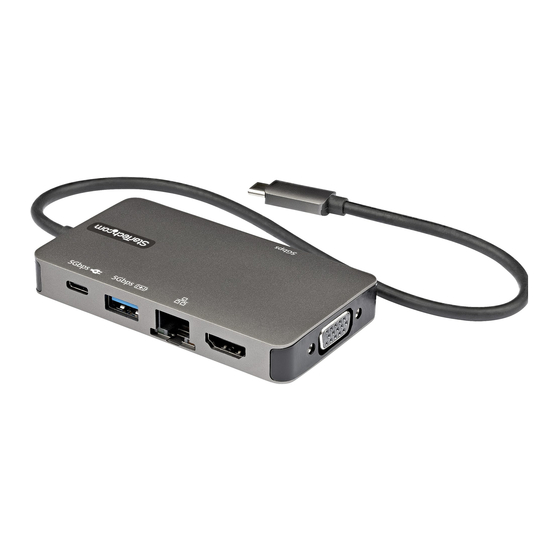

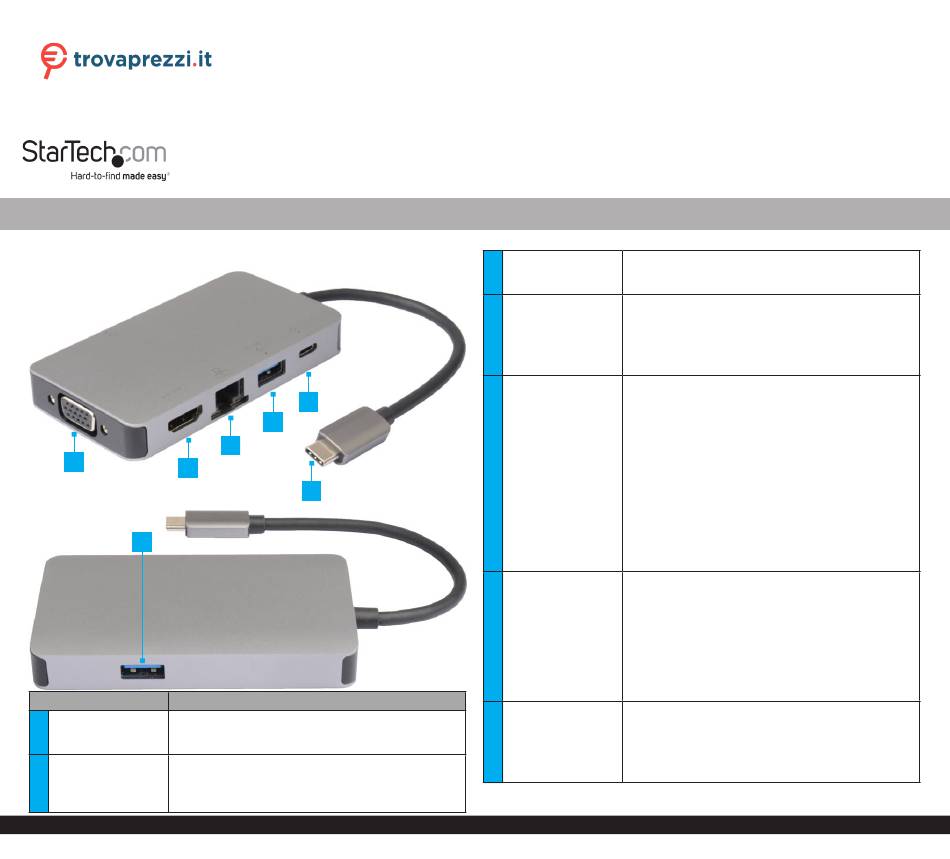

Product Diagram (DKT30CHVPD2)
Front Angle View
1
2
Rear View
7
Port
• Resolution of up to 1920x1080@60Hz
1 VGA Output Port
• Connect the Multiport Adapter to a VGA Display
Device, using a VGA M/M Cable
• HDMI 1.4b
• 4K @ 30Hz
2 HDMI Output Port
• Connect the Multiport Adapter to an HDMI Enabled
Display Device, using an HDMI Cable
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
DKT30CHVPD2 o cerca il tuo prodotto tra le
5
4
3
6
Specifications and Installation
migliori offerte di Hub
• 10/100/1000 Mbps
3 RJ45 Port
• Connect the Multiport Adapter to a Network Device,
using a Network Cable
• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)
• Maximum 1.5A for downstream charging
• Connect the Multiport Adapter to a SuperSpeed USB
4
USB-A Charging Port
5Gbps Peripheral or Storage Device (e.g. flash drive),
using a SuperSpeed USB 5Gbps (USB 3.2
Gen 1) Cable
• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)
• USB Power Delivery (PD) pass-through
• Connect the Host Computer's Power Adapter
to the SuperSpeed USB-C Port on the Multiport
Adapter for a maximum of 85W delivered to the
Host Computer
Note: The Multiport Adapter accepts a 100W Power
5 USB-C Device Port
Adapter and reserves 15W to power the Multiport
Adapter.
-- Or --
• Connect the Multiport Adapter to a SuperSpeed USB
5Gbps Peripheral or Storage Device (e.g. flash drive),
using a SuperSpeed USB-C 5Gbps (USB 3.2
Gen 1) Cable
• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)
• USB PD 3.0 85W (20V/5A)
Note: SuperSpeed USB-C Port will accept up to
100W Power Source input
USB-C Host
6
• DP 1.2 Alt Mode
Connector
• Charge the Host Device while using the Multiport
Adapter
• Connect the Multiport Adapter to a to a Laptop,
using the SuperSpeed USB-C Host Connector
• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)
• Maximum 900mA downstream charging
• Connect the Multiport Adapter to a SuperSpeed USB
7
USB-A Device Port
5Gbps Peripheral or Storage Device (e.g. flash drive),
using a SuperSpeed USB 5Gbps (USB 3.2
Gen 1) Cable
StarTech.com
Quick-Start Guide
Manual Revision: February 8, 2021
