StarTech.com DKT30CHVGPD Quick Start Manual

USB-C Multiport Adapter | HDMI | VGA | PD

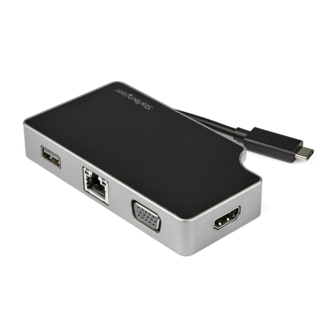

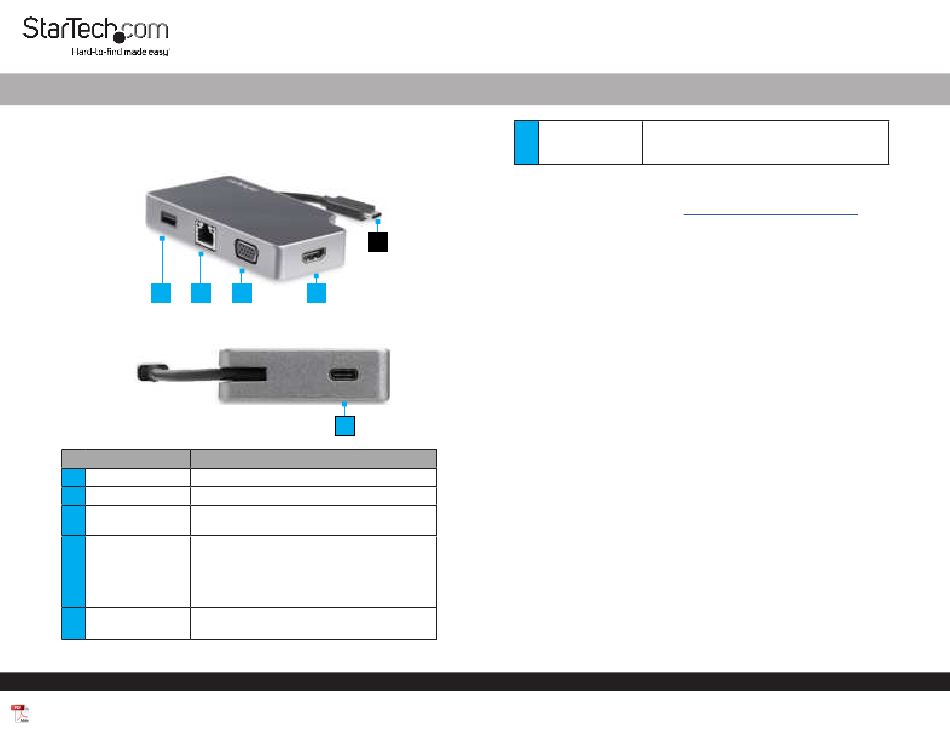

Product Diagram (DKT30CHVGPD)
Front View:
1 2
Side View:
Port/Connection
1 • Connect a USB Device to the Host
USB-A Port
2 RJ45 Port • Connect a Network Device to the Host
3 VGA Port • Connect a VGA Video Display Device to the
Host
4 • Connect an HDMI Video Display Device to
HDMI Port
the Host
5 USB-C Host • Connect the Multiport Adapter to the Host
Connector
• Power Delivery 3.0 (charging/power)
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
5
4
3
6
Function
Note: The Multiport Adapter is a single
video display adapter. You can connect either
an HDMI Display or a VGA Display.
6 USB-C Power Port • Connect a USB-C Power Adapter to the
Host Computer
• Power Delivery 3.0 (charging/power)
Requirements
For the latest requirements, please visit www.startech.com/DKT30CHVGPD.
Powering the Multiport Adapter
USB Power Delivery 3.0
Fast Role Swap:
A Fast Role Swap function is available when using Power Delivery 3.0. This function
prevents USB data disruption when switching power sources (bus power to USB-C
power adapter or USB-C power adapter to bus power). For this function to work, the
host laptop must also support Power Delivery 3.0.
Bus Power:
The Multiport Adapter is powered by the Host Computer's USB-C Port and does not
require a separate power adapter.
1. Connect the USB-C Connector on the Multiport Adapter to a USB-C Port on the
Host Computer.
2. The Host Computer's operating system will automatically detect and install the
required driver.
Note: Host Computers that have a USB-C port that supports a maximum of 4.5W of
Bus Power will only get RJ45 Port functionality. All other ports on the Multiport Adapter
will be disabled due to insufficient Bus Power.
USB-C Power Adapter:
The Multiport Adapter is powered using the Host Computer's USB-C Power
Adapter. The maximum power delivery input is 95W. The Multiport Adapter requires
10W of Power Delivery capacity to power the Multiport Adapter and its connected
devices leaving a maximum power delivery of 85W for laptop charging.
Note: The Multiport Adapter's Maximum Power Delivery is based on the limitations
of the Host Computer's USB-C Power Adapter.
1. Connect the Multiport Adapter's USB-C Connector to a USB-C Port on the Host
Computer.
2. Connect the USB-C Connector on the Host Computer's Power Adapter to the
USB-C Power Port on the Multiport Adapter. The Universal Adapter will power
the Multiport Adapter and pass power through to the Host Computer.
Quick-Start Guide
