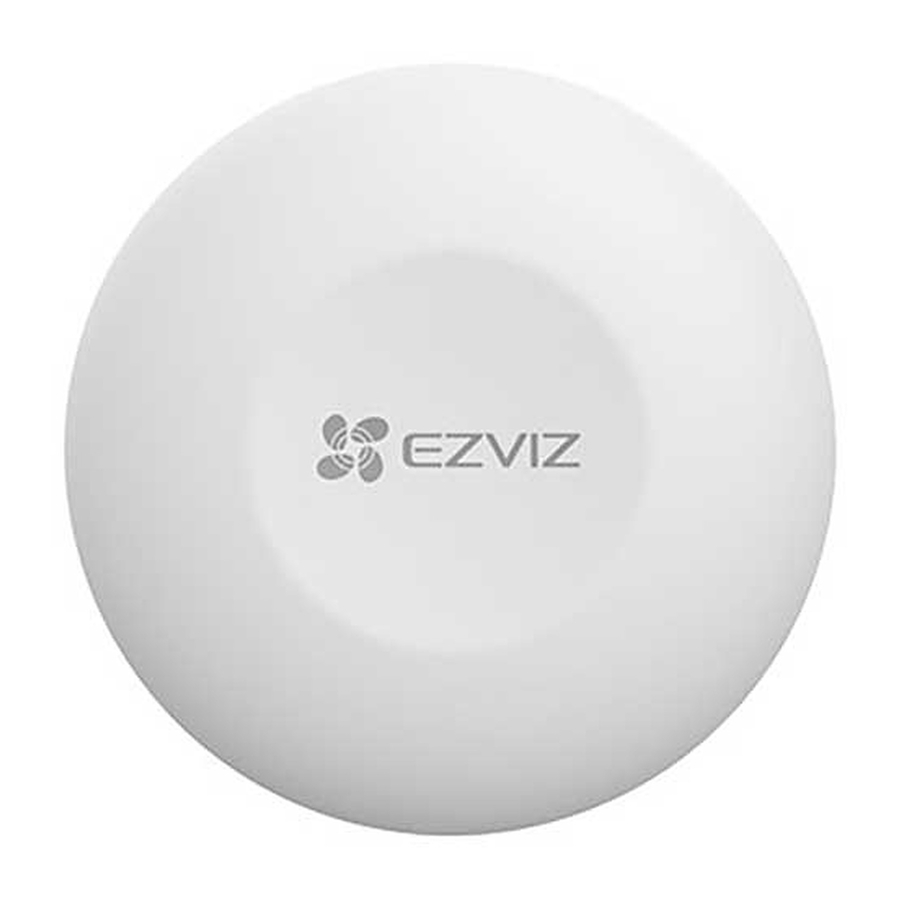

EZVIZ T3C - Security System Manual

Overview

Package Contents

• The device appearance is subject to the actual one you have bought.
• The pin is only supplied for the device with reset hole.

Basics

Get the EZVIZ App

1. Connect your mobile phone to Wi-Fi (suggested).
2. Download and install the EZVIZ app by searching for "EZVIZ" in the App Store or Google Play^TM.
3. Launch the app and register an EZVIZ user account.

EZVIZ App

If you have already used the app, please make sure that it is the latest version. To find out if an update is available, go to the app store and search for "EZVIZ".

Preparations

Remove Cover

Remove the cover of the smart button by turning the antiskid ring counterclockwise as shown in the figure below.

Remove Insulation Strip

Remove the battery insulation strip as shown in the figure below.

• If you need to replace the battery, please purchase one CR2032 210mAh.
• When replacing batteries, please insert with the positive side facing up.
• Keep your hands dry and clean when touching the circuit board.

Add Device

The smart button should be used along with EZVIZ Zigbee Smart Gateway (afterinafter referred to as "gateway"). Please add gateway to the EZVIZ Cloud by referring to the gateway user manual, and then add the smart button to the gateway.

Add by Scanning QR Code

1. Log in to your account through EZVIZ app, tap the device adding icon and then the QR code scanning interface will be displayed.
2. Scan the QR code on the user manual, and then add the smart button to the gateway.

3. Add the smart button to the gateway by following the wizard on the app.
4. Align the cover detaching convex with the cover detaching groove as shown in the figure below. Rotate the cover clockwise to tighten cover.


Add by the Gateway

When adding smart button by the gateway, place the smart button as close to the gateway as possible.

1. Make the gateway enter device adding mode as instructed by the user manual of the gateway
2. Use the pin to press and hold the RESET hole for 2s (If your smart button has a reset button instead of the reset hole, please press and hold the reset button for 5s) until the indicator on the smart button turns fast-flashing blue, and the smart button enters adding mode.
3. The smart button will be added to the gateway automatically.
4. Align the cover detaching convex with the cover detaching groove as shown in the figure below. Rotate the cover clockwise to tighten the cover.

Installation

• The smart button can be put on the table, or be sticked on where you want through the double-sided tape on the cover of the smart button.
• When choose wall mount, please mount the device on the wall below 1.5 meters.

1. Put on the table

2. Stick at Where You Want


• Do not install the smart button on metal doors because metal will cause signal attenuation. You can install it on walls beside metal doors.
• It is recommended that the distance between the smart button and gateway be less than 20m. If there are walls between them, the number of walls should be no more than 2.
• Before sticking the smart button, clean the dust on the surface first. Do not stick the smart button on limewashed walls.

BATTERY INSTALLATION and REPLACEMENT

Install Battery

Tear off the battery insulation, put the battery into the baseplate and insert it to the end.

Replace Battery

Remove the battery from baseplate and replace battery with the Lithium Battery CR2032 purchased by a regular manufacturer. Test the device for correct operation whenever the baterries are replaced after re-fitting the device onto the base plate. If the device is not working properly, please add the device and configurate the network again by following the steps in Setup part or directly contact our technical support.

• Risk of explosion if the battery is replaced by an incorrect type.
• Improper replacement of the battery with an incorrect type may defeat a safeguard(for example, in the case of some lithium battery types).
• Do not dispose of the battery into fire or a hot oven, or mechanically crush or cut the battery, which may result in an explosion.
• Do not leave the battery in an extremely high temperature surrounding environment or extremely low air pressure, which may result in an explosion or the leakage of flammable liquid or gas.
• Dispose of used batteries according to the instructions.
• identifies the battery holder itself and identifies the positioning of the cell(s) inside the battery holder.
• "+" identifies the positive terminal(s) of device which is used with, or generates direct current, "-" identifies the negative terminal(s) of device which is used with, or generates direct current.

Removable Lithium ion Battery (CR2032)

Operations on the EZVIZ App

The app interface may be different due to version update, and the interface of the app you installed on your phone shall prevail.

Homepage

Launch the EZVIZ app, open the homepage of the related gateway, you can manage your detector as needed on the page.

Settings
