Jabra Evolve2 85 - Wireless Headset Manual

Welcome

Jabra Evolve2 85 features

• Designed for all day comfort
• Active Noise Cancellation (ANC)
• 4-microphone call technology
• Up to 37 hours wireless battery life
• 40mm speakers and AAC codec for immersive music
• 360° busylight visible from all angles
• Up to 30m/100ft wireless range, with significantly enhanced coverage and fewer dropouts
• Works with all leading UC platforms, Microsoft Teams-certified variants available

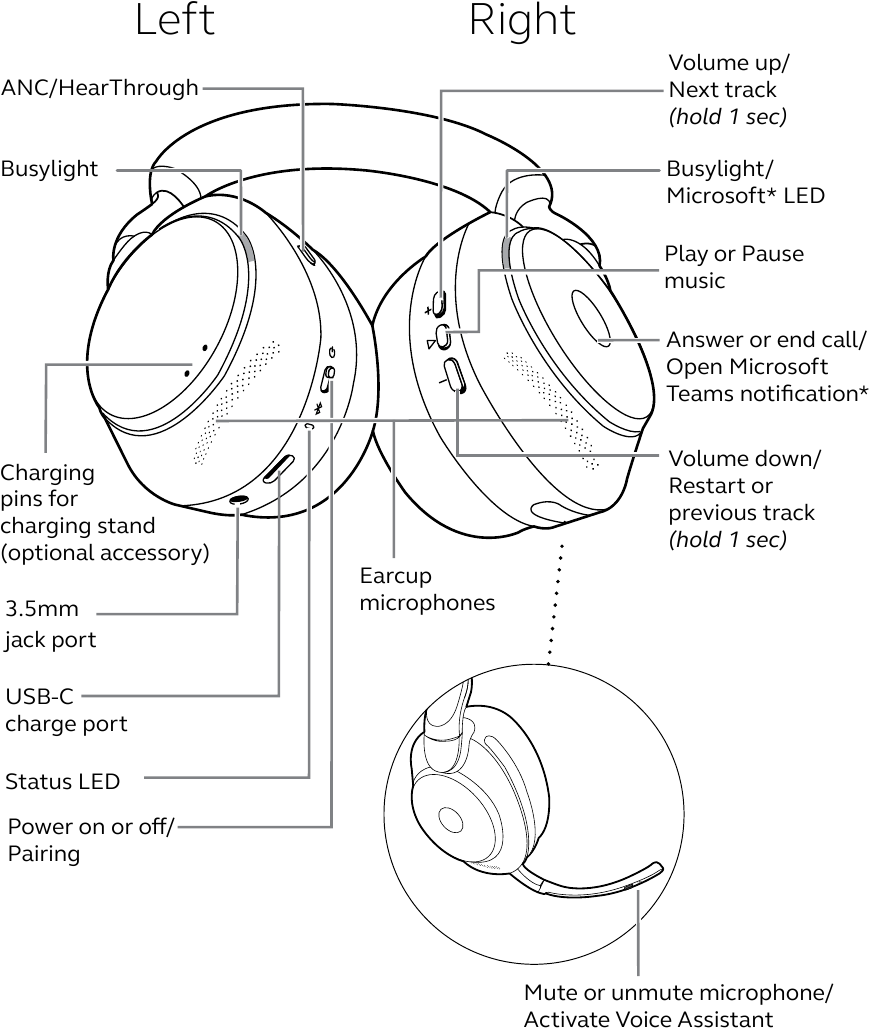

Jabra Evolve2 85 overview

*requires Microsoft Teams headset variant

Included accessories

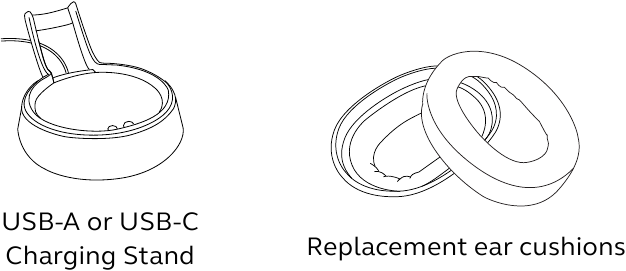

Optional accessories

How to wear

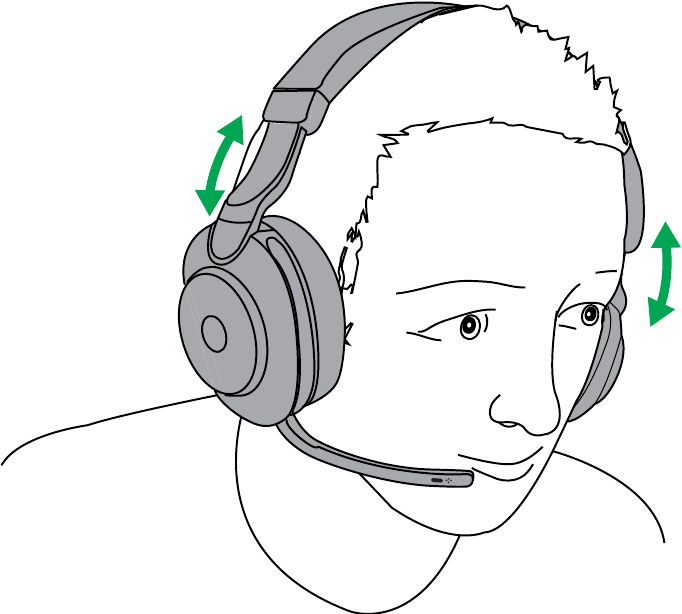

Adjusting the headset

Adjust the headband so that the headset fits your head comfortably.

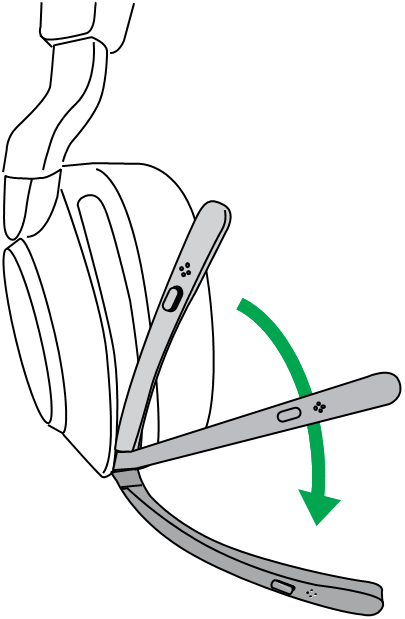

Positioning the microphone boom arm

Rotate the microphone boom arm down or up in one smooth motion.

When using the microphone, the tip of the boom arm should be positioned close to your mouth.

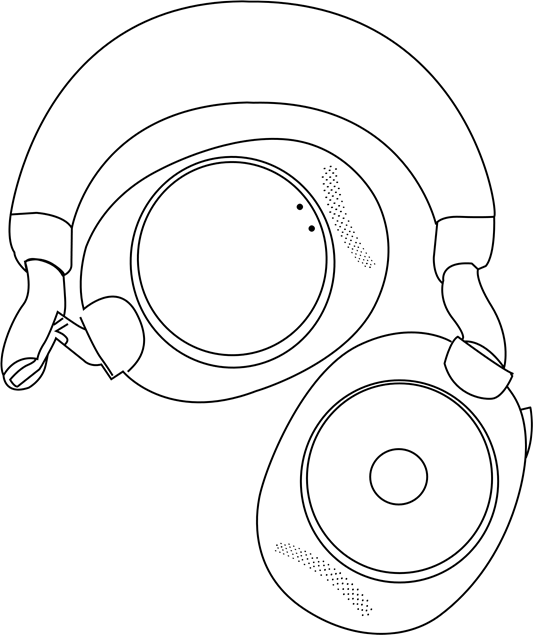

Fold flat for storage

The earcups can be folded flat for easy storage inside the carry case.

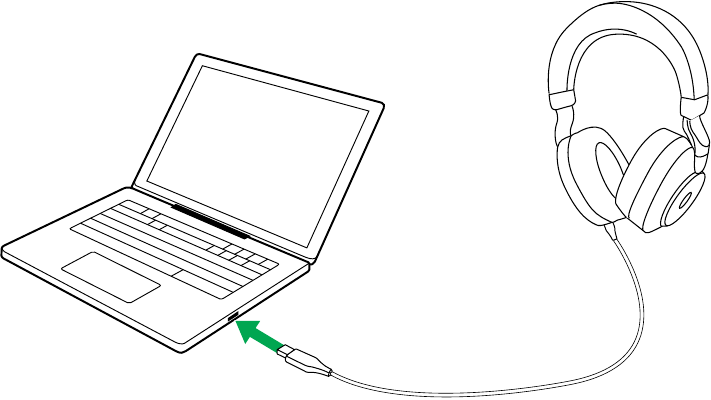

How to charge

The headset can be charged using the optional charging stand, or via a USB charging cable plugged directly into the headset.

It takes approx. 2 hours and 20 minutes to fully charge the battery. The headset battery life is up to 37 hours. If the headset is out of battery, they can be charged for 15 minutes to get 8 hours of battery life.

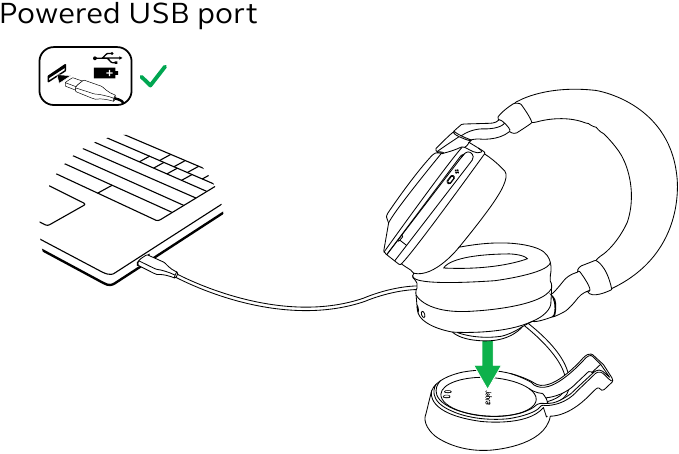

Charge using the charging stand (optional accessory)

Connect the charging stand to a powered USB port on your computer using the supplied USB charging cable, and then dock the headset on the charging stand.

The status LED on the headset will flash white briefly to indicate the headset has been correctly docked with the charging stand.

The battery LED will then briefly flash green, yellow or red to indicate the current battery charging status. When the LED turns solid green, the headset is fully charged.

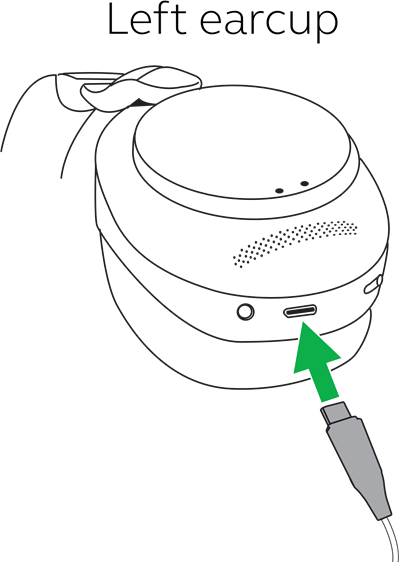

Charge using USB charging cable

Plug the USB charging cable into the USB-C charging port on the left earcup and any available USB port on your computer. It is recommended to charge the headset using the supplied Jabra charging cable, however it is possible to use a compatible charger.

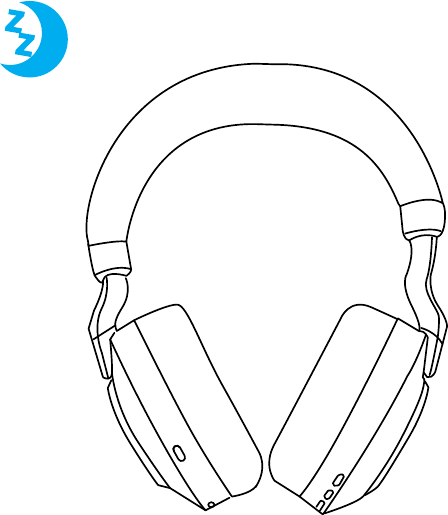

Sleep mode

When the headset is powered on, but not being worn, they will automatically enter sleep mode after 8 hours to conserve battery. To exit sleep mode, simply press any button.

The length of time before the headset enters sleep mode can be adjusted using the Jabra Sound+ app on your smartphone or Jabra Direct on your computer.

After 24 hours of sleep mode, the headset will power down completely. To power the headset on, slide the On/Off switch to Off and then On.

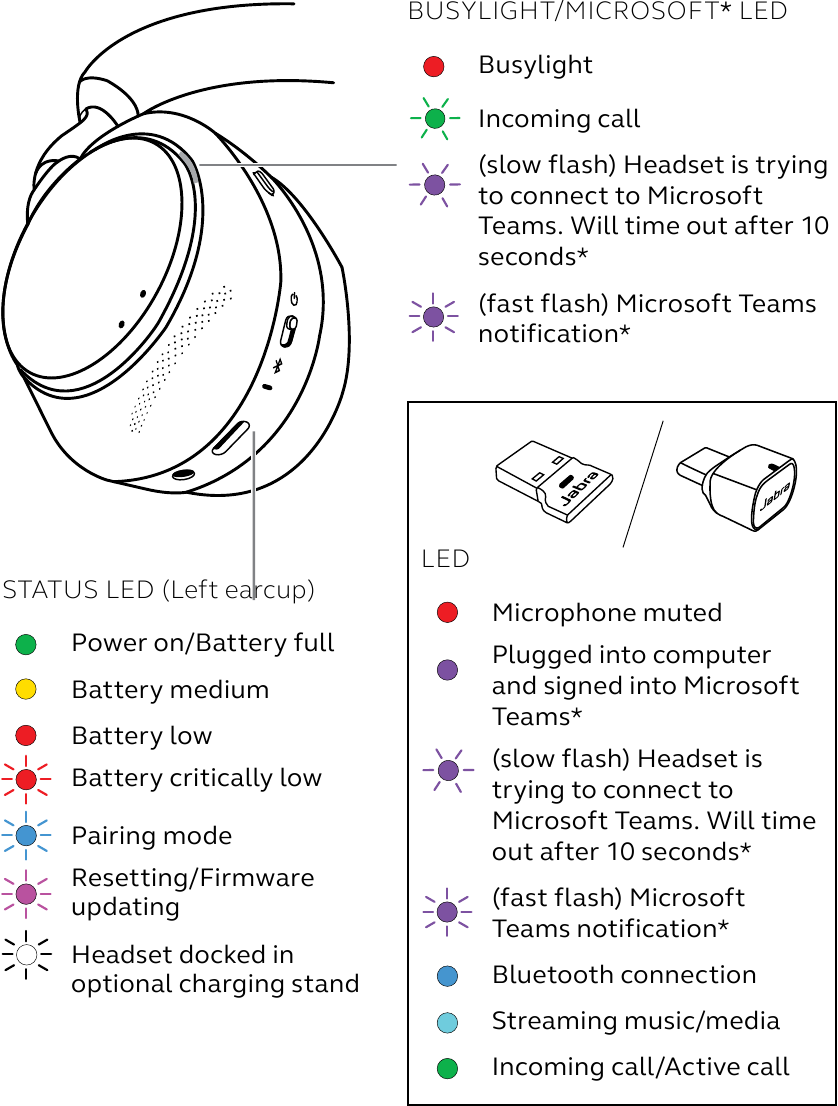

What the LEDs mean

*requires Microsoft Teams headset variant

How to connect

Connect to computer

Plug the supplied Jabra Link 380 into a USB port on your computer. The Jabra Evolve2 85 and the Jabra Link 380 are pre-paired and ready for use out of the box. The Bluetooth range is up to 30 meters or 100 feet.

To hear audio in the headset you may need to select the Jabra Link 380 as the playback device in your operating system's audio settings.

To manually pair the Jabra Evolve2 85 with the Jabra Link 380, download and use Jabra Direct.

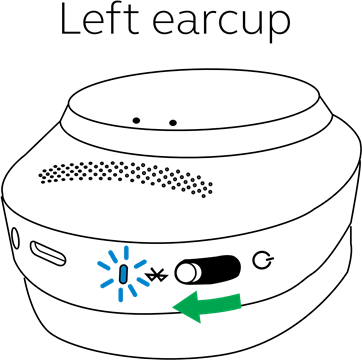

Pair with a smartphone

1. Slide the On/Off switch to the Bluetooth position and hold it there until the LED flashes blue and you hear an announcement in the headset.

2. Go to the Bluetooth menu on your smartphone and select the Jabra Evolve2 85 from the list of available devices.

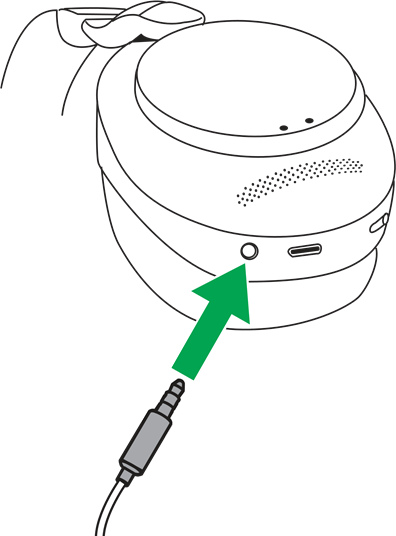

Connect to 3.5mm jack port

Plug the supplied audio jack cable into the 3.5mm audio jack port on the headset.

When connected to a device using the audio jack cable, the headset microphone and Bluetooth are disabled. If the headset is plugged into a smartphone, the smartphone's microphone will be used for calls.

The volume and ANC/HearThrough can be controlled using the buttons on the headset.

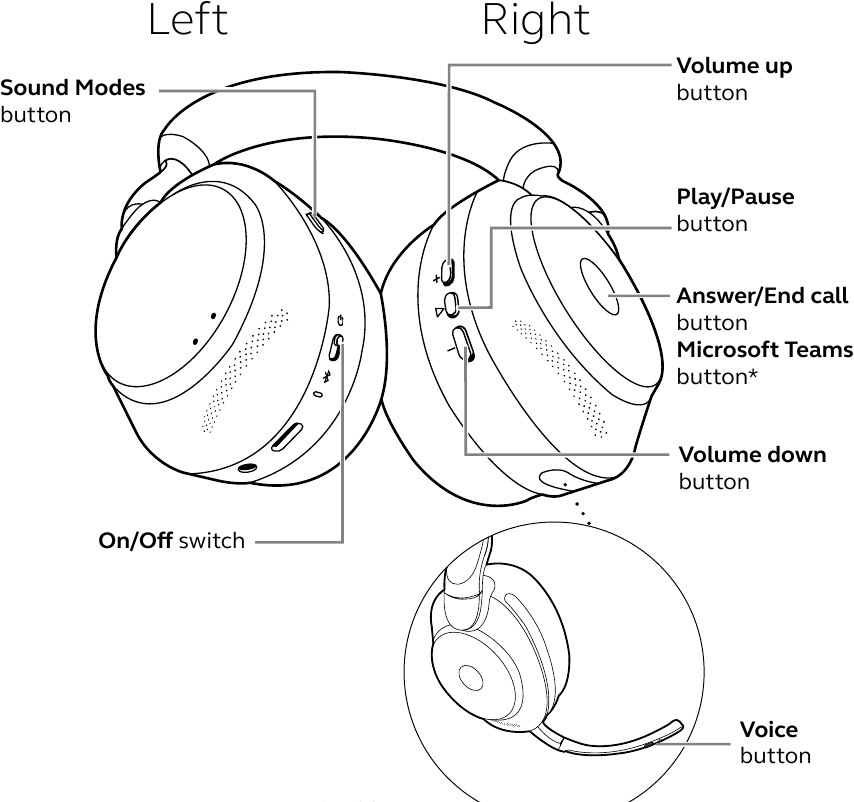

How to use

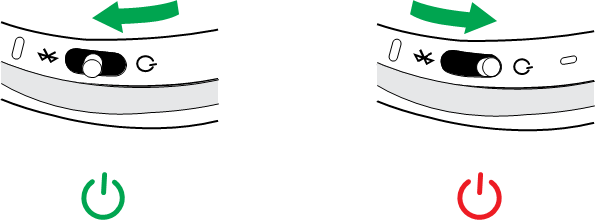

Power on/off

Slide the On/Off switch to the On or Off position to power the headset on or off.

*requires Microsoft Teams variant

Calls & music

Right earcup	Calls & music
	Play/pause music	Press the Play/Pause button
	Answer call	Press the Answer/End call button Alternatively, move the microphone boom arm down to answer an incoming call.
	End call	Press the Answer/End call button
	Reject call	Double-press the Answer/End call button
	Bring Microsoft Teams to foreground on computer	Press the Microsoft Teams button* (when signed into Microsoft Teams)
	Join active Microsoft Teams meeting	Press the Microsoft Teams button* (when signed into Microsoft Teams)
	View Microsoft Teams missed calls and voicemails	Press the Microsoft Teams button* (when signed into Microsoft Teams)
	Adjust volume	Press the Volume up or Volume down button, when listening to music or on a call
	Next track	Press and hold (1 sec) the Volume up button
	Restart track	Press and hold (1 sec) the Volume down button to restart the current track Press and hold twice to play the previous track
	Hear battery and connection status	Press the Volume up or Volume down button, when not listening to music or on a call
	Activate Voice Assistant (i.e. Siri, Google Assistant)	Press the Voice button, when not on a call
	Mute/unmute microphone	Press the Voice button, when on a call Alternatively, move the microphone boom arm up to mute, or down to unmute.
Left earcup	Sound modes
	Cycle between Sound modes: ANC, Off, HearThrough	Press the Sound modes button
	Cycle between Moments in Jabra Sound+	Press and hold (1 sec) the Sound modes button Moments can be customized in the Jabra Sound+ app

*requires Microsoft Teams variant

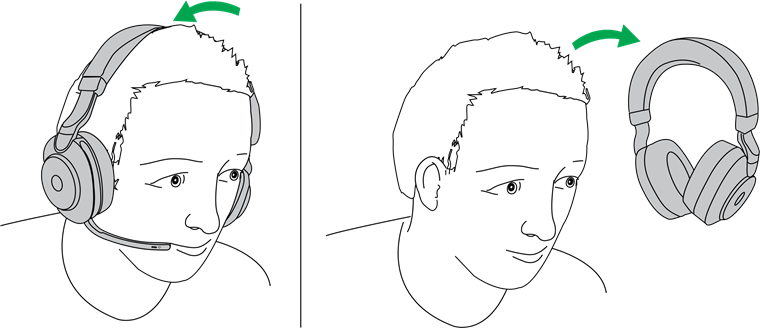

On-ear detection

The headset has built-in sensors that can detect when the headset is being worn and will perform different actions depending on if the headset is being worn or not.

AUTO-PAUSE MUSIC

When listening to music, taking off the headset will automatically pause the music. Wear the headset again to automatically resume the music.

MUTE CALL

When you are on a call, taking off the headset will automatically mute the call. Wear the headset again to automatically unmute the call.

BUSYLIGHTS

The Busylight LEDs will only light up red when the headset is being worn.

MICROSOFT TEAMS STATUS*

The Microsoft Teams status LED will only indicate Microsoft notifications when the headset is not being worn.

Head detection and each individual action can be configured using the Jabra Sound+ app on your smartphone or Jabra Direct on your computer.

*requires Microsoft Teams headset variant

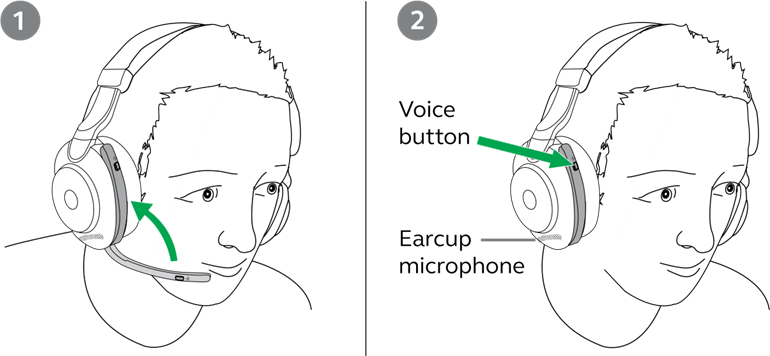

Switching microphones

To use the earcup microphones instead of the boom arm microphone, raise the boom arm and then press the Voice button on the boom arm.

To use the boom arm microphone instead of the earcup microphones, lower the boom arm.

Voice Assistant

The Jabra Evolve2 85 enables you to speak to Siri, Google Assistant on your smartphone using the Voice button.

Right earcup	Voice Assistant
	Activate Voice Assistant (i.e. Siri, Google Assistant)	Press the Voice button, when not on a call

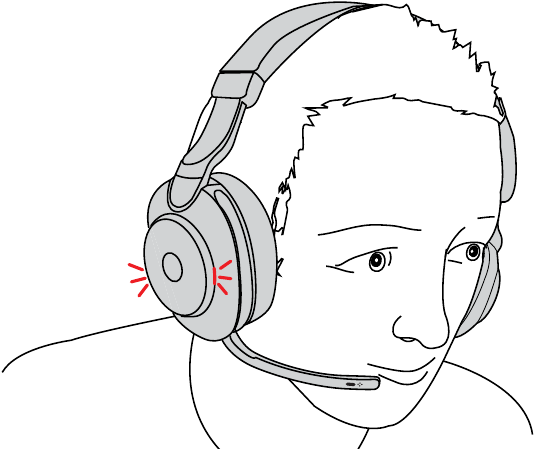

Busylights

The Busylights on the headset automatically light up red when you are on a call to indicate to colleagues that you are busy. To manually switch the Busylights on/off, press the Volume up and Volume down buttons at the same time.

Please note that the Busylights will only light up when you are wearing the headset.

Busylight settings can be configured using the Jabra Sound+ app on your smartphone or Jabra Direct on your computer.

Active Noise Cancellation (ANC)

Active Noise Cancellation (ANC) counters noise. It detects and analyzes the pattern of incoming sound, and then generates an antinoise signal to cancel it out. As a result, you experience a drastically reduced level of surrounding noise.

ANC settings can be configured using the Jabra Sound+ app on your smartphone or Jabra Direct on your computer.

Left earcup	ANC
	Turn on ANC	Press the Sound modes button to cycle through the available Sound modes until ANC is announced

HearThrough^TM

HearThrough utilizes the built-in microphones to enable you to pay attention to your surroundings and engage in conversation without needing to remove the headset.

HearThrough settings can be configured using the Jabra Sound+ app on your smartphone or Jabra Direct on your computer.

Left earcup	HearThrough
	Turn on HearThrough	Press the Sound modes button to cycle through the available Sound modes until HearThrough is announced

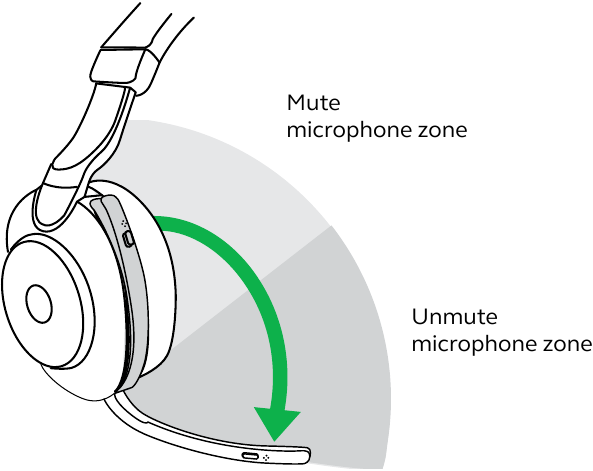

Mute/unmute using the microphone boom arm

The headset microphone can be muted by moving the microphone boom arm up, or unmuted by moving it down.

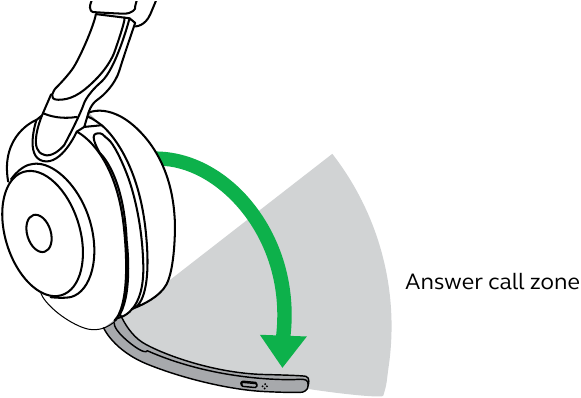

Answer call using the microphone boom arm

An incoming call can be answered by moving the microphone boom arm down.

This feature is on by default, and can be disabled using Jabra Sound+ on your smartphone or Jabra Direct on your computer.

Multiuse

The headset can be paired to up to eight Bluetooth devices and connected to two Bluetooth devices at once (e.g. the Jabra Link 380 and a Smartphone, or two Bluetooth devices). The headset can accept multiple incoming calls from either device.

To pair to two Bluetooth devices, use the normal pairing process separately for each Bluetooth device.

Note: Voice assistant will be activated on the last connected Bluetooth device.

Multiple call handling

The headset can accept and handle multiple calls at the same time.

Right earcup	Multiple call handling
	End current call and answer incoming call	Press the Answer/End call button
	Put current call on hold and answer incoming call	Hold (2 secs) the Answer/End call button*
	Switch between held call and active call	Hold (2 secs) the Answer/End call button*
	Reject incoming call, when on a call	Double-press the Answer/End call button

*Non-Microsoft Teams headset variant only

Voice guidance

Voice guidance are announcements that will guide you through set up, or will give you headphone status updates (e.g. connection and battery status).

Voice guidance is enabled by default.

Right earcup	Voice guidance
	Turn Voice guidance on/off	Press and hold (5 sec) the Voice button and the Volume up button until you hear an announcement in the headset

Alternatively, use the Jabra Sound+ app on your smartphone or Jabra Direct on your computer to turn Voice guidance on or off.

For the latest list of supported languages, refer to the Jabra Sound+ or Jabra Direct.

How to reset

Resetting the headset clears the list of paired devices and resets all settings.

Right earcup	Reset headset
	Reset pairing list and settings	Ensure the headset is powered on and you are not on a call. Then press and hold (3 sec) the Multi-function button and the Volume up button simultaneously until the LED lights up pink and your hear an announcement in the headset You will need to re-pair the headset to the Jabra Link 380 using Jabra Direct, or to your Smartphone.

Software and firmware

Jabra Sound+

Jabra Direct

Jabra Direct is computer software designed to support, manage and enable optimal functionality for Jabra devices.

Download the latest free version from jabra.com/direct

Update firmware

Firmware updates improve performance or add new functionality to Jabra devices.

The headset firmware can be updated using either Jabra Direct on your computer or the Jabra Sound+ app on your smartphone. Both applications will notify you when a firmware update is available.

The Jabra Link 380 Bluetooth adapter firmware can be updated using Jabra Direct on your computer.

Support

FAQ

View the FAQs on Jabra.com/help/evolve2-85

How to care for your headset

• Always store the headset in the supplied case.
• To prevent the depletion of the battery lifetime or capacity, avoid storing the headset in hot or cold environments, such as a closed car in summer, or in winter conditions.
• When exposed to rain, allow the headset sufficient time to dry. It may take up to one hour for the headset to dry thoroughly and power on.
• It is recommended to keep the headset between 20°C and 55°C (-4°F and 131°F).
• Do not store the headset for extended periods of time without recharging them (max. three months).
