Jabra BT2090 - Bluetooth Headset Manual

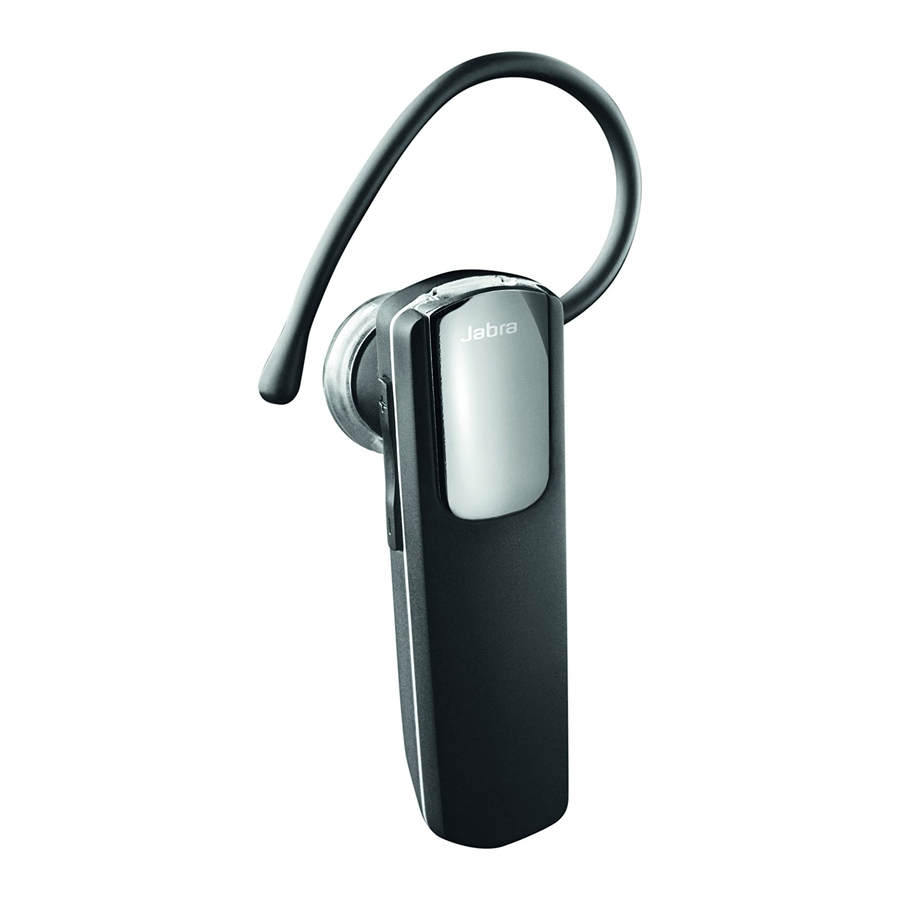

ABOUT YOUR JABRA BT2090

Overview

  1. Answer/end button
  2. On/Off button
  3. StatusDisplayTM
    With battery indicator and Bluetooth connection indicator
  4. Charging socket
  5. Volume up/down
  6. Ear hook

WHAT YOUR HEADSET CAN DO

Your Jabra BT2090 lets you do all this:

  • Answer calls
  • End calls
  • See battery status
  • See Bluetooth connection status
  • Reject calls*
  • Voice dialling*
  • Last number redial*
  • Mute
  • Transfer calls
  • Adjust volume

* Phone dependent

Specifications

  • Talk time 6 hours
  • Standby time 8 days
  • Bluetooth specification version 2.1 with EDR and eSCO
  • Weight 8 gram
  • Operating range up to 10 meters (approximately 33 feet)
  • Supported Bluetooth profiles: HFP, HSP
  • Internal rechargeable battery charged by wall charger
  • Always see your battery and connection status on the Jabra StatusDisplay™

GETTING STARTED

You should follow three steps before using your headset

  1. Charge your headset
  2. Activate Bluetooth on your mobile phone (refer to the manual for your mobile phone)
  3. Pair your headset to your mobile phone

The Jabra BT2090 is easy to operate. The answer/end button on the headset performs different functions depending on how long you press it.

Instruction Duration of press
Tap Press briefly
Press Approx: 1 second
Press and hold Approx: 5 seconds

CHARGE YOUR HEADSET

Make sure that your headset is fully charged for two hours before you start using it. Use the AC power supply to charge from a power socket. When the battery indicator has a solid red light, your headset is charging. When the headset is fully charged the battery indicator turns solid green for five minutes and is then turned off.

Use only the charger provided in the box - do not use chargers from any other devices as this may damage your headset. Please note: The lifetime of the battery will be significally reduced if your device is left uncharged for a long period. We therefore recommend that you recharge your device at least once a month.

TURNING YOUR HEADSET ON AND OFF

Slide the switch to the 'I' position to power on, and to the 'O' position to power off.

PAIRING IT WITH YOUR PHONE

Headsets are connected to phones using a procedure called 'pairing'. By following a few simple steps, a phone can be paired with a headset in a matter of minutes.

  1. Put the headset in pairing mode
  • When you turn on your Jabra BT 2090 for the first time, the headset will automatically start up on pairing mode – i.e. it is discoverable for your phone. When the headset is in pairing mode the Bluetooth status indication on the StatusDisplay™ is flashing.
  1. Set your Bluetooth phone to 'discover' the Jabra BT2090
  • Follow your phone's instruction guide. First make sure that Bluetooth is activated on your mobile phone. Then set your phone to discover new devices. This usually involves going to a 'setup,' 'connect' or 'Bluetooth' menu on your phone and selecting the option to 'discover' or 'add' a Bluetooth device.*
  1. Your phone will find the Jabra BT2090
  • Your phone will find the headset under name "Jabra BT2090".
    Your phone then asks if you want to pair with the headset.
    Accept by pressing 'Yes' or 'OK' on the phone. You may be asked to confirm with a passkey orPIN. Then use 0000 (4 zeros). Your phone will confirm. Then use 0000 (4 zeros). Your phone will confirm when pairing is complete and the Bluetooth status indication on the StatusDisplaytm will shift from flashing light to steady light
    PAIRING

* Phone dependent

Manual pairing mode

If you wish to use the headset with a different phone, or if the pairing process was interrupted, you can manually set the headset to pairing mode.

Make sure the headset is on. Press and hold the answer/end button for approximately 5 seconds until the Bluetooth icon turns from a steady light to a flashing light. Then repeat steps 2 and 3 in the above pairing guide.

CONNECTING WITH YOUR PHONE

Pairing is only needed the first time a headset and phone are used together. When the headset and phone have been paired once, they will automatically connect when the headset is on and Bluetooth is activated on the phone. The headset can be used when it is "connected" to the phone. If the devices are paired, but do not immediately connect, tap the answer/end button. When your headset is connected the Bluetooth connection icon in the StatusDisplay™ will be constant on for 3 seconds.

WEAR IT HOW YOU LIKE IT

The Jabra BT2090 can be worn on either ear with or without earhook. Simply remove the earhook if you prefer this wearing style or attach the earhook to fit left or right ear depending on your preference.

HOW TO

Answer a call

  • Tap (less than 1 sec) the answer/end button on your headset to answer a call.

End a call

  • Tap the answer/end button to end an active call.

Reject a call*

  • Press (approx 1 sec) the answer/end button when the phone rings to reject an incoming call. Depending on your phone settings, the person who called you will either be forwarded to your voice mail or will hear a busy signal.

Make a call

  • When you make a call from your mobile phone, the call will (subject to phone settings) automatically transfer to your headset. If your phone does not allow this feature, tap on the Jabra BT2090's answer/end button to transfer the call to the headset. Press answer/end button and volume up button at the same time, you can transfer the call back to phone.

Activate voice dialling*

  • Press the answer/end button. For best results, record the voice dialling tag through your headset. Please consult your phone's user manual for more information about using this feature.

Redial last number*

  • Double tap the answer/end button when the headset is connected to your phone.

Adjust sound and volume*

  • Tap the volume up or down to adjust the volume.

Mute/un-mute

  • To mute, press both volume up and down at the same time. A low beep alert plays during a muted call.
  • To un-mute, tap either of the volume buttons.

Call waiting and placing a call on hold*

  • This lets you put a call on hold during a conversation and answer a waiting call.
  • Press the answer/end button once to put the active call on hold and answer the waiting call.
  • Press the answer/end button to switch between the two calls.
  • Tap the answer/end button to end the active conversation.

* Phone dependent

HOW THE STATUSDISPLAY™ WORKS

Bluetooth Indicator
Indicates if your headset is connected to your phone
  • Solid light means headset is connected to your phone
  • Flashing light means headset is in 'pairing mode' and ready to be connected to a new phone
Battery Indicator
Indicates battery level and if headset is turned ON
  • Green light indicates that the headset has more than 10 minutes of talk time remaining
  • Red light indicates that the headset has less than 10 minutes of talk time remaining

To save battery the Jabra StatusDisplayTM is turned off after 3 seconds.

Get an instant status from the Jabra StatusDisplay™ by a tap on any button on the headset when you are not on a call.

TROUBLESHOOTING & FAQ

I hear crackling noises

  • Bluetooth is a radio technology, which means it is sensitive to objects between the headset and the connected device. It is designed for the headset and the connected device to be used within 33 feet (10 meters) of each other, with no major objects in the way (walls, etc.).

I cannot hear anything in my headset

  • Increase the volume in the headset.
  • Ensure that the headset is paired to the device that you wish to use.
  • Make sure your phone is connected to the headset by tapping the Answer/End button. See the Jabra StatusDisplay™.

I am having pairing problems

  • You may have deleted your headset pairing connection in your mobile phone.
    Follow the pairing instructions.

I want to reset the headset

It is possible to reset and test the headset by 'Press and hold' the volume down and answer/end buttons at the same time. In the StatusDisplayTM the battery icon and Bluetooth icon will flash 5 times simultaneously. In this mode, the pairing list is reset, and you can test if the headset works as you will be able to hear audio in the speaker from the microphone.

The headset will automatically turn off after approx. 10 seconds.

The next time you power on, the headset will go into pairing mode as the first time you powered your new BT2090 on.

Will the Jabra BT2090 work with other Bluetooth equipment?

  • The Jabra BT2090 is designed to work with Bluetooth mobile phones. It can also work with other Bluetooth devices that are compliant with Bluetooth version 1.1 or higher and support a headset and/or hands-free profile.

I cannot use Reject call, call on hold, Redial or voice dialling

These features are dependent on the ability of your phone to support a hands-free profile. Even if the hands-free profile is implemented reject calll, call hold and voice dialling are optional features which are not supported by all devices. Please consult your device manual for details.

NEED MORE HELP?

  1. Web: www.jabra.com
    (for the latest support info and online User Manuals)
  2. E-mail:
Deutsch support.de@jabra.com
English support.uk@jabra.com
Español support.es@jabra.com
Français support.fr@jabra.com
Italiano support.it@jabra.com
Nederlands support.nl@jabra.com
Polska support.pl@jabra.com
Scandinavian support.no@jabra.com
Россия support.ru@jabra.com
Information: info@jabra.com
Phone:
Belgique/Belgie 00800 722 52272
Danmark 702 52272
Deutschland 0800 1826756
Die Schweiz 00800 722 52272
España 900 984572
France 0800 900325
Italia 800 786532
Luxembourg 00800 722 52272
Nederland 0800 0223039
Norge 800 61272
Österreich 00800 722 52272
Polska 0801 800 550
Portugal 00800 722 52272
Suomi 00800 722 52272
Sverige 020792522
United Kingdom 0800 0327026
Россия +7 495 660 71 51
International 00800 722 52272

TAKING CARE OF YOUR HEADSET

  • Always store the Jabra BT2090 with the power off and safely protected
  • Avoid storage at extreme temperatures (above 45°C/113°F – including direct sunlight – or below -10°C/14°F). This can shorten battery life and may affect operation. High temperatures may also degrade performance.
  • Do not expose the Jabra BT2090 to rain or other liquids.


EXCESSIVE VOLUME LEVELS CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE.

Headsets are capable of delivering sounds at loud volumes and high pitched tones which under certain circumstances can result in permanent hearing loss damage. Avoid prolonged use of the headset at excessive sound pressure levels. Please read the safety guidelines below prior to using this headset.

You can reduce the risk of hearing damage by following these safety guidelines

  1. Prior to using this product follow these steps
  • Before putting on the headset, turn the volume control to its lowest level,
  • Put the headset on, and then
  • Slowly adjust the volume control to a comfortable level.
  1. During the use of this product
  • Keep the volume at the lowest level possible and avoid using the headset in noisy environments where you may be inclined to turn up the volume;
  • If increased volume is necessary, adjust the volume control slowly;
  • If you experience discomfort or ringing in your ears, immediately discontinue using the headset and consult a physician.

With continued use at high volume, your ears may become accustomed to the sound level, which may result in permanent damage to your hearing without any noticeable discomfort.

SAFETY INFORMATION!

  • Use of a headset will impair your ability to hear other sounds. Use caution while using your headset when you are engaging in any activity that requires your full attention.
  • If you have a pace maker or other electrical medical devices, you should consult your physician before using this device.
  • This package contains small parts that may be hazardous to children and should be kept out of reach from children. The bags themselves or the many small parts they contain may cause choking if ingested.
  • Never try to dismantle the product yourself. None of the components can be replaced or repaired by users. Only authorized dealers or service centers may open the product. If any parts of your product require replacement for any reason, including normal wear and tear or breakage, contact your dealer.
  • Avoid exposing your product to rain, moisture or other liquids to protect against damage to the product or injury to you.
  • Observe all signs and instructions that require an electrical device or R areas such as hospitals or aircrafts.

Remember: Always drive safely, avoid distractions and follow local laws!

Using the headset while operating a motor vehicle, motorcycle, watercraft or bicycle may be dangerous, and is illegal in some jurisdictions, just as use of this headset with both ears covered while driving is not permitted in certain jurisdictions. Check your local laws. Use caution while using your headset when you are engaging in any activity that requires your full attention. Also, do not take notes or read documents.

BUILT-IN BATTERY CARE:

  • Your device is powered by a rechargeable battery.
  • The full performance of a new battery is achieved only after two or tree complete charge and discharge cycles.
  • The battery can be charged and discharged hundreds of times, but will eventually wear out. Recharge your battery only with the provided approved chargers designated for this device.
  • Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime.
  • If left unused, a fully charged battery will lose its charge over time.
  • Leaving the device in hot or cold places, such as in a closed car in the summer and winter conditions, will reduce the capacity and lifetime of the battery.
  • Always try to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold battery may not work temporary, even when the battery is fully charged. Battery performance is particularly limited in temperatures well below freezing.
  • Batteries may also explode if damaged.


Battery warning!


  • The battery used in this device may present a risk of fire or chemical burn if mistreated.
  • Do not attempt to open the product or replace the battery. It is built-in and not changeable.
  • Use of other batteries may present a risk of fire or explosion and the warranty will be terminated.
  • Recharge your battery only with the provided approved chargers designated for this device.
  • Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste.
  • Always store product out of the reach of children.

CHARGER CARE:

  • Do not attempt to charge your headset with anything other than the AC adaptor provided. The use of any other types may damage or destroy the headset and may invalidate any approval or warranty, and may be dangerous. For availability of approved enhancements, please check with your dealer.


The headset cannot be used while charging


Charger warning!

  • When you disconnect the power cord or any enhancement, grasp and pull the plug, not the cord, never use a charger that is damaged.
  • Do not attempt to disassemble the charger as it may expose you to dangerous electric shock. Incorrect reassembly can cause electric shock or fire when the product is subsequently used.
  • Avoid charging your headset in extremely high or low temperatures and do not use the charger outdoors or in damp areas.

WARRANTY

Limited One (1) -year Warranty
GN Netcom A/S ("GN") warrants this Product to be free from defects in materials and workmanship (subject to the terms set forth below) for a period of one (1) year from the date of purchase ("Warranty Period").

CERTIFICATION

CE
This product is CE marked according to the provisions of the R & TTE Directive (99/5/EC). Hereby, GN Netcom A/S, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information please consult http://www.jabra.com.

Bluetooth
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom A/S is under license. Other trademarks and trade names are those of their respective owners.

Dispose of the product according to local standards and regulations. www.jabra.com/weee

GLOSSARY

  1. Bluetooth is a radio technology that connects devices, such as mobile phones and headsets, without wires or cords over a short distance (approx. 10 meters/33 feet). Bluetooth is safe to use. It is secure too, so once a connection has been made no-one can listen in and there is no interference from other Bluetooth devices either. Get more information at www.bluetooth.com.
  2. Bluetooth profiles are the different ways that Bluetooth devices communicate with other devices. Bluetooth phones support the headset profile, the hands-free profile or both. In order to support a certain profile, a phone manufacturer must implement certain mandatory features within the phone's software.
  3. Pairing creates a unique and encrypted link between two Bluetooth devices and lets them communicate with each other. Bluetooth devices will not work if the devices have not been paired.
  4. Passkey or PIN is a code that you enter on your Bluetooth enabled device (e.g. a mobile phone) to pair it with your Jabra BT2090. This makes your device and the Jabra BT2090 recognize each other and automatically work together.
  5. Standby mode is when the Jabra BT2090 is passively waiting for a call. When you 'end' a call on your mobile phone, the headset goes into standby mode.


Dispose of the product according to local standards and regulations.

www.jabra.com/weee

© 2009 GN Netcom A/S. All rights reserved. Jabra ® is a registered trademark of GN Netcom A/S. All other trademarks included herein are the property of their respective owners. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom A/S is under license. (Design and specifications subject to change without notice).
