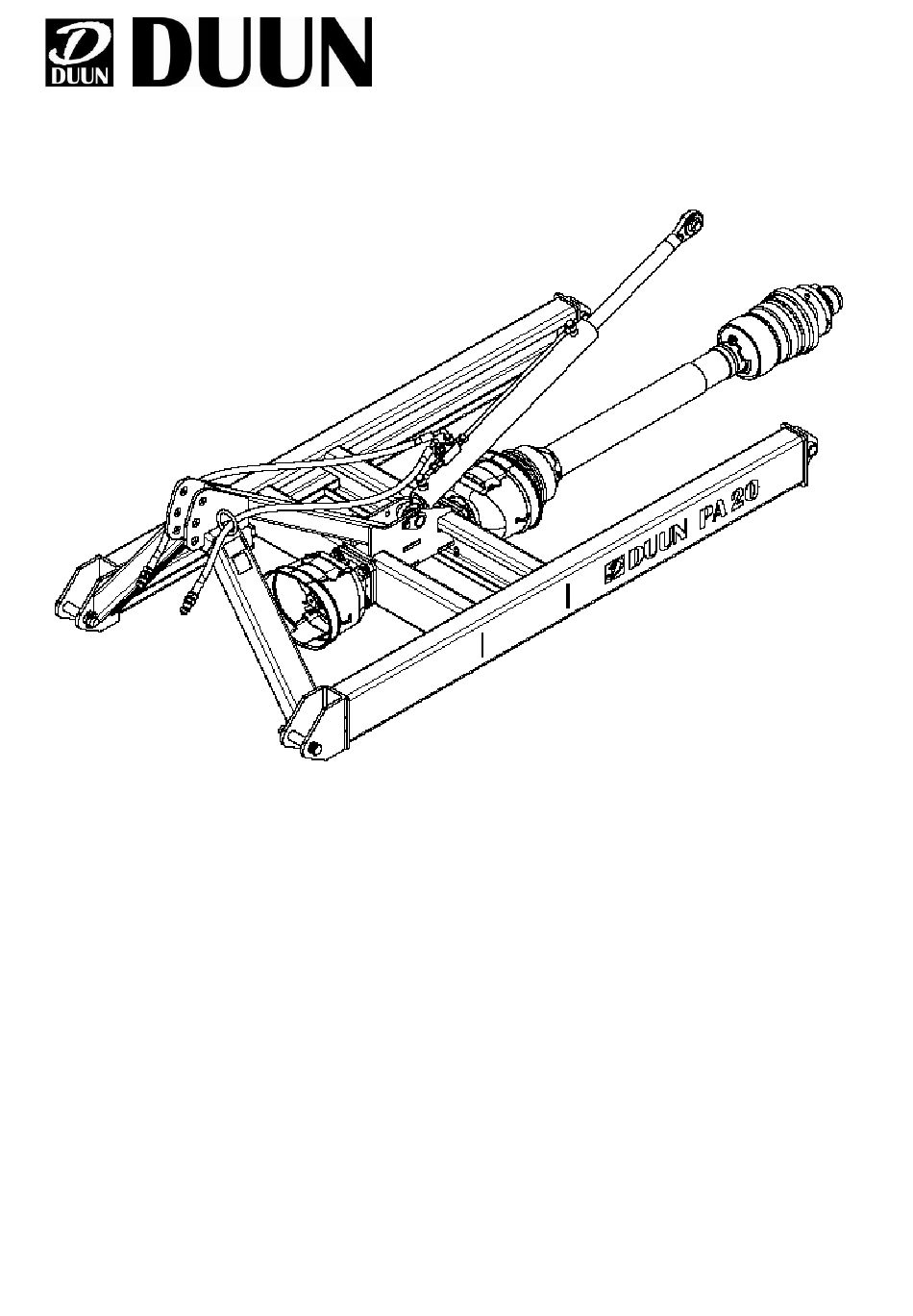

- Page 1 Duun Industrier as 7630 Åsen, Norway www.duun.no PA20 Instruction manual...
-
Page 2: Machine Indetification
Congratulations on your Duun PA20. All Duun tractor operated machines have been engineered and tested in close cooperation with representative users to produce functionally safe and user-friendly machines. Please read this instruction manual before using the machine. Good luck! Machine identification Serial number and manufacturer are specified on the metal plate (F) Always state the serial number in all inquiries regarding service. -
Page 3: Table Of Contents
CONTENT MACHINE INDETIFICATION SAFETY WARRANTY TERMS SLURRY MIXER ADAPTER TECHNICAL DATA ASSEMBLY INSTRUCTIONS ROTATING SHAFT SLURRY MIXER ADAPTER WITH MIXER AND TOWER ASSEMBLY SERVICE AND MAINTENANCE SHEAR BOLT COUPLING DISCONNECTION GAS HAZARD DECLARATION OF CONFORMITY... -
Page 4: Safety
Safety All operators, mechanics and the owner must always work carefully with agricultural machinery. Read and observe safety instructions in this instruction manual. Be particularly aware of warning signs with this symbol, it marks measures that must be carried out in order to avoid accidents. The symbol appears in the instruction manual and on warning signs on the machine. - Page 5 Power transmission shaft The tractor is disengaged and the handbrake is applied before the shaft is connected to the tractor's PTO. Max. PTO speed is 540 r.p.m. Make sure that there is the same angle in both joints (ie the pin on the tractor is parallel to the pin on the gearbox).
- Page 6 Contact with live wires etc. during transport Be aware that the propeller can stick out over the tractor during transport and there is a risk of contact with live wires - railway underpasses during movement! Safe transport The propeller has a very long turning radius behind the tractor.
-
Page 7: Warranty Terms
Replaced parts are to be kept until a decision has been made with reference to the claim and the replaced parts are to be forwarded to Duun Industrier as for assessment if so required. As the employment of the product is beyond our control, we may only guarantee the quality and do not accept liability for the product's general performance. -
Page 8: Slurry Mixer Adapter Technical Data
Slurry mixer adapter technical data Features Slurry mixer adapter Net weight Approx.170 kg Width 994 mm Height 723 mm Length 2070 mm PTO shaft input speed 1000rpm... -
Page 9: Assembly Instructions
Assembly instructions Rotating shaft Before connecting the power transmission shaft, ensure the following points. Make sure that the shaft's protective tubes are intact and the two halves of the shaft fit freely into each other. The length of the power transmission shafts must be adjusted thoroughly, if it is too long it can damage the bearing in the tractor's PTO or the propeller's bearings. -
Page 10: Slurry Mixer Adapter With Mixer And Tower Assembly
Slurry mixer adapter with mixer and tower assembling The slurry mixer adapter can be used between tractor and slurry mixer or between slurry mixer tower and slurry mixer. Connection between tractor and slurry mixer is made by connecting the slurry mixer adapter to the tractor before it is assembled with the slurry mixer. -
Page 11: Service And Maintenance
Service and maintenance First of all Before cleaning, lubricating, repairing or adjusting the machine, stop the engine and activate the handbrake and remove the key during work. Pay special attention to safety during maintenance work, park the machine in accordance with specified safety rules. Subsequent inspection of screw connections. -
Page 12: Gas Hazard
Gas hazard 1. Measures and points in connection with slurry gas. 2. Extraction fan in the basement contributes to negative pressure and extracts the gas. 3. If there is an open connection between the cellar and the animals housing, the grates can be covered with plastic to contribute to negative pressure when an extraction fan is used.
