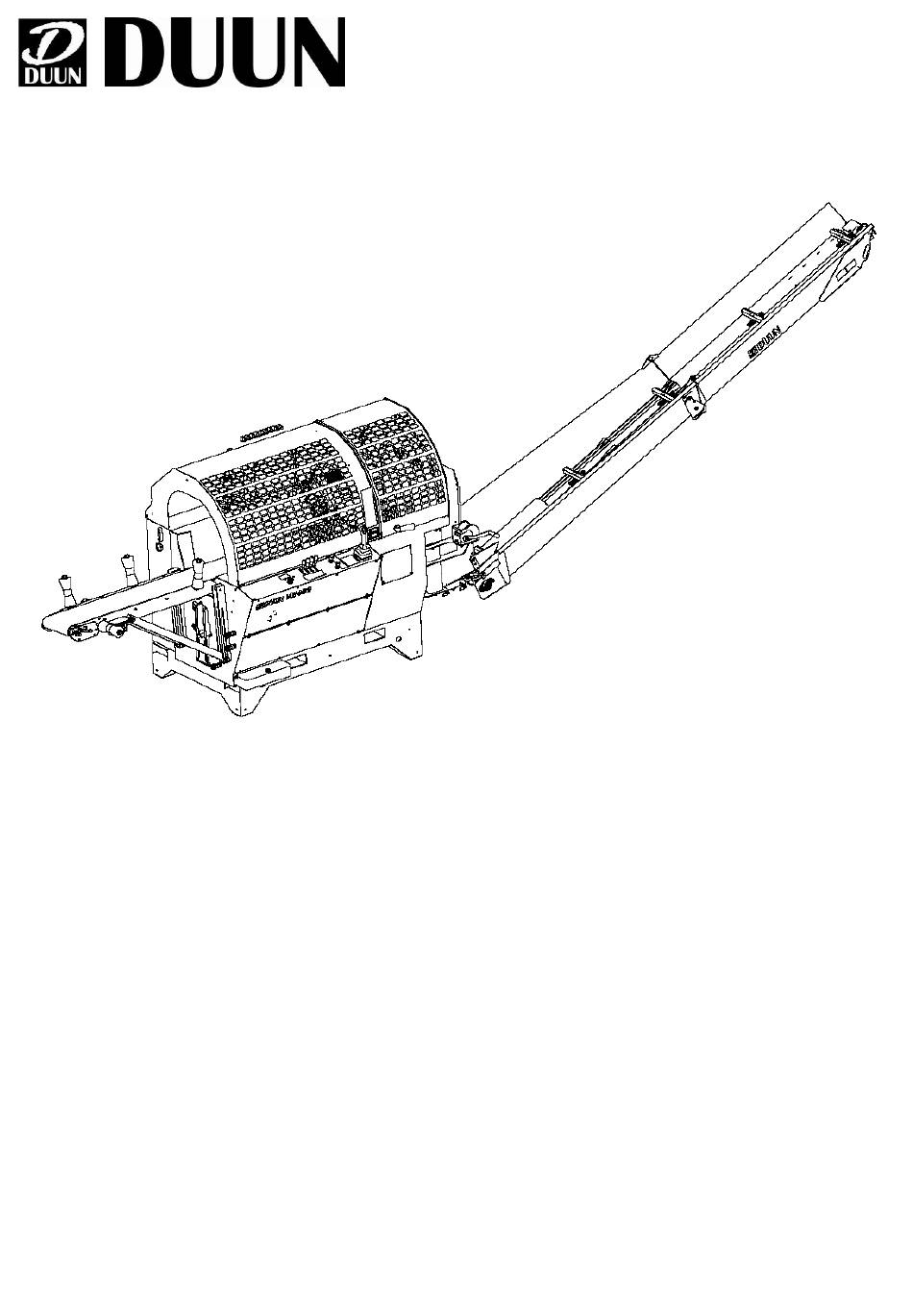

- Page 1 Duun Industrier as 7630 Åsen, Norway www.duun.no VM450 Instruction manual...
-
Page 2: Machine Indetification
Congratulations on your Duun VM450 firewood processor. All Duun tractor operated machines have been engineered and tested in close cooperation with representative users to produce functionally safe and user-friendly machines. Please read this instruction manual before using the machine. Good luck! Machine identification Serial number and manufacturer are indicated on badge (A). -
Page 3: Table Of Contents
DJUSTMENT OF THE POSITION OF THE SPLITTER CHAIN SHARPENING AND TIGHTENING ADJUSTMENT OF THE CHAIN LUBRICATION SERVICE AND MAINTENANCE AILY MAINTENANCE EEKLY MAINTENANCE ONTHLY MAINTENANCE NNUALY MAINTENANCE USER MANUAL FOR DISPLAY IN VM450 TART ISPLAY MENU LARMS DECLARATION OF CORNFORMITY... -
Page 4: Safety
Safety All operators, mechanics and the owner must always work carefully with agricultural machinery. Read and observe safety instructions in this instruction book. Be particularly aware of warning signs with this symbol, it marks measures that must be carried out in order to avoid accidents. The symbol appears in the instruction manual and on warning signs on the machine. - Page 5 Safe connection and use Do not allow anyone to stay between the machine and the tractor when the machine is connected to the tractor. The same applies during the use of the machine. Make sure that the connection is carried out in a safe manner. Safety in case of interruptions and maintenance Remember always to stop the tractor’s engine...
- Page 6 Contact with current-carrying cables etc. during transport. Please note that the firewood processor can tip over the tractor during transport and there is a risk of contact with live wires, railway underpasses etc.! Conveyor belt – transporter Do not stay under the conveyor when it is tensioned to avoid damage of an uncontrolled fall during use.
- Page 7 Safe transportation Before the machine is moved, the feed belt and conveyor (both in the folded-up position as outlined) must be strapped together with a load strap to ensure that they cannot fall down. The loading stop has an attachment at the bottom of the feed belt and secures the belt from falling off during transport.
-
Page 8: Warranty Terms
Warranty terms Duun VM450 has 12 months guarantee against defects in materials and workmanship. Parts that are not originally manufactured by Duun Industrier as, for example, wheels, hydraulic parts, etc. are subject to these suppliers’ guarantees and terms. Parts that are considered wearing parts are not included in the warranty - these are specified in a separate table at the bottom of this page. -
Page 9: Delivery Form Of Duun Firewood Processor
DELIVERY FORM OF DUUN FIREWOOD PROCESSOR MACHINE INFORMATION Model _ _ _ _ _ _ _ _ _ _ _ Serial no. _ _ _ _ _ _ _ _ _ _ _ Purchase date _ _ _ _ _ _ _ _ _ _ _... -
Page 10: Technical Data
Technical data Features: VM450 Net weight 1450 kg Heigh transport mode 2540 mm Width transport mode 2665 mm Depth transport mode 1470 mm RPM PTO input 400 rpm Cutting diameter max 450 mm Splitting force max 16000 kg Saw chain drive... -
Page 12: Transport And Handling Before Use
Transport and handling before use Transport and handling before use The hull for the VM450 is equipped with a fork pocket (A) for handling with a forklift or pallet forks. Please note that a single firewood processor weighs approximately 1450 kg. Use... -
Page 13: Hydraulic Oil Quality
Hydraulic oil quality The machines' ability to function will mostly depend on the hydraulic oil being intact. The biggest dangers to oil quality are: • Too high a temperature, which is accompanied by poor lubrication and the risk of malfunctions and damage to expensive components such as valves, pumps and motors. -
Page 14: Power Transmission Shaft
NB! Too long shaft can lead to spraining of the shaft and risk of overloading the tractor's PTO and the gearbox in VM450. Please lubricate the power transmission shaft before use. The locking chains for the protective covers must always be attached to suitable fasteners to prevent the covers from rotating. -
Page 15: Feeding Belt Preparation
Feeding belt preparation Fold the feed belt into place by loosening the locking pin at point G which locks it off. The band is tightened by adjusting the screws at point H. The band is sufficiently tensioned if it feeds the wood without slurping. -
Page 16: Practical Use
Practical use Conditions The machine must not be used until the operator has carried out the following: • Has read the instruction manual and knows how the machine works and how to control it. • Has familiarized himself with and aligned himself with the information about safety described on pages 4 to 7 of the instruction manual. -
Page 17: The Main Functions-Feeding- Conveyor Belt Speed Regulation
The main functions-feeding- conveyor belt speed regulation The material to be cut is fed onto the infeed belt. The main functions are: A. Move the feeding belt forward/backward. B. Operate the cutting blade up and down. C. Triggering of cutting. D. -
Page 18: Hydraulic Knife Lift
Hydraulic knife lift The splitting knife is adjusted up and down with the handle K. To change the knife, run the knife all the way to the top. Loosen the bolt that holds the knife in the lower edge and lift out. Stuck material If the splitter is unable to split the wood - the piston is driven back by moving the joystick... -
Page 19: Chain Sharpening And Tightening
Blunt chains and skewly sharpened chains entail great wear on the saw chain sword and risk of extra costs and complications. To avoid this, the Duun VM450 is designed that the saw chain must always be removed from the machine for sharpening or replacement. -
Page 20: Adjustment Of The Chain Lubrication
To change the chain, loosen both screws B. The screw A is loosened so far that the chain can be unhooked at the rear for maintenance or replacement. To tighten the chain, loosen screws B and tighten with screw A. Check the chain tension by pulling the chain in the middle of the long side of the bar. -
Page 21: Service And Maintenance
Service and maintenance Before opening any covers and carrying out service and maintenance, always switch off the machine to avoid damage. NB! There are movable parts in the mechanism with great power and a risk of crushing. The machine should never be run with the covers removed. The machine is factory set. -
Page 22: Weekly Maintenance
Weekly maintenance Open all lids and safety covers and blow clean of dirt and grime. Sawdust and dirt will settle inside the machine and it is important to remove this in order for the machine to have optimal cooling and for all functions to work. - Page 23 Item no. 2251065 Clean and lubricate the machine properly between each season. The VM450 has many bearing points, many of which are lightly loaded and are therefore equipped with one-time lubricated bearings. Other bearings are mainly flanged bearings that should be moderately lubricated. The main rule here...
-
Page 24: User Manual For Display In Vm450
USER MANUAL FOR DISPLAY IN VM450 Applies to software version v0.0 – v2.2. Start-up Safety Check Starting the machine, it will be necessary for safety reasons to test the safety switch on the firewood processor's cover. The cover must be opened and closed. -
Page 25: Display Menu
Display menu By pressing the joystick's left green button, you can scroll through the display's menu. This can only be done with the cover in the open position. The menu has seven images, and you will scroll through them continuously by pressing the button. -
Page 26: Alarms
Menu picture 6 No of alarms: Oil overheated Counts the number of times the oil temperature has been too high. Menu picture 7 Software version Shows which software version is on the device. Alarms Check power supply The alarm occurs if the supply voltage is below 10.8 VDC or above 14.4 VDC.
