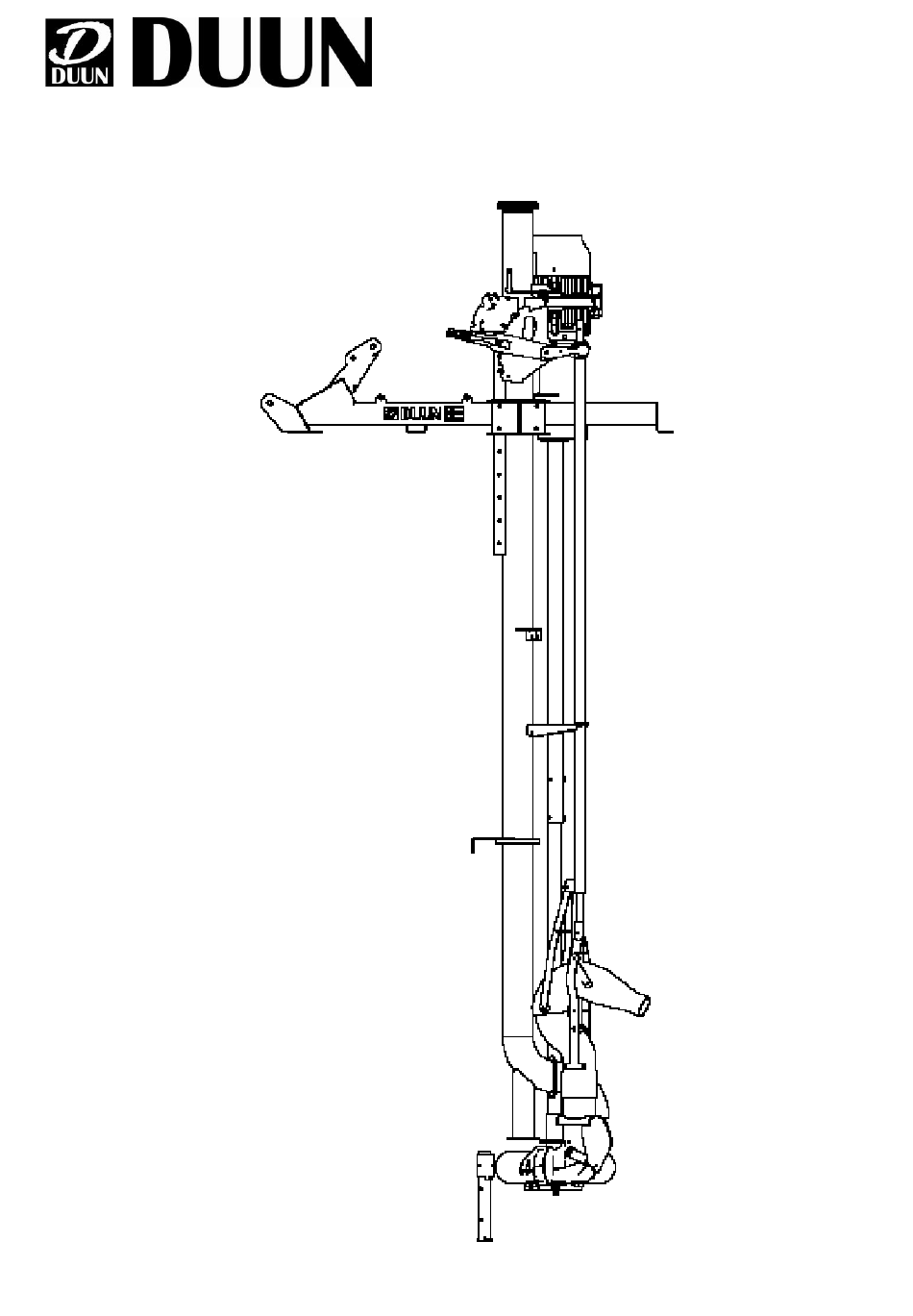

- Page 1 Duun Industrier as 7630 Åsen, Norway www.duun.no SP200 EL Rod...
-
Page 2: Machine Indetification
Congratulations on your Duun SP200 EL slurry pump. All Duun tractor operated machines have been engineered and tested in close cooperation with representative users to produce functionally safe and user-friendly machines. Please read this instruction manual before using the machine. -
Page 3: Table Of Contents
CONTENT MACHINE INDETIFICATION SAFETY WARRANTY TERMS TECHNICAL DATA ASSEMBLY INSTRUCTION IMMERSION TO THE SLURRY STORAGE LOADING SYSTEM INSTALLATION STIRRING IMPELLER ADJUSTMENT IMPELLER STORAGE MAINTENANCE/REPLACEMENT SERVICE AND MAINTENANCE TROUBLESHOOTING FORM GAS DANGER STARTER INSTALLATION INSTRUCTION MANUAL STARTUP WIRELESS RECEIVER PROGRAMMING RETROFITTING OF WIRELESS CONTROL ELECTRICAL SCHEME STARTER CABINET 230 V DECLARATION OF CORFOMITY STARTER CABINET 230 V ELECTRICAL SCHEME STARTER CABINET 400V... -
Page 4: Safety
Safety All operators, mechanics and the owner must always work carefully with agricultural machinery. Read and observe safety instructions in this instruction book. Be particularly aware of warning signs with this symbol, it marks measures that must be carried out in order to avoid accidents. The symbol appears in the instruction manual and on warning signs on the machine. - Page 5 Variable load on the loading stand Ensure that the loading rack is anchored, loaded that it is stabilized during loading. If the pump has a side-mounted loading system: 131279004, it is important to empty the hose of slurry before frost occurs, so that the hose is not damaged by frost blasting.
- Page 6 Safe transportation The pump has a very long turning radius behind the tractor. This can cause dangerous traffic situations when exiting and turning on a busy road. Be aware of this and avoid unexpected situations. Sudden danger during maneuver The pump forms a long weight arm at the back of the tractor. This means that it can lift up the front of the tractor during removal from the warehouse.
-
Page 7: Warranty Terms
Replaced parts are to be kept until a decision has been made with reference to the claim and the replaced parts are to be forwarded to Duun Industrier as for assessment if so required. As the employment of the product is beyond our control, we may only guarantee the quality and do not accept liability for the product's general performance. -
Page 8: Technical Data
Technical data Weight: from 500-540 kg Total length of the pump A Complete 3000-4000mm Walking distance vertical nozzle 310mm Maximum vertical nozzle height 1320mm Minimum vertical nozzle height 810mm Nozzle diameters 100mm is standard 75mm is optional equipment Support feg Handle for outlet tap Handle for nozzle height adjustment Handle for nozzle rotation... -
Page 9: Assembly Instruction
Assembly instruction The pump is delivered packed on a EUR pallet with all relevant information. These are picked out and connected to the tractor's front loader, or to three-point linkage. The pump is lifted so high that the tractor attachment can be driven under. 2 pcs. M16x140 screws D are attached. -
Page 10: Immersion To The Slurry Storage
Immersion to the slurry storage Before immersing the pump in the shaft opening, ensure that the outlet nozzle points straight ahead or backwards in the tractor's longitudinal direction. In order for the nozzle to take up as little space as possible during lowering, it is set in a position that it points upwards as much as possible. - Page 11 Pump attached to sump with edge attachment Lower into the reservoir, the fixing brackets marked A, B, E and F are adapted to the reservoir's shape and thickness. Fasten with expansion bolts or through screws to the edge of the reservoir. Support leg D keeps the distance between the pump and the sump wall.
-
Page 12: Loading System Installation
Loading system installation SP200 EL Rod pump is supplied with 2x45' PP plastic bends at each end. The loading system is delivered fully assembled. During expanding, use normal 160mm PP pipe which can be obtained from a local plumber. Support legs 2 pcs. of 30x30 square tube is mounted in a pre- mounted bracket and adjusted in height with D 2 pcs. -
Page 13: Stirring
Stirring 1. Stirring causes a danger of gas - take safety measures and check! 2. Close the outlet opening to the loading tube by placing the loading handle A in position R and locking it in this position with ring pin B. 3. -
Page 14: Impeller Adjustment
Impeller adjustment To maintain a good cutting capacity, the distance between the impeller and the inlet ring must be 2-3mm (A) The distance is checked at least once per season or after 40 hours. If the distance is too small, a bump may occur which causes vibrations. -
Page 15: Service And Maintenance
Lubrication and maintenance Daily or every Every other day Every season Every second year 8 hours or every or every Every 10,000 hours 40 hours 100 hours A. Electric motor B. Universal joint grease nipple C. Bearing under Electric motor/coupling grease nipple X (7-8 gram) D. -
Page 16: Troubleshooting Form
Troubleshooting form Problem Cause Solution Low capacity Pumping air around Add water and flush down the area the pump housing. around the pump. Do not throw away soft mass to prevent blocking with a dry mass. Raise the pump with the hydraulic cylinder during operation. -
Page 17: Gas Danger
Gas danger Measures and points in connection with slurry gas. 1. Extraction fan in the basement contributes to the negative pressure and draws out the gas. 2. . If there is an open connection between the cellar and the animals housing , the grates can be covered with plastic to contribute a negative pressure when an extraction fan is used. -
Page 18: Starter Installation
Starter installation The electrical cabinet must be installed protected from weather conditions and direct sunlight. This prevents moisture penetration and high temperatures in the cabinet. Cabling to electricity: The wiring to the cabinet must be carried out by an electrician. A cable must also be installed on the motor. -
Page 19: Instruction Manual Startup
User's manual starter cabinet: 1. Start of pump a. Turn on the main switch [1] A red light comes on in the cabinet [3] b. Press START [2] Red light turns off, green light turns on [2] 2. Stop the pump a. -
Page 20: Wireless Receiver Programming
Wireless receiver programming (optional) 1 Make sure that the cable between the control cabinet and the pump is disconnected. This is to avoid accidental starting of the pump during programming. 2 Check that the PWR is lit. 3 Press and hold button 1 until Q1 starts blink. About 3 seconds. 4 Press button 1 once. -
Page 21: Retrofitting Of Wireless Control
Retrofitting of wireless control (optional equipment) 1 The wireless receiver is mounted on the DIN rail. 2 There is a small latch (A) on the terminal blocks. This must be removed. 3 Install the plug (B) from the control unit to the terminal blocks. 4 Follow the instructions for programming the wireless receiver. -
Page 22: Electrical Scheme Starter Cabinet 230 V
Electrical scheme starter cabinet 230 V... -
Page 23: Declaration Of Corfomity Starter Cabinet 230 V
Declaration of conformity starter cabinet 230V... -
Page 24: Electrical Scheme Starter Cabinet 400V
Electrical scheme starter cabinet 400V... -
Page 25: Declaration Of Conformity Starter Cabinet 400V
Declaration of conformity starter cabinet 400V...
