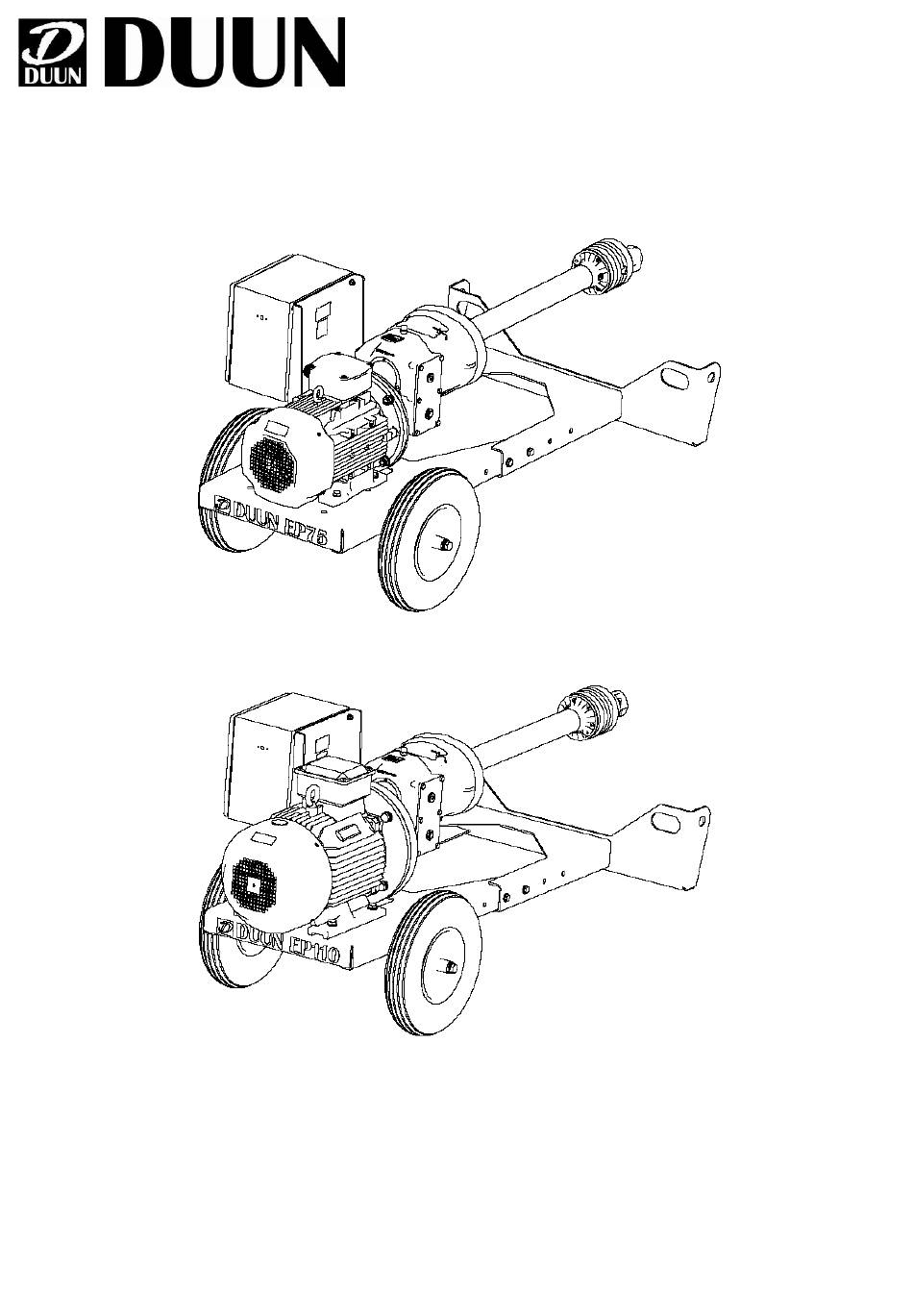

- Page 1 Duun Industrier as 7630 Åsen, Norway www.duun.no EP75-EP110 El-PTO Instruction manual...
-
Page 2: Machine Indetification
Congratulations on the purchase of Duun EP75-110 El-PTO. All Duun tractor operated machines have been engineered and tested in close cooperation with representative users to produce functionally safe and user-friendly machines. Please read this instruction manual before using the machine. -
Page 3: Table Of Contents
CONTENT MACHINE INDETIFICATION SAFETY WARRANTY TERMS TECHNICAL DATA PREPARATION FOR USE TTACHMENT TO THE FIREWOOD PROCESSOR OWER CONNECTION EARBOX DECLARATION OF CONFORMITY... -
Page 4: Safety
SAFETY All operators, mechanics and the owner must always work carefully with agricultural machinery. Read and observe safety instructions in this instruction manual. Be particularly aware of warning signs with this symbol, it marks measures that must be carried out in order to avoid accidents. The symbol appears in the instruction manual and on warning signs on the machine. - Page 5 Usage options The machines are only designed to drive Duun firewood processors which must have 400 rpm on the spigot. EP75 is suitable for VM320 and VM370. EP110 is suitable for VM320, VM370 and VM370x ATTENTION! The electric drive is not a tractor and cannot be used to operate machines that need more power than the engine is rated for.
-
Page 6: Warranty Terms
Duun El-PTO EP75 and EP110 has 12 months guarantee against defects in materials and workmanship. Parts that are not originally manufactured by Duun Industrier as, for example, wheels, hydraulic parts, etc. are subject to these suppliers’ guarantees and terms. Parts that are considered wearing parts, are not included in the warranty, these are specified in the bottom of this page. -
Page 7: Technical Data
Technical data Features: EP75 EP110 Weight Length 1439 mm 1577,5 mm Height 769,5 mm 769,5 mm Width 945 mm 945 mm Power requirement 230V 7,5 kw 32A fuse 11 kw 63A fuse Power requirement 400V 7,5 kw 16A fuse 11 kw 32A fuse EP75 EP110... -
Page 8: Preparation For Use
Preparations for use Attachment to the firewood processor The EP75 and EP110 have wheels and can be easily moved by driving them like a wheelbarrow. They are attached to the firewood processor using drawbar bolts illustrated with A. Power connection The electrical operation requires three phases and a fuse according to the counter size and volt. -
Page 9: Gearbox
Maintenance The machine needs regular cleaning to keep the cooling of the electric motor and gearbox. Blow clean with compressed air. Gearbox Recommended oil: Gearbox oil Mereta 220 synthetic oil (Statoil) or Esso Syntetic EP150. Other oil must meet standard SAE90EP or GL5 Mereta 220 - 1 ltr.
