Brooks EIB140e Series Instruction Manual

230v- smoke & heat alarms
Hide thumbs

Advertisement

Quick Links

Download this manual

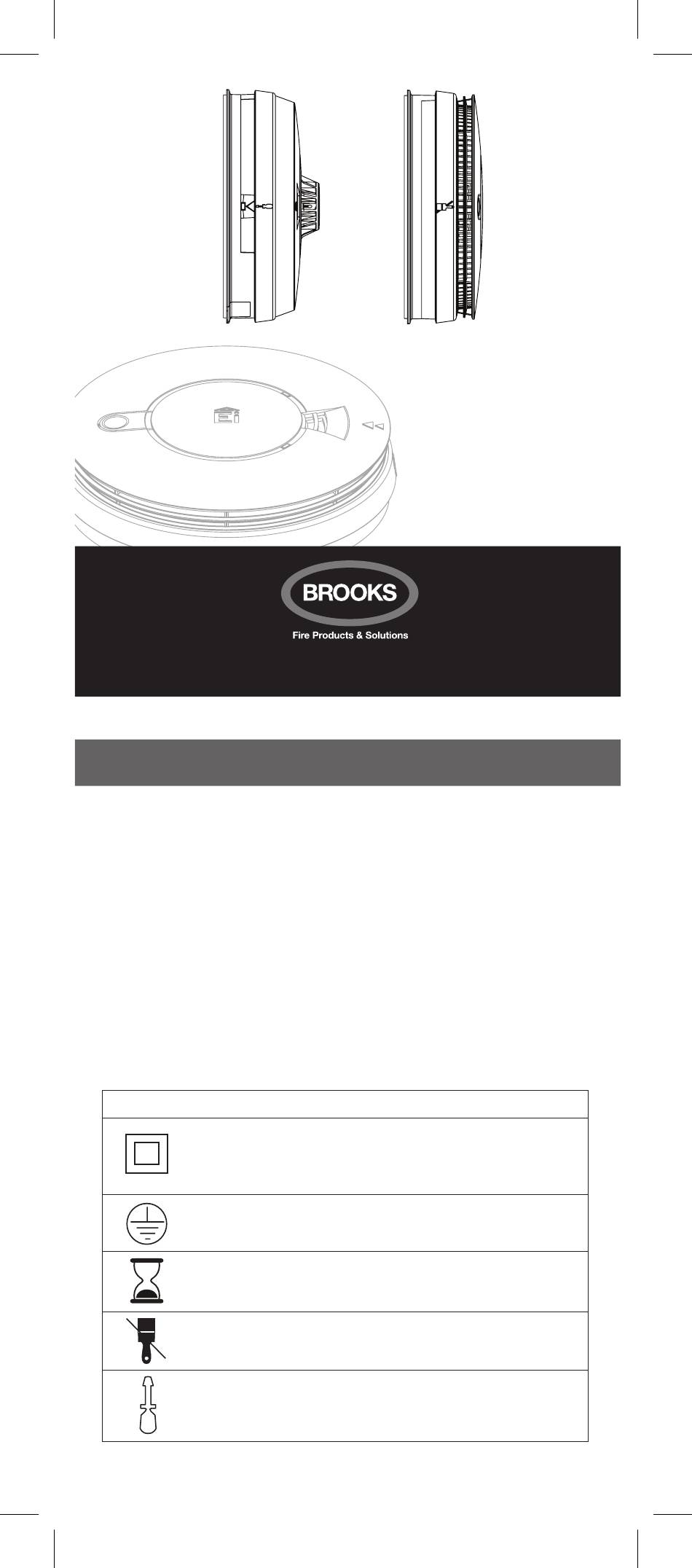

230V~ SMOKE & HEAT ALARMS
Read and retain carefully for as long as the product is
being used. It contains vital information on the operation
and installation of your Alarm. The manual should be
regarded as part of the product.
If you are just installing the unit, the manual MUST be
given to the householder. The manual is to be given to
any subsequent user.
Symbol Glossary
The symbols on this page are used in accordance with EN
62368-1, IEC 60417, ISO 7000 and other applicable standards.
They are used to convey information on the safe and effective use
of our devices. These symbols may be used on the device itself,
on its packaging or in associated documentation.
Symbol
© Brooks 2023
with Alkaline Battery Backup
Instruction Manual
Description
Class II Equipment
A Class II (class 2) or double insulated electrical device
is designed in such a way that it does NOT require a
safety connection to electrical earth (ground).
Protective earth
This identifies protective earthing terminals.
End of life
This indicates the date after which the device
should be replaced.
Crossed Paint Brush
This indicates that the device must not be painted.
Screwdriver
This indicates the location of the releasing latch
used to detach the Alarm from its mounting plate.
1
EIB140e Series
P/N B20684 Rev0
