CYBEX VR3 Fly Owner's Manual page 12

Belt routing
1. Verify belt is routed through top of pulley bracket and then route end of belt down to the top
weight.
2. Lift top weight and verify that the position of the belt clamp (on the top weight) is aligned
properly with the top pulley bracket.
3. Slide belt through slot in belt clamp.
4. Verify belt and insert are installed properly. Do not install the insert backwards.
5. Pull belt tight and secure belt to clamp with the two set screws.
6. Torque set screws 300-350 lb-in.
7. Place weight stack pin in each plate to verify proper installation.
8. Simulate normal operation by lifting top weight up and down with out selecting any
resistance.
9. Place weight stack pin in each plate to verify proper installation.
10. Lift top weight up and down simulating normal operation (without selecting any resistance).
11. Verify that the belt is moving smoothly and is routed straight from the top pulley bracket to the
the weight belt clamp.
12. Turn the Increment Weight Adjusting Knob to select 0 lbs or 0 kg.
Install back shroud
1. Place shroud into position.
2. Starting at the bottom replace the two BHSCS to secure bottom support bracket to the
shroud.
3. Install but do not tighten remaining BHSCS securing shroud.
4. Tighten all BHSCS.
Cybex Owner's Manual

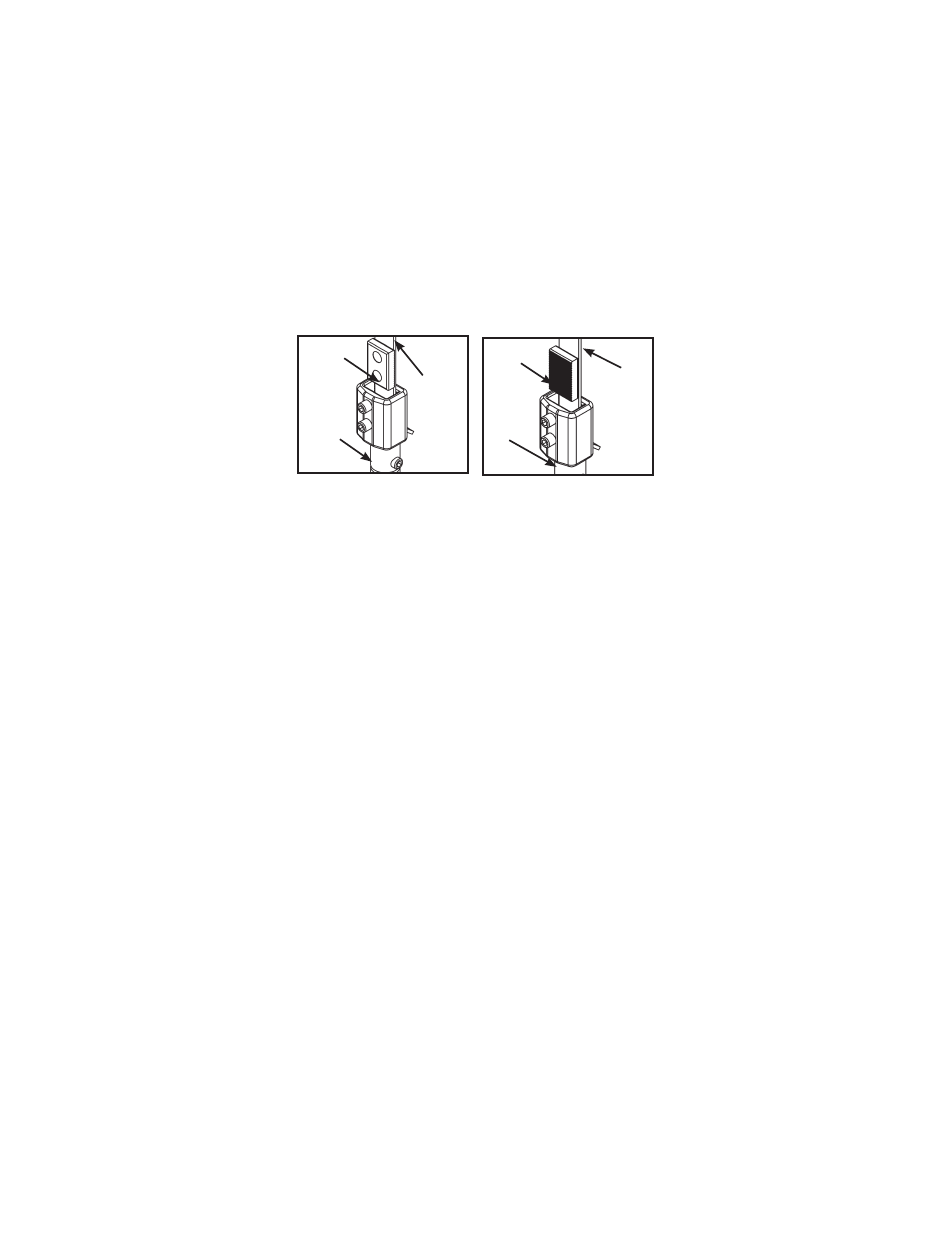

Correct belt routing
Insert
Belt
Stem
12
Wrong belt routing
Insert
Belt
Stem
