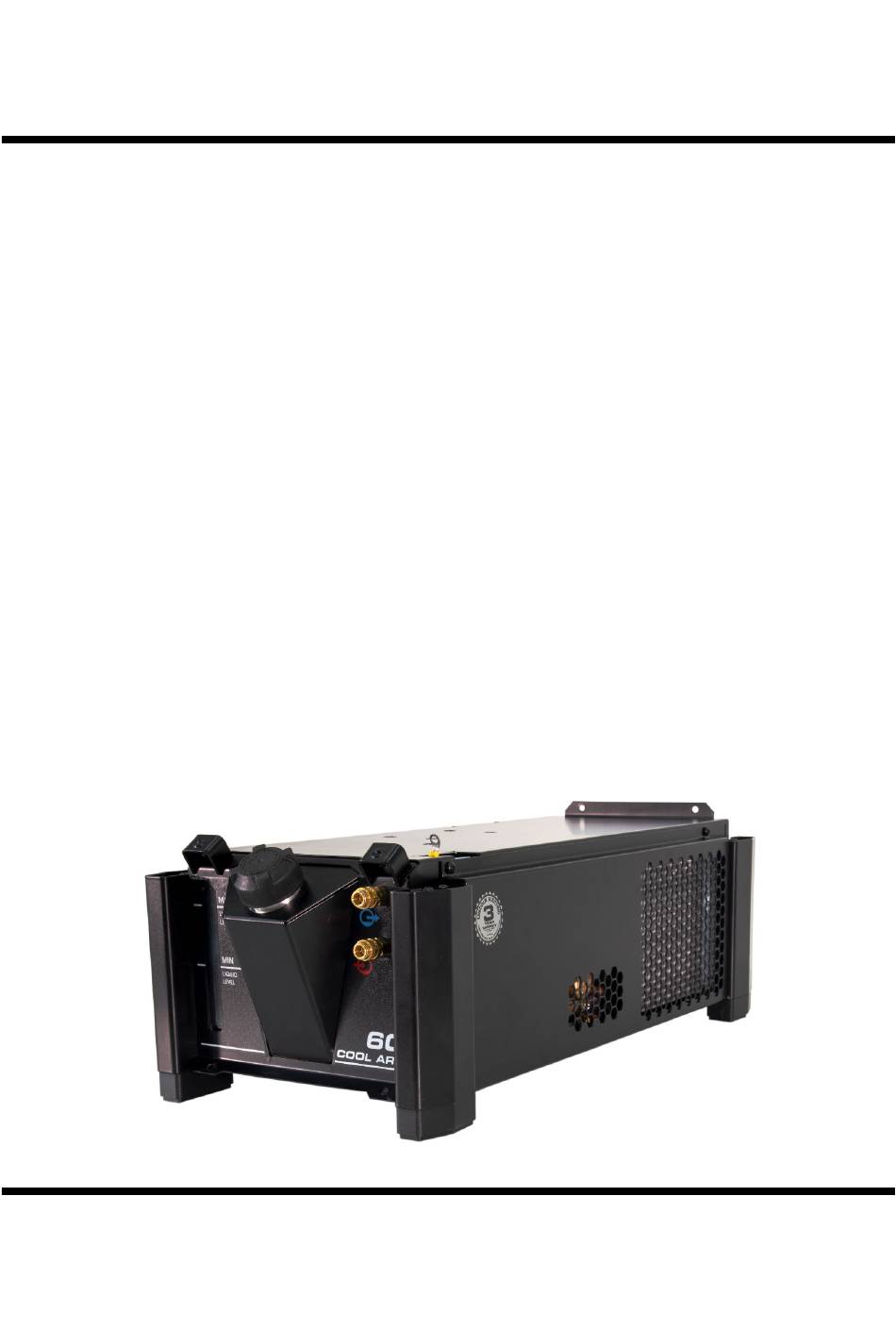

- Page 1 IM3154 11/2022 REV03 ® COOL ARC OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland...
-
Page 2: Table Of Contents
12/05 THANKS! For having chosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment in case of Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 3: Index
Technical Specifications NAME INDEX COOL ARC ® K14297-1 INPUT Input Voltage U Input Current I 1max 230 V ± 15% 1,5 A COOL ARC ® 400 V ± 15% 440 V ± 15% 0,9A Frequency EMC Class ® COOL ARC 50/60 Hz PARAMETERS RATING Cooling capacity with a cooling liquid flow of... -
Page 4: Electromagnetic Compatibility (Emc)
Electromagnetic Compatibility (EMC) 11/04 This machine has been designed in accordance with all relevant directives and standards. However, it may still generate electromagnetic disturbances that can affect other systems like telecommunications (telephone, radio, and television) or other safety systems. These disturbances can cause safety problems in the affected systems. Read and understand this section to eliminate or reduce the amount of electromagnetic disturbance generated by this machine. -
Page 5: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 6 WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding area and have a fire extinguisher readily available. Welding sparks and hot materials from the welding process can easily go through small cracks and openings to adjacent areas. Do not weld on any tanks, drums, containers, or material until the proper steps have been taken to insure that no flammable or toxic vapors will be present.
-
Page 7: Introduction
Introduction ® ® The COOL ARC 60 is a recirculating cooling system The COOL ARC 60 is delivered without the coolant. designed to use with welding power sources that lists the FREEZCOOL - W000010167 is recommended. COOL ARC ® 60 as an approved accessory. The COOL ARC ®... - Page 8 Figure 1 Figure 4 Figure 5 Figure 2 Figure 6 Figure 3 English English...
-
Page 9: Installation And Operator Instructions
Installation and Operator Instructions Read this entire section before installation or operation of Input Supply Connection the machine. The COOL ARC ® 60 is supplied by a welding power source in accordance with installation procedure that can WARNING be done only by qualified electrician. Installation must be made in accordance with the appropriate National ELECTRIC SHOCK can kill. - Page 10 Figure 8 ® The COOL ARC 60 is equipped with a flow sensor which triggers an error code to the machine to protect the Torch from over-heating when coolant flow is not detected Figure 9 through the flow sensor. The Error Code fault (Error 0092) can indicate a possible kink in the torch lines, damage and/or a leak in the Torch coolant lines.
- Page 11 Circulation of Coolant in the Cooler Figure 10 Circulation of coolant in case of using connectors at front Figure 11 Circulation of coolant in case of using connectors at rear WARNING Avoid kinking or putting sharp bends in any water lines. WARNING Never operate the cooler with case off.
- Page 12 Modes of operation ® COOL ARC 60 can be operate using two interfaces. The standard version (Figure 13) uses two LED displays. While the advance version (Figure 12) uses a 7 '' display. The method of operating both interfaces is describe in the operating instructions for the dedicated power source.
- Page 13 Advanced User Interface Configuration Cooler Settings Auto Figure 12 English English...
- Page 14 Standard User Interface Figure 13 English English...
- Page 15 Advanced User Interface Filling the reservoir and water lines WARNING Avoid contact with coolant. Wear waterproof gloves and protective eye wear. The cooler should be filled and used only in the horizontal position. only recommended coolant FREEZCOOL W000010167. Do not use pre-packaged welding industry coolants. These coolants may contain oil-based substances, which Figure 14 attack the plastic components of the cooler.
- Page 16 Standard User Interface Figure 22 Figure 23 Figure 18 Figure 24 Figure 25 Figure 26 Figure 19 Figure 27 Figure 28 Figure 20 Figure 29 Figure 21 English English...
- Page 17 Filling procedure failed WARNING If different product is connected, filling procedure should Filling the reservoir and liquid lines first time be started manually. If filling procedure can not be finished at the first time, an First follow as shown Figure 30 or 31 and then repeat image will be shown on the screen as on Figure 32 or 33.
- Page 18 The welding set is ready to work. WARNING If the filling procedure fails, contact with the nearest Technical Service Center or Lincoln Electric. Machine ® usage without proper functioning of COOL ARC 60 can cause thermal damage of water torch or COOL ARC ®...
- Page 19 We respond to our customers based on the best the manufacturer’s warranty to become null and void. information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, Any noticeable damage should be reported immediately and assumes no liability, with respect to such information and repaired.
- Page 20 WARNING If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact the nearest authorized Technical Service Center or Lincoln Electric for technical troubleshooting assistance before you proceed. LOCATE PROBLEM POSSIBLE CAUSE RECOMMENDED COURSE OF ACTION (SYMPTOM).
-
Page 21: Weee
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 22: Accessories
Accessories W000010167 FREEZCOOL (coolant) T-5041-003-1R RED HOSE (150 mm) English English...
