Summary of Contents for Lincoln Electric COOLARC 21

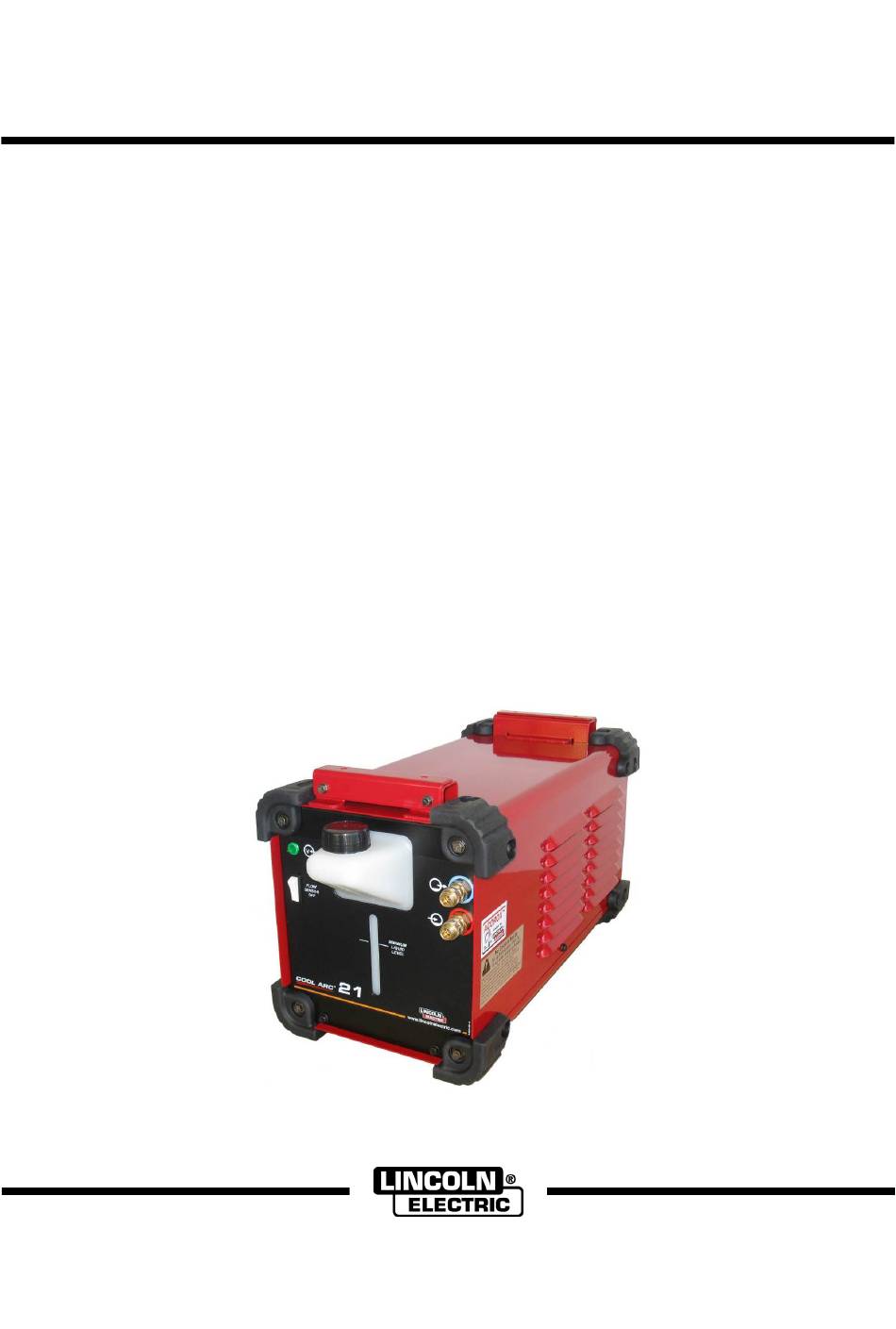

- Page 1 IM3042 03/2021 REV04 COOLARC 21 OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Table Of Contents
12/05 DZIĘKUJEMY! Za docenienie JAKOŚCI produktów Lincoln Electric. Proszę sprawdzić czy opakowanie i sprzęt nie są uszkodzone. Reklamacje uszkodzeń powstałych podczas transportu muszą być natychmiast zgłoszone do dostawcy (dystrybutora). Dla ułatwienia prosimy o zapisanie na tej stronie danych identyfikacyjnych wyrobów. Nazwa modelu, Kod i Numer Seryjny, które możecie Państwo znaleźć... -
Page 3: Technical Specifications
Technical Specifications NAME INDEX COOLARC 21 K14103-1 INPUT Input Voltage U Input Amperes I 1max COOLARC 21 400 V ± 10% / 3-phase 0,6 A Frequency EMC Group / Class COOLARC 21 50/60 Hz II / A PARAMETERS RATING The cooling power of flow 1liter per minute at Maximum pressure rate temperature of 25°C... -
Page 4: Electromagnetic Compatibility (Emc)
If any electromagnetic disturbances are detected the operator must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances. -
Page 5: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 6 WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding area and have a fire extinguisher readily available. Welding sparks and hot materials from the welding process can easily go through small cracks and openings to adjacent areas. Do not weld on any tanks, drums, containers, or material until the proper steps have been taken to insure that no flammable or toxic vapors will be present.
-
Page 7: Introduction
The COOLARC 21 could be supplied by welding power source using 9-PIN socket (see Figure 1). Location and Environment To connect the input supply to the COOLARC 21, turn off This machine will operate in harsh environments. the power to the welding power source and disconnect it However, it is important that simple preventative from the input supply. - Page 8 Preparation COOLARC 21 to Work in which the cooler can work. Fill the coolant reservoir. Connect COOLARC 21 to power source. Turn the power source on. Warning: First use the cooler require the pump is primed by coolant.
- Page 9 Do not use automotive anti-freeze. These coolants will damage the pump and block of the heat exchanger, WARNING affecting cooling performance. At first using of the COOLARC 21 reservoir’s nut has to be removed to avoid generate partial vacuum in cooling system during priming pump. WARNING The coolant reservoir can be filled maximum 3,6l coolant.
- Page 10 [5] located on is recommended to contact the nearest Technical Service the front panel of the cooler. Center or Lincoln Electric. Repairs and modifications Connect the "inlet" hose of torch/gun (colored performed by unauthorized service or personnel will cause, or tagged blue on most hoses) into the outlet that the manufacturer’s warranty will become null and void.
- Page 11 Electric for advice or information about their use of our products. We respond to our customers based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such information or advice.
- Page 12 WARNING If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact the nearest authorized Technical Service Center or Lincoln Electric for technical troubleshooting assistance before you proceed. Power lead unplugged.
-
Page 13: Weee
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 14: Accessories
Accessories W000010167 FREEZCOOL (coolant) English English...
