Pyle PLVHR65M Owner's Manual

Thank you for purchasing the TFT LCD color monitor. To enjoy
the features of this device and to ensure years of trouble-free
operation, please read this manual carefully and following the
instructions.
AUDIO(RED)

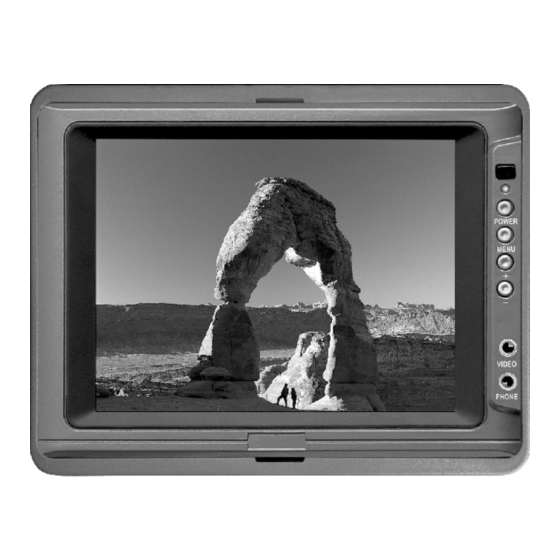

FRONT PANEL

1. Power on/off
3. +
5. video

Remote Controller Use

Mute
Brightness
Contrast
Color
Volume
2.menu
4 .-
6.phone
Power on /off
Mode
Left/right
Up/down
Video /video
1

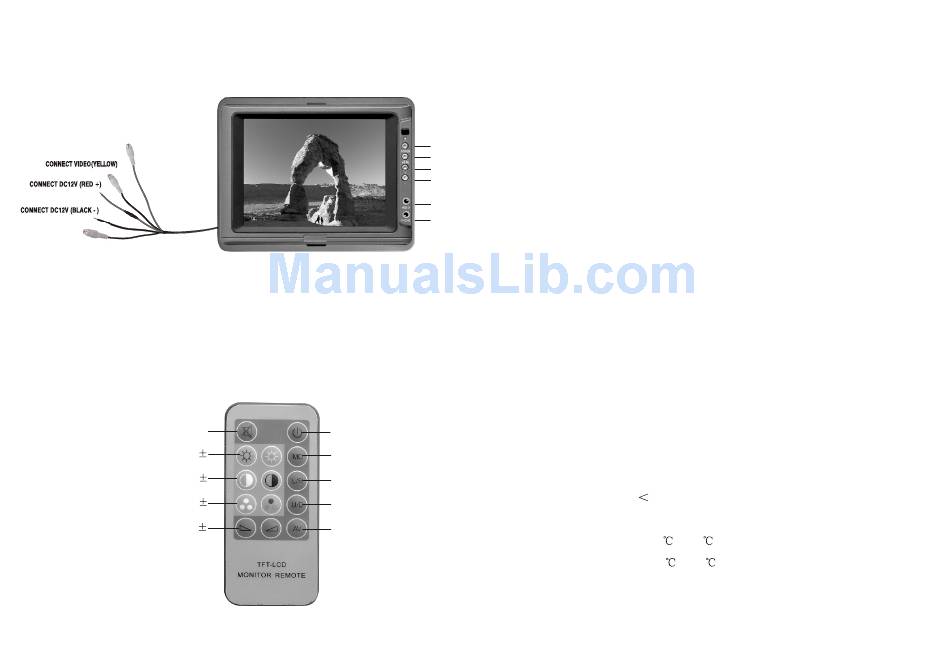

WIRING

Connect the supplied cable with the monitor's mini-din plug.
Connections; Yellow RCA: Video Input
1
2
3
4

OPERATION

5
1, Make sure the video and power connection are properly executed.
6
2, Press MENU to display the adjustment in this order:
Brightness - color- contrast- volume- brightness---
3, Adjust the values by pressing AV+ or AV-.
4, The POWER button activates/deactivates the monitor. It is not
necessary to disconnect the power sources.

SPECIFICATION

Item No.: PLVHR65M
Screen size: 6.5"
System: NTSC
Power source: DC 12V +/- 10%
Power consumption:
Video input: Composition video signal
2
Operating temperature: 0
Storage temperature: - 20
Red RCA: Audio signal input
Black plug: GND
RED:+12V
7.2w
- 40
- 80
