Summary of Contents for Pyle PLVW1410IR

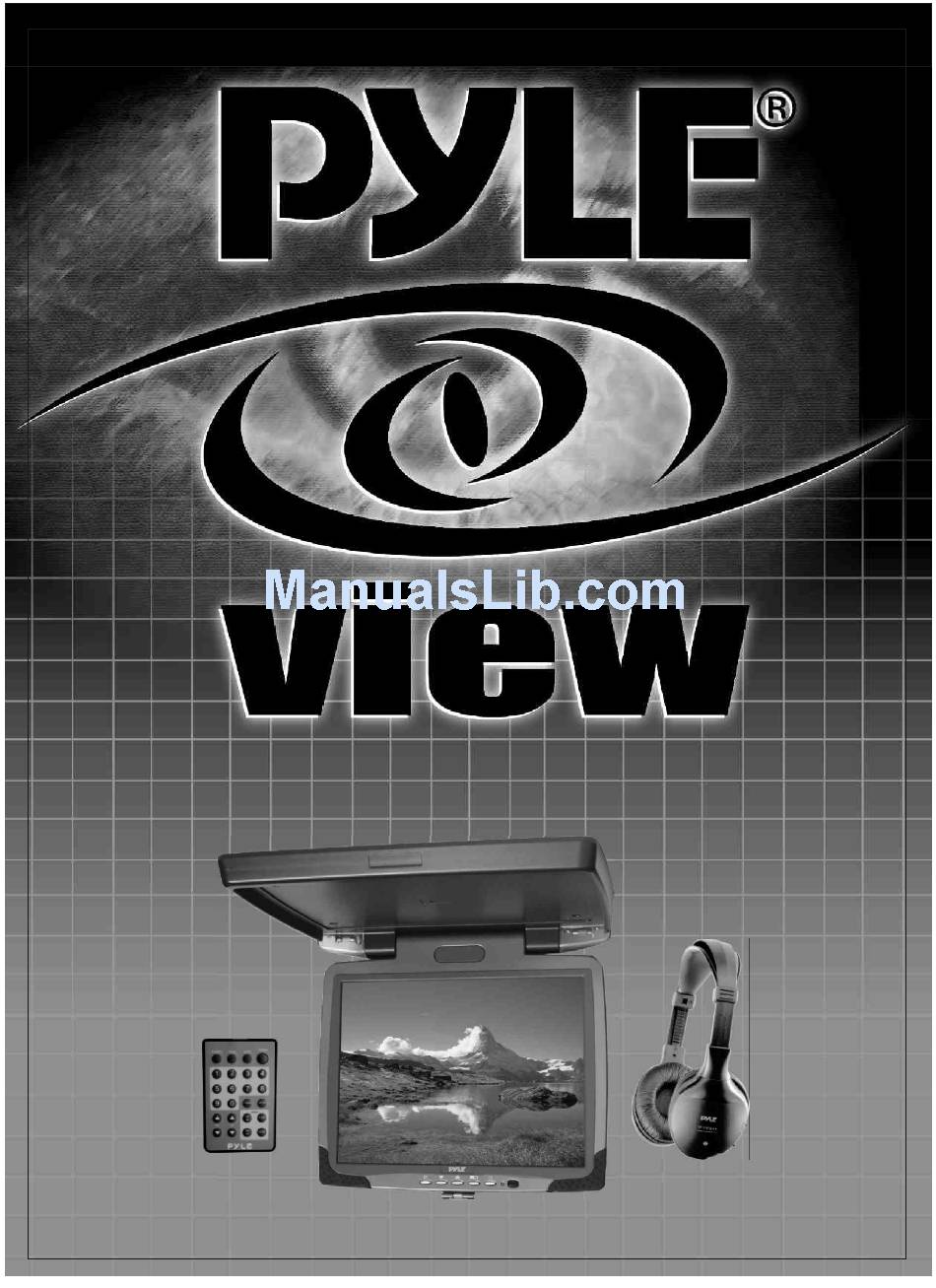

- Page 1 14.1" CEILING MOUNT TFT-LCD MONITOR PLVW1410IR...
-
Page 2: Table Of Contents
Table of Contents 1. Table of Contents------------------------------------------------------ 1 2. Warning ---------------------------------------------------------------- 1 3. Usage Notice ---------------------------------------------------------- 2 4. Package ---------------------------------------------------------------- 3 5. Function Descriptions --------------------------------- Start Your Installation Setting Up The Dome Lamps Installation Your Monitor Operating the Monitor--- 10. Closing Monitor -------------------------------------------------------7 11. -
Page 3: Usage Notice
Usage Notice Follow all warnings, precautions and maintenance as recommended in this user's manual to maximize the life of your LCD monitor To avoid the damage of the LCD monitor and risk of electronic shock, do not permeate the LCD monitor with water or any drink. -
Page 4: Package
Package This LCD monitor comes with all the items below. Check to make sure your unit complete. Contact your dealer immediately if anything is missing. * 14.1" High RES TFT-LCD Wide Screen Monitor * Overhead Console Mounting Bracket * Credit Card Size Remote Control with Batteries * Interface Cable with RCA jacks for Audio / Video Connection and 12V DC * User's Manual... -
Page 5: Function Descriptions
Function Descriptions You may also turn on or off the monitor by this * Power: "Power" button. * Menu: By pressing "MENU" button to pop up the OSD menus. Keys: 1. Press the " 2. Make item selection in OSD menus to increase or decrease parameters as well. -
Page 6: Setting Up The Dome Lamps
Setting Up The Dome Lamps *Operating the dome Lamps 1. There are three function buttons for the Dome lamps operation: OFF, DOOR, and ON. (Refer to the following figure) A. OFF: To turn off the lamps. B. DOOR: To make the lamps turned on only when car doors are opened. -
Page 7: Installation Your Monitor
Installation your Monitor Take care to select a suitable fitting location and securing method for the monitor: *The unit should not distract or obstruct the driver. *The installation should not inhibit the entry to, or the exit from the vehicle. *The unit should not interfere with other vehicle components e.g., (sliding sunroof). -
Page 8: Operating The Monitor
Operating the Monitor * Powering up the monitor The monitor will be automatically turned on when releasing the monitor from the base unit and "OFF" when it is closed. Operating Instructions Opening the Monitor 1. Press the monitor release button to lower the LCD screen. 2. -
Page 9: Osd Menus In A/V Source
* OSD Menus in A/V Source MAIN MENU CUBS.1 = NTSC H. SYNC = +15.7K Hz V. SYNC = +60.0Hz BRIGHTNESS CONTRAST COLOR SOURCE AUDIO RECALL EXIT * Quick Adjustment OSD Menus 1. By pressing "MENU" button, you may open the MAIN MENU, using " buttons to pick out OSD functions. -
Page 10: Remote Control
Remote Control Appendix Changing the New Battery in Remote Control 1. Push the cassette button to wards the right. (As shown # 1 in below figure) 2. Pull the all battery cassette away from the remote control. As shown # 2 in below figure) Change a new battery. Cassette Button TV/CATV TV/AV... -
Page 11: Specifications
Specifications 14.1" Roof Mount Color Display Monitor 1. Type Sync. Video : Composite sync. 2. Signal Input System : NTSC, PAL, SECAM Audio : 1.0Vp-p 3. Display System Active Matrix High Resolution TFT-LCD Monitor Operating Temperature : 0 C~35 C 4.
