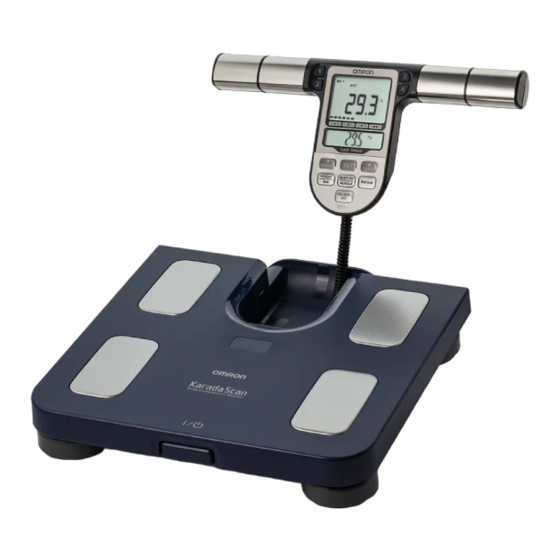

BF511 (HBF-511T-E/HBF-511B-E)
Body Composition Monitor
• Instruction Manual
• Mode d'emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
•
Thank you for purchasing the OMRON Body Composition Monitor.
Before using this unit for the first time, please be sure to read this Instruction Manual
carefully and use the unit safely and properly.
Please keep this Instruction Manual at hand all the time for future reference.
EN
FR
DE
IT
ES
NL
RU
AR
IM-HBF-511-E-07-06/2021
5322544-0G
Advertisement
Table of Contents
Related Manuals for Omron HBF-511T-E
Summary of Contents for Omron HBF-511T-E
- Page 1 • Manual de instrucciones • Gebruiksaanwijzing • Thank you for purchasing the OMRON Body Composition Monitor. Before using this unit for the first time, please be sure to read this Instruction Manual carefully and use the unit safely and properly.
-
Page 2: Table Of Contents
In addition, the calculation of the Resting Metabolism Rate (in kcal) determines the daily calorie requirement and can act as a reference for weight reduction programme. The unique OMRON 8-sensor technology using both hands and feet provides one of the most accurate methods of entire body measurements. -
Page 3: Notes On Safety
Notes on Safety Symbols and definitions are as follows: Improper use may cause danger resulting in death or serious injury. Danger: Improper use may result in possible death or serious injury. Warning: Improper use may result in injury or property damage. Caution: •... -
Page 4: Information On Body Composition
BMI uses the following simple formula to indicate the ratio between weight and height of a person. BMI = weight (kg) / height (m) / height (m) The OMRON BF511 uses the height information stored in your personal profile number or when entering information in the Guest Mode to calculate your BMI classification. - Page 5 Information on Body Composition What is Body Fat Percentage? Body fat percentage refers to the amount of body fat mass in regards to the total body weight expressed as a percentage. Body fat percentage (%) = {Body fat mass (kg) / Body weight (kg)} × 100 The device uses BI method to estimate your body fat percentage.
-
Page 6: Operating Instructions
Operating instructions 1. Know Your Unit Display Unit Grip Electrodes Display Personal Profile Personal Profile Buttons Number Button Number Button SET Button Down/MEMORY Button Up/GUEST Button WEIGHT/BMI Button Resting Metabolism Button BODY FAT/MUSCLE Button VISCERAL FAT Button Cord Display Unit Holder Front View Foot Electrodes Power Switch... -
Page 7: Setting And Storing Personal Data
3. Setting and Storing Personal Data For the measurement of body composition, it is necessary to set your personal data (age, gender, height). Turn on the power. [TO SET THE AGE] “CAL” blinks on the Setting range: 6 to 80 years old display, then the Press the display changes to... - Page 8 3.Setting and Storing Personal Data Changing the Personal Data Turn on the power. With the button, modify the selected item, followed by pressing “CAL” blinks on the display, then the display SET button. The display will change changes to “0.0 kg”. in order of age, gender and height.
-
Page 9: Taking A Measurement
4. Taking a Measurement Measurement should be taken on a level and hard surface. Turn on the power. Start measurement. “CAL” blinks on the Step on the main unit and place your feet display, then the on the foot electrodes with your weight evenly distributed. - Page 10 4.Taking a Measurement Correct Posture for Measurement The arms are horizontally raised, and the elbows are extended straight. After measuring Extend your arms straight at a 90° your weight. angle to your body. 90° Hold the display unit so that you can see the display.
- Page 11 4.Taking a Measurement Check the measurement results. Press the appropriate button to view the desired measurement results. Last values of the previous measurement are shown in the Last Value area of the display. [WEIGHT] [BMI] Weight BMI Classification Last Value Last Value [BODY FAT PERCENTAGE] [SKELETAL MUSCLE PERCENTAGE]...
- Page 12 The table below is based on research by HD McCarthy et al, in the International Journal of Obesity, Vol. 30, 2006, and by Gallagher et al., American Journal of Clinical Nutrition, Vol. 72, Sept. 2000, and classified into four levels by Omron Healthcare. Gender –...
-
Page 13: Measuring Weight Only
32.9 - 38.9% 39.0 - 43.6% > 43.7% According to Omron Healthcare figures After confirmation of the results, turn off the power. Note: If you forget to turn off the power, the unit will be turned off automatically after 5 minutes. -
Page 14: Care And Maintenance
Insert the batteries again and repeat measurement. Abnormal operation. If this error still occurs, consult your OMRON service representative. You stepped on the unit before the Step on the main unit after the display indicates display indicated “0.0 kg”. -
Page 15: How To Take Care Of And Store The Unit
• Do not carry out repairs of any kind yourself. This product is calibrated at the time of manufacture. If at any time you question the accuracy of measurements, please contact your authorized OMRON distributor. In general it is recommended to have the device inspected every 2 years to ensure correct functioning and accuracy. -
Page 16: Technical Data
Product Category Body Composition Analyzers Product Description Body Composition Monitor Model (Code) BF511 (HBF-511T-E/HBF-511B-E) Display Body Weight: 0 to 150 kg with an increment of 0.1 kg (0.0 to 330.0 lb with an increment of 0.2 lb) Body Fat percentage: 5.0 to 60.0% with an increment of 0.1%... - Page 17 9.Technical Data Description of symbols that, depending on a model, can be found on the product itself, product sales package or IM Applied part - Type BF Temperature limitation Degree of protection against electric shock (leakage current) IP XX Ingress protection degree provided Humidity limitation by IEC 60529 CE Marking...
- Page 18 This device manufactured by OMRON HEALTHCARE Co., Ltd. conforms to EN60601-1-2:2015 Electromagnetic Compatibility (EMC) standard. Further documentation in accordance with this EMC standard is available at OMRON HEALTHCARE EUROPE at the address mentioned in this instruction manual or at www.omron-healthcare.com...
- Page 19 9.Technical Data Manufacturer OMRON HEALTHCARE Co., Ltd. 53, Kunotsubo, Terado-cho, Muko, KYOTO, 617-0002 JAPAN EU-representative OMRON HEALTHCARE EUROPE B.V. Scorpius 33, 2132 LR Hoofddorp, THE NETHERLANDS www.omron-healthcare.com Importer in EU Krell Precision (Yangzhou) Co., Ltd. Production facility No.28, Xingyang Road, Economic Development Zone, Yangzhou, Jiangsu 225009, China OMRON HEALTHCARE UK LTD.
