Summary of Contents for Pyle PLCD87

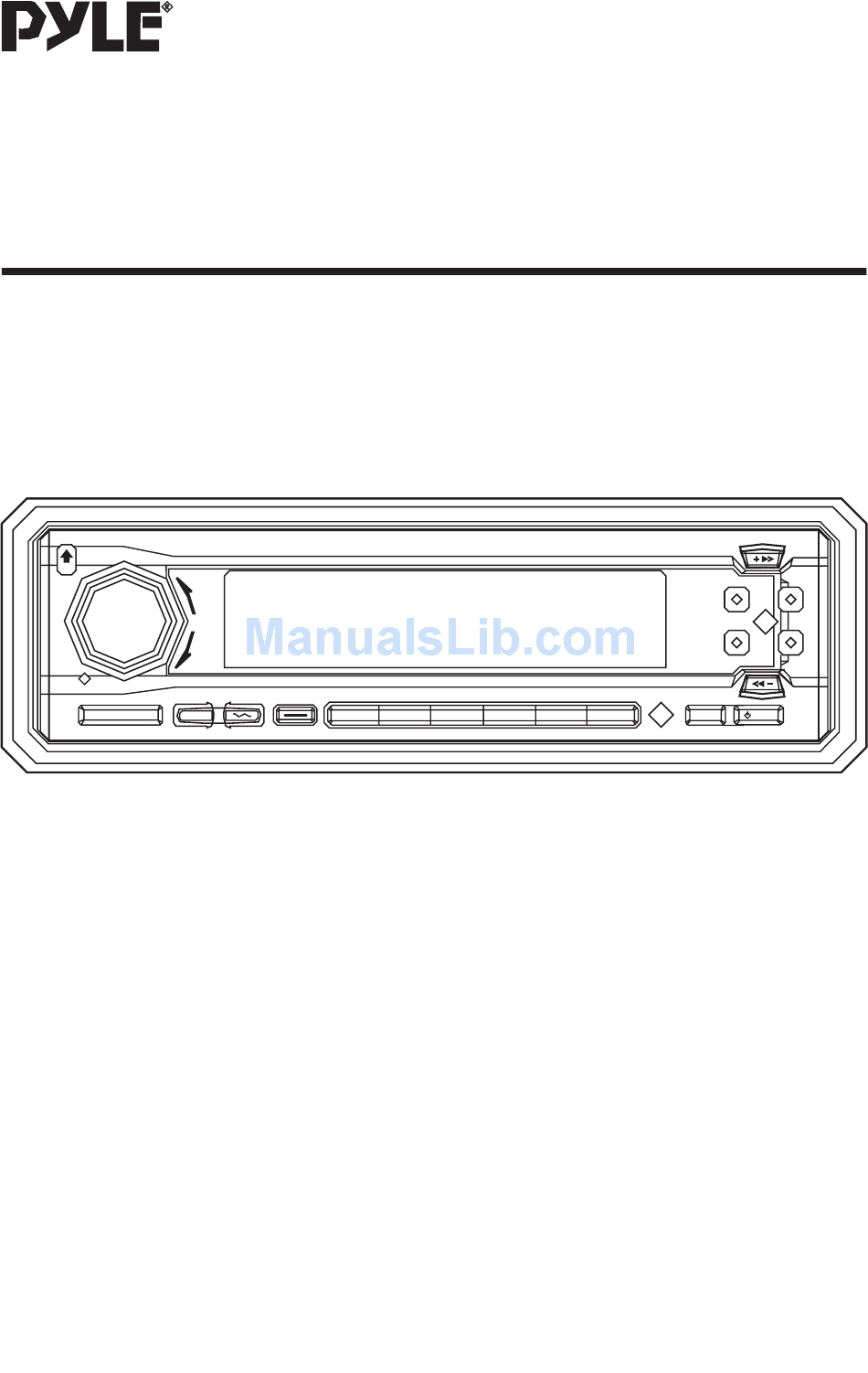

- Page 1 PLCD87 OWNER’S MANUAL Mobile Audio System • PLL Synthesizer Stereo Radio • Digital Compact Disc Player • Automatically Memory Storing • Fold Down Detachable Panel • Preset Equalization • Auxiliary Input Function • Remote Control...
-
Page 2: Table Of Contents
CONTENTS Installation ...3 DIN Front-Mount (Method A) ...3 Installing the unit ...3 Removing the unit ...4 DIN Rear-Mount (Method B) ...4 Using the Detachable Front Panel ...5 Wiring Connection ...6 Operation ...7 General Operation ...8 Radio Operation...8 CD Operation ...9 Remote Control...10 Specification...11 Trouble Shooting ...12... -
Page 3: Installation
INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. -
Page 4: Removing The Unit
INSTALLATION Removing the unit Open 1. Before removing the frame, press the OPEN button to slide down the front panel. 2. Frame 3. Insert fingers into the groove in the right side of the frame and pull out to remove the frame. (You can also remove the frame from the left side.) 4. -
Page 5: Using The Detachable Front Panel
USING THE DETACHABLE FRONT PANEL To Detach the Front Panel 1. Press the OPEN button, the front panel will slide down. Open 2. Press the OPEN button again, the front panel will slide up. Open 3. When the front panel slides down, press the bottom button of the front panel upward and pull it out from the panel bracket. -
Page 6: Wiring Connection
WIRING CONNECTION ANTENNA CONNECTOR IGNITION SWITCH (B+) YELLOW MEMORY BACK-UP BLACK GROUND (B–) BLUE POWER ANTENNA FRONT Lch SPEAKER WHITE/BLACK REAR Lch SPEAKER GREEN/BLACK MAIN UNIT WHITE GREEN (BLACK) Rch RED AUX IN Lch WHITE (GREY) Rch RED RCA CABLE Lch WHITE GREY FRONT Rch... -
Page 7: Operation
OPERATION GENERAL OPERATION • ON/OFF Switch on the unit by pressing any button [except OPEN button (7)]. When system is on, press PWR button (9) to turn off the unit. • FACEPLATE RELEASE Press OPEN button (7) to detach the removable faceplate. -
Page 8: Radio Operation
OPERATION • SET THE CLOCK Press and hold DSP button (15), until the clock is shown on the display and flashes, then press the TUNE/TRACK button (17) to change minutes or TUNE/TRACK button (16) to change hours. • SELECT MODE Press MODE button (6) shortly to choose desired listening mode. -
Page 9: Cd Operation
OPERATION • AUTOMATICALLY MEMORY STORING & PROGRAM SCANNING - Automatic Memory Storing Press AMS button (18) for several seconds, the radio searches from the current frequency and checks the signal strength until one cycle search is finished. And then 6 strongest stations are stored into the corresponding preset number button. -
Page 10: Remote Control
REMOTE CONTROL REMOTE CONTROL HANDSET FUNCTION KEYS & CONTROL TUNE/SEEK TUNE/SEEK 10. AMS 11. M1 - M6 12. PAU 13. SCN 14. RPT 15. SHF = Power ON/OFF Button = Display Button = Select Button = Volume Up Button = Volume Down Button = Band Select Button = Mode Button = Tune/Seek Down Button... -
Page 11: Specification
SPECIFICATION GENERAL Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Drain CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB) Stereo Separation Frequency Coverage Sensitivity (S/N = 20 dB) -
Page 12: Trouble Shooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot Presence of CD disc inside Remove the disc in the player, then be loaded or...
