- Page 1 2400TRS Owner’s Manual Revised November 2022 Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • Pathfinderboats.com (772)-465-0631...
-
Page 2: Table Of Contents
Wiring ................................. 19 Standard Features ..........................20 Optional Features ..........................22 Pathfinder 2400 TRS Deck Wiring Schematic .................. 24 Pathfinder 2400 TRS Hull Wiring Schematic ..................25 Pathfinder 2400 Open Water System ....................26 Pathfinder 2400 Open Sanitation System ..................27 Pathfinder 2400 Open Fuel System .................... -
Page 3: 2400Trs Specifications
2400TRS Specifications L.O.A........................24’ 04” BEAM..............………………….…......9’ DRAFT..........................14” DEADRISE………………………………………………………………………………15 DEG. WEIGHT W/ ENGINE..................4,100 LBS. FUEL CAPACITY....................88 GAL. MAXIMUM H.P......................350 Fish Box Fresh Water Fill Livewell Fuel Fill Bilge Access Dry Storage Anchor Locker Cushioned Cooler Release well Seat Battery Switch / Battery Access Maverick Boat Group 3207 Industrial 29th St. -

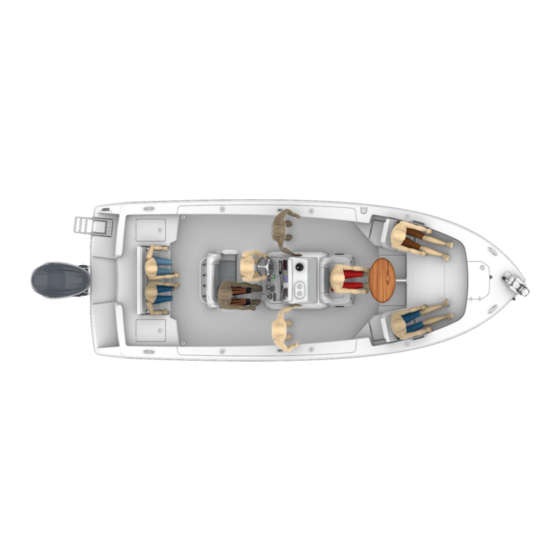

Page 4: Designated Occupant Positions
DESIGNATED OCCUPANT POSITIONS Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • Pathfinderboats.com (772)-465-0631... -
Page 5: Pre-Operation Checklist
Pre-Operation Checklist We recommend you print this document and store it at the helm station. Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • Pathfinderboats.com (772)-465-0631... -
Page 6: Maintenance & Cleaning
Maintenance & Cleaning Maintenance Pathfinder advises owners that maintenance and repairs should be performed at an authorized Pathfinder Dealer. The following information is general in nature and should not be considered a repair manual or guidelines set forth by Maverick Boat Group. - Page 7 Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • Pathfinderboats.com (772)-465-0631...
-
Page 8: Engine Break-In Period
DO NOT operate the boat if the engine stop switch system does not function properly. Go to a Pathfinder Dealer to have this resolved immediately. The lanyard should be securely attached to the boat operator at all times that the engine is on. -
Page 9: Switch Panel & Helm
Helm & Switch Panel console. Gauges The instrument panel on your Pathfinder is composed of one Yamaha digital gauge and a series of dual activation switches. The switches come with accessory plug-ins for wiring additional electronics, pumps or electrical circuits. -
Page 10: Fuel-Water Separator & Drain
Pathfinder Duffel Bag Along with your boat, you received a Duffel Bag with your new Pathfinder. Inside the Duffel Bag are the following items: o Livewell Standpipe o 1.5” Livewell Pacifier Plug o 2 ignition Keys and Emergency Kill Cord /Engine Stop Lanyard... -
Page 11: Bilge
Bilge Bilge The bilge of your Pathfinder should always be checked before and after a launch. It can be accessed through the aft bench seat by opening the seat and moving the bottom cushion on its hinge. While checking the bilge, note that a small amount of water in the bilge is normal. - Page 12 and turn the switch on again, listening for the bilge pump to turn on. Additionally, the automatic float switch has an independent fuse located by the batteries. If the bilge pump fails to turn on, turn the battery switch to the OFF position, then unhook the bilge pump from its cradle by pressing down on the blue tabs on the cradle and gently turning the top of the pump.
-
Page 13: Systems
Livewell Pump Assembly in the “OPEN” Position Trolling Motor/Wiring System Your Pathfinder 2400TRS comes standard with a 36V trolling motor wiring system. The trolling motor battery bank and breaker panel are located inside the console. A trolling motor mounting plate was built into the bow of your Pathfinder during the Maverick Boat Group 3207 Industrial 29th St. -
Page 14: Battery Switch And Breaker Panel
To attach a trolling motor, please go to your nearest Pathfinder dealer. All trolling motors should be attached by drilling through the mounting plate with a 13/64” drill bit and 1/4” tap and using 1/4” #20 machine screws. The plate is designed to accommodate the mounting patterns of all trolling motor brands on the market currently. -
Page 15: Ladder & Props
Prop selection on your 2400TRS is determined by your local Pathfinder Dealer, but all props are based on recommendations from Pathfinder Boat Company and Yamaha Marine in order to give your boat maximum overall performance. The needs of your prop will determine the prop design and size that best fits your performance requirements. -
Page 16: Fuel System
Self-Bailing Cockpit & Livewell Self-Bailing Cockpit The cockpit on the Pathfinder 2400TRS is designed to be self-bailing, meaning that all the water that comes into the cockpit will be directly drained overboard. This keeps the boat from acquiring standing water and allows the boat to drain at all times, including while the boat is docked. - Page 17 Pathfinder Dealer immediately. Refer to page 10 for further information regarding bilge pump operation and maintenance.
- Page 18 Your boat might come with an optional recirculation system. This is a closed system that recycles the water already within the well. This system is also controlled by a switch on the switch panel and allows the boat operator to operate the livewell without an outside feed.
-
Page 19: Wiring
Wiring A wiring diagram of your Pathfinder has been included to help troubleshoot any electrical problems or to add additional electronics or electrical connections. We recommend you use a trained marine electrician for all electrical issues. Pathfinder Main Harness To Console... -
Page 20: Standard Features
We also run a string aft to the rigging box. Standard Features Trim Tabs Trim tabs are standard on the Pathfinder 2400TRS. We use integrated 12 X 12-inch Bennett electric trim tabs which can enhance the boat’s performance. - Page 21 Pushing the bottom of the switch (Up) will raise the tabs and lift the bow out of the water for better running performance. To achieve the best running performance with your Pathfinder 2400TRS, use the engine trim in conjunction with your trim tabs to find the perfect amount of lift and a safe, comfortable ride.
-
Page 22: Optional Features
Transom supporting devices can be purchased from your local Pathfinder dealer or boating and trailer supply stores. - Page 23 Please refer to the Power Pole owner’s manual for operational and mechanical information. If you want to install a Power Pole after your boat has left the factory, please take your boat to your nearest Pathfinder dealer. Maverick Boat Group 3207 Industrial 29th St.
-
Page 24: Pathfinder 2400 Trs Deck Wiring Schematic
Pathfinder 2400 TRS Deck Wiring Schematic Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • Pathfinderboats.com (772)-465-0631... -
Page 25: Pathfinder 2400 Trs Hull Wiring Schematic
Pathfinder 2400 TRS Hull Wiring Schematic 1. Port PowerPole pump 8. Breaker Panel connection 15. Stbd UW light 2. Port cockpit light 9. Fuel sending wire 16. Livewell pump 3. Console ground block 10. Leaning post switch panel and grounds 17. -
Page 26: Pathfinder 2400 Open Water System
Pathfinder 2400 Open Water System Fresh Water Washdown Raw Water Pickup Raw Water Washdown Fresh Water Tank Fresh Water Shower Water Fill Raw Water Pump Tank Vent Fresh Water Pump Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 •... -
Page 27: Pathfinder 2400 Open Sanitation System
Pathfinder 2400 Open Sanitation System Waste Vent Waste Pump Out Head Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • Pathfinderboats.com (772)-465-0631... -
Page 28: Pathfinder 2400 Open Fuel System
Pathfinder 2400 Open Fuel System Fuel Fill Carbon Canister Through Hull Vent Fuel Vent Hose Fuel Fill Hose Fuel Tank Fuel Water Separator Fuel Feed Hose Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • Pathfinderboats.com... -
Page 29: Location And Reordering Of Warning Labels
Location and Reordering of Warning Labels IF LABEL IS DAMAGED, REMOVED, OR LOST, IF LABEL IS DAMAGED, REMOVED, OR LOST, REPLACE WITH NEW LABEL, PART NO. 59118503, REPLACE WITH NEW LABEL, PART NO. 59118506, AVAILABLE FROM DEALER OR MANUFACTURER. AVAILABLE FROM DEALER OR MANUFACTURER. INSTALL NEAR KEY SWITCH INSTALL NEAR HELM IF LABEL IS DAMAGED, REMOVED, OR LOST,... -
Page 30: Location And Reordering Of Warning Labels
Location and Reordering of Warning Labels IF LABEL IS DAMAGED, REMOVED, OR LOST, IF LABEL IS DAMAGED, REMOVED, OR LOST, REPLACE WITH NEW LABEL, PART NO. 59118502, REPLACE WITH NEW LABEL, PART NO. 59110900, AVAILABLE FROM DEALER OR MANUFACTURER. AVAILABLE FROM DEALER OR MANUFACTURER. INSTALL ON TRANSOM INSTALL NEAR FUEL FILL IF LABEL IS DAMAGED, REMOVED, OR LOST,... -
Page 31: 2400Trs Optional Trolling Motor With Battery Charger And Wire Routing
2400TRS Optional Trolling Motor with Battery Charger and Wire Routing Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • Pathfinderboats.com (772)-465-0631... -
Page 32: 2400Trs Bunk Placement
2400TRS Bunk Placement Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • Pathfinderboats.com (772)-465-0631... -
Page 33: 2400Trs Bunk Placement
2400TRS Bunk Placement Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • Pathfinderboats.com (772)-465-0631... -
Page 34: Upholstery Care & Cleaning Guide
Upholstery Care & Cleaning Guide Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • Pathfinderboats.com (772)-465-0631... -
Page 35: Warranty
Your relationship with your local Pathfinder dealer should never end with the delivery of your new boat. Your local Pathfinder dealership is where you will take your boat for service and repair, as well as to address any warranty issues.
