SteriPEN FitsAll Filter - Water Filter User's Manual

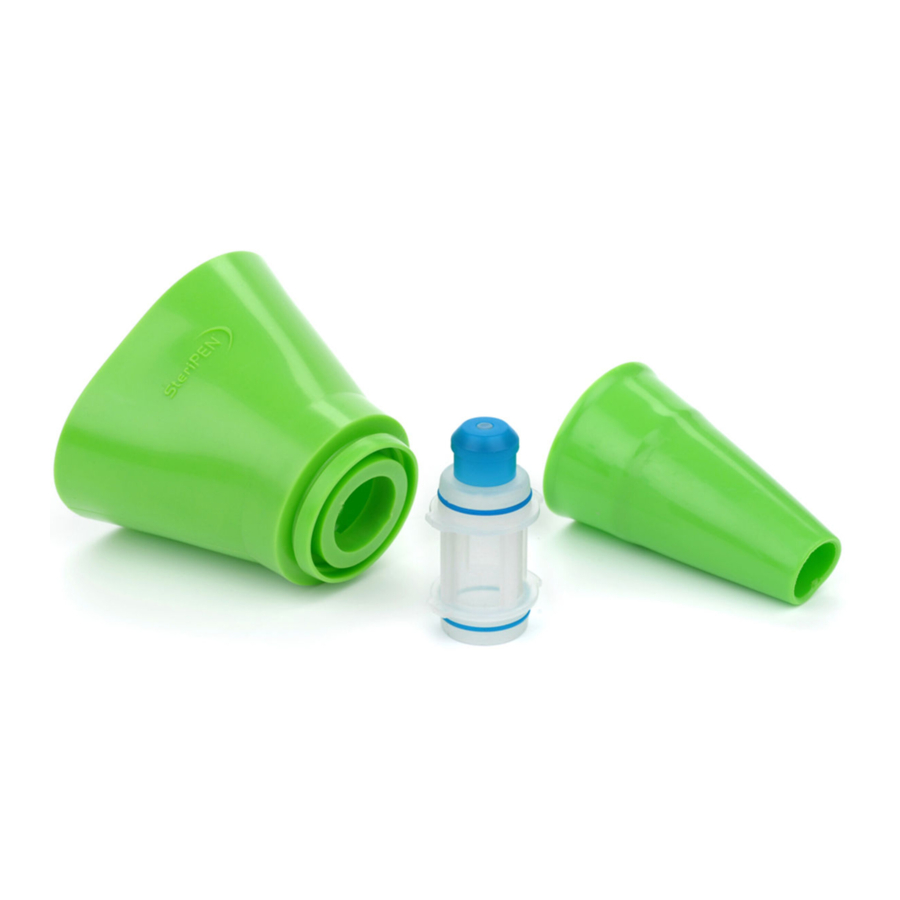

FitsAll Filter Components

FitsAll Filter User's Guide

The SteriPEN^® FitsAll Filter is designed to remove large particulate matter from drinking water. The FitsAll Filter fits snugly in a variety of bottles— from narrow-mouth bottles such as soft-drink-type beverage bottles to wide-mouth bottles such as Nalgene^® bottles.

The FitsAll Filter can filter water via two methods: POUR-THROUGH and IMMERSION.

The FitsAll Filter also serves as an adapter for use with SteriPEN^® Journey^LCD and SteriPEN^® Classic water purifiers. The FitsAll Cup is designed to fit on the rim of Klean Kanteen^® and Gatorade^®-type bottles and it also fits tightly inside wide-mouth water bottles.

POUR-THROUGH filtering for (A) narrow-mouth bottles or (B) wide-mouth bottles (mouth size 20mm (0.79in.) to 55mm (2.16 in.)).

1. Insert the Filter Cartridge into the opening in the FitsAll Cup— with air vent up. Twist filter cartridge to lock in place and pull air vent valve open (see diagram A).
2. A-Narrow-Mouth Bottles: Insert the FitsAll Filter Cup & Funnel into the bottle; push down to form a tight fit. Note: the Cup & Funnel snap together (see diagram B).
   B-Wide-Mouth Bottles: Insert the FitsAll Filter Cup (only) into the bottle; push down to form a tight fit. On Klean Kanteen^® and Gatorade^® -type bottles, the FitsAll Filter fits on the rim (see diagram C).

3. Pour water through filter cartridge until bottle is filled to desired level (see diagram D).

4. Remove FitsAll Filter assembly from bottle. Remove cartridge from filter base and wipe away or rinse particulates from the cartridge & inside the Cup. After cleaning, screw cartridge back into Cup (see Storage section).

Note: SteriPEN^® Journey ^LCD and SteriPEN^® Classic water purifiers can directly purify water in narrow-mouth bottles and most canteens —read purifier's user's guide for instructions.

IMMERSION filtering for (A) narrow-mouth bottles* or (B) wide-mouth bottles (mouth size 20mm (0.79in.) to 55mm (2.16 in.)) (Complete Steps 1-2 described in the Pour-through method).

3. Immerse the bottle and FitsAll Filter—Filter with open air vent should be angled towards surface of water. Both hands may be required (see diagram E).

4. Once bottle is filled to desired level, remove from water and thoroughly wipe away droplets from filter base and drinking surfaces of bottle.
5. Remove FitsAll Filter assembly from bottle. Remove cartridge from filter base and wipe away or rinse particulates from the cartridge & inside the Cup. After cleaning, screw cartridge back into Cup (see Storage section).

Tip: If flow rate seems slow, submerge the cartridge and rub the mesh screen until it becomes thoroughly saturated.

Package Contents

FitsAll Filter base (Cup & Funnel), Filter Cartridge, User's Guide Note: Replacement Filter Cartridges are available at SteriPEN^® retailers.

Product Features

• 4x4 micron durable nylon screen
• Compact nested storage
• Fits narrow-mouth bottles up to and including wide-mouth water bottles (bottle openings ranging from 20mm (.79 in.) to 55mm (2.16 in.))
• Cup serves as adapter on Klean Kanteen^®, Gatorade^®-type and wide-mouth water bottles

www.steripen.com

FitsAll Filter as an Adapter

The FitsAll Filter can be used as an Adapter on three types of bottles to allow users to purify water with either the SteriPEN^® Journey^LCD or SteriPEN^® Classic**. The Cup (top half) of the FitsAll Filter is designed to fit on the rim of Klean Kanteen^® and Gatorade^®-type bottles and it also fits tightly inside wide-mouth water bottles.

To use the SteriPEN^® Journey^LCD or Classic with these three types of bottles:

1. After filling bottle and cleaning the FitsAll Filter's Cup, replace the Cup back on the bottle without the filter cartridge (see diagram F).

2. Activate the Journey^LCD or Classic (follow purifier's instructions) and then insert the SteriPEN^® into the cartridge opening (see diagram G).

3. Holding the bottle, FitsAll Filter and SteriPEN^® purifier, invert this assembly and agitate during purification (see diagram H).

   (see purifier's user's guide for complete instructions)

*SteriPEN^® Journey^LCD and SteriPEN^® Classic water purifiers can directly purify water in narrow-mouth bottles and most canteens— see purifier's user's guide for instructions.

**The SteriPEN^® Adventurer/Traveler/Protector can only be used to purify water in containers with an opening wider than the purifier. To avoid bottle between the water surface and the bottle's mouth (see diagram I). consuming unpurified water, wipe away all water droplets inside the

FitsAll Filter Storage

1. Use a clean cloth to wipe and dry the Filter cartridge, Cup and Funnel. Push air vent valve closed and install the cartridge into the Cup. Twist cartridge to lock in place.
2. Turn the Funnel upside down and place over the filter cartridge— push down to secure. This creates the nested storage position. (see diagram J).


Product Specifications

• Weight: 65g (2.29 oz.)
• Nested Dimensions: Height 88mm (3.46 in.), Width 95mm (3.74 in.), Depth 72mm (2.83 in.)
• Cup Dimensions: Height 76mm (2.99 in.), Width 95mm (3.74 in.), Depth 72mm (2.83 in.)
• Cup and Funnel Height: 150mm (5.91 in.)

Note: FitsAll Filter may be squeezed or compressed to reduce storage size.

Warnings for Safe Use

• This FitsAll Filter is designed to remove large particulate matter from water. It will not remove microbiological or chemical contaminants.
• The Funnel must be removed from the Cup in order to purify water with the SteriPEN^® Journey^LCD or Classic.
• Do not use this FitsAll Filter with liquids other than water.
• In some cases where fine sediment is present, water may be collected in a large container and clarified by allowing sediment to settle. When particulates are very small, this FitsAll Filter may be ineffective in clarifying water. If clear water cannot be obtained, see SteriPEN^® water purifier's user guide for how to treat turbid or cloudy water.
• If the FitsAll Filter and bottle are immersed into water, wipe bottle, especially drinking surface, dry prior to using.
• The SteriPEN^® Adventurer/Traveler/Protector can only be used to purify water in containers with an opening wider than the purifier. To avoid consuming unpurified water, wipe away all water droplets inside the bottle between the water surface and the bottle's mouth.
