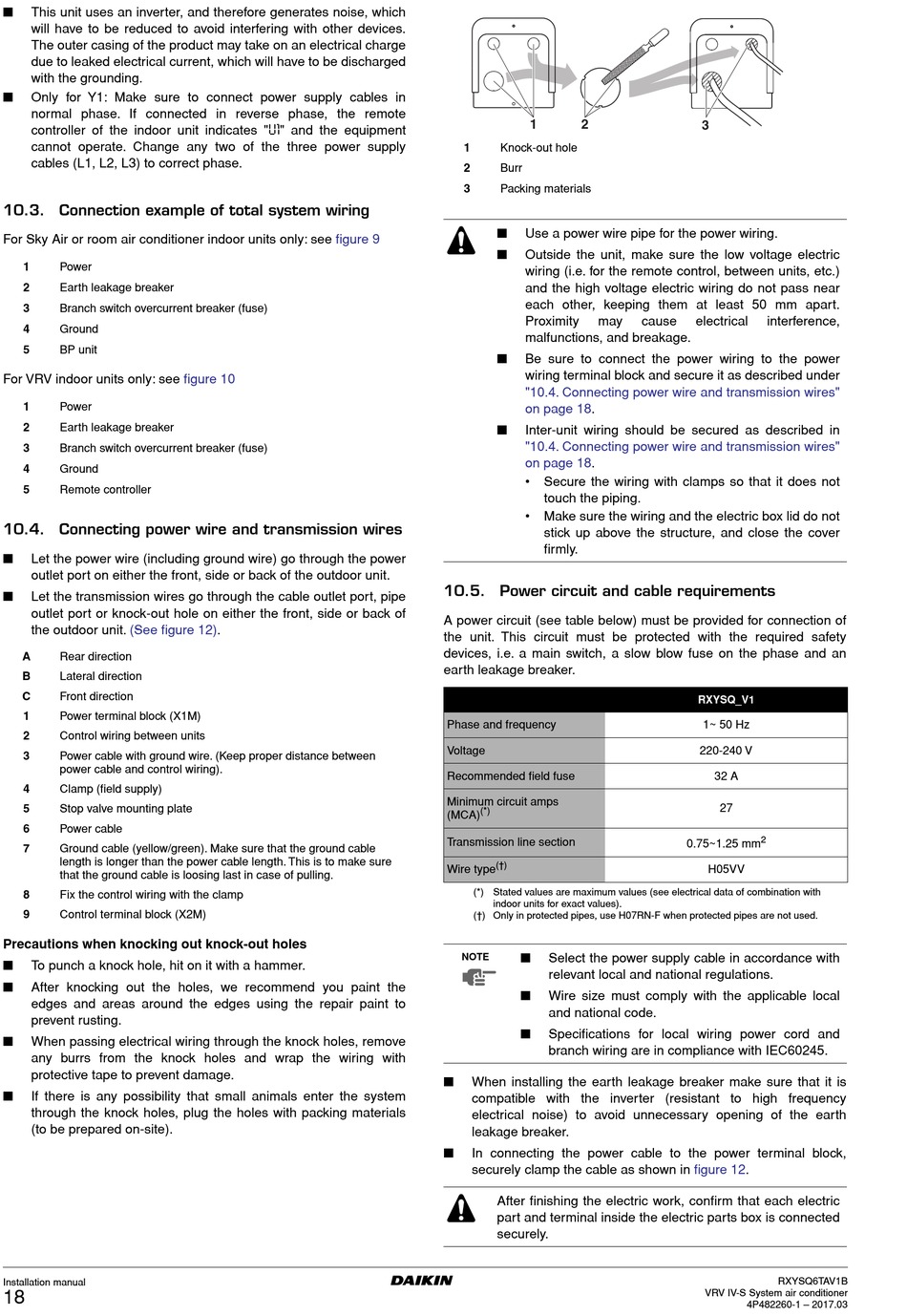

I
This unit uses an inverter, and therefore generates noise, which
will have to be reduced to avoid interfering with other devices.
The outer casing of the product may take on an electrical charge
due to leaked electrical current, which will have to be discharged
with the grounding.
I
Only for Y1: Make sure to connect power supply cables in
normal phase. If connected in reverse phase, the remote
controller of the indoor unit indicates "U1" and the equipment
cannot operate. Change any two of the three power supply
cables (L1, L2, L3) to correct phase.
10.3. Connection example of total system wiring
For Sky Air or room air conditioner indoor units only: see
1
Power
2
Earth leakage breaker
3
Branch switch overcurrent breaker (fuse)
4
Ground
5
BP unit
For VRV indoor units only: see
1
Power
2
Earth leakage breaker
3
Branch switch overcurrent breaker (fuse)
4
Ground
5
Remote controller
10.4. Connecting power wire and transmission wires
I
Let the power wire (including ground wire) go through the power
outlet port on either the front, side or back of the outdoor unit.
I
Let the transmission wires go through the cable outlet port, pipe
outlet port or knock-out hole on either the front, side or back of
the outdoor unit.
(See figure
A
Rear direction
B
Lateral direction
C
Front direction
1
Power terminal block (X1M)
2
Control wiring between units
3
Power cable with ground wire. (Keep proper distance between
power cable and control wiring).
4
Clamp (field supply)
5
Stop valve mounting plate
6
Power cable
7
Ground cable (yellow/green). Make sure that the ground cable
length is longer than the power cable length. This is to make sure
that the ground cable is loosing last in case of pulling.
8
Fix the control wiring with the clamp
9
Control terminal block (X2M)
Precautions when knocking out knock-out holes
I
To punch a knock hole, hit on it with a hammer.
I
After knocking out the holes, we recommend you paint the
edges and areas around the edges using the repair paint to
prevent rusting.
I
When passing electrical wiring through the knock holes, remove
any burrs from the knock holes and wrap the wiring with
protective tape to prevent damage.
I
If there is any possibility that small animals enter the system
through the knock holes, plug the holes with packing materials
(to be prepared on-site).
Installation manual
18
figure 9
figure 10
12).
1
2
1
Knock-out hole
2
Burr
3
Packing materials
I
Use a power wire pipe for the power wiring.
I
Outside the unit, make sure the low voltage electric
wiring (i.e. for the remote control, between units, etc.)
and the high voltage electric wiring do not pass near
each other, keeping them at least 50 mm apart.
Proximity
may
malfunctions, and breakage.
I
Be sure to connect the power wiring to the power
wiring terminal block and secure it as described under
"10.4. Connecting power wire and transmission wires"
on page
18.
I
Inter-unit wiring should be secured as described in
"10.4. Connecting power wire and transmission wires"
on page
18.
•
Secure the wiring with clamps so that it does not
touch the piping.
•
Make sure the wiring and the electric box lid do not
stick up above the structure, and close the cover
firmly.
10.5. Power circuit and cable requirements
A power circuit (see table below) must be provided for connection of
the unit. This circuit must be protected with the required safety
devices, i.e. a main switch, a slow blow fuse on the phase and an
earth leakage breaker.
Phase and frequency
Voltage
Recommended field fuse
Minimum circuit amps
(*)
(MCA)
Transmission line section
(†)
Wire type
(*) Stated values are maximum values (see electrical data of combination with
indoor units for exact values).
(†) Only in protected pipes, use H07RN-F when protected pipes are not used.
I
NOTE
Select the power supply cable in accordance with
relevant local and national regulations.
I
Wire size must comply with the applicable local
and national code.
I
Specifications for local wiring power cord and
branch wiring are in compliance with IEC60245.
I
When installing the earth leakage breaker make sure that it is
compatible with the inverter (resistant to high frequency
electrical noise) to avoid unnecessary opening of the earth
leakage breaker.
I
In connecting the power cable to the power terminal block,
securely clamp the cable as shown in
After finishing the electric work, confirm that each electric
part and terminal inside the electric parts box is connected
securely.
3
cause
electrical
interference,
RXYSQ_V1
1~ 50 Hz
220-240 V
32 A
27
2
0.75~1.25 mm
H05VV
figure
12.
RXYSQ6TAV1B
VRV IV-S System air conditioner
4P482260-1 – 2017.03
