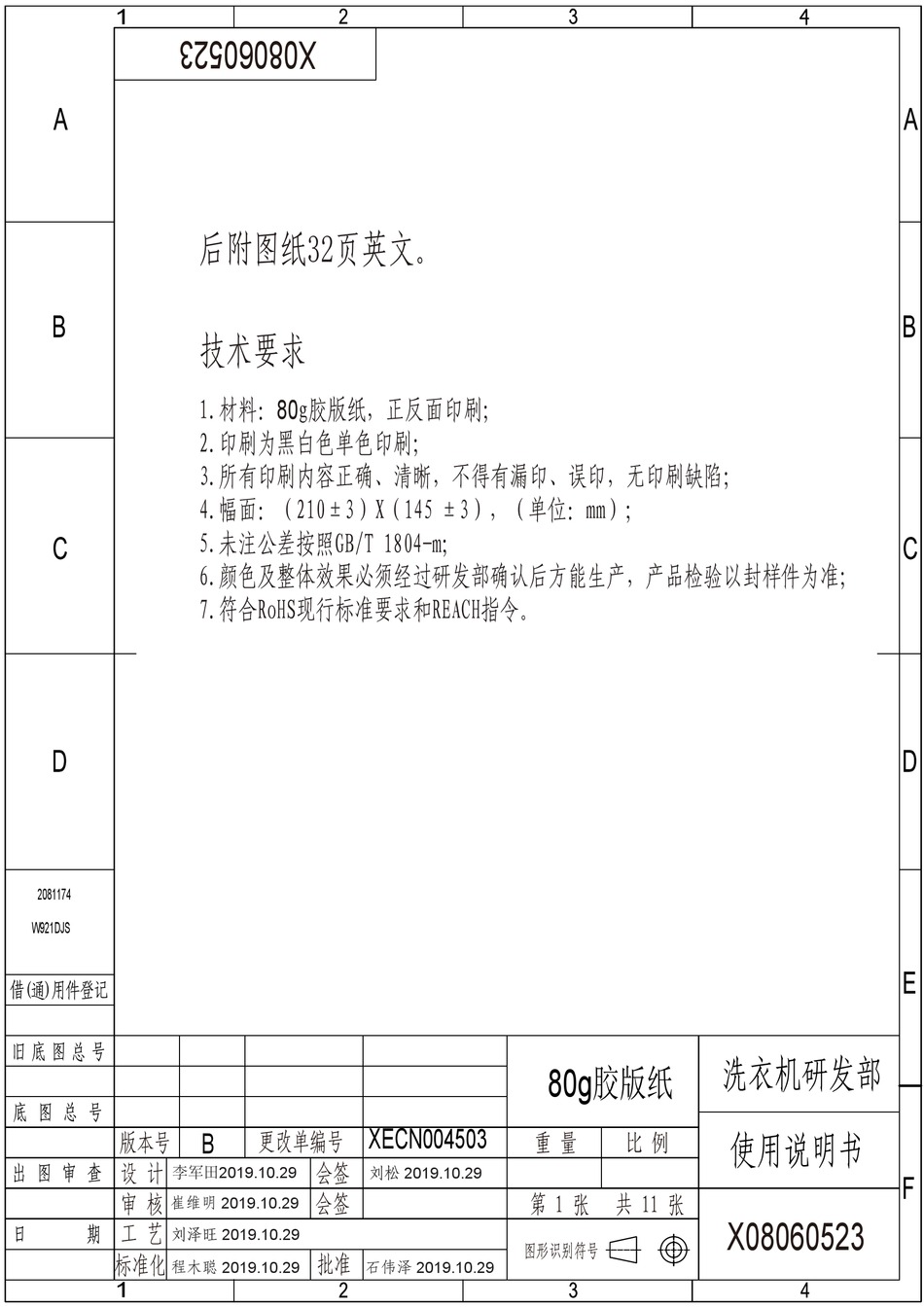

后附图纸32页英文。
技术要求
1.材料：80g胶版纸，正反面印刷；
2.印刷为黑白色单色印刷；
3.所有印刷内容正确、清晰，不得有漏印、误印，无印刷缺陷；
4.幅面：（210
5. 未注公差按照GB/T 1804-m；
6.颜色及整体效果必须经过研发部确认后方能生产，产品检验以封样件为准；
7.符合RoHS现行标准要求和REACH指令。
2081174
W921DJS
B
版本号
设 计
李军田2019.10.29
审 核
崔维明 2019.10.29
工 艺
刘泽旺 2019.10.29
标准化
程⽊聪 2019.10.29
±3
）X（145
XECN004503
更改单编号
会签
刘松 2019.10.29
会签
批准
⽯伟泽 2019.10.29
±3
），（单位：mm）；
80g胶版纸
重 量
第 1 张 共 11 张
图形识别符号
洗衣机研发部
比 例
使用说明书
X08060523

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W921DJS and is the answer not in the manual?

Questions and answers

Related Manuals for Hisense W921DJS

Summary of Contents for Hisense W921DJS

  • Page 1 后附图纸32页英文。 技术要求 1.材料：80g胶版纸，正反面印刷； 2.印刷为黑白色单色印刷； 3.所有印刷内容正确、清晰，不得有漏印、误印，无印刷缺陷； 4.幅面：（210 ±3 ）X（145 ±3 ），（单位：mm）； 5. 未注公差按照GB/T 1804-m； 6.颜色及整体效果必须经过研发部确认后方能生产，产品检验以封样件为准； 7.符合RoHS现行标准要求和REACH指令。 2081174 W921DJS 洗衣机研发部 80g胶版纸 XECN004503 更改单编号 版本号 重 量 比 例 使用说明书 设 计 会签 刘松 2019.10.29 李军田2019.10.29 会签 审 核 第 1 张 共 11 张...
  • Page 2 USER’S OPERATION MANUAL Before operating this unit, please read this manual thoroughly, and retain for future reference...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY INFORMATION................1 2. PRECAUTIONS AND GENERAL RECOMMENDATIONS......2 2.1 Packaging....................2 2.2 Disposing package and scrapping used washing machines.......2 2.3 Location and surroundings................2 2.4 Safety......................2 3. DESCRIPTION OF THE WASHING MACHINE ..........3 3.1 Overview......................3 3.2 Parts supplied....................4 3.3 Control panel....................4 4.
  • Page 4 8.5 To Cancel the Program or Reselect the Options........20 8.6 Programme end..................20 8.7 Door Lock Icon..................20 8.8 Tap Icon....................20 8.9 Draining Pump Icon.................20 8.10 Child lock....................21 8.11 Delay End....................21 8.12 Mute Function..................21 9. CLEANING AND MAINTENANCE..............22 9.1 Removing the filter...................22 9.2 Draining residual water................23 9.3 Care and maintenance................23 10.

  • Page 5: Safety Information

    1. SAFETY INFORMATION The manufacturer reserves the right for any modifications on the product which might be deemed necessary or useful without informing about it in this IFU. Before operating your new washing machine, please read this instruction carefully, and keep it for future reference. If you have lost it accidentally, ask customer service for e-copy or hard copy.

  • Page 6: Precautions And General Recommendations

    The maximum washing capacity is 9kg. For private domestic use only. This appliance is intended to be used in household and similar applications such as: − staff kitchen areas in shops, offices and other working environments; − farm houses; − by clients in hotels, motels and other residential type environments;...

  • Page 7: Safety

    Do not store flammable fluids near the appliance. 2.4 Safety Do not leave the appliance plugged in when not in use. Never plug or unplug the power from the mains supply, if your hands are wet. Turn off the tap. Before any cleaning and maintenance, switch off the machine or disconnect if from the mains.

  • Page 8: Parts Supplied

    3.2 Parts supplied User’s operation Manual 4 Plastic Caps warranty card (depends on model) Cold inlet hose “U” - bend Wrench Hot inlet hose (if available, depending on models) 3.3 Control panel A: “On/Off” button B: “Start/Pause” button C: Programme selector D: “Extra Rinse”...

  • Page 9: Installation

    4 INSTALLATION 4.1 Choosing an appropriate installation location Minimum housing dimensions: Width: 600 mm Height: 850 mm Depth: refer to the Specification Do not place the product on a floor without sufficient capacity to carry the load. Do not install the product in places where there is the risk of freezing. Move the appliance without lifting it by the worktop.

  • Page 10: Removing The Transportation Bolt

    4.3 Removing the transportation bolt Transportation bolts which are not removed can cause damage to the appliance. The washing machine is fitted with transportation bolts to avoid any possible damage to the interior during transport. Step 1: Screw off all transportation bolts for approx. 30mm with wrench following the direction of arrow shown (not fully screw it off).

  • Page 11: Adjusting The Feet

    Step 4: To ensure safety and reduce noise, you should install the transportation bolt cover supplied with the unit (see the annex accompanying the unit). Lean and place the transportation bolt into hole and press it following the shown direction until it clicks.

  • Page 12: Connecting The Water Supply

    Step 3: Important: tighten the locknut by turning it anti-clockwise towards the appliance casing. 4.5 Connecting the water supply Notes: Connect the water supply inlet hose in accordance with the regulations of your local water company. Water tap: 3/4’’ threaded hose connector Water pressure (flow pressure): 100-1000KPa(1-10 bar).
  • Page 13 Check the inlet hose regularly for brittleness and cracks and replace it necessary. The washing machine can be connected without a non-return valve. Cold fill For Models with Single Inlet Fix the inlet hose to the cold water tap Inlet valve and to the inlet valve on the rear side of the machine as Fig.

  • Page 14: Connecting Drain Hose To The Drain

    Ensure that: All connections are tightly fixed. Do not allow children to operate, crawl on, be near or inside your washing machine. Note that during the wash cycles, the surface temperature of the porthole door may increase. Close supervision of children is necessary when the appliance is used near children.

  • Page 15: Electrical Connection

    4.7 Electrical connection Electrical supply must be adequate for the machine’s 16A Current Rating. Electrical connections must be carried out by a qualified technician in compliance with the manufacturer’s instructions and current standard safety regulations. Electrical connections must be made in accordance with local regulations.

  • Page 16: Before The First Wash Cycle

    Before any maintenance on the washing machnie disconnect it from the mains supply. After installation, access to the mains plug or to disconnection from the mains supply must be ensured at all times via a double-pole switch. Do not operate the washing machine if it has been damaged during transport.

  • Page 17: Preparing Laundry For Washing

    By loading Wash items of different sizes in the same load to improve washing efficiency and distribution in the drum. By delicates Wash small items (e.g. nylon stockings, belts etc.) and items with hooks (e.g. bras) in a cloth bag or pillow case with zip. Always remove curtain rings or wash curtains with the rings inside a cotton bag.

  • Page 18: Detergents And Additives

    6.3 Detergents and additives Always use high efficiency, low foam detergent for a front load machine. The choice of detergent depends on: Type of fabric (cottons, easy care/synthetics, delicate items, wool) Note: Use only specific detergents for washing wool. Colour The wash temperature Degree and type of soiling Remarks:...
  • Page 19 Where to put detergent and additives The detergent drawer has three chambers (fig. “A”) Prewash chamber Detergent for prewash Mainwash chamber Detergent for main wash Stain remover Water softener (water hardness class 4) Softener chamber Fabric softener Liquid starch Pour additives only up to the “Max” mark. How to position the separator in the main wash chamber for powder or liquid detergent For use with powder detergent: Place the separator in...
  • Page 20 Notes: Keep detergents and additives in a safe, dry place out of the reach of children. Liquid detergents can be used for programmes with prewash. However, in this case a powder detergent must be used for the main wash. Do not use liquid detergents when activating the “Delay End” functioin (if available on your washing machine).

  • Page 21: Programmes Instructions

    7 PROGRAMMES INSTRUCTIONS 7.1 Programme table Wash Program Functions Detergen Compartmentt Maximum Maximum Program spin speed Prewash Main wash Softener Delay Prewash Extra Default Spin Temp. Care Label Wash Load rinse rinse times Cotton --,20ºC, 30ºC, 40ºC, 1200 50ºC,60ºC, 95ºC Cotton Eco (1) 1200 --,20ºC, 30ºC, 40ºC,...

  • Page 22: Programmes

    7.2 Programmes You can follow the manufacturer’s recommendations on clothing tags. Heavily and moderately soiled cotton, or linen. Cotton For very heavily soiled items select the "Prewash" function. Eco wash for cotton and linen. Cotton Eco Can reduce washing time and power consumption. Extra rinse time.

  • Page 23: Select Any Desired Option

    8.2 Select any desired option Prewash Press the “Prewash” button until the Prewash indicator lights up. Add detergent into the prewash chamber The Prewash indicator flashes during the operation. After the operation finished, the indicator turns off automatically. Extra Rinse This function is adding maximum 3 rinse times during washing process.

  • Page 24: To Cancel The Program Or Reselect The Options

    8.5 To Cancel the Program or Reselect the Options Press the “On/Off” button for 2 seconds to shut down the program. Press “On/Off” button to turn on the machine. Select the new program and options. Press “Start / Pause”to start the new program without adding any extra detergent. 8.6 Programme end When programme finished its running, it will display “End”.

  • Page 25: Child Lock

    8.10 Child lock To strengthen the safety of children, this machine is equipped with Child Lock function. When the programme starts, press “Temp. +Spin” button for 3 seconds. Child Lock icon will light up, and then Child Lock is set up. Repeat the same operation, the Child Lock will be released.

  • Page 26: Cleaning And Maintenance

    9 CLEANING AND MAINTENANCE 9.1 Removing the filter We recommend that you check and clean the filter regularly, at least two or three times a year. Especially: If the appliance is not draining properly or if it fails to perform spin cycles. If the pump is blocked by a foreign body (e.g.

  • Page 27: Draining Residual Water

    9.2 Draining residual water Before emptying the residual water, switch the appliance off and unplug it from the mains socket. Remove the plinth. Place a container beneath it. Open the filter but do not remove it completely. Slowly turn the filter counterclockwise until the water begins to drain out.

  • Page 28: Troubleshooting Guide

    Door seal Clean with a damp cloth when necessary. Check the condition of the door seal periodically. Water supply hose Check the supply hose regularly for brittleness and cracks and replace it if necessary using a new hose of the same type (available from After-Sales Service or specialist dealer).
  • Page 29 The appliance stops during the programme Check whether: The “Start/Pause” button,then start the drain process. The door has been opened and the “Start/Pause” button not be pressed. Close the door and press the “Start/Pause” button again. Check if there is too much foam inside, machine enters kill-foam routine. The machine will run again automatically after a period.
  • Page 30 If the laundry is still too wet at the end of the cycle, remove some articles of laundry and repeat the spin cycle. Excessive foam formation may prevent spinning. Use the correct amount of detergent. Check that the spin speed selector has not been set to “0”. Hot / Cold fill fault - For Models with Dual Inlets If you wish to connect hot and cold water supply (Fig.1): Fix the red marked inlet hose to the hot water tap and to the inlet valve with the...
  • Page 31 Ensure that: All connections are tightly fixed. Do not allow children to operate, crawl on, be near or inside your washer. Note that during the wash cycles, the surface temperature of the porthole d o o r m a y increase. Close supervision of children is necessary when the appliance is used near children.
  • Page 32 C.Fault code The washer stops when the program is running. The display window shows fault code “F24” , fault codes from “F04” to “F07”, “F13”, “F23” or “Unb”. If fault code “F24” is shown Water level reaches overflow level. Remove it by pressing “Start/Pause” key and feed water. Select and start required program.

  • Page 33: Operating Data

    11 OPERATING DATA In accordance with delegated regulation (EU) No.1061/2010 Model W921DJS Rated Capacity Max. spin speed 1200 rpm Voltage/Frequency 220-240V ～/50Hz Gross Power 2200 W Water Pressure 0.1 MPa - 1MPa Dimensions (WxDxH) 595×600×850mm Net Weight 60kg Energy Efficiency Class...
