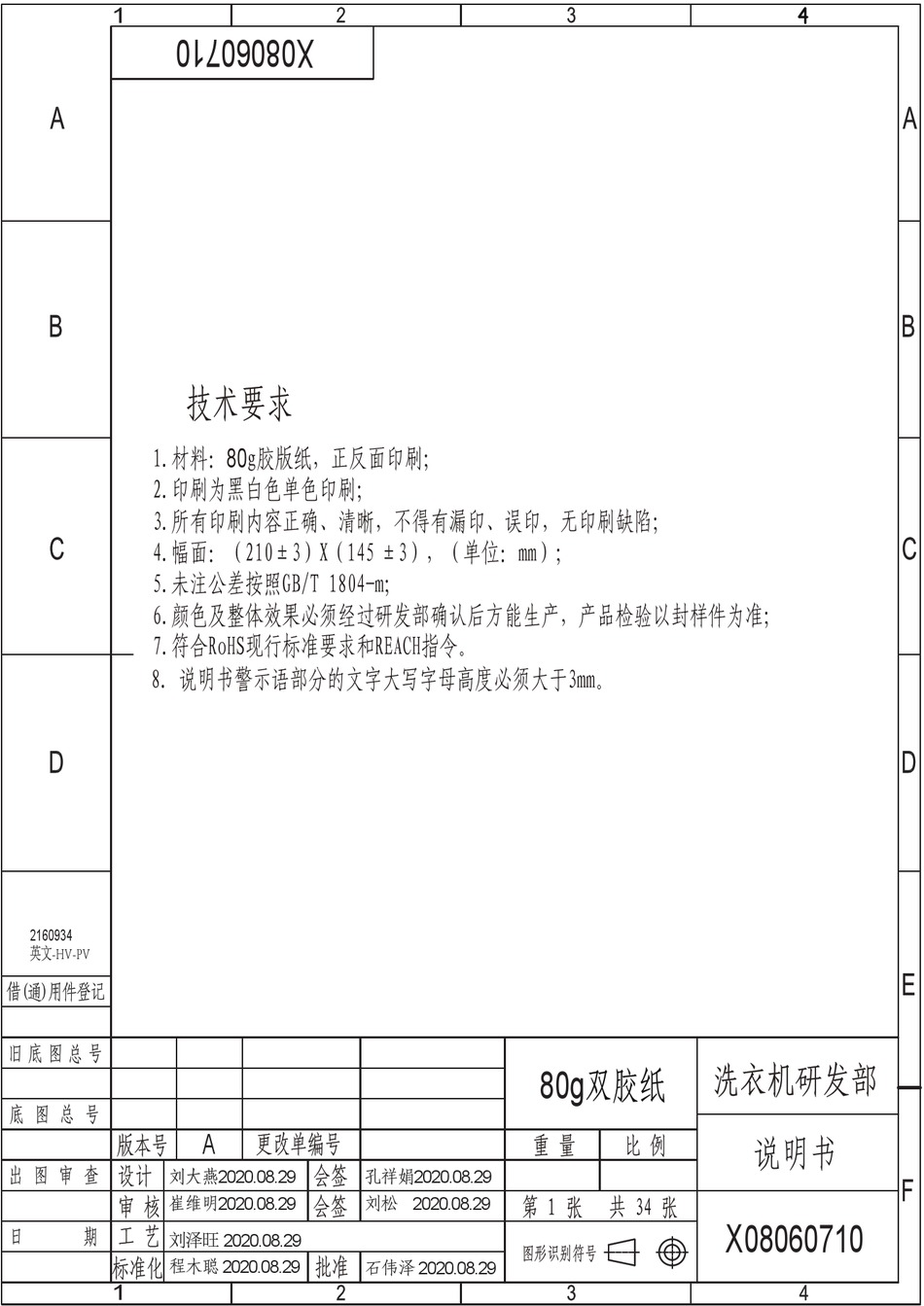

1.材料：80g胶版纸，正反面印刷；
2.印刷为黑白色单色印刷；
3.所有印刷内容正确、清晰，不得有漏印、误印，无印刷缺陷；
4.幅面：（210±3）X（145 ±3），（单位：mm）；
5.未注公差按照GB/T 1804-m；
6.颜色及整体效果必须经过研发部确认后方能生产，产品检验以封样件为准；
7.符合RoHS现行标准要求和REACH指令。
8. 说明书警示语部分的文字大写字母高度必须大于3mm。
2160934
英文-HV-PV
A
刘大燕2020.08.29
崔维明2020.08.29
刘泽旺 2020.08.29
程⽊聪 2020.08.29
孔祥娟2020.08.29
刘松2020.08.29
⽯伟泽 2020.08.29
80g
说明书
X08060710
Advertisement
Related Manuals for Hisense WFPV9014EMT
Summary of Contents for Hisense WFPV9014EMT
- Page 1 1.材料：80g胶版纸，正反面印刷； 2.印刷为黑白色单色印刷； 3.所有印刷内容正确、清晰，不得有漏印、误印，无印刷缺陷； 4.幅面：（210±3）X（145 ±3），（单位：mm）； 5.未注公差按照GB/T 1804-m； 6.颜色及整体效果必须经过研发部确认后方能生产，产品检验以封样件为准； 7.符合RoHS现行标准要求和REACH指令。 8. 说明书警示语部分的文字大写字母高度必须大于3mm。 2160934 英文-HV-PV 说明书 孔祥娟2020.08.29 刘大燕2020.08.29 崔维明2020.08.29 刘松2020.08.29 X08060710 刘泽旺 2020.08.29 程⽊聪 2020.08.29 ⽯伟泽 2020.08.29...
- Page 2 USER’ S OPERATION MANUAL Before operating this unit, please read this manual thoroughly, and retain for future reference...
-
Page 4: Electrical Connection
INSTRUCTIONS FOR USE SAFETY INFORMATION BEFORE USING THE WASHING MACHINE PRECAUTIONS AND GENERAL RECOMMENDATIONS DESCRIPTION OF THE WASHING MACHINE OPENING I CLOSING DOOR BEFORE THE FIRST WASH CYCLE PREPARATION OF THE WASHING DETERGENTS AND ADDITIVES REMOVING THE FILTER DRAINING RESIDUAL WATER CARE AND MAINTENANCE TROUBLESHOOTING GUIDE AFTER-SALES SERVICE... -
Page 5: Safety Information
SAFETY INFORMATION The manufacturer reserves the right for any modifications on the product which might be deemed necessary or useful without informing about it in this IFU. Before operating your new washing machine, please read this instruction carefully, and keep it for future reference. If you have lost it accidentally, ask customer service for e- copy or hard copy. - Page 6 For appliances with ventilation openings in the base, that a carpet must not obstruct the openings. Children of less than 3 years should be kept away unless continuously supervised. The maximum permissible inlet water pressure, 1 MPa, for appliances intended to be connected to the water mains. The minimum permissible inlet water pressure, 0.1 MPa, if this is necessary for the correct operation of the appliance.
- Page 7 ensure Ensure Ensure that the ventilation openings in the base of the washing machine (if available on your model) are not obstructed by a carpet or other material. Single inlet - only Dual inlet - and cold...
- Page 8 that...
- Page 9 that The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for there cyclingof electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
-
Page 10: Description Of The Washing Machine
Clean the outside of the washing machine with a damp cloth. Do not use abrasive detergents. Never open the door forcibly or use it as a step. DESCRIPTION OF THE WASHING MACHINE Control panel layout and appearance will depend on the model. while the while the to be... -
Page 11: Before The First Wash Cycle
BEFORE THE FIRST WASH CYCLE To remove any residual water used during testing by the manufacture r, we recommend that you carry out a short wash cycle without laundry. 1. Open the tap. 2. Close the door. 3. Pour a little detergent (about 30 ml) into the main wash chamber of the deter- gent dispenser . - Page 13 / soak...
- Page 14 unds...
- Page 15 Depending on the model, Insert removal tool like slotted screwdriver into the small opening of bottom baffle, press the bottom baffle downward with much strength and open it. Or, push down on the tabs provided on both the sides and remove it.
- Page 18 and Choose the desired programmme to start the machine. The washing machine will not start, and the screen flashes.
- Page 20 For Models with Dual Inlets If you wish to connect hot and cold water supply (Fig.1): 1. Fix the red marked inlet hose to the hot water tap and to the inlet valve with the red filter on the rear side of machine. 2.
- Page 21 Fault Code List Displayed on Display Window Fault Description “F01” Water inflow fault “F03” Drainage fault Electronic module fault, overflow or too much foam. “F04”, “F05”, “F06”, “F07” “F23” and “F02/F24” “F13” Door lock fault “F14” Door unlock fault “Unb” Unbalance alarm a.
- Page 22 C. Fault code The washer stops when the program is running. The display window shows fault code “F02/F24”, fault codes from “F04’ to “F07”, “F13”,“F14”, “F23” or “Unb”. If fault code “F02/F24” is shown Water level reaches overflow level. Remove it by pressing “Start/Pause” key and feed water. Select and start required program.
- Page 23 adequate for the machine’s 10 A Current Rating. The electrical power cable must be replaced exclusively by a licensed electrician.
- Page 24 Instruction for use, installation guide, warranty card (depends on model)
- Page 25 Important: Transport bolts which are not removed can cause damage to the appliance.The washing machine isn’t intended to be built-in. Screw off all transportation bolts for approx. 30mm with wrench following the direction of arrow shown (not fully screw it off). Push two transportation bolts on horizontal direction inward and loose transportation bolt.
- Page 27 for models having Dual Inlets.
- Page 28 CONNECT THE DRAIN HOSE In case the drain hose is installed as shown below: Unhook it only from the right clip (see arrow) Connect the drain hose to the drain or hook it over the edge of a sink by means of the "U"...
- Page 29 2160934-X08060710A...
