Sencore MRD 2600 Quick Start

Congratulations on purchasing the MRD 2600. Follow these installation and configuration instructions to get started. Use the web
interface for easiest configuration. If you need assistance, please contact Sencore ProCare at (605) 978-4600 or procare@sencore.com.
1
Contents
Unpack the MRD 2600 from the box
and packaging materials it was shipped
in. Verify all of the following items are
present:
• MRD 2600 Modular Receiver
1x
• Line Cord
1x
If any of these items are missing or
damaged, please contact Sencore to
obtain replacements.
The user manual can be downloaded
from the MRD 2600 product page on the
Sencore website: www.sencore.com
Quick Start Quick Start

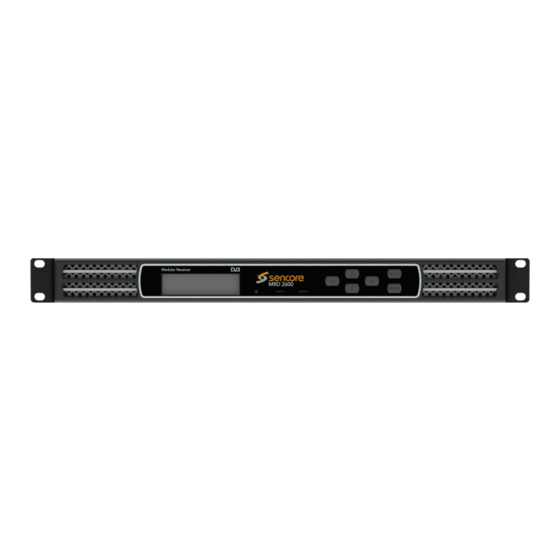

MRD 2600 Modular Receiver
2
Installation
1.Secure the MRD 2600 into the rack space.
2.Make all appropriate I/O connections on the
back of the unit.
3.Connect an Ethernet Cable from a
management network to the LAN port.
4.Connect the line cord to power on the unit.
www.sencore.com | 605.978.4600 | procare@sencore.com | Copyright © Sencore Inc. 2020
3
Management Port
The MRD 2600 can be managed through its web interface, SNMP or the
front panel. To use the web GUI or SNMP, the management IP address
must be configured. Contact your IT department if you are unsure of these
settings.
DHCP IP Address Setup:
1. Press
2. Use and to move the cursor to "Admin", then press
3. Use and to move the cursor to "Unit Networking:" then press
4. Use and to move the cursor to "Primary Unit Networking",
then press
5. Press
6. Press the use and to change the selection to "DHCP"
7. Press to save (any changes will be reverted if save is not completed)
Static IP Address Setup:
1. Complete steps 1-5 of the "DHCP IP Address Setup:"
2. Press then use and to change the selection to "Static"
3. Press to save.
4. Use and to select the column to edit and use
the IP and then press to save.
5.The cursor will now be on, "Mask."
6.Use and to select the column to edit and use
the Subnet Mask, then press to save.
7.The cursor will now be on, "Gateway."
8.Use and to select the column to edit and use
the Gateway, then press to save.
Open a web browser (IE 7 or above, Firefox 3.5 or above, or Chrome) and type:
http://<IP Address> Default password is "mpeg101"
and to change
and to change
and to change
