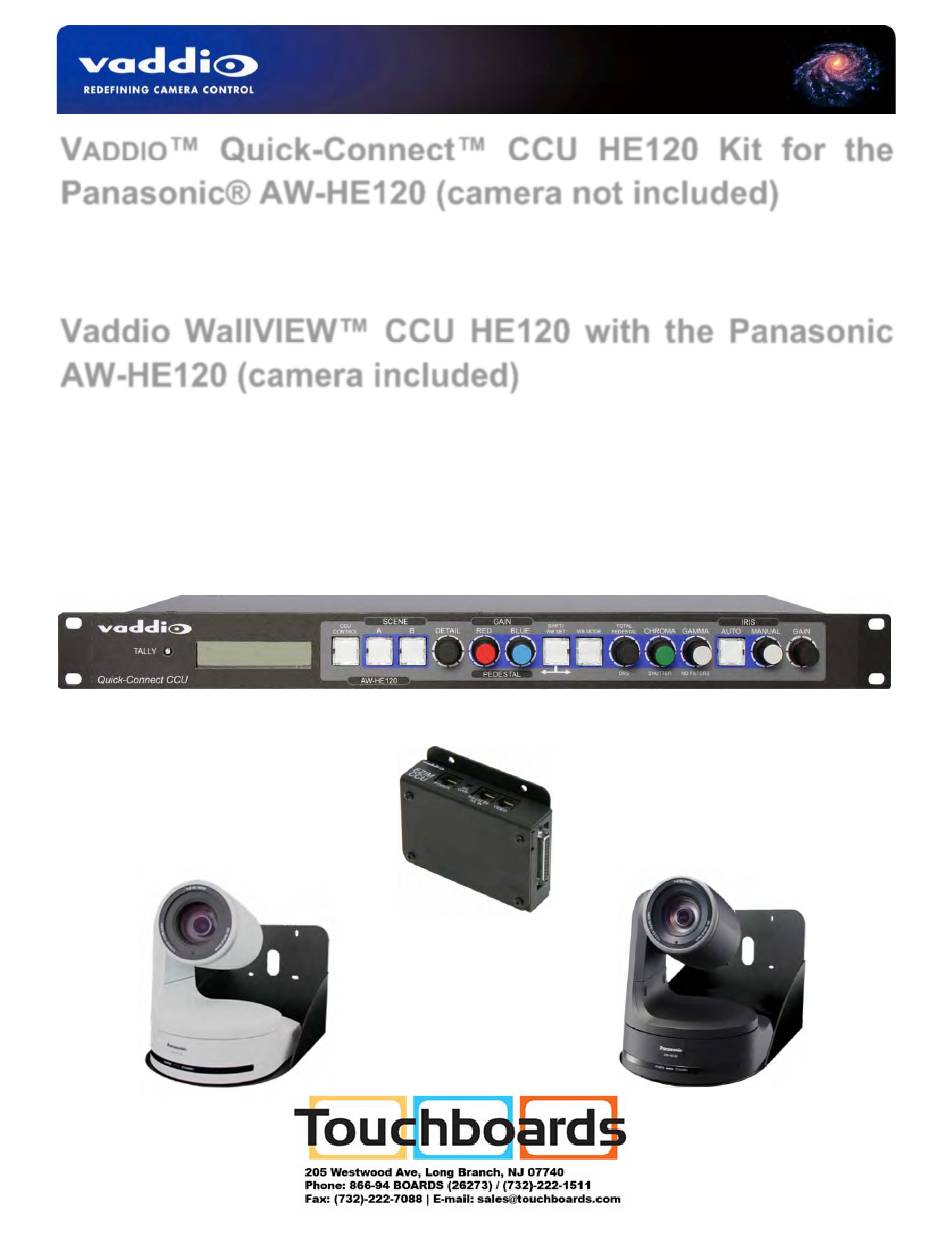

Installation and User Guide
V
™ Quick-Connect™ CCU HE120 Kit for the
ADDIO
Panasonic® AW-HE120 (camera not included)
Part Numbers without Camera:
998-6127-000: Quick-Connect CCU Kit for the AW-HE120 Camera (camera not included) - North America
998-6127-000: Quick-Connect CCU Kit for the AW-HE120 Camera (camera not included) - International
Vaddio WallVIEW™ CCU HE120 with the Panasonic
AW-HE120 (camera included)
Part Numbers with Camera:
999-6127-000K: WallVIEW CCU HE120 System with Black AW-HE120 (camera included) - North America
999-6127-001K: WallVIEW CCU HE120 System with Black AW-HE120 (camera included) - International
999-6127-000W: WallVIEW CCU HE120 System with White AW-HE120 (camera included) - North America
999-6127-001W: WallVIEW CCU HE120 System with White AW-HE120 (camera included) - International
© 2012 Vaddio - All Rights Reserved.
Specifications are subject to change without prior notice. Document Number 342-0498 Rev A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VADDIO Quick-Connect CCU HE120
Summary of Contents for VADDIO Quick-Connect CCU HE120
- Page 1 998-6127-000: Quick-Connect CCU Kit for the AW-HE120 Camera (camera not included) - North America 998-6127-000: Quick-Connect CCU Kit for the AW-HE120 Camera (camera not included) - International Vaddio WallVIEW™ CCU HE120 with the Panasonic AW-HE120 (camera included) Part Numbers with Camera:...
-
Page 2: Table Of Contents
Compliance and CE Declaration of Conformity - Quick-Connect CCU and EZIM CCU ........13 Appendix 1: Cable Pin-outs for the Quick-Connect CCU System ................14 © 2012 Vaddio - All Rights Reserved. Document Number 342-0498 Rev A Page 2 of 16... -
Page 3: Overview
The Panasonic AW-HE120 uses standard RS-422 control protocol. To be 100% compatible with Vaddio equipment, everything is included to convert Vaddio’s RS-232 to RS-422. This allows for the operation with the complete line of Vaddio ProductionVIEW™ consoles (Precision Camera Controller, ProductionVIEW HD, ProductionVIEW HD MV and the ProductionVIEW HD-SDI MV with integrated multi-viewers. -
Page 4: Information
Information: For RS-232 control information, please see the full-length Technical Manual for the Panasonic AW-HE120. This manual can be found either on the Panasonic or the Vaddio website. Unpacking: Carefully remove the device(s) and all parts from the packaging. Please do not toss the packaging yet, just set it aside where it won’t be in the way. -
Page 5: Anatomy Of The Ccu Controlled Camera System
Gain: The Gain control boosts the signal level when the iris is open all the way, and there is not enough lighting available. To manually adjust the gain Auto Iris must be off. © 2012 Vaddio - All Rights Reserved. Document Number 342-0498 Rev A Page 5 of 16... -
Page 6: Image: Rear Panel Connections And Controls (Left To Right)
Video Outputs: Four Video Signals at any one time can be transmitted from the EZIM CCU concurrently allowing the CCU system to return HD and SD at the same time. Note: Simultaneous SD requires the camera is equipped correctly. © 2012 Vaddio - All Rights Reserved. Document Number 342-0498 Rev A Page 6 of 16... -
Page 7: Image: Ezim Ccu Top Panel (Left To Right) And Iso View Of Ezim Ccu
POWER cable into all the RJ-45 jacks to see which one cable powers the camera. In all likelihood, this method will cause damage to your system and your warranty will be voided. © 2012 Vaddio - All Rights Reserved. Document Number 342-0498 Rev A Page 7 of 16... -
Page 8: Step By Step Mounting Instructions
Quick Connect CCU Kit and WallVIEW Kit for the AW-HE120 Please do not use “pass-thru” type RJ-45 connectors. The Vaddio Cat-5 wiring standard uses pins 7 and 8 on both the video and the control Cat-5e cables. The pass-through connectors have proven to provide insufficient connectivity for these important signals. -
Page 9: Completing The Installation
Completing the Installation: Connect the Power Cat-5 cable to the CCU and connect the Vaddio 36 VDC power supply to an AC outlet. Power will travel down the Power Cat-5 cable to the EZIM CCU, powering the camera. The camera will “Home”... -
Page 10: Drawing: Basic System Connectivity
CCU Control Mode: CCU’s that are sold with cameras other than Vaddio will have a CCU Control button with the scene controls. Make sure and select CCU Control if available prior to making CCU adjustments. -
Page 11: General Specifications
**Distance adjustment not active on CCU when using the SDI option General Specifications Quick-Connect CCU HE120 (Please see specs for Panasonic camera in the Panasonic manual) Part Numbers 998-6897-000: Quick-Connect CCU Kit for the BRC-H900 Camera (camera not included) - North America 999-6897-001: Quick-Connect CCU Kit for the BRC-H900 Camera (camera not included) - International ... -
Page 12: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 13: Compliance And Ce Declaration Of Conformity - Quick-Connect Ccu And Ezim Ccu
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 14: Appendix 1: Cable Pin-Outs For The Quick-Connect Ccu System
Signal _______ SD_______________HD______ CVBS + CVBS + CVBS GND CVBS GND 12345678 C GND PB GND Y GND Y GND Not Used Not Used © 2012 Vaddio - All Rights Reserved. Document Number 342-0498 Rev A Page 14 of 16... - Page 15 GND - Y/Y GND - PWR GND - PWR GND - PWR 12V - PWR 12V - PWR 12V - PWR 12V - PWR © 2012 Vaddio - All Rights Reserved. Document Number 342-0498 Rev A Page 15 of 16...
- Page 16 ©2012 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, Quick-Connect, HSDS, EZCamera, ProductionVIEW, EZIM and PowerRite are trademarks of Vaddio. All other trademarks are property of their respective owners.
