A Quick Look at the Camera

This section covers the physical features of the camera.

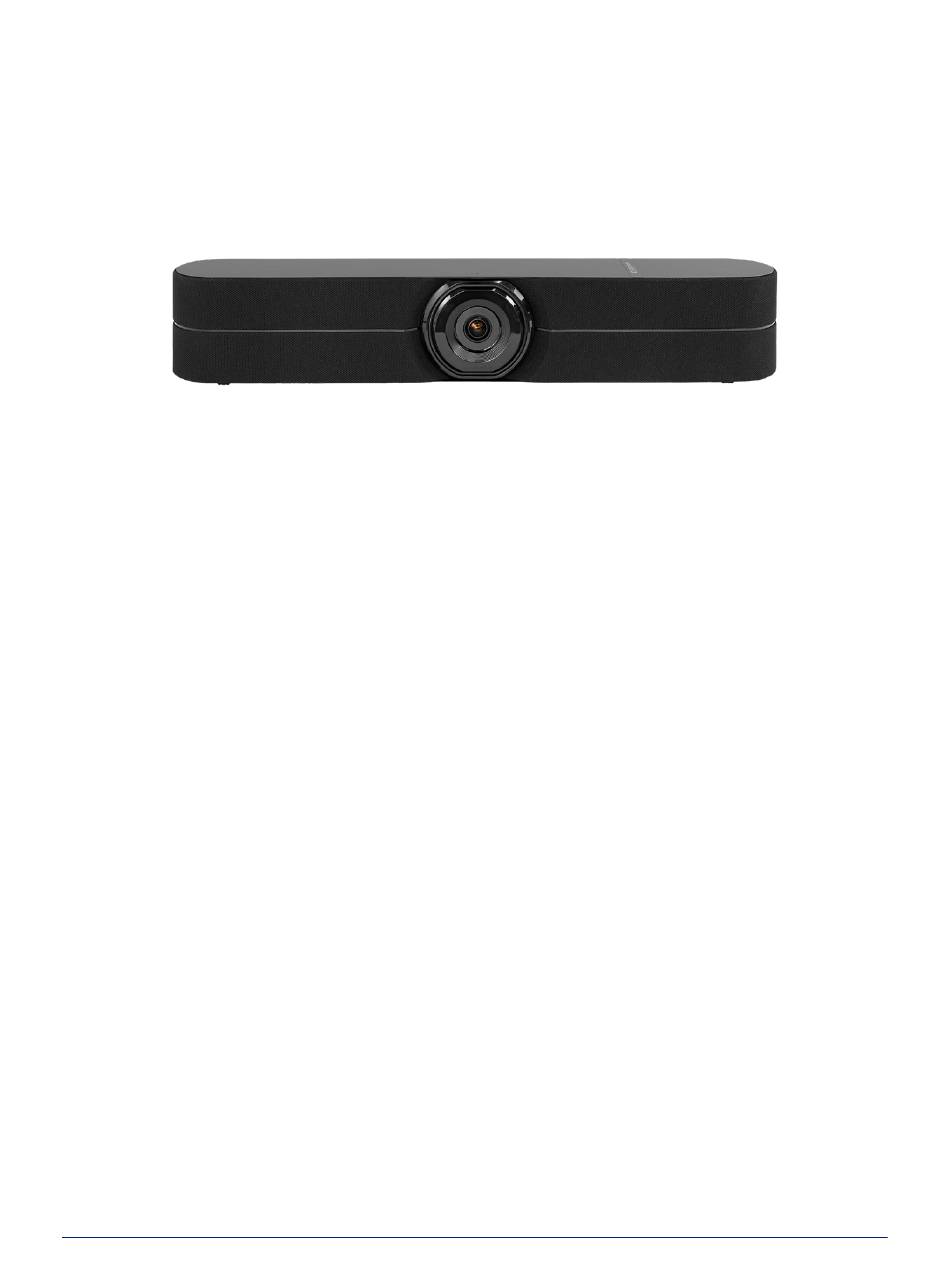

Front of the Camera
Camera – The HuddleSHOT camera offers 1x, 1.5x, and 2x zoom levels.
Status light – The illuminated ring around the lens bezel indicates the camera's current state. The status light can
be turned off in the administrative web interface.
Note
By default, the camera's status indicator light is active during normal operation; however, it can be
configured to remain off when the camera is powered up. The camera may be sending video even if
the light is off.
Left and right speakers – Far-end audio, or content audio when using Sound Bar Mode.
Integrated microphones – No external microphone needed in the typical huddle room, interview room, or
other small space. Echo-canceling microphones pick up the voices of participants up to 10 ft. (3 m) away.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HuddleSHOT and is the answer not in the manual?

Questions and answers

Related Manuals for VADDIO HuddleSHOT

Summary of Contents for VADDIO HuddleSHOT

  • Page 1 This section covers the physical features of the camera. Front of the Camera Camera – The HuddleSHOT camera offers 1x, 1.5x, and 2x zoom levels. Status light – The illuminated ring around the lens bezel indicates the camera's current state. The status light can be turned off in the administrative web interface.

  • Page 2: Using The Remote

    Here are some common situations in which the remote can behave in ways you don't expect. Environments with HuddleSHOT cameras in adjacent rooms – If the remote is currently paired to a camera and within range of that camera, it will not pair with another camera.

  • Page 3: Web Interface

    Web Interface The camera provides a web interface to allow control via an Ethernet network connection, using a browser. In addition to the user-level camera control that the IR remote offers, the web interface provides up to 16 zoom presets. You will need to know the camera's IP address to use the web interface.
  • Page 4 ©2019 Legrand AV Inc. Vaddio is a registered trademark of Legrand AV Inc. All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All patents are protected under existing designations.
