EVO24-M
Dual-12" Active Line-Array System

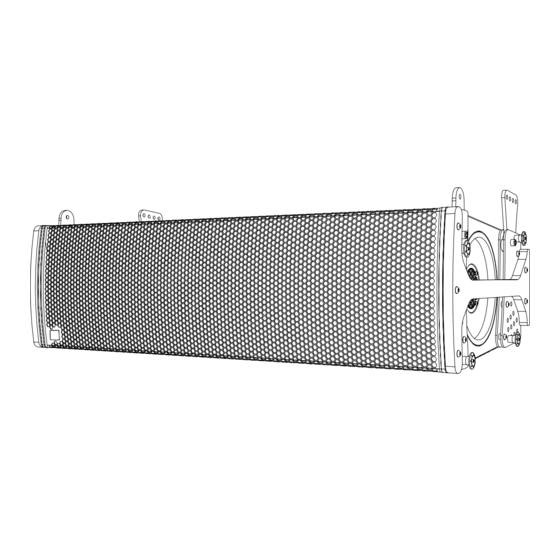

EVO24-M is an active large-format touring line array system
specifically designed for professional sound reinforcement in big
events, large venues or open spaces for audiences from 5000 to
50000, in productions or events operated by rental companies or pro-
audio contractors.
Powered by 2 x 3.2 kW Powersoft power modules, EVO24-M features
dual-12" Neo LF woofers, 4 x 6.5" MF woofers in two sealed chambers
and 2 x 3" Neo compression drivers coupled to a proprietary - design
waveguide assembly.
QuickStart Guide
EVO24-M
Dual-12" Active Line-Array
SIGNAL
STATUS
GAIN
CLIP/TEMP
6.4 kW
5.4 A
INPUT
16 units
MAX
87.5 kg
Power supply:
switch mode.
Universal, regulated
Nominal power
100-240 V 50-60 Hz.
requirement:
PRESET
Current consumption:
SELECT
5.4 A @ 220V
LINK
PRODUCT OF EUROPE
Designed, engineered and manufactured by IDEA
Made in Spain
in Cedeira (Galicia)
1
Advertisement
Table of Contents
Related Manuals for Idea EVO24-M
Summary of Contents for Idea EVO24-M
- Page 1 50000, in productions or events operated by rental companies or pro- audio contractors. Powered by 2 x 3.2 kW Powersoft power modules, EVO24-M features dual-12” Neo LF woofers, 4 x 6.5” MF woofers in two sealed chambers and 2 x 3” Neo compression drivers coupled to a proprietary - design waveguide assembly.
- Page 2 15 mm Birch Plywood Grille 1.5 mm perforated weatherised steel with protective foam Finish Durable IDEA proprietary Aquaforce High Resistance paint coating process Rigging Hardware High-resistance, coated steel integrated 4-point rigging hardware 10 angulation points (0˚-10˚ internal splay angles in 1˚steps) Dimensions 1225 x 339 x 550 mm (48.2 x 13.3 x 21.7 in)
- Page 3 • IDEA declines any responsibility from misuse that may result in malfunction or damage of the equipment. WARRANTY • All IDEA products are guaranteed against any manufacturing defect for a period of 5 years from date of purchase for acoustical parts and 2 years from date of purchase for electronic devices.
- Page 4 For further information scan the QR Code or refer to the following web address: www.ideaproaudio.com/product-detail/evo24-m IDEA is always in pursuit of better performance, greater reliability and design features. Technical specifications and minor finish details may vary without notice in order to improve our products.
