Summary of Contents for Amewi AMXRock RCX10

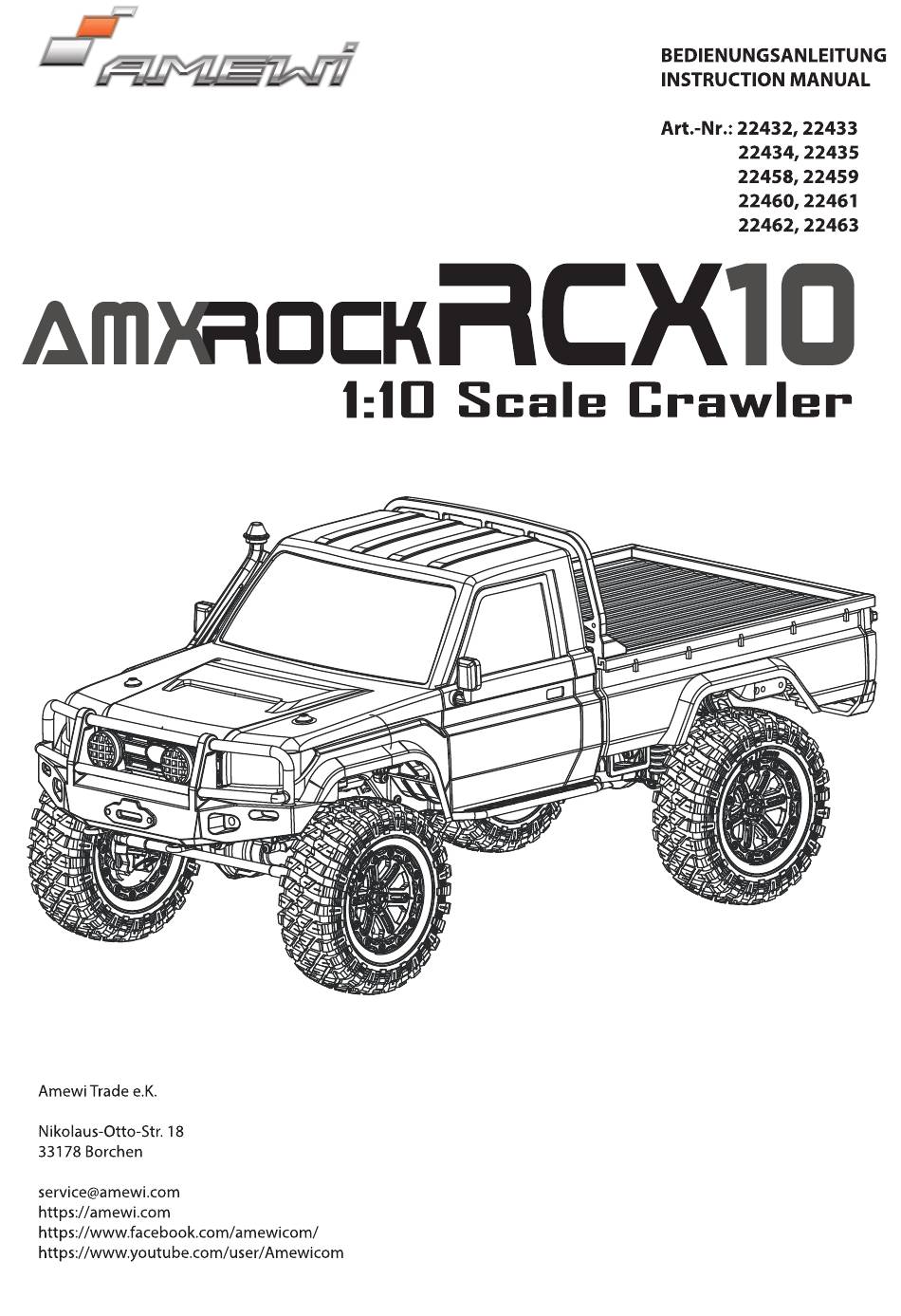

  • Page 4 Thank you for purchasing our RCX10 Model. Please read these instructions carefully before using this model and keep them for later questions. The Amewi team wishes you a lot of fun with this vehicle. HAUPTMERKMALE / KEY FEATURES 550 Crawler Motor brushed...
  • Page 5 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P ANLEITUNG / INSTRUCTIONS Fahren Sie mit beiden Fingern unter die Haube und Ziehen Sie sie nach oben. Step into the fingers from both sides of the car and turn the car shell up slightly. Drücken Sie in der Mitte des Verschlusses und ziehen Sie diesen anschließend mit dem Finger nach oben.
  • Page 6 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P FERNBEDIENUNG / REMOTE CONTROL 1. Ziehen Sie wie angezeigt die Batteriefachabdeckung ab. 2. Legen Sie 4 Batterien des Typs AA ein. Bitte achten Sie auf die Polarisation. Schließen Sie die Abdeckung. 1. Slide in the direction of the arrow to remove or install the transmitter battery cover.
  • Page 7 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P Wenn das Fahrzeug nicht geradeaus fährt, benutzen Sie den Trimm-Poti (5) um die Räder gerade zu richten. If the car don’t run straight, turn the steering-Trim button (5) to trim the front wheels. Drehen Sie den Dual-Rate Poti (7) um den Lenkwinkel zu vergrößern oder zu verkleinern.
  • Page 8 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P ANSCHLUSS DIAGRAMM / CONNECTION DIAGRAM Servo Sperre hinteres Servo Sperre vorderes Differential Differential Front Differential Lock Servo Rear Differential Lock Servo LED Beleuchtung LED Light Schwarz Getriebe Servo Black Shift Servo Akku Empfänger Battery Receiver Schwarz Regler...
  • Page 9 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P SPEZIFIKATIONEN FAHRTENREGLER / SPECIFICATIONS ESC Vorw. Kont. / Vorw. Max. 60A / 360A Fwd. Cont. / Peak. Current Rückw. kont. / Rückw. Max. 30A / 180A Rev. Cont. / Peak Current Spannungsbereich 2-3S LiPo / 5-9 NiMH Voltage Range Geeignet für Fahrzeuge 1/10: Tourenwagen/Touring Car, Short...
  • Page 10 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P 2. Schalten Sie den Sender ein und stellen Sie den Trimm-Poti des Gaskanals auf 0 und den Dual Rate Poti des Gaskanals auf 100. Bedeutung der Akustischen Signale LED Status (Im Betrieb) 1x Piep: NiMH Modus erkannt Gashebel in Neutralstellung LED ist aus.
  • Page 11 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P...
  • Page 12 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P...
  • Page 13 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P...
  • Page 14 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P...
  • Page 15 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P...
  • Page 16 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P...
  • Page 17 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P...
  • Page 18 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P...
  • Page 19 BEDIENUNGSANLEITUNG / INSTRUCTION RCX10B & RCX10P ERSATZTEILE & ZUBEHÖR / SPARE PARTS & ACCESSORIES Die Ersatzteile-Nummern finden Sie in den Explosionszeichnungen. Die Nummer setzt sich aus der Vornummer: 021-17223 +Nummer in den Zeichnungen zusammen. The spare parts number you will find in explosion draw. The number consists of number: 021-17223 + number in the drawings.
