Functional Description And Specifications - Bosch PROFACTOR GDS18V-770C Operating/Safety Instructions Manual

Disconnect battery pack from tool before making any assembly, adjustments or changing
accessories. Such preventive safety measures reduce the risk of starting the tool accidentally.

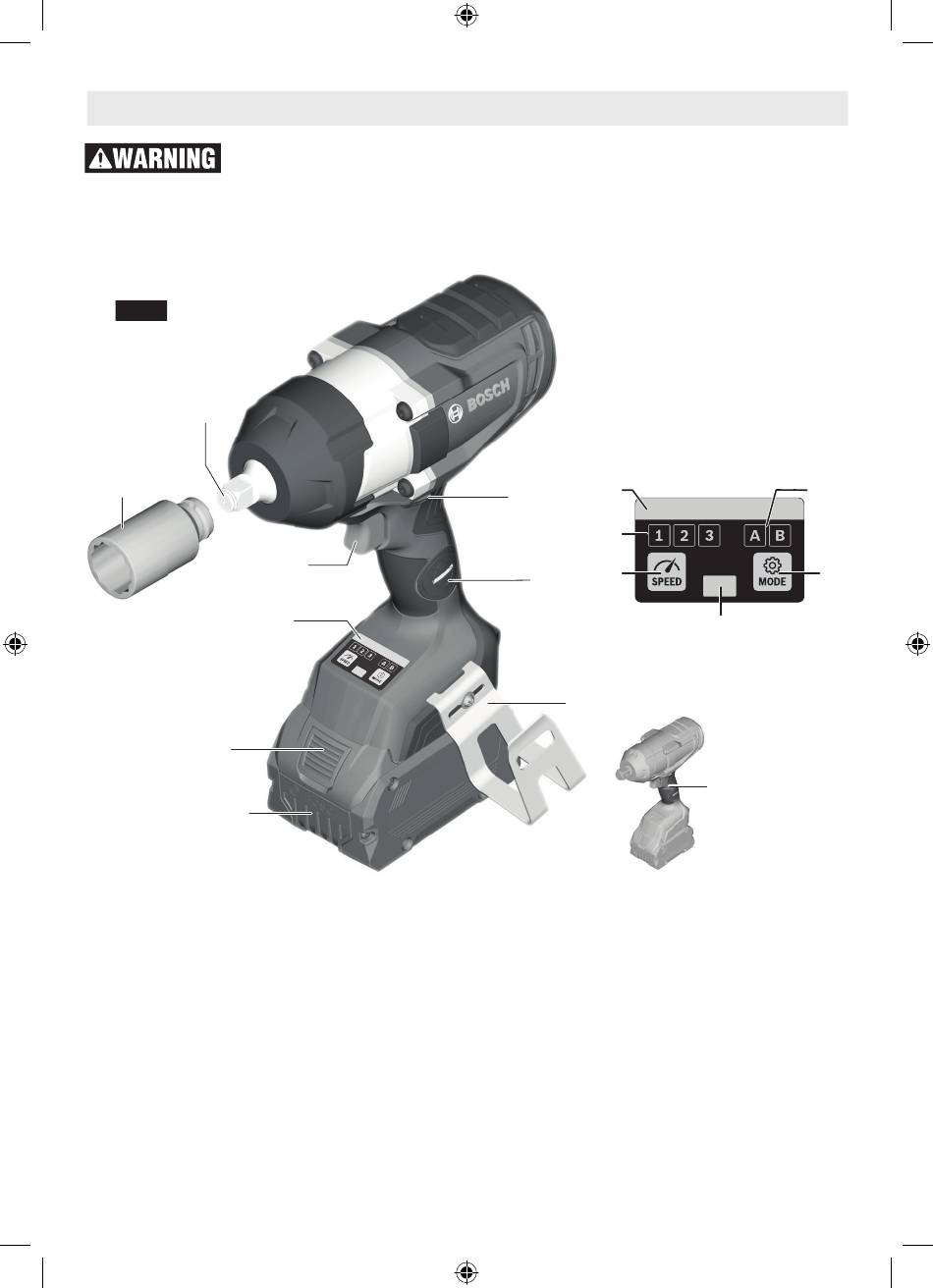

Fig. 1
(1)
(10)
(6)
(5)
(1) Output drive
(3) Rotational direction switch
(4) Joist hanger
*
(5) Battery
*
(6) Battery release button
(7) User Interface
(8) Variable speed trigger switch
(9) Handle (insulated gripping surface)
(10) Socket*
(11) Connectivity module compartment
Functional Description and Specifications
Cordless Impact Wrench GDS18V-740C
(8)
(7)
(12)
(3)
(15)
(14)
(11)
(4)
User Interface
(12) Status indicator LED
(13) Worklight
(14) Speed preselection button
(15) Speed preselection level indicator
(16) Mode button
(17) Mode selection indicator
*Accessories shown or described are not included with the
product as standard. You can find the complete selection of
accessories in our accessories range.
8
User Interface
(17)
(16)
(13)
(9)
