1.0

Scope

This Manual describes the Seagate Technology, Inc. Hawk 4 Family Disc Drive. This high capacity, high
performance member of the Seagate 3.5 inch rigid disc family is a companion product to the ST12400 drive
family. It has an embedded SCSI controller. Performance information is given in Section 5. The Hawk 4 Family
interface is defined for functional compatibility to a subset of the Seagate SCSI Interface Specification 77738479,
and the ANSI SCSI-2 and SCSI-3 standards. The Model Hawk 4 Family drives are classified as "Intelligent"
peripherals. The Hawk 4 Family provides Level 2 conformance (highest level) with the ANSI SCSI-1 standard.
Details of the Hawk 4 Family drive SCSI implementation are provided in Section 11 of this manual, (Vol. 1)
and in the SCSI Interface Product Manual P/N 77738479 (Vol. 2; Ver. 2).
The Hawk 4 family of drives consists of the ST15230W/WD/WC/DC drives.
From this point on in this Product Manual the reference to Hawk 4 Family is referred to as "the drive" (unless
reference to individual models are necessary).
The drive printed circuit board is referred to as a PCB.

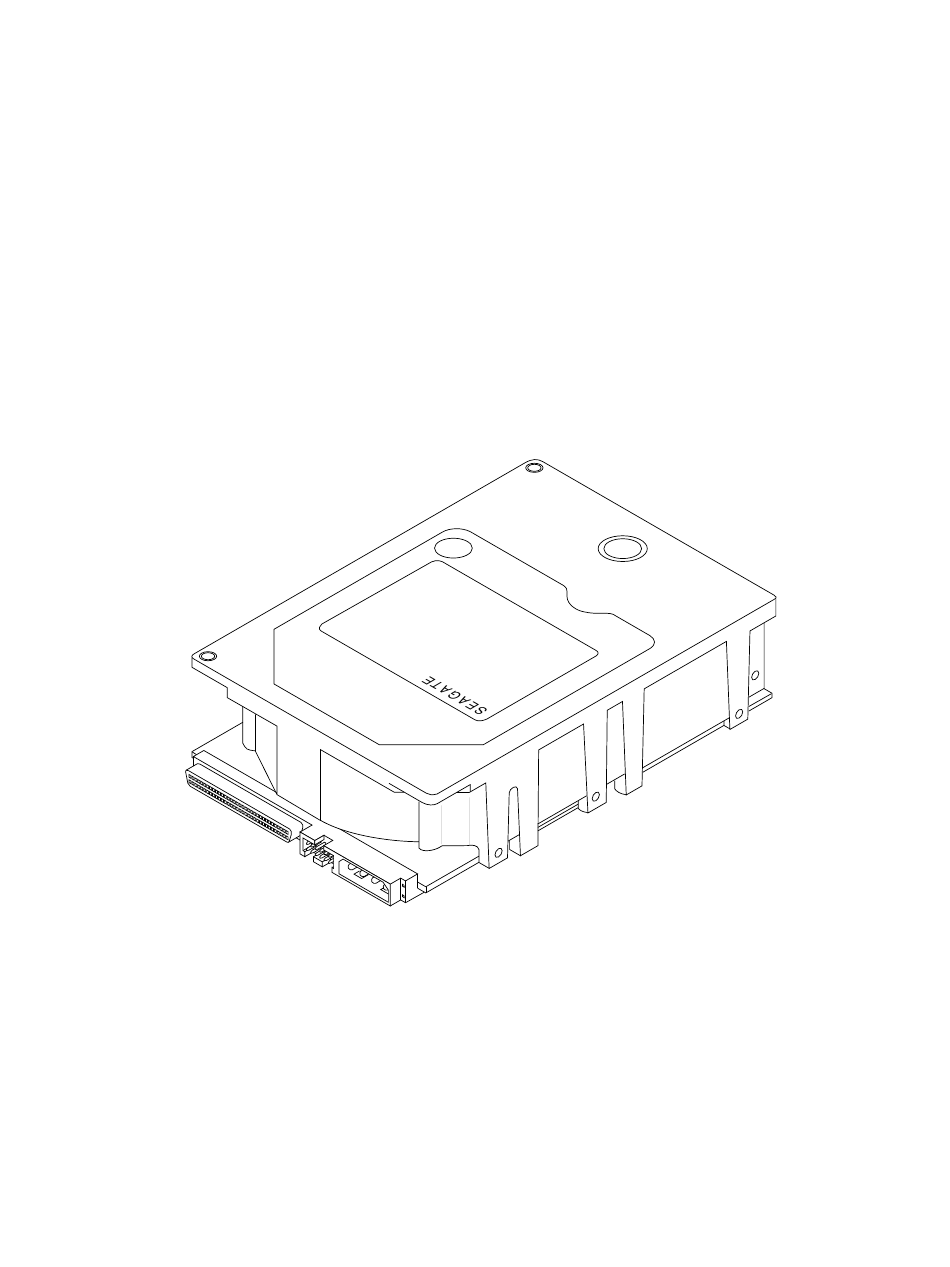

* 68 pin SCSI I/O and 4 pin direct current power connector shown as used on "W" and "WD" models. "WC" and "DC"
drive models have a single 80 pin connector that contains both SCSI I/O and direct current power (see Figure 3.0-1).
Figure 1-1. Hawk 4 family (Wide) drive
