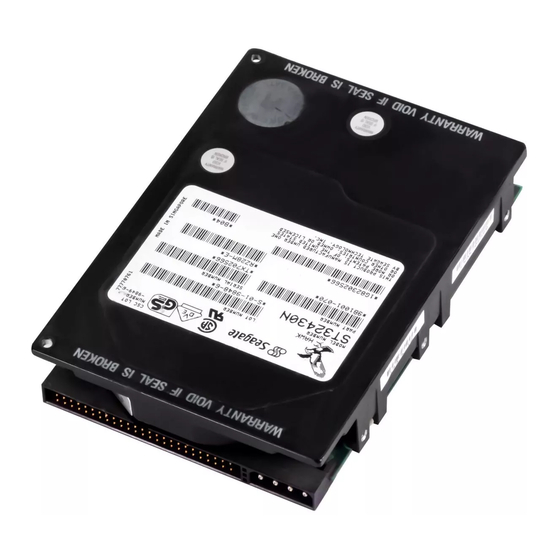

HAWK 2LP Family:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ST32430N/ND
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ST31230N/ND
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Manual, Volume 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Advertisement
Table of Contents
Related Manuals for Seagate HAWK ST32430N
Summary of Contents for Seagate HAWK ST32430N
- Page 1 ..........ST32430N/ND .
- Page 3 ..........ST32430N/ND .
- Page 4 Other product names are registered trademarks or trademarks of their own. Seagate reserves the right to change, without notice, product offerings or specifications. No part of this publication may be reproduced in any form without written permission of Seagate Technology, Inc.
- Page 5 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Revision Status Summary Sheet Revision Authorization Date Writer/Eng. Sheets affected A Issue 8/29/94 D. Ashby v through viii, 1 through 59 R. Metzner PLD:86170 10/24/94 D. Ashby v, 12, 13, 37 through 41 PLD:86221 12/15/94 D.
-
Page 6: Table Of Contents
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Table of Contents Scope ............................1 Applicable standards and reference documentation .............. 2 Standards ........................2 Electromagnetic Compliance for the European Unionn ........... 2 Applicable reference documents ..................2 General description ........................ - Page 7 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _________________________________________________________________________________________ Heat/power dissipation ....................20 Environmental limits ......................20 7.4.1 Temperature ...................... 20 7.4.2 Relative humidity ....................21 7.4.3 Effective altitude (sea level ref) ................22 7.4.4 Shock and vibration ................... 22 7.4.5 Air cleanliness ....................
- Page 8 12.1 Front panel ........................55 12.2 Single unit shipping pack ....................55 12.3 Installation manual ......................55 13.0 Accessories ..........................56 13.1 Front panel kit ......................... 56 13.2 Additional Installation Guide copies ................56 14.0 Seagate support services ......................57...
-
Page 9: Scope
This Manual describes the Seagate Technology, Inc. Hawk 2LP family Disc Drives. This high capacity, high performance member of the Seagate 1 inch high 3.5 inch rigid disc family is a next generation product from the ST31200 disc drive. Performance information is given in Section 5. The Hawk 2LP family model drives interface is defined for functional compatibility to be a subset of the Seagate SCSI Interface Manual 77738479, and the ANSI SCSI-2/SCSI-3 standards. -
Page 10: Applicable Standards And Reference Documentation
Standards The Hawk 2LP Family complies with Seagate standards as noted in the appropriate sections of this Manual and the Seagate SCSI Interface Manual, P/N 77738479 (Vol. 2, Version 2). The Hawk 2LP Family is a UL Recognized component per UL 1950 and a CSA Certified component per CAN/ CSA-C22.2 No. -
Page 11: General Description
Hawk 2LP Family of drives, and the SCSI Interface Product Manual P/N 77738479 (Vol. 2, Version 2) which describes the general interface characteristics of this and other families of Seagate 3.5-inch drives. The drive interface supports multiple initiators, disconnect/reconnect, self configuring host software and automatic features that relieve the host from the necessity of knowing the physical characteristics of the targets (logical block addressing is used). - Page 12 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Figure 3.0-1. Hawk 2LP family drive...
-
Page 13: Features
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Features The Hawk 2LP Family has the following standard features: • Integrated SCSI Controller • Single Ended and Differential SCSI drivers and receivers • Asynchronous and Synchronous data transfer protocol •... -
Page 14: Unformatted And Formatted Capacities
Unformatted and formatted capacities Formatted capacity depends on the number of spare reallocation sectors reserved and the number of bytes per sector. The following table shows some typical 512 byte sector size [1] formatted capacities. ST32430N/ND ST31230N/ND Spare Sector or Cylinders... -
Page 15: Installation
• Installation instructions are provided by host system documentation or with any additionally purchased drive installation software. If necessary see section 14.0 for Seagate support services telephone numbers. • The Manufacturers installed labels must not be removed from the drive or covered with additional labels, as they contain information required when servicing the product. -
Page 16: Performance Characteristics
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Performance characteristics Internal drive characteristics (transparent to user) ST32430N/ND ST31230N/ND Drive Capacity 2.59 ...... 1.28 ....GByte (UNF)* Read/Write Heads 9 ......5 Bytes/Track 72000 ....64242 .... Bytes (Avg)* Bytes/Surface 287.7 .... -
Page 17: Format Drive Command Execution Time
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ 5.2.2 Format drive command execution time (minutes) [1]* ST32430N/ND ST31230N/ND Maximum (with verify) Maximum (no verify) 5.2.3 Read data command execution time [4] (512 byte sector size, without disconnect and with read look ahead cache disabled.) Latency time is included. -
Page 18: Generalized Performance Characteristics
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Generalized performance characteristics Minimum Sector Interleave (All Hawk 2LP models) 1 to 1 Data transfer rate (< 1 sector) - 512 Byte Sector, Data Buffer To/From Disc Media: ST32430N/ND ST31230N/ND Min. [4]* 4.48 MByte/sec 4.23 MByte/sec Avg. - Page 19 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ 5.3.1 Notes for sections 5.2 and 5.3. Execution time measured from receipt of the last Byte of the Command Descriptor Block (CDB) to the request for a Status Byte Transfer to the Initiator (excluding connect/disconnect). Maximum times are specified over the worst case conditions of temperature, voltage margins and drive orientation.
-
Page 20: Start/Stop Time
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Start/stop time After DC power has been applied, the drive becomes ready within 20 seconds (15 seconds typical) if the Motor Start Option is disabled (i.e. the motor starts as soon as the power has been applied). During this time the drive responds to some commands over the SCSI interface* in less than 3 seconds. -
Page 21: Prefetch Operation
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Case B - A Read command requests data, the first LB of which is not in any segment of the cache: 1. The drive fetches the requested LB’s from the disc and transfers them into a segment, and from there to the host in accordance with the disconnect/reconnect specification referred to in case A. -
Page 22: Caching Write Data
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Caching write data Write caching is a write operation by the drive that makes use of a drive buffer storage area where the data to be written to the medium is stored in one or more segments while the drive performs the write command. Write caching is enabled along with read caching. -
Page 23: Reliability Specifications
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Reliability specifications The following reliability specifications assume correct host/drive operational interface, including all interface timings, power supply voltages, and environmental requirements. Seek Errors Less than 1 in 10 seeks Read Error Rates [1] Unrecovered Data... -
Page 24: Write Errors
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ 6.1.3 Write errors Write errors can occur as a result of media defects, environmental interference, or equipment malfunction. Therefore, write errors are not predictable as a function of the number of bits passed. If an unrecoverable write error occurs because of an equipment malfunction in the drive, the error is classified as a failure affecting MTBF. -
Page 25: Service Philosophy
6.2.7 Product warranty Beginning on the date of shipment to customer and continuing for a period of five years, Seagate warrants that each product (including components and subassemblies) or spare part that fails to function properly under normal use due to defect in materials on workmanship or due to nonconformance to the applicable specifications will be repaired or replaced, at Seagate’s option and at no charge to customer, if returned by... -
Page 26: Physical/Electrical Specifications
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Physical/electrical specifications AC power requirements: None DC power requirements The voltage and current requirements for a single drive are shown in the following table. Values indicated apply at the drive power connector. The single ended power requirements includes the internal disc drive SCSI I/O termination. -
Page 27: Power Sequencing
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ 7.2.2 Power sequencing The drive does not require power sequencing. The drive protects against inadvertent writing during power up and down. Daisy-chain operation requires that power be maintained on the terminated drive to ensure proper termination of the peripheral I/O cables. -
Page 28: Heat/Power Dissipation
Non-Operating -40° to 158°F (-40° to 70°C) package ambient with a maximum gradient of 45°F (25°C) per hour. This specification assumes that the drive is packaged in the shipping container designed by Seagate for use with drive. -
Page 29: Relative Humidity
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Model ST32430N/ST31230N Model ST32430ND/ST31230ND Single Ended I/O PCB Differential I/O PCB U2Ø U2Ø U1Ø U1Ø Bottom side of PCB Figure 7.4.1-1. Locations of components listed in table 7.4.1-1. -
Page 30: Effective Altitude (Sea Level Ref)
The drive as packaged in a single or multiple drive pack of gross weight 20 pounds (8.95 kg) or less by Seagate for general freight shipment shall withstand drop test from heights listed below against a concrete floor or equivalent. For additional details refer to specifications 30190-001 (under 100 lbs) or 30191-001 (over 100 lbs). - Page 31 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Figure 7.4.4-1. Recommended mounting...
-
Page 32: Air Cleanliness
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ 7.4.4.2 Vibration a. Operating The drive as installed for normal operation, shall comply with the complete specified performance while subjected to continuous vibration not exceeding 5-22 Hz @ 0.020 inches (0.51 mm) displacement 22-400 Hz @ 0.5 g Vibration may be applied in the X, Y, or Z axis. -
Page 33: Mechanical Specifications
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Mechanical specifications The following nominal dimensions are exclusive of the decorative front panel accessory. However, dimensions of the front panel are shown in figure below. Refer to Figure 7.6-1 for detailed mounting configuration dimensions. -
Page 34: Drive Orientation
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F ________________________________________________________________________________________ 7.6.1 Drive orientation The balanced rotary arm actuator design of the drive allows it to be mounted in any orientation. All drive performance characterization, however, has been done with the drive in horizontal (discs level) and vertical (drive on its side) orientations, and these are the two preferred mounting orientations. -
Page 35: Media Characteristics
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Media characteristics Media description The media used on the drive has a diameter of approximately 3.7 inches (95 mm). The aluminum substrate is coated with a thin film magnetic material, overcoated with a proprietary protective layer for improved durability and environmental protection. -
Page 36: Defect And Error Management
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Defect and error management The drive, as delivered, complies with this specification. The read error rate and specified storage capacity are not dependent upon use of defect management routines by the host (initiator). Defect and error management in the SCSI system involves the drive internal defect/error management and SCSI systems error considerations (errors in communications between Initiator and the drive). -
Page 37: Option/Configuration Headers
The notes following the figures describe the functions of the various jumper positions on the 3 connectors J2, J5 and J6. Suggested part numbers for the jumpers used on J2 is Molex 52747-0211 (Seagate P/N 77679052). Side View of Drive... - Page 38 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Jumper Installation Jumper Function Description (Applies only to "N" models) With the jumper installed, the On-board (non-removable) terminator circuits are enabled (connected to the I/O lines). Default is jumper installed. Terminator circuits not connected to I/O lines.
-
Page 39: Grounding
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ continued from previous page TP Position A (Applies to "N" models only) This horizontally positioned jumper across the two TP positions nearest PCB edge, connects terminator power from SCSI bus I/O pin 26 to the drive’s internal terminators (for single-ended I/O only). -
Page 40: Interface Requirement
This section partially describes the interface requirements as implemented on the drives. The major portion of the interface requirements/implementation is described in the Seagate SCSI Interface Product Manual, P/N 77738479. This section has tables that give the Hawk 2LP Family drives version of the SCSI implementation described in the 77738479 document. -
Page 41: Scsi Interface Commands Supported
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ 11.3 SCSI interface commands supported Table 11.3-1 following lists the SCSI interface commands that are supported in the SCSI-1, SCSI-2 and SCSI- 3 modes of the drive. Hawk 2LP Family drives can be changed back and forth between SCSI-1 and SCSI-2/ SCSI-3 modes using the Change Definition Command. - Page 42 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ continued from previous page Com’d’ Supported by: Code SCSI-1 SCSI-2/3 Command Name Start unit/stop unit (spindle ceases rotating) Receive diagnostic results Supported diagnostics pages Translate page Send diagnostics page Supported diagnostics pages Translate page Read capacity...
-
Page 43: Inquiry Data
Eight ASCII digits representing the eight digits of the product serial number. Four ASCII digits representing the firmware distribution diskette serial number. Bytes 18 through 24 will reflect model of drive. Shown here are hex values for Model ST32430N. Values for ST31230N are 33 31 32 33 30 4E 20. -
Page 44: Mode Sense Data
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F ______________________________________________________________________________________ 11.3.2 Mode Sense data The Mode Sense command provides a means for the drive to report its operating parameters to the initiator. The drive maintains four sets of Mode parameters, Default values, Saved values, Current values and Changeable values. - Page 45 = Changeable bits; indicates if current and saved values are changeable. Table 11.3.2-1a. Mode sense data, ST32430N/ND default values (SCSI-1 implementation) Bytes 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23...
- Page 46 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ Table 11.3.2-1b. Mode sense data, ST31230N/ND default values (SCSI-1 implementation) Bytes 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Mode Sense 63 00 10 08 Data...
- Page 47 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F ____________________________________________________________________________________________ Table 11.3.2-2a. Mode sense data, ST32430N/ND default values (SCSI-2/3 implementation) Bytes 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23...
- Page 48 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F ____________________________________________________________________________________________ Table 11.3.2-2b. Mode sense data, ST31230N/ND default values (SCSI-2/3 implementation) Bytes 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Mode 87 00 10 08 Sense 00 00 00 00 00 00 02 00 Data...
-
Page 49: Scsi Bus Conditions And Miscellaneous Features Supported
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ 11.4 SCSI bus conditions and miscellaneous features supported Asynchronous SCSI bus conditions supported by the drive are listed in Table 11.4-1. These conditions cause the SCSI device to perform certain actions and can alter the phase sequence. Other miscellaneous operating features supported are also listed here. -
Page 50: Synchronous Data Transfer
D.C. power connector, the SCSI interface connector, the I/O line terminators, and the drive select and option select header. Details of the physical, electrical and logical characteristics are given in paragraphs following, while the SCSI operational aspects of Seagate drive interfaces are given in the Seagate SCSI Interface Product Manual, P/N 77738479. __________... - Page 51 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ ______ Power +12V +12V ret + 5V ret + 5V DC Power Pin 1 Connector Pin 1 SCSI I/O Connector Figure 11.6-1. Physical interface...
-
Page 52: Dc Cable And Connector
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ 11.6.1 DC cable and connector The drive receives DC power through a 4 pin connector (see Figure 11.6-1 for pin assignment) mounted at the rear of the main PCB. Recommended part numbers of the mating connector are listed below, but equivalent parts may be used (see Table 11.6-1). -
Page 53: Mating Connector Requirements
Jumper plug part number for J2 Option select header connector J2 on the PCB (see Figure 10.1-1) uses an unusual type of jumper plug so its part number is given here for reference. Suggested part no. for J2 jumper: Molex 52747-0211 (Seagate P/N 77679052) - Page 54 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ .370 ± .010 (9.398) Ref. (15.24) (10.67) Typ. (5.08) .065 x 45° Chamfer Typ. (1.65) Pin 1 .037 Ref. Typ. Typ. (.94) (6.60) .335 ± .010 (8.50) .100 (2.54) .025 +.001...
- Page 55 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F __________________________________________________________________________________________ SCSI Device * * * Host Adapter/Initiator 1 thru 8 SCSI Devices Disc Drive or Disc Drive or Disc Drive or Other SCSI Other SCSI Other SCSI Device Device Device VIEW B - T indicates termination required...
- Page 56 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F ______________________________________________________________________________________ Table 11.6.3-1b. Differential cable pin assignments (Nonshielded connector) (ND models) +Signal Name* Pin Number -Signal Name* SHIELD GND GROUND +DB(0) -DB(0) +DB(1) -DB(1) +DB(2) -DB(2) +DB(3) -DB(3) +DB(4) -DB(4) +DB(5) -DB(5)
-
Page 57: Electrical Description
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F ______________________________________________________________________________________ 11.6.4 Electrical description Model "N" drives use single ended interface signals. These signals must be terminated with 110 ohm active termination circuits at each end of the total cable. On "N" models, the terminators are enabled (or disabled) by installing (or removing) jumper plug TE. - Page 58 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ 11.6.4.2 Differential drivers/receivers Differential drivers and receivers are used by the "ND" models. Typical circuits are shown in Figure 11.6.4-2. The drive has no provisions for terminator circuits on differential I/O drives. Differential Signals All differential interface signals consist of two lines denoted +SIGNAL and -SIGNAL.
- Page 59 See section 11.6.4.2 for signal characteristics. [4] I/O Line terminators. If SCSI device is a Seagate disc drive, terminators and a place to plug them in must be provided external to the drive by user, systems integrator or host equipment manufacturer where needed.
- Page 60 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F ______________________________________________________________________________________ 11.6.4.3 Terminator requirements Internal disc drive I/O termination (provided only in single ended I/O model drives) consists of active circuits in an LSI module that is permanently mounted on the PCB. All single initiator/single target (nondaisychain) applications require that the Initiator and disc drive be terminated.
-
Page 61: Disc Drive Timing
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F ______________________________________________________________________________________ 11.7 Disc drive SCSI timing Table 11.7-1. Disc drive SCSI timing Waveform Waveform Description Symbol [1] Table [1] Typical Target Select Time (no Arbitration) <1 µs Target Select Time (with Arbitration) 4.5-1,2 1.74 µs Target Select to Command... - Page 62 Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ continued from previous page Waveform Waveform Description Symbol [1] Table [1] Typical Asynchronous Data Transfer Characteristics: (continued) Next CDB Byte Access (Byte 2 of 10) T23.10.2 4.5-4 0.65 µs Next CDB Byte Access (Byte 3 of 10) T23.10.3 4.5-4...
-
Page 63: Options
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F ______________________________________________________________________________________ 12.0 Options All options are incorporated or packaged at the manufacturing facility. 12.1 Front panel The normal front panel available is black plastic. Other panel colors may be special ordered. Each panel has a single rectangular green rectangular LED indicator lens which, when glowing, indicates the drive is selected. -
Page 64: Accessories
Product Manual - Hawk 2LP Family SCSI-2 (Volume 1), Rev. F _____________________________________________________________________________________ 13.0 Accessories All accessories are designed for implementation by the customer. 13.1 Front panel kit Same as 12.1 but includes all mounting hardware to support field installation. 13.2 Additional Installation Guide copies The Installation Guide (P/N 77767475) is usually included with each drive shipped, but extra copies may be ordered. -
Page 65: Technical Support Services
8:00 AM to 5:00 PM PST, Monday through Friday. SeaBOARD service: The Seagate Technical Support Bulletin Board System (BBS) is available 24 hours a day, 7 days a week. A modem is required to access this service. (300–9600 baud, 8-N-1). This is a toll call. - Page 68 Seagate Technology, Inc. 920 Disc Drive, Scotts Valley, California 95066-4544, USA Publication Number: 77767471, Revision F Printed in USA...
