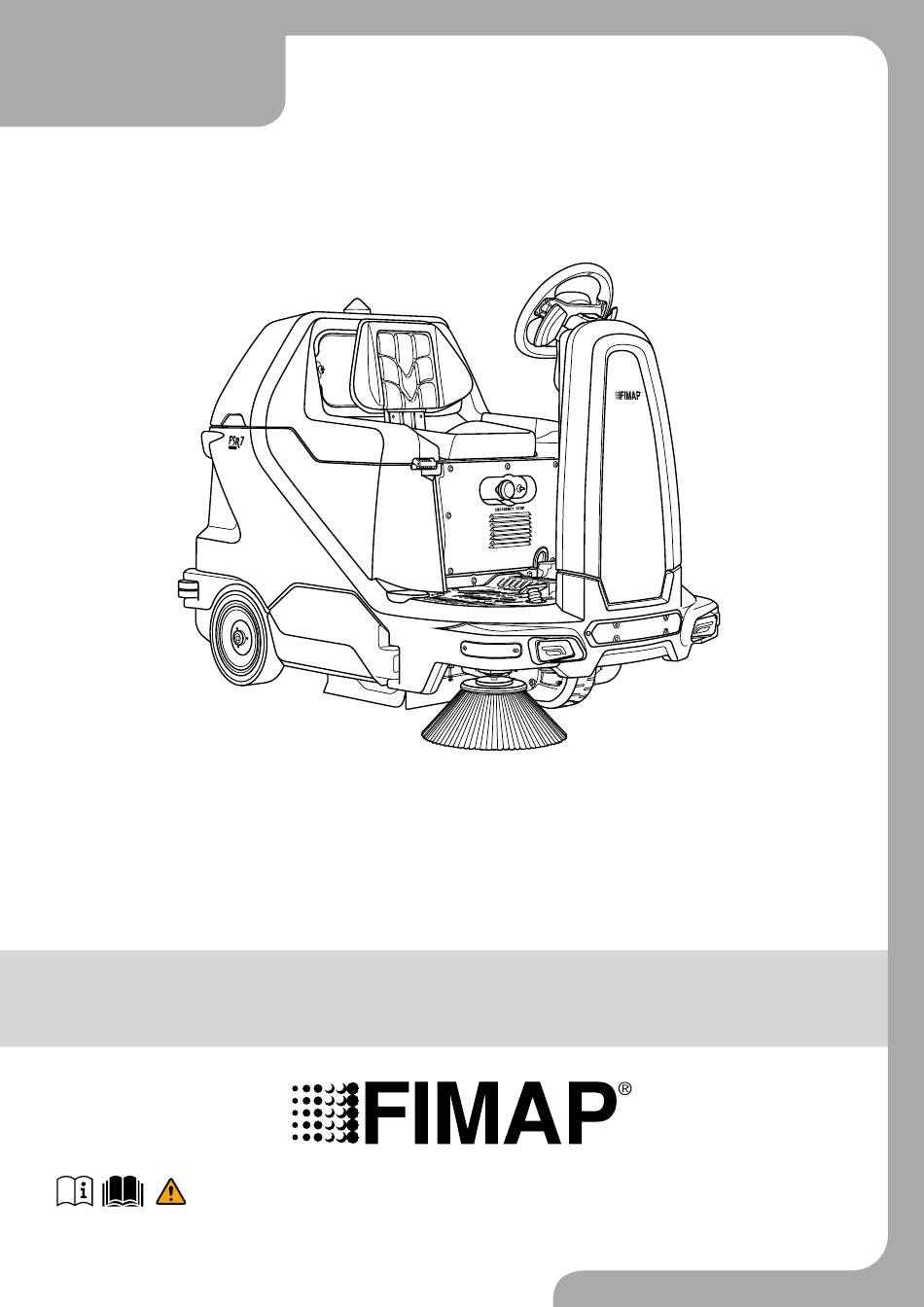

FSR7 PRO
PROFESSIONAL SWEEPING MACHINES
USE AND MAINTENANCE MANUAL
A TRANSLATION OF THE ORIGINAL INSTRUCTIONS
DOC. 10124335 - Ver. AA - 06-2023
The constructive elements and content of this manual, including the structure, text, diagrams, images and logo, are the exclusive property of FIMAP S.P.A..
They are protected, both collectively and individually, by the current regulations regarding intellectual property (including copyright laws), and cannot be either wholly or partially copied or imitated. Any
reproduction, reprocessing, distribution or dissemination is strictly prohibited.
