Fimap FSR7 PLUS Use And Maintenance Manual

Professional sweeping machines
Hide thumbs Also See for FSR7 PLUS:
Table of Contents

Advertisement

Quick Links

Download this manual

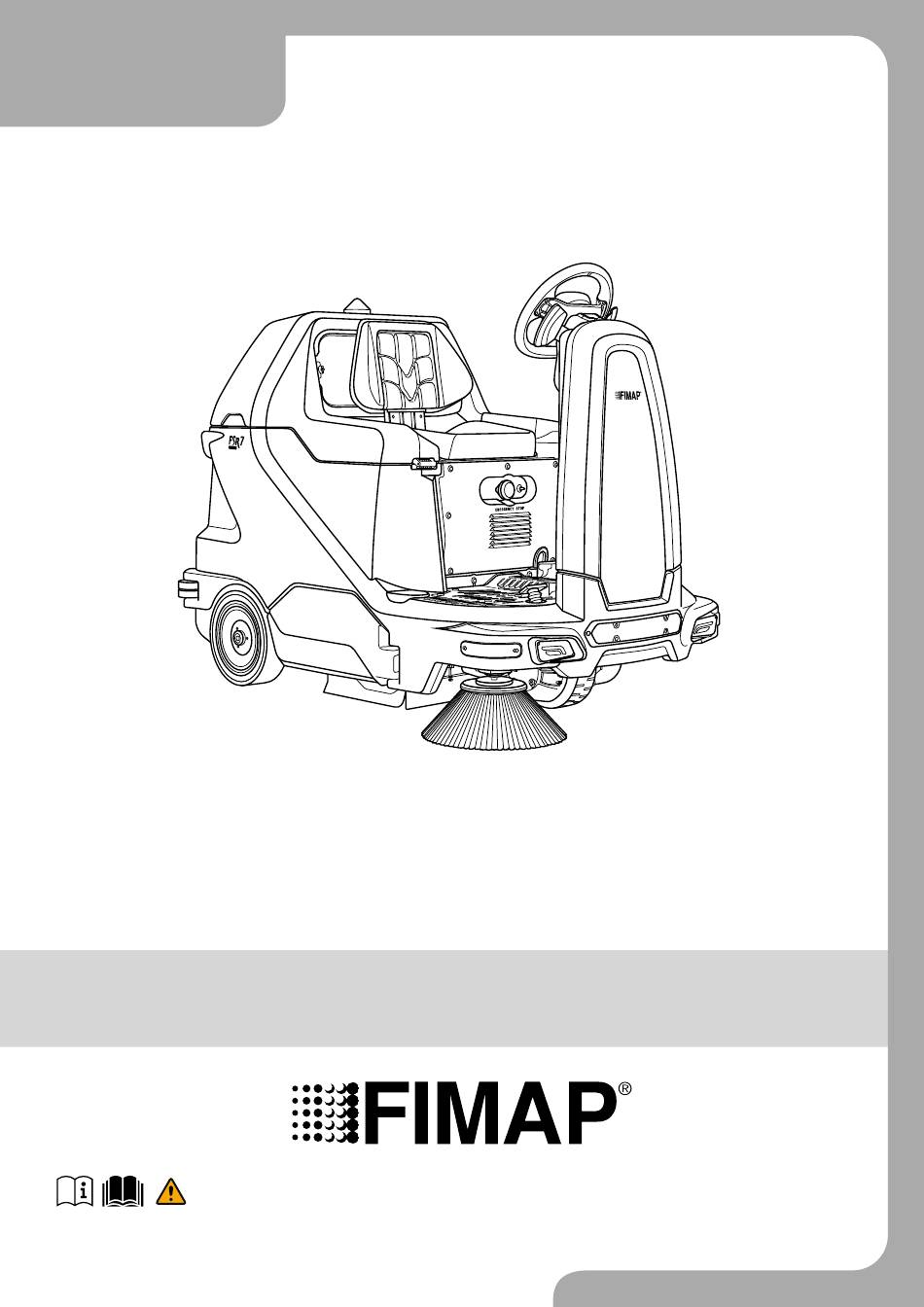

FSR7
PLUS
PROFESSIONAL SWEEPING MACHINES
USE AND MAINTENANCE MANUAL
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
DOC. 10124336 - Ver. AA - 07-2023
The constructive elements and content of this manual, including the structure, text, diagrams, images and logo, are the exclusive property of FIMAP S.P.A.
They are protected, both collectively and individually, by the current regulations regarding intellectual property (including copyright laws),
and cannot be either wholly or partially copied or imitated. Any reproduction, reprocessing, distribution or dissemination is strictly prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSR7 PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fimap FSR7 PLUS

Summary of Contents for Fimap FSR7 PLUS

  • Page 1 DOC. 10124336 - Ver. AA - 07-2023 The constructive elements and content of this manual, including the structure, text, diagrams, images and logo, are the exclusive property of FIMAP S.P.A. They are protected, both collectively and individually, by the current regulations regarding intellectual property (including copyright laws),...

  • Page 3: Table Of Contents

    CONTENTS CONTENTS ................................3 DEFINITION OF LEVELS OF WARNING ......................5 GENERAL SAFETY REGULATIONS ........................5 GENERAL DESCRIPTION ............................ 5 SYMBOLS USED IN THE MANUAL........................6 TECHNICAL DESCRIPTION ..........................6 INTENDED USE ..............................7 SAFETY .................................. 7 REGULATIONS ..............................7 SERIAL NUMBER PLATE ............................
  • Page 4 BUZZER ................................57 SERVICE LIGHTS ..............................57 WORKING HEADLIGHTS ............................ 57 SIDE BRUSH................................ 58 EMERGENCY BUTTON ............................59 BRAKING CONTROL ............................59 REVERSE ................................60 REAR VIEW VIDEO CAMERA ..........................61 ALARM SCREEN ..............................62 TUTORIALS ................................. 63 OPTIONAL FUNCTIONS ............................. 65 BLUE SAFETY LIGHT ............................

  • Page 5: Definition Of Levels Of Warning

    DEFINITION OF LEVELS OF WARNING DANGER: indicates an imminent dangerous situation that, unless avoided, will result in death or serious injuries. WARNING: Indicates a potentially dangerous situation that, unless avoided, could cause death of serious injury. ATTENTION: Indicates a potentially dangerous situation that, unless avoided, could cause slight or moderate injuries.

  • Page 6: Symbols Used In The Manual

    SYMBOLS USED IN THE MANUAL Open book symbol with an "i": Indicates the need to consult the instruction manual. Open book symbol: Tells the operator to read the user manual before using the device. Covered place symbol: The operations preceded by this symbol must always be carried out in a dry, covered area. Information symbol: Indicates additional information for the operator, to improve the use of the device.

  • Page 7: Intended Use

    INTENDED USE This machine is designed and built to clean both indoor and outdoor flooring surfaces in tile, cement and asphalt. They are intended exclusively for professional use by a qualified operator in industrial, commercial and public contexts, in guaranteed safe conditions. ATTENTION: the sweeping machine is not designed to clean carpets or rugs.

  • Page 8: Serial Number Plate

    SERIAL NUMBER PLATE The serial number plate is located near the driver's seat, at the rear of the steering column, and indicates the machine's general characteristics, including its serial number. The serial number is a very important piece of information and should always be provided together with any request for assistance or when purchasing spare parts.

  • Page 9: Main Machine Components

    MAIN MACHINE COMPONENTS STANDARD COMPONENTS Right side brush Battery cut-out button Traction wheel Front flap lifting pedal Accelerator pedal Right-hand maintenance carter Debris hopper Rear wheel Debris hopper retainer lever Service brake pedal Steering wheel Activation lever for extra-pressure Left-hand maintenance carter function (central brush) Horn button - 9 -...
  • Page 10 Reverse activation lever Upper body Control display Operator's seat Main machine switch Upper body rotation handle Locking knob for central brush lifting Central brush towing hook lever Central brush lifting lever Locking knob for central brush side inspection carters Central brush side inspection carters Central brush idle hook Side brush retainer plate Side brush locking knob...

  • Page 11: Optional Components

    Vacuum compartment cover Panel filter Vacuum compartment cover locking knob Vacuum compartment cover rotation handle Battery compartment Rear view video camera Battery cable connector (version without on-board battery charger) OPTIONAL COMPONENTS Left side brush Integrated vacuum cleaner kit Blinking light - 11 -...
  • Page 12 Locking knob for compartment cover of Support for the motor inlet air filter in the filter bag in the integrated vacuum the integrated vacuum cleaner kit cleaner kit Motor inlet air filter in the integrated Compartment cover of the filter bag in vacuum cleaner kit the integrated vacuum cleaner kit Front anti-dust skirt...
  • Page 13 Support for brushes in the cleaning "Blue spot" safety light kit accessory kit Blinking LED safety light kit Kit of internal debris hopper containers On-board battery charger kit Super-elastic wheel kit - 13 -...
  • Page 14 Pocket filter kit (FELT PE/PE 401 Automatic fleet management kit (FFM) STANDARD) Pocket filter kit (ANTISTATIC POLYESTER FELT WITH PTFE MEMBRANE) Fluff retainer grille kit HEPA outlet air filter kit - 14 -...

  • Page 15: Technical Data

    [IEC 60335-2-72; IEC 62885-9; ISO 5349-1] Whole-body vibrations [IEC 60335-2-72; IEC 62885-9; ISO 2631-1] Vibration measurement uncertainty ±4% NB: for all other technical data, contact the FIMAP service centre of reference or the one closest to you, or visit the website www.fimap.com. - 15 -...

  • Page 16: Symbols Used On The Machine

    SYMBOLS USED ON THE MACHINE Reverse gear activation/deactivation lever position symbol: applied to the reverse activation/deactivation lever. See “REVERSE” on page Extra pressure activation/deactivation lever position symbol: Used on the extra brush head pressure activation-deactivation lever. See “POWER MODE WORKING PROGRAM” on page 44 - 16 -...
  • Page 17 “AUTO” symbol on blinking light selector lever: applied to the carter of the electric system panel, to show where to position the blinking light AUTO control lever so the LEDs switch on automatically when the microswitches that command them are deactivated.

  • Page 18: Labels Used On The Machine

    LABELS USED ON THE MACHINE Label with raised FSR7 logo Side label with FIMAP logo Label with raised PLUS logo Label with FIMAP logo Label with FFM logo: used to show that the automatic fleet management system is installed on the machine.
  • Page 19 Covering labels for LED headlights: used on the machine versions with no LEDs in the working lights kit. Covering labels for LED tail-lights: used on the machine versions with no LEDs in the working lights kit. Labels with FIMAP logo: used on the machine versions with no rear view camera. - 19 -...
  • Page 20 Main machine switch label: applied on the right side of the steering column, to indicate the location of the machine's main switch. Prohibition to vacuum hazardous elements label: applied to the back of the steering column to indicate that it is strictly prohibited to vacuum up incandescent particles or flammable and/or explosive powders and/or liquids with the machine, and to operate the machine in their vicinity.
  • Page 21 Label indicating the need to read the Use and Maintenance Manual: applied to the front of the steering column to indicate the need for the user to read the user and maintenance manual before operating the machine. Treading ban label: applied above the side inspection doors, to identify the surfaces that must not be trodden on (risk of personal injury or damage to the machine).
  • Page 22 Treading ban label: applied to the front part of the machine body, to identify the surfaces that must not be trodden on (risk of personal injury or damage to the machine). Label indicating that touching the brush when moving is prohibited: applied on the right side of the frame, to indicate that it is forbidden to bring your hands near the central brush control linkage while the brush is moving.
  • Page 23 Label warning about the risk of crushed hands: applied on the left side of the machine body (in the area where the vacuum head is housed), to indicate the areas where there is a risk of getting your hands crushed. Label warning about the risk of crushed hands: applied on the right side of the machine body (in the area where the vacuum head is housed), to indicate the areas where there is a risk of getting your hands crushed.

  • Page 24: Control Station

    Battery box warning label: applied to the vacuum area cover plate, to indicate that the cells might emit highly flammable hydrogen gas during the recharging phase. See “RECHARGING THE BATTERIES” on page Battery box charging instructions label: applied to the vacuum area cover plate, to indicate the procedures to be followed to recharge the battery box correctly.

  • Page 25: Dashboard

    DASHBOARD The dashboard, in the steering column area, is divided up as follows: Control display. See “CONTROL DISPLAY” on page POWER working program activation-deactivation lever. See “POWER MODE WORKING PROGRAM” on page Horn button. Reverse activation/deactivation lever. “REVERSE” on page Key-operated main machine switch.

  • Page 26: Touch Screen

    Generic alarm symbol. If displayed, stop the machine and refer to “ALARM SCREEN” on page Working mode selector. See “WORKING MODE” on page Activation frequency level for the filter shaker in the vacuum system of the debris hopper. See “SELECTING THE FILTER SHAKER METHOD”...

  • Page 27: Pedalboard

    PEDALBOARD The pedalboard, in the footrest area, is divided up as follows: Accelerator pedal (1) (Fig. 1), on the right of the pedalboard, and activated with the right foot. NB: forward speed can be regulated by either pressing the pedal (1) (Fig. 1) quite firmly or pressing the forward speed button on the command display.

  • Page 28: How To Unpack The Machine

    To obtain the net weight of the machine and the safety percentage value required of the ramp, contact your FIMAP service centre of reference or the one closest to you. Alternatively, you can send an email to service@fimap.com, or visit the website www.fimap.com.
  • Page 29 13. Make sure transportation mode (4) is active (Fig. 5). If it isn't, activate it. See “TRANSFER WORKING MODE” on page 14. Engage the “REVERSE ACTIVATION/DEACTIVATION” lever (5) underneath the steering wheel (Fig. 6). 15. Press the drive pedal (6) (Fig. 7) to start the machine moving in reverse. 16.

  • Page 30: Machine Safety

    MACHINE SAFETY To ensure that work is carried out in the best safety conditions, proceed as follows: CAUTION: it is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out. Make sure the debris hopper is empty (if necessary, empty it). See “EMPTYING THE DEBRIS HOPPER”...

  • Page 31: How To Move The Machine

    HOW TO MOVE THE MACHINE The procedure for transporting the machine safely is as follows: CAUTION: it is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out. Make sure the debris hopper is empty (if necessary, empty it). See “EMPTYING THE DEBRIS HOPPER”...

  • Page 32: Type Of Battery To Be Used

    TYPE OF BATTERY TO BE USED To obtain good work results, the machine must be powered at 24V. FIMAP recommends using four 6V 210Ah gel batteries. The dimensions of the battery holder compartment are: 215x260x725 mm (length x height x width, according to the work direction).

  • Page 33: Recharging The Batteries

    NB: before recharging, carefully read the Use and Maintenance Manual of the battery charger you want to use. WARNING: FIMAP disclaims all responsibility for any damage to property or injury to persons if the batteries are recharged by an unauthorised technician or anyone non correctly instructed on how to perform the task.

  • Page 34: With An On-Board Battery Charger

    CAUTION: keep the upper body in the maintenance position throughout the battery recharging cycle, to allow the gas fumes to escape. Connect the battery charger cable to the power supply socket. When the recharging cycle has been completed, disconnect the connector on the battery charger cable from the connector on the battery power cable.

  • Page 35: Adjusting The Driving Position

    ADJUSTING THE DRIVING POSITION The proper adjustment of the driving position provides a greater sense of comfort when using the machine. CORRECT POSITION ON THE SEAT: make sure you sit upright, and that your back and lower back are at 90°. LONGITUDINAL SEAT ADJUSTMENT: the seat should always be positioned using the pedals as a reference.
  • Page 36 Remove the central brush inspection carter (4) (Fig. 4). Insert the brush in the tunnel in the machine frame (Fig. 5). NB: when the brush is mounted correctly, the cusps on the brush form an arrow ˄ when seen from above in the forward movement direction (Fig.

  • Page 37: Assembling The Side Brushes

    11. Tighten the knobs (2) of the central brush inspection carter (Fig. 13). 12. Close the left-hand inspection door (1) (Fig. 14). ASSEMBLING THE SIDE BRUSHES To assemble the side brushes, proceed as follows: Take the machine to the maintenance area. Do everything necessary to ensure the machine is in a safe condition.

  • Page 38: Assembling The Vacuum Wand Filter Bag

    Fix the brush to the flange using the knob (1), remembering to put the washer (2) in between the knob and the brush. Once this brush has been fitted, move on to the left-hand one (if used). ASSEMBLING THE VACUUM WAND FILTER BAG To assemble the vacuum wand filter bag, proceed as follows: Take the machine to the maintenance area.

  • Page 39: Work Preparation Checklist

    WORK PREPARATION CHECKLIST If you note any faults, contact your FIMAP service centre of reference or the one closest to you. Alternatively, you can Check for any fluid leaks from the batteries send an email to service@fimap.com or visit the website www.fimap.com...

  • Page 40: Working Programs

    WORKING PROGRAMS Four types of program are already stored in the function board memory, and can be used to facilitate machine use by the operator. In the working programs, the performance levels of the parameters: • machine forward speed; • pressure exerted on the machine brush head;...

  • Page 41: Manual Mode Working Program

    The parameters, pre-set on a scale of 1 to 3, are as follows: Pressure exerted Vacuum motor Filter shaker Forward speed on the brush performance frequency NB: to deactivate the ECO MODE program and activate MANUAL MODE, activate and then deactivate ECO MODE by pressing the button (1) (Fig.
  • Page 42 As soon as the button (1) has been pressed, the ECO MODE screen (Fig. 2) will be replaced by the MANUAL MODE screen (Fig. 3) and the message MANUAL will appear in the text indicator (2). Press one of the four icons on the control display (Fig. 2): Icon for adjusting the forward speed performance level.

  • Page 43: Zone Mode Working Program

    NB: to deactivate MANUAL MODE, activate the ECO MODE program by pressing the button (1) (Fig. 2). See “ECO MODE WORKING PROGRAM” on page NB: to deactivate MANUAL MODE, activate the ZONE MODE program by pressing the button (3) (Fig. 3). See “ZONE MODE WORKING PROGRAM”...

  • Page 44: Power Mode Working Program

    NB: if the ZONE MODE program is activated while in transfer work mode, the machine will switch to sweeping mode with vacuum along with the side brushes. NB: if the ZONE MODE program is activated while in a work mode other than transfer, the current work mode will be maintained but with reduced machine performance level values in keeping with the parameters of the work zone selected.

  • Page 45: Working Mode

    NB: in the centre of the screen (Fig. 2) you will see a graphic symbol (3) and a numerical value (4). They represent a countdown, at the end of which the previous work screen will return and the pressure exerted on the brush head goes back to the standard level. NB: when the POWER MODE working program is selected, the working parameters (speed, force exerted on the brushes, vacuum motor performance) are changed automatically.

  • Page 46: Sweeping Mode

    NB: when the machine is turned on, TRANSFER working mode is enabled. The machine is now in the transfer working mode. Press the drive pedal (3) (Fig. 3) to begin moving the machine. SWEEPING MODE In SWEEPING mode, both the central brush and the side brushes are in their work positions. This working mode is used to collect the debris from the floor.
  • Page 47 NB: if the machine is stopped and the drive pedal (4) released, the central brush will automatically move to the intermediate position (raised off the floor) after the DELAY RESET (BRUSHES BRUSH MOT) time. To change this parameter, contact a FIMAP service centre or refer to “DELAY RESET MENU (BRUSH MOTOR - PARAMETERS)”...

  • Page 48: Starting Work

    NB: if you need to deactivate the side brushes while working, press the SIDE BRUSH CONTROL button (5) on the control display (Fig. 4). NB: the side brush function is not active when the button (5) is grey (Fig. 4). NB: if you need to deactivate the vacuum while working, press the VACUUM CONTROL button (6) on the control display (Fig.
  • Page 49 NB: by selecting the ECO MODE working program, the predefined performance levels (according to those selected in the function board parameter list) are automatically loaded. To change the working program parameters, contact your FIMAP service centre of reference or the one closest to you. Alternatively, send an email to service@fimap.com...
  • Page 50 GVW, it can work on slopes up to 12.5% (7°). For all other technical data, contact your FIMAP service centre of reference or the one closest to you, or visit the website www.fimap.com.

  • Page 51: Battery Box Charge Level Indicator

    BATTERY BOX CHARGE LEVEL INDICATOR In the upper central section of the main screen, you can see the battery charge represented by a graphic symbol in the shape of a battery (1) and a numerical value indicating the charge percentage (2). NB: the battery state of charge percentage is calculated with respect to their maximum capacity, and the function board transforms the voltage value of the batteries into...

  • Page 52: Hour Meter

    (a tenth of an hour corresponds to six minutes). NB: to modify the hour meter shown on the control display, contact a FIMAP service centre or refer to “PARTIAL HMT MENU TO DISPL (HOUR METER SETTINGS - GENERAL SETTINGS)” on page 29 of the “OPERATOR INTERFACE CONFIGURATION MANUAL”...
  • Page 53 Take the debris hopper to the appropriate location for unloading and empty it. NB: in the case of machines fitted with removable debris hopper bins, take the bins out of the hopper and empty them. When they have been emptied, reposition them in the debris hopper. ATTENTION: when using the machine, pay attention to the filling of the debris hopper;...

  • Page 54: Additional Functions

    ADDITIONAL FUNCTIONS REGULATING THE FORWARD SPEED To adjust the forward speed, proceed as follows: NB: the forward speed can only be adjusted when the manual working program is active. See “MANUAL MODE WORKING PROGRAM” on page During the first few metres, check that the forward speed is adequate to the grip conditions. To adjust the speed, press the button (1) on the control display (Fig.

  • Page 55: Selecting The Filter Shaker Method

    SELECTING THE FILTER SHAKER METHOD The filter shaker can be used in two ways: • Automatically: the function board in the machine activates the filter shaker after a certain period of time. • Manually: the operator decides when to activate the filter shaker. NB: when the machine is switched on, the “FILTER SHAKER”...

  • Page 56: Adjusting The Vacuum Motor Performance Level

    The filter shaker function is in automatic mode when the button (1) contains the symbol, and in manual mode when the button (1) contains the symbol. NB: in manual mode, the vacuum motor is automatically switched off when the button (1) is pressed and then, after two seconds, the filter shaker motor is activated for just over one second.

  • Page 57: Buzzer

    NB: to change the pressure exerted on the brush, refer to “PRESSURE LEVEL MENU (BRUSH MOTOR - PARAMETERS)” on page 38 of the “OPERATOR INTERFACE CONFIGURATION MANUAL” consigned with the machine documentation. BUZZER The machine is equipped with a buzzer. If you need to sound a warning, just press the button (1) on the steering column.

  • Page 58: Side Brush

    SIDE BRUSH The standard version of the machine is equipped with the right-hand side brush only, but the left-hand one can also be fitted upon request. The side brushes are an essential tool when the areas to be cleaned feature shelves or other similar furniture. The side brushes are able to extend beyond the total width of the machine, thus being able to clean flush with the wall and pass under shelves.

  • Page 59: Emergency Button

    Deactivate the emergency button (1) by pulling it. Eliminate the anomaly that caused the problem. NB: if the anomaly persists, contact a technician at the FIMAP service centre. Carry out all the procedures for turning on the machine. BRAKING CONTROL The function board in the machine manages a gradual deceleration when the accelerator pedal (1) is released (Fig.

  • Page 60: Reverse

    NB: the machine is fitted with a mechanical pedal brake (2) in addition to the machine electronics that handle the braking process. The mechanical braking action depends on the degree of force applied to the pedal (2). REVERSE The machine is equipped with electronic traction control. To engage the reverse gear, proceed as follows: Stop the machine.

  • Page 61: Rear View Video Camera

    NB: during operation, the display (Fig. 3) shows the guide lines (3) that represent the vehicle path and the approximate distance of the objects behind it. NB: the guidelines (3) indicate the trajectory foreseen for the overall dimensions of the machine with the steering wheel in the current position.

  • Page 62: Alarm Screen

    (Fig. 4). NB: in the event of an error, stop the machine and contact your FIMAP service centre of reference or the one closest to you. Alternatively, you can send an email to service@fimap.com...

  • Page 63: Tutorials

    "Service Time" parameter, after which the alarm screen will automatically switch off. NB: the overdue scheduled maintenance alarm can only be reset by a service technician at the FIMAP service centre. TUTORIALS The internal machine memory contains videos that explain machine start-up, routine maintenance to be carried out on the machine, and extraordinary maintenance to be carried out.
  • Page 64 3. On the tutorial screen (Fig. 3), select the topics you want to study: • Using the machine (3) • Daily maintenance (4) • Extraordinary maintenance (5) NB: select the “USING THE MACHINE” button (3) to see the video explaining the steps for preparing the machine for work (Fig.

  • Page 65: Optional Functions

    OPTIONAL FUNCTIONS BLUE SAFETY LIGHT On request, the machine can be equipped with a blue safety spotlight above the front dashboard; the purpose of this light is to warn pedestrians of the approach of the machine. The device is suitable for both indoor and outdoor applications. It is ideal for use inside warehouses or on forecourts, where architectural structures, furniture or storage racks can prevent full visibility of the moving machine.

  • Page 66: Sos Device

    NB: if the key just inserted is not equipped with a TAG, the alarm 10 will appear on the control display (Fig. 3). NB: if the owner of the TAG just inserted is not enabled to use it, the AL_11 alarm will appear on the control display (Fig.

  • Page 67: Vacuum Wand

    VACUUM WAND Upon request, the machine can be equipped with a vacuum wand kit for removing waste in areas that are difficult to reach with the machine itself. WARNING: only use the vacuum wand kit when the bag filter is inserted. “ASSEMBLING THE VACUUM WAND FILTER BAG”...

  • Page 68: At The End Of The Work

    In addition, we can also recognise faults quickly, thus increasing the useful life of our machine. NB: through its network of certified service centres, FIMAP proposes special offers on maintenance services, like those available in car repair shops. See https://www.
  • Page 69 NB: a dilemma may arise during maintenance: which spare parts are best? FIMAP supplies original spare parts which are exactly identical to the parts on a given machine that need replacing; these are the best choice because they are durable and long-lasting, and help to maintain the performance of the machine.
  • Page 70 Filter bag of the vacuum wand Inlet air filter of the vacuum kit (optional) wand kit (optional) Battery base Hopper Debris hopper bins (optional) Front driving wheel Rear wheels - 70 -...
  • Page 71 - 71 -...
  • Page 72 - 72 -...

  • Page 73: Routine Maintenance

    NB: when cleaning the rubber blades, check their condition and state of wear. If they are unfit to be used, contact your FIMAP service centre of reference or the one closest to you. CLEANING THE RUBBER BLADES OF THE CENTRAL BRUSH DUST...
  • Page 74 NB: when cleaning the rubber blades, check their condition and state of wear. If they are unfit to be used, contact your FIMAP service centre of reference or the one closest to you. After completing the work, close the left-hand inspection door (1).

  • Page 75: Cleaning The Central Brush

    CLEANING THE CENTRAL BRUSH A thoroughly clean central brush will ensure a cleaner floor, thereby reducing costs and increasing environmental sustainability. To clean the central brush, proceed as follows: Open the left-hand inspection door (1) (Fig. 1). Loosen the knobs (2) of the central brush inspection carter (Fig. 2). Loosen the knob (3) of the central brush lifting arm (Fig.

  • Page 76: Cleaning The Side Brushes

    CLEANING THE SIDE BRUSHES Thoroughly clean side brushes will ensure a cleaner floor, thereby reducing costs and increasing environmental sustainability. To clean the side brushes, proceed as follows: Go to the right-hand side of the machine. Remove the knob (1) fixing the side brush to the gear motor by rotating the right brush clockwise and the left brush anti-clockwise (Fig.

  • Page 77: Cleaning The Pocket Filter (Optional)

    Clean the panel filter, carefully shaking it on a clean, flat surface. If necessary, clean with compressed air (≤ 7atm), pointed in the opposite direction to the vacuum flow. Repeat the operations in reverse order to refit the panel filter in the machine. NB: pay attention to the working direction of the panel filter when inserting it in the vacuum compartment on the machine: the gasket in the filter must be in contact with the machine frame.

  • Page 78: Cleaning The Vacuum Wand Inlet Air Filter (Optional)

    Remove the filter bag compartment cover (4) (Fig. 4). Remove the filter bag (6) from its cardboard filter support, taking care not to damage the support (Fig. 5). Empty the filter bag. NB: the place designated for this operation must comply with current regulations concerning safety at work and current environmental protection regulations.

  • Page 79: Extraordinary Maintenance Work

    Remove the filter bag compartment cover (4) (Fig. 4). Remove the intake air filter (6) from its support (7) in the machine (Fig. 5). Clean the filter with a jet of compressed air (≤ 7atm) pointed in the opposite direction to the vacuum flow. Repeat the operations in reverse order to refit the panel filter in the machine.

  • Page 80: Replacing The Central Brush

    REPLACING THE CENTRAL BRUSH The good condition of the central brush will ensure a cleaner floor, thereby reducing costs and increasing environmental sustainability. To replace the central brush, proceed as follows: Open the left-hand inspection door (1) (Fig. 1). Loosen the knobs (2) of the central brush inspection carter (Fig. 2). Loosen the knob (3) of the central brush lifting arm (Fig.

  • Page 81: Assembling The Side Brushes

    Tighten the knob (3) of the central brush lifting arm (Fig. 12). 10. Tighten the knobs (2) of the central brush inspection carter (Fig. 13). 11. Close the left-hand inspection door (1) (Fig. 14). ASSEMBLING THE SIDE BRUSHES The good condition of the side brush will ensure a cleaner floor, thereby reducing costs and increasing environmental sustainability.

  • Page 82: Disposal

    DISPOSAL Fimap is committed to creating its products by respecting the environment, investing in the development of sustainable solutions and technologies, seeking materials that can easily be recycled, and ensuring that the entire production process has a low environmental impact.
  • Page 83 Legend: Ø = external bristle diameter; Ø = external tank diameter (brush body); L = maximum brush width (bristle reference); L = maximum brush width (tank reference); TYPE OF CYLINDRICAL BRUSH Ø TYPE OF Ø CODE NOTES EXTERNAL BRISTLE BRISTLES CYLINDRICAL BRUSH Ø...

  • Page 84: Troubleshooting

    This chapter lists the most common problems linked with the use of the machine. If you are unable to resolve the problems with the information given here, please contact your FIMAP service centre of reference or the one closest to you...

  • Page 85: The Machine Does Not Move

    Check that the brushes installed on the machine are The type of brush being used is not suitable for the dirt to be adequate for the work to be carried out. Contact your FIMAP removed service centre of reference or the one closest to you Check the condition of the central brush, replacing it if necessary.

  • Page 86: Excessive Dust Production

    If the debris hopper is too full, empty it. See “EMPTYING THE The debris hopper is too full DEBRIS HOPPER” on page 52 Contact your FIMAP service centre of reference or the one Dust seal flaps no longer in good condition closest to you. - 86 -...

  • Page 87: Ec Declaration Of Conformity

    FIMAP S.p.A. Via Invalidi del Lavoro, 1 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products SWEEPING MACHINES mod. FSR7 PLUS comply with the requirements of the following directives: • 2006/42/EC: Machinery Directive. • 2014/30/EU: Electromagnetic Compatibility Directive.
  • Page 88 FIMAP S.p.A. Via Invalidi del Lavoro, 1 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products SWEEPING MACHINES mod. FSR7 PLUS CB comply with the requirements of the following directives: • 2006/42/EC: Machinery Directive. •...

  • Page 89: Ukca Declaration Of Conformity

    Via Invalidi del Lavoro, 1 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products SWEEPING MACHINES mod. FSR7 PLUS comply with the requirements of the following directives: • S.I. 2008/1597 Supply of Machinery (Safety) Regulations 2008 (as amended).
  • Page 90 Via Invalidi del Lavoro, 1 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products SWEEPING MACHINES mod. FSR7 PLUS CB comply with the requirements of the following directives: • S.I. 2008/1597 Supply of Machinery (Safety) Regulations 2008 (as amended).
  • Page 92 FIMAP S.p.A. Via Invalidi del Lavoro, 1 37059 S. Maria di Zevio (VR) Italia +39 045 6060491 - +39 045 6060440 service@fimap.com www.fimap.com...
