3.2 Transmitter installation
The transmitter housing can rotate about 300 ° against the sensor and
can be fixed at any position without affecting the performance and
internal wiring. When rotating the housing, it is not allowed to forcibly
rotate the sensor part. Loosen the setscrew with a 2mm hex wrench but
not screw it out completely. Retighten the screw after confirming the
installation position. This minimizes the impact on electronic circuit

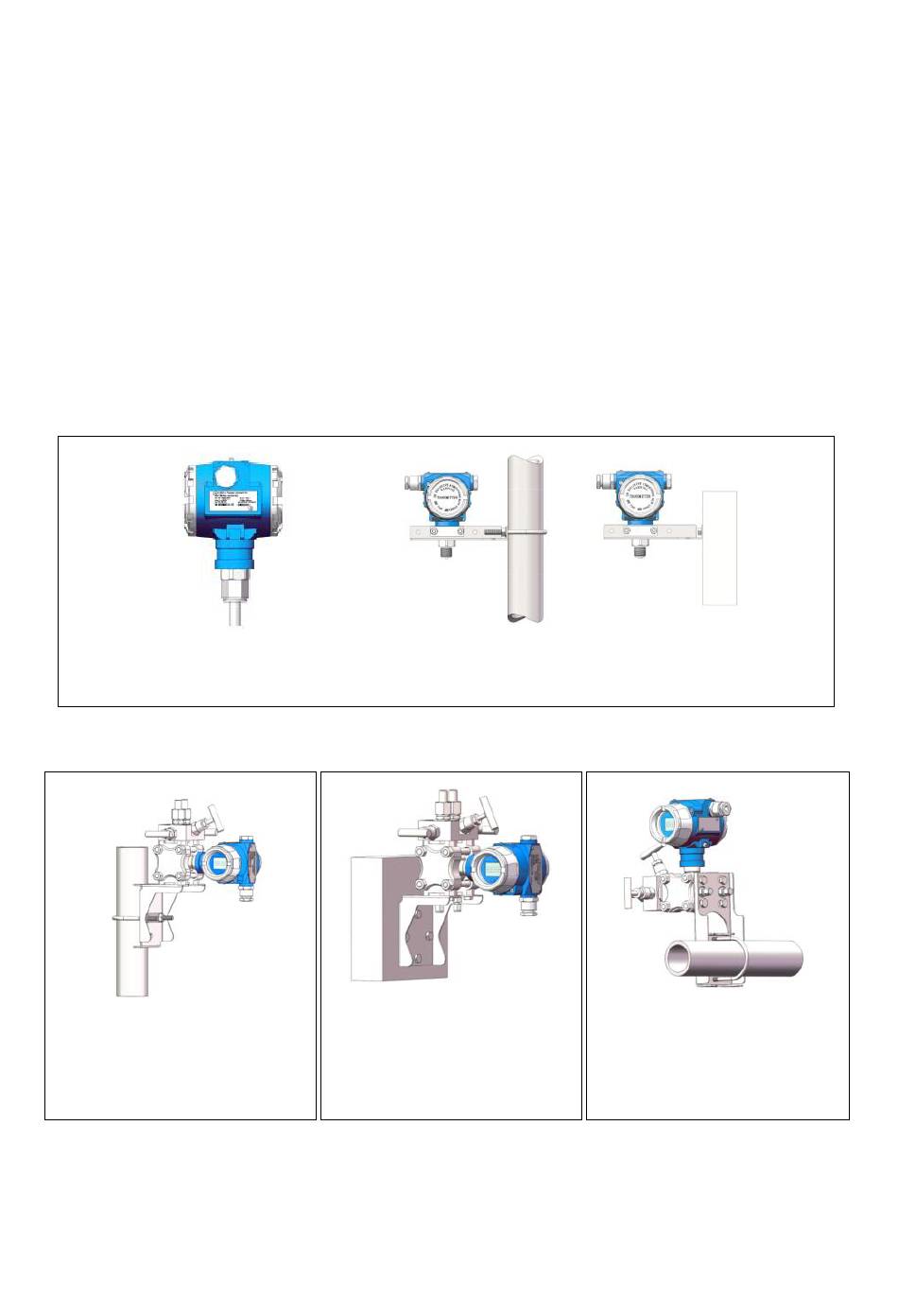

connections and output displays. The installation is shown in the
following figure:
3.2.1 Smart gauge/absolute pressure transmitter – installation
图 2
Figure1 (Direct installation)
Figure 2 (Bracket mounting)
3.2.2 Intelligent differential pressure transmitter - bracket mounting
Figure 4 (Bending
Figure 5 (Flat Bracket
Figure 3 (Bending
bracket for
for pipeline)
bracket for 2"pipeline)
panel mounting)
3
