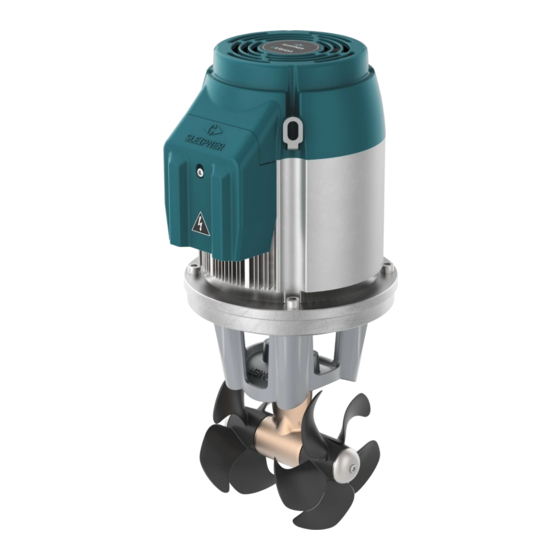

- Page 1 Installation Guide For E-Vision Electric Thruster Models E100 DOCUMENT ID: SLEIPNER MOTOR AS 7314 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2023 Norway LANGUAGE: www.sleipnergroup.com...
-
Page 2: Table Of Contents
Post Installation Checklist ..............................28 Service and Support ................................29 Product Spare Parts and Additional Resources ........................29 Warranty Statement ................................29 Patents ....................................29 Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway MC_0451 Sleipner eVision electric thrusters 7314 2023... -
Page 3: Responsibility Of The Installer
Any attempt to directly control or connect into the S-Link™ control system without a designated and approved interface will render all warranties and responsibilities of all of the connected Sleipner products. If you are interfacing the S-Link™ bus by agreement with Sleipner through a designated Sleipner supplied interface, you are still required to install at least one original Sleipner control panel to enable efficient troubleshooting if necessary. - Page 4 • Control panel PJC2xx must be upgraded to fi rmware version V3.018 or newer. Control panel PJC2xx with hardware V2.000 or older will not support eVision Thruster Motors. Sleipner stopped the production of PJC2xx with HW version V2.000 in Q2 2020. Note that no mechanical modifi cations are required to replace older PJC2xx panels with PJC2xx HW version V3.000 or newer.
-
Page 5: Product Measurements
(ID) Propeller position will vary with each thruster model Tunnel Thickness Sleipner thrusters can be installed at an angle off the vertical Tunnel Length (TL) centre. Tailored to fit any space available in your vessel. The gear leg/ propeller(s) must... -
Page 6: Product Clearance Requirements
Runtime at 100% thrust: Continuous at 22°C ambient, typically limited by battery capacity E100 48V 100 kg / 220 lbs (42V) 5.6 kW / 7.6 hp *Measured at motor terminals when the thruster is running Sleipner eVision electric thrusters 7314 2023... -
Page 7: Positioning Of The Tunnel / Thruster
(NB: This can be overlooked depending on the installation methods defi ned in this manual.) Pivot point important Lowered rotation power performance Stronger rotation power performance Water line Ø min 1/4 Ø (Recommended) min 1/4 Ø (Recommended) MG_0001 Sleipner eVision electric thrusters 7314 2023... -
Page 8: Tunnel Length
Increase tunnel length to protect never extend out of the tunnel cavity between the propeller and the propeller from water forces the hull of the boat. when high-speed cruising. MG_0048 Sleipner eVision electric thrusters 7314 2023... -
Page 9: Tunnel Installation In Sailboats
This installation is being used by some of the world’s largest sail boat builders and has proven to give little to no speed loss during normal cruising. This can also be an installation method for flat bottomed barges to avoid extremely long tunnels and large oval tunnel openings in the hull. Pos. A Pos. B MG_0004 Sleipner eVision electric thrusters 7314 2023... -
Page 10: Water Deflection
In the High water force event when the boat is traveling at high speeds it while underway will commonly pound upon the water surface. High water force while underway from wave contact MG_0003 Sleipner eVision electric thrusters 7314 2023... -
Page 11: Tunnel Ends
This “free” extra thrust in optimal installations be 30 - 40% of the total thrust. (NB: A Sleipner thruster propeller does not produce cavitation at working speed. Therefore, any cavitation and cavitation noise in the tunnel will be caused during improper tunnel installation.) -
Page 12: Tunnel Installation
(NB: Ensure gaps between the tunnel and the hull are completely fi lled with resin/ fi breglass. In areas where you can not access to make layers of resin/ fi breglass, a resin/ fi breglass mixture must be used in that area.) 8 x layers of fiberglass and resin 8 x layers of fiberglass and resin MG_0005 Sleipner eVision electric thrusters 7314 2023... - Page 13 You must apply gel coat to areas you have grounded/ moulded to make waterproof. These areas allow water access to the hull which is typically not waterproof without these applications outside. (NB: All original Sleipner tunnels are fully waterproof when delivered except in the areas where you have cut and bonded it to the hull.)
-
Page 14: Stern Tunnel Installation
Stern Tunnel Installation MC_0003 For Stern Thruster installation please refer to the supplied manual in your Sleipner product delivery Installation Guide For DC Electric Thruster Models SE80, SE100, SE120, SE130, SE150 Stern Thruster SLEIPNER AS DOCUMENT ID: 222222 REVISION: P.O. Box 519... -
Page 15: Gear Leg & Motor Bracket Installation
SAC 240/250TC SE/SEP/SE IP/SEP IP 250/300TC PORT STARBOARD SE/SEP/SE IP/SEP IP 300/300TC E300/300TC SH300/300TC SH320/300TC SAC320/300TC SH360/300TC SH400/300TC SAC360/300TC SAC400/300TC SH420/386TC SH550/386TC SH700/412 SAC450/386TC SAC520/386TC SAC700/412 Drill centre hole first Smooth surface area MG_0055 Sleipner eVision electric thrusters 7314 2023... - Page 16 Place top motor bracket and bolt plate to measure the drive shaft has come through the motor bracket at the correct height. Remove the gear leg and propeller for fi nal installation. Gasket Test the propeller turns without Gear leg obstruction with tunnel wall Motor bracket MG_0618 Sleipner eVision electric thrusters 7314 2023...
- Page 17 Apply MS Polymer sealant or equal to both sides of the gasket IMPORTANT Motor bracket Do not apply sealant to the bolt holes. /215mm Tunnel Diameter /185mm /250mm Nm lb/ft mm inch Fasten 13,3 MG_0619 Sleipner eVision electric thrusters 7314 2023...
-
Page 18: Propeller Installation
Drive Pin Find the propeller hand marking on the back side of the propeller mould. Propeller Lock Nut Washer FASTEN 65 Nm 47.94 lb/ft Anti-fouling Anode Apply Loctite 243 or similar Anode Holding Screw MG_0033 Sleipner eVision electric thrusters 7314 2023... -
Page 19: Motor Installation
(NB: The extra 1mm is added to aligned when fitted eliminate the risk of compression to the rubber element between the two couplings.) > 30° Motor FASTEN (3 Nm) (2.2 lb/ft) FASTEN (18 Nm) (13.28 lb/ft) Motor support bracket MG_0610 Sleipner eVision electric thrusters 7314 2023... -
Page 20: Electrical Installation
Follow the instructions in the Motor Lug Connection chapter when fastening the power cables to the motor. Sleipner AMS is controlled by the control panel in addition to the option of manual operation. Turning on the control panel also turn on the AMS. -
Page 21: Motor Lug Connection
Cable lengths and dimensions • Performed tunnel installation • Ventilation • Obstructing marine growth For each installation an experienced electrician should be consulted for cable cross section calculations and selection of fuses, main circuit and batteries. Sleipner eVision electric thrusters 7314 2023... -
Page 22: Manual Main Switch Wiring Diagram 24V Thruster
The top and bottom wiring diagram is for a dual thruster system, for example a bow and stern installation. S-Link Backbone cable Fuse 10A Thruster S-Link Spur cable ANL Fuse Manual Main Switch BATTERY BATTERY MG_0623 Sleipner eVision electric thrusters 7314 2023... -
Page 23: Automatic Main Switch Wiring Diagram 24V Thruster
The top and bottom wiring diagram is for a dual thruster system, for example a bow and stern installation. Automatic Main Switch S-Link Backbone cable Fuse 10A Thruster ANL Fuse S-Link Spur cable BATTERY Fuse 5A BATTERY MG_0583 Sleipner eVision electric thrusters 7314 2023... -
Page 24: Manual Main Switch Wiring Diagram 48V Thruster
The top and bottom wiring diagram is for a dual thruster system, for example a bow and stern installation. S-Link Backbone cable Thruster ANL Fuse Manual Main Switch THRUSTER THRUSTER THRUSTER THRUSTER BATTERY BATTERY BATTERY BATTERY MG_0624 Sleipner eVision electric thrusters 7314 2023... -
Page 25: Automatic Main Switch Wiring Diagram 48V Thruster
The top and bottom wiring diagram is for a dual thruster system, for example a bow and stern installation. S-Link Backbone cable Automatic Main Switch S-Link Spur cable Thruster ANL Fuse Fuse 5A Fuse 5A THRUSTER THRUSTER THRUSTER THRUSTER BATTERY BATTERY BATTERY BATTERY MG_0524 Sleipner eVision electric thrusters 7314 2023... -
Page 26: S-Link System Description
MC_0120 S-Link is a CAN-based control system used for communication between Sleipner products installed on a vessel. The system uses BACKBONE Cables as a common power and communication bus with separate SPUR Cables to each connected unit. Only one S-Link POWER cable shall be connected to the BACKBONE Cable. -
Page 27: Control Panel Installation
For Control Panel installation please refer to the Installation Guide accompanying the control panel to be installed. Installation Guide Control Panel SLEIPNER MOTOR AS DOCUMENT ID: REVISION: P.O. Box 519 N-1612 Fredrikstad DATE: Norway www.sleipnergroup.com LANGUAGE: Sleipner eVision electric thrusters 7314 2023... -
Page 28: Post Installation Checklist
Correct drive direction as per control panel: ..............................The compartment for the thruster has been isolated from general bilge water and has no obvious or suspected risks for flooding: .................................................................................................................................. Other comments by installer: ........................................................................................................................Sleipner eVision electric thrusters 7314 2023... -
Page 29: Service And Support
11. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents Sleipner eVision electric thrusters... - Page 30 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Sleipner eVision electric thrusters 7314 2023...
- Page 31 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Sleipner eVision electric thrusters 7314 2023...
- Page 32 © Sleipner Group, All rights reserved The information given in the document was right at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi cations without notice.
