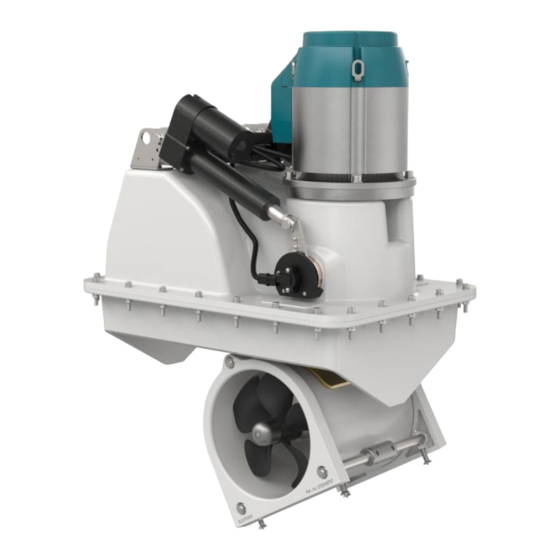

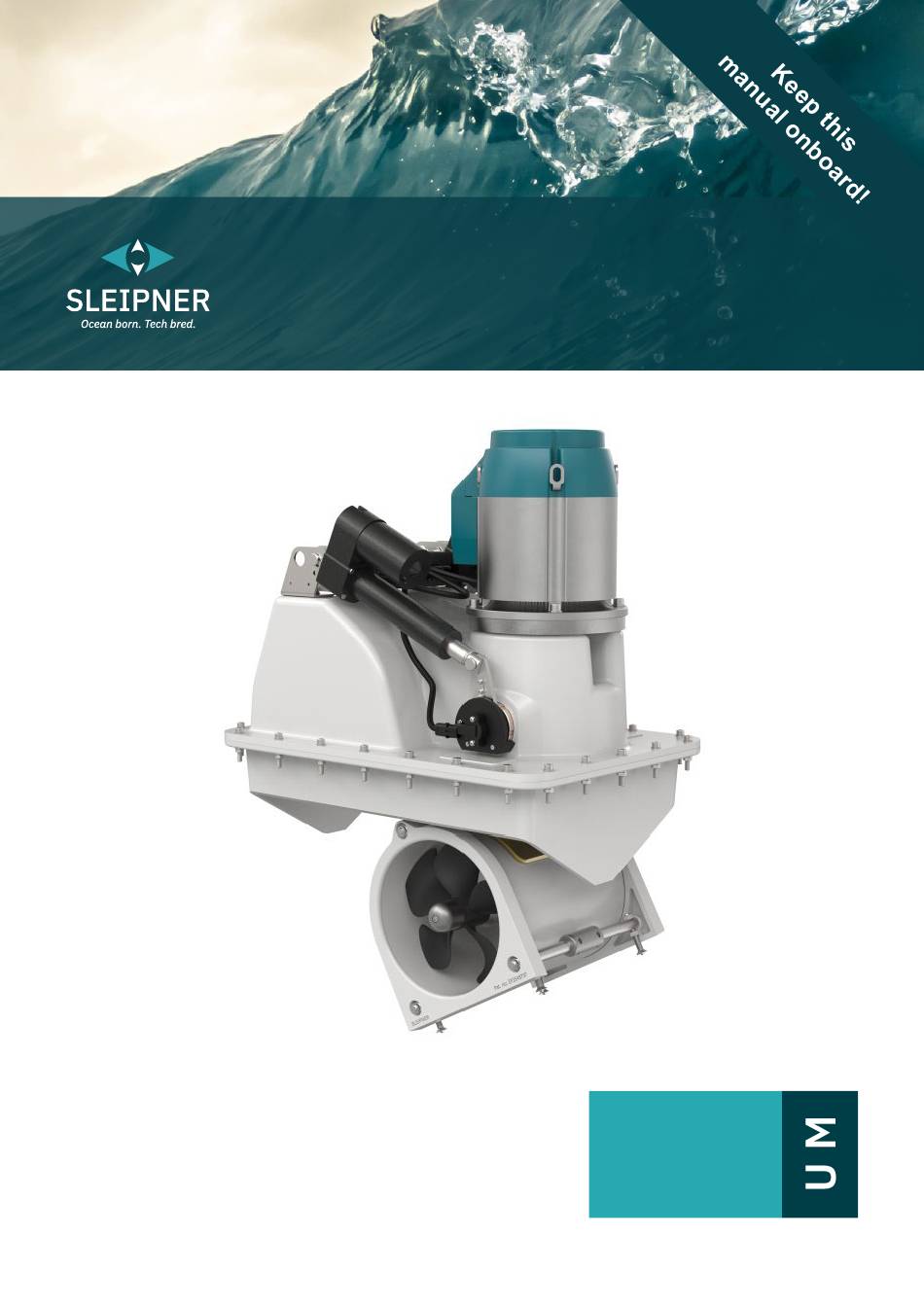

- Page 1 User Manual For Retract Thruster Models ER Electric DOCUMENT ID: SLEIPNER GROUP 7435 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2023 Norway LANGUAGE: www.sleipnergroup.com To download your language go to www.sleipnergroup.com...
-
Page 2: Table Of Contents
Seasonal checklist ....................................9 Product Specifications ................................... 10 Service and Support................................... 11 Product Spare Parts and Additional Resources ..........................11 Warranty Statement .................................... 11 Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway MC_0020 retract eVision user manual... -
Page 3: General Operation Considerations And Precautions Guidelines
Failure to follow the considerations and precautions can cause serious injury, damage and will render all warranties given by Sleipner Motor as VOID. MC_0411 General Operation Consideration and Precaution Guidelines MC_0444 For the operation of thrusters MC_0418 Never use thrusters when close to objects, persons or animals in the water. The thruster will draw objects into the tunnel and the rotating propellers. -
Page 4: User Operation
! Please refer to the graphic for special considerations relating to your model ! The following is an operation guide to ALL Sleipner control products. Ensure to familiarise yourself with the functionality and operation of your specifi c control device. -
Page 5: Proportional Control Panel
Proportional Control Panel Activating the stern thruster Activating the bow thruster Using your control device/ panel press the button or move the Using your control device/ panel press the button or move the joystick in the direction you intend to turn the boat. Ensure to use joystick in the direction you intend to turn the boat. -
Page 6: Maintenance
Maintenance MC_0063 ! Please refer to the graphic for special considerations relating to your model ! As a part of the seasonal service of your Thruster perform these maintenance checks while the vessel is in these circumstances: In Water • The area around cables inside the boat are clean and dry. - Page 7 SR(V,L) Maintenance DO NOT apply anti-fouling DO NOT clean with chemicals, hot water or high-pressure water jet in this area. Retract Check and re-lubricate mechanism anode with waterproof grease if necessary Check annually rubber element and replace every 2nd year. (NB: SR300 does not have a rubber element) Gear leg anode...
-
Page 8: Basic Troubleshooting
Basic Troubleshooting MC_0612 Before seeking assistance from the website help desk from your Sleipner dealer/ distributor, please perform these tests. (NB: If you are unable to understand or perform these checks, you must consult a Sleipner distributor.) CHECK SOLUTION The motor runs, but there is no thrust Check propellers are fi... -
Page 9: Seasonal Checklist
Seasonal Checklist MC_0062 retract eVision user manual 7435 2023... -
Page 10: Product Specifications
Thrust is kg / lbs at (V) Maximum Operation Time Voltage Voltage kW / hp kg / lbs ERL100 24V 100 kg / 220 lbs (21V) 6.3 kW / 8.4 hp ERL100 48V 100 kg / 220 lbs (42V) 6.3 kW / 8.4 hp... -
Page 11: Service And Support
11. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents retract eVision user manual... - Page 12 © Sleipner Group, All rights reserved The information given in the document was right at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi...
