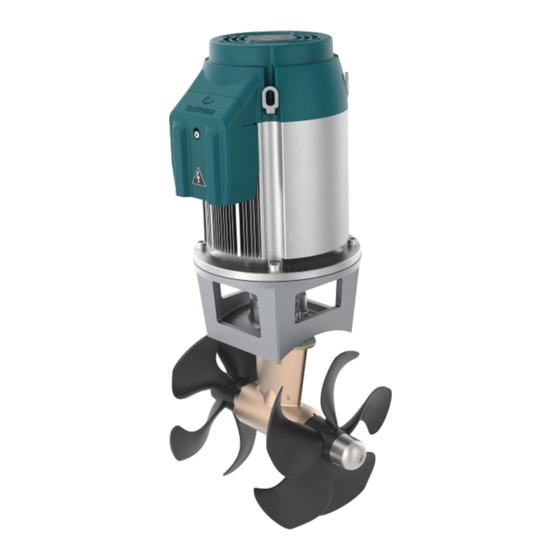

- Page 1 Installation Guide For E-Vision Electric Thruster Models E250, E300 DOCUMENT ID: SLEIPNER MOTOR AS 7240 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2023 Norway LANGUAGE: www.sleipnergroup.com...
-
Page 2: Table Of Contents
Post Installation Checklist ..............................28 Service and Support ................................29 Product Spare Parts and Additional Resources ........................29 Warranty Statement ................................29 Patents ....................................29 Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway MC_0020 E250 & E300... -
Page 3: Responsibility Of The Installer
Any attempt to directly control or connect into the S-Link™ control system without a designated and approved interface will render all warranties and responsibilities of all of the connected Sleipner products. If you are interfacing the S-Link™ bus by agreement with Sleipner through a designated Sleipner supplied interface, you are still required to install at least one original Sleipner control panel to enable efficient troubleshooting if necessary. - Page 4 • Control panel PJC2xx must be upgraded to fi rmware version V3.018 or newer. Control panel PJC2xx with hardware V2.000 or older will not support eVision Thruster Motors. Sleipner stopped the production of PJC2xx with HW version V2.000 in Q2 2020. Note that no mechanical modifi cations are required to replace older PJC2xx panels with PJC2xx HW version V3.000 or newer.
-
Page 5: Product Measurements
(ID) Propeller position will vary with each thruster model Tunnel Thickness Sleipner thrusters can be installed at an angle off the vertical Tunnel Length (TL) centre. Tailored to fit any space available in your vessel. The gear leg/ propeller(s) must... -
Page 6: Product Clearance Requirements
Product Clearance Requirements MC_0672 IMPORTANT This product has clearance considerations extending the base product footprint. Follow the clearance requirements when planning your installation. Allow a minimum of 50mm above the fan to maintain appropriate airflow to the cooling fan. MG_0706 Product Specifi... -
Page 7: Positioning Of The Tunnel / Thruster
Positioning of the tunnel / thruster MC_0003 Aim to install the thruster as far forward as possible (1) Due to the leverage effect around the boats’ pivot point. The distance difference from the boat pivots’ point to the thruster will determine the amount of real rotation power for the boat. -
Page 8: Tunnel Length
Tunnel Length MC_0003 Optimal tunnel length Achieving the correct tunnel length depends on many factors from the hull type, operation and environmental conditions. Tunnels should avoid being longer than 4 x the tunnel diameter as this will reduce thruster performance. (NB: Installing long length tunnels can flex/ bend over time and may require additional support. -
Page 9: Tunnel Installation In Sailboats
Tunnel installation in Sailboats MC_0003 Some sail boats have a flat bottom and shallow draft in the bow section. This can make installing the thruster as far forward from the boats main pivot point diffi cult. (Fig. 1). However, it is possible to install a tunnel thruster in most sail boats, even when the hull does not directly support the fi tting of a tunnel. Instead fi t the tunnel halfway into the underneath section of the existing hull. -
Page 10: Water Deflection
Water Deflection MC_0003 A possible problem in sail boats or fast powerboats is that a non-rounded surface can generate drag from the back face of the tunnel, as it creates a “flat” area facing the flow of water. This problem can be solved in two different ways, depending on what is possible or easier to perform. The best solution which generally reduces the most drag is to make a recess in the hull at the back of the tunnel. -
Page 11: Tunnel Ends
This “free” extra thrust in optimal installations be 30 - 40% of the total thrust. (NB: A Sleipner thruster propeller does not produce cavitation at working speed. Therefore, any cavitation and cavitation noise in the tunnel will be caused during improper tunnel installation.) -
Page 12: Tunnel Installation
Tunnel Installation MC_0003 IMPORTANT We recommend that a professional does the fi breglass, steel or aluminium fi tting of the tunnel. These instructions are only general instructions and do not explain in any way the details of fi breglass work. Problems caused by faulty installation of the tunnel, are the installers full responsibility. Find the position in the boat considering the information earlier in this manual and the applicable measurements for the thruster model you are installing. - Page 13 You must apply gel coat to areas you have grounded/ moulded to make waterproof. These areas allow water access to the hull which is typically not waterproof without these applications outside. (NB: All original Sleipner tunnels are fully waterproof when delivered except in the areas where you have cut and bonded it to the hull.)
-
Page 14: Stern Tunnel Installation
Stern Tunnel Installation MC_0003 For Stern Thruster installation please refer to the supplied manual in your Sleipner product delivery Installation Guide For DC Electric Thruster Models SE80, SE100, SE120, SE130, SE150 Stern Thruster SLEIPNER AS DOCUMENT ID: 222222 REVISION: P.O. Box 519... -
Page 15: Gear Leg & Motor Bracket Installation
Gear Leg & Motor Bracket Installation MC_0001 ! Please refer to the graphic for special considerations relating to your model ! Mark the tunnel centreline and the boat’s centreline. (NB: Install the gear leg and propeller as shown for the thrust direction to correspond with the control panel. - Page 16 Gear Leg & Motor Bracket Installation MC_0001 ! Please refer to the graphic for special considerations relating to your model ! Place the gear leg (without the propeller) with the gasket on inside the tunnel. Place the propeller on the gear leg (NB: Do not secure the propeller with securing parts) to ensure it is centred and rotates freely with the same clearance from each blade to the tunnel wall.
- Page 17 Gear Leg & Motor Bracket Installation MC_0001 ! Please refer to the graphic for special considerations relating to your model ! Apply appropriate sealant to both sides of the gasket and place on the gear leg. Place the gear leg in the tunnel (without the propeller). Use appropriate sealant to ensure that no leakages occur.
-
Page 18: Propeller Installation
Propeller Installation MC_0264 ! Please refer to the graphic for special considerations relating to your model ! Centre the drive pin and insert the propeller onto the shaft spline. Rotate the propeller until the drive pin aligns with the internal slot in the propeller. -
Page 19: Motor Installation
Motor Installation MC_0019 ! Please refer to the graphic for special considerations relating to your model ! Install the motor onto the motor bracket ensuring the couplings are engaged together correctly (top and bottom). (NB: The motor can be placed in all directions on the motor bracket. -
Page 20: Electrical Installation
Follow the instructions in the Motor Lug Connection chapter when fastening the power cables to the motor. Sleipner AMS is controlled by the control panel in addition to the option of manual operation. Turning on the control panel also turn on the AMS. -
Page 21: Motor Lug Connection
Motor Lug Connection Washer Spring End nut washer Lugs Washer Spring washer S-Link Connector Single-lug configuration End nut Ensure lug faces (M10) Nut are back to back. Tighten to *max 13 Nm (9.59 lb/ft) Washer Spring washer End nut S-Link cable IMPORTANT Do NOT use washers between lugs, this causes overheating and fire. -
Page 22: Manual Main Switch Wiring Diagram 24V Thruster
Manual Main Switch Wiring Diagram 24V eVision Thruster The Top wiring diagram is for a single bow or stern thruster system Refer to the User and Installation Manual of the control panel for Control detailed installation instructions. panel See S-Link System Description chapter for detailed information on installation of S-Link Power cable and additional S-Link components. -
Page 23: Automatic Main Switch Wiring Diagram 24V Thruster
Automatic Main Switch Wiring Diagram 24V eVision Thruster The Top wiring diagram is for a single bow or stern thruster system Refer to the User and Installation Manual of the control panel for Control detailed installation instructions. panel See S-Link System Description chapter for detailed information on installation of S-Link Power cable and additional S-Link components. -
Page 24: Manual Main Switch Wiring Diagram 48V Thruster
Manual Main Switch Wiring Diagram 48V eVision Thruster The Top wiring diagram is for a single bow or stern thruster system Control Refer to the User and Installation Manual of the control panel for panel detailed installation instructions. See S-Link System Description chapter for detailed information on installation of S-Link Power cable and additional S-Link components. -
Page 25: Automatic Main Switch Wiring Diagram 48V Thruster
Automatic Main Switch Wiring Diagram 48V eVision Thruster The Top wiring diagram is for a single bow or stern thruster system Control Refer to the User and Installation Manual of the control panel for panel detailed installation instructions. See S-Link System Description chapter for detailed information on installation of S-Link Power cable and additional S-Link components. -
Page 26: S-Link System Description
MC_0120 S-Link is a CAN-based control system used for communication between Sleipner products installed on a vessel. The system uses BACKBONE Cables as a common power and communication bus with separate SPUR Cables to each connected unit. Only one S-Link POWER cable shall be connected to the BACKBONE Cable. -
Page 27: Control Panel Installation
Control Panel Installation MC_0398 For Control Panel installation please refer to the Installation Guide accompanying the control panel to be installed. Installation Guide Control Panel SLEIPNER MOTOR AS DOCUMENT ID: REVISION: P.O. Box 519 N-1612 Fredrikstad DATE: Norway www.sleipnergroup.com LANGUAGE: E250 &... -
Page 28: Post Installation Checklist
Post Instalation Checklist MC_0033 []..The bolts holding the gear house and main bracket together are tightened correctly. []..The bolts holding the motor to its bracket are tightened correctly. []..All electrical connections are clean, dry and tight, and the correct cable, fuse and main switch size. -
Page 29: Service And Support
11. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents E250 & E300... - Page 30 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................E250 & E300 7240 2023...
- Page 31 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................E250 & E300 7240 2023...
- Page 32 © Sleipner Group, All rights reserved The information given in the document was right at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi cations without notice.
