User Manual
TViX PVR R-2230
Advertisement
Table of Contents
Related Manuals for Dvico TViX PVR R-2230
Summary of Contents for Dvico TViX PVR R-2230

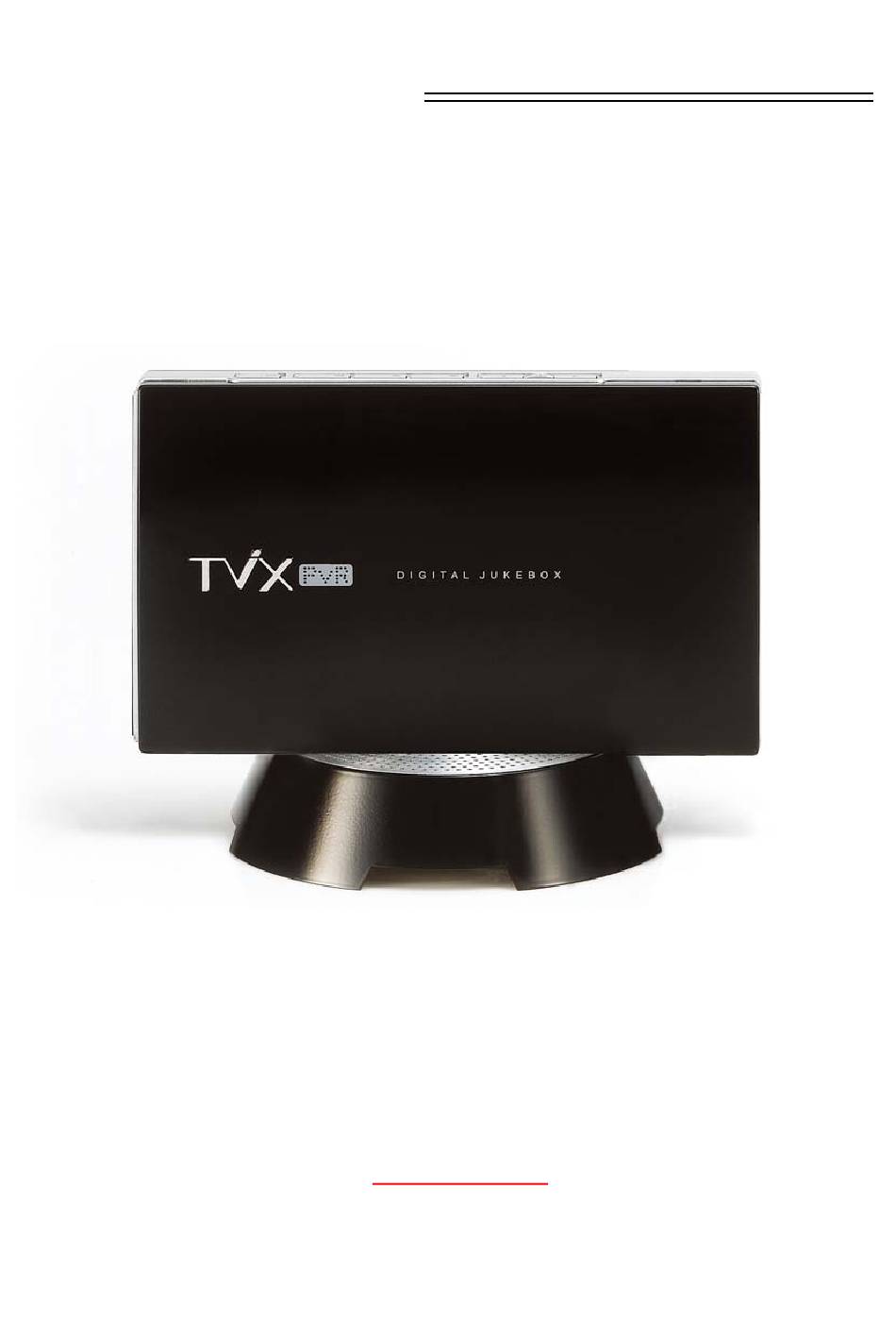

- Page 1 User Manual TViX PVR R-2230 ◈ TViX PVR R -2200 – Analog TV tuner + A/V IN ◈ TViX PVR R -2210 – NTSC Analog TV & ATSC Digital TV + A/V IN ◈ TViX PVR R -2230 – DVB-T Digital TV + A/V IN ** Some specifications could change according with new firmware versions.
-
Page 2: Safety Notice
Ultimate PVR with HD Digital Jukebox Safety Notice Do not try to disassemble or remodel Place magnetized devices. Such the TViX unit. Doing so may cause speakers away from the TViX .It may erase or malfunction or fire. cause damage to the data stored in the hard disk. -
Page 3: Usage Precautions
Certification sticker The certification sticker mark is on the side of the device. DViCO has no warranty or responsibility for broken hard disk. We recommend periodic backups to prevent data loss. ** Some functions will require you first to update to the latest firmware. -
Page 4: Table Of Contents
Ultimate PVR with HD Digital Jukebox Table of Contents Safety Notice .............................. 2 Usage Precautions ............................. 3 Introduction....................5 HDTV PVR Function ........................5 Multimedia Player Function ......................6 Audio Player Function ........................ 7 External Storage Function ......................7 Specifications ..........................8 Name of Each Part .................. -
Page 5: Introduction
In the file list mode, the FUNCTION key performs the File copy/delete and password functions. DVICO Inc has no responsibility for recorded programs or files made or distributed for purposes of illegal, commercial, or transactional activities. The party or parties who record or distribute the contents bear all... -
Page 6: Multimedia Player Function
Ultimate PVR with HD Digital Jukebox Multimedia Player Function The TViX is a standalone, multimedia hard disk player that plays digital videos, digital music, digital still images and DVD files to a TV display and home entertainment system. You can enjoy digital contents in your living room without having to burn discs or having to play it back on a DVD or CD player anymore. -
Page 7: Audio Player Function
Ultimate PVR with HD Digital Jukebox Audio Player Function TViX can play a variety of audio files such as MP3, Ipod, AAC, Ogg Vorbis or WMA (Windows Media Audio) through the TV speaker and any other audio systems. You can listen to your favorite music files nonstop, by organizing a custom winamp playlist. -
Page 8: Specifications
Ultimate PVR with HD Digital Jukebox Specifications MODEL TViX PVR R-2230 Main Chipset RT1262 200Mhz processor Format: .mpg, .mpeg, .avi, .divx, .vob, .tp, .ts, .trp, .dat, .iso, .ifo, .m2t Video Codec: AVI, MPEG1/2/4 (Xvid), IFO, ISO, .VOB, DAT, TP Resolutions up to 1920*1080i... -
Page 9: Name Of Each Part
Please use DC 5V adaptor included. If you use any other products, the TViX can be damaged. ◈ TViX PVR R-2200 – Analog TV tuner + A/V IN ◈ TViX PVR R-2210 – NTSC Analog TV & ATSC Digital TV + A/V IN ◈ TViX PVR R-2230 – DVB-T Digital TV + A/V IN... -
Page 10: Package Contents
Ultimate PVR with HD Digital Jukebox Package Contents Thank you for choosing this TViX product. The TViX PVR package contains the following items. The items described below may differ from the actual contents. TViX unit Remote Controller USB -Y Cable RCA Cable Optical Jack USB HOST Cable... -
Page 11: Hdd Installation/Exchange
Ultimate PVR with HD Digital Jukebox HDD Installation/Exchange ** Installing or exchanging your HDD is very easy. Just follow up the instructions below. If you already installed an HDD, you may skip this chapter. Press HDD lock button towards the direction of the ① arrow and then slide the casing cover towards the direction of the ②... - Page 12 Ultimate PVR with HD Digital Jukebox Put TViX cover back and push it to the direction of the ② arrow until you can hear ‘click’ sound. After installing the hard disk, place the TViX unit on the cradle of cooling FAN, and push the body to the direction of the ②...
-
Page 13: Installation And Connection
Ultimate PVR with HD Digital Jukebox Installation and Connection Connecting the Video The TViX supports HDMI and Composite video output for connecting to a TV and each output needs to be selected in the settings menu depending on the cable used. Connection to Composite Connection to HDMI Output Connect the TViX output to your TV using the... -
Page 14: Connecting The Audio
Ultimate PVR with HD Digital Jukebox Connecting the Audio Connection to 2 CH Normal TV Connection to 5.1CH Amplifier (Digital) Connect the two audio cables, the left (white) and If you have a multi-channel decoder/amplifier with an right (red), to the appropriate terminal of your TV or optical input, you can enjoy 5.1 CH high- quality Hi - Fi system for sound output. -
Page 15: Connecting The Usb Host
◈ TViX PVR R-2210 – NTSC Analog TV & ATSC Digital TV + A/V IN. ◈ TViX PVR R-2230 – DVB-T Digital TV + A/V IN ** Connect the included power adapter to the jack labeled DC-IN on the back of the TViX. Then plug the other end of the power adapter into an available wall socket. -
Page 16: Using The Remote Control
Ultimate PVR with HD Digital Jukebox Using the remote control This indicates Remote Buttons. POWER Toggle Unit Power on / off MUTE Stop Audio Output from the Player TV/HDTV Switch between TV or DTV mode MOVIE Go to Movie folder MUSIC Go to Music folder PHOTO... -
Page 17: Initial Setting
Ultimate PVR with HD Digital Jukebox Initial Setting Connect the TViX with your TV using A/V cables and turn on the TViX. You can see this process when you turn it on for the first time or when you select “Load Default Setting”. You may see the initial page on your TV screen as the picture below, then press the “OK”... -
Page 18: Tvix Setup Menu
Ultimate PVR with HD Digital Jukebox 4 TViX Setup Menu SYSTEM Setting This section indicates the SYSTEM (Language or Time) settings. Press SETUP button on the remote controller and select SYSTEM. This screen allows you to adjust the SYSTEM settings of your TViX to your personal taste. Select menu to exit this SETUP. - Page 19 Ultimate PVR with HD Digital Jukebox Set Screen Position : Adjust the UI display position, so you can see exact main UI display on your Arrow buttons and OK button are available. 1. Adjust Left - Top blue line. 2. Adjust Right - Bottom blue line. Check Disk : TViX provides the HDD check utility.
-
Page 20: Audio/Video Setting
Ultimate PVR with HD Digital Jukebox Audio/Video Setting This section indicates the A/V (Video or Audio) settings. Press SETUP button on the remote controller and select the A/V. This screen allows you to adjust the A/V settings of your TViX to your personal taste. Select menu to exit this SETUP. - Page 21 Ultimate PVR with HD Digital Jukebox * The 4:3 Pan & Scan will adjust the image of the 16:9 multimedia file to the 4:3 of the TV screen by scaling the image. (This mode is currently not supported) * 16:9 can adjust any ratio of the multimedia file to the TV screen with the original image. Video Adjust : Set the Brightness - Contrast - Hue - Saturation.
-
Page 22: Hdtv Setting
This screen allows you to adjust the HDTV settings of your TViX to your personal taste. Select menu to exit this SETUP. Press ‘NEXT’ button to change next setting. TV Input : Select your input. The TViX PVR R-2230 supports only DVB-T (Air) signals. TViX PVR R-2200 – Analog TV tuner (Air & Cable) TViX PVR R-2210 –... -
Page 23: Network Setting
Ultimate PVR with HD Digital Jukebox NETWORK Setting This section indicates the NETWORK (Network or FTP) settings. Press the SETUP button on the remote controller and select NETWORK. This screen allows you to adjust the NETWORK settings of your TViX to your personal taste. Select menu to exit this SETUP. - Page 24 Ultimate PVR with HD Digital Jukebox Setup Network Disk : Write the PC’s IP address in the Server IP. (ex: 192.168.001.128). Supports up to 4 Network disk server. Share Folder name should be written as tvixhd1 / tvixhd2 / tvixhd3 / tvixhd4 TVIX Network Info : You can see the information of TViX’s Network.
-
Page 25: Misc Setting
Ultimate PVR with HD Digital Jukebox MISC Setting This section indicates the MISC (Photo effect or Subtitle) settings. Press the SETUP button on the remote controller and select MISC. This screen allows you to adjust the MISC settings of your TViX to your personal taste. Select menu to exit this SETUP. -
Page 26: Initial Usage Of Tvix
Ultimate PVR with HD Digital Jukebox Initial Usage of TViX Making an HDD Folder As shown in the picture below, one end of the USB cable should be connected to the USB connector of the TViX and the other end to the computer. After connecting to the PC, turn on the power of the TViX. -
Page 27: Movie Playback
Ultimate PVR with HD Digital Jukebox Movie Playback When installation is successfully finished, you will see the Main MENU screen. You’d better copy a video file into the MOVIE folder in advance. MOVIE, MUSIC, PHOTO, HDTV, SETUP icons are shown. Select the MOVIE menu by using the Up/Down arrow button on your remote controller. -
Page 28: Music Playback
Ultimate PVR with HD Digital Jukebox Music Playback You can copy an audio file into the MUSIC folder in advance and play music files.. If you cannot see the MAIN MENU screen, press the MENU( ) button on your remote controller. Select the MUSIC menu( on the Main screen and press the ) button. -
Page 29: Photo Playback
Ultimate PVR with HD Digital Jukebox Photo Playback You may copy image files into the PHOTO folder in advance and play the image or photo files. You can press the PHOTO button on your remote controller without selecting from the menu screen Press PHOTO ( ) button. -
Page 30: Using Tvix Pvr
OK again to pick up right where you left off. • TVIX PVR doesn’t support satellite reception. • DVICO Inc has no responsibility for recorded programs or files made or distributed for purposes of illegal, commercial, or transactional activities. The party or parties who record or distribute the contents bear all responsibility (Civil or Criminal) direct or indirect. -
Page 31: Using Tvix Pvr
Ultimate PVR with HD Digital Jukebox Using TViX PVR : Select TV icon on the main menu to play the TV mode ( Without tuner box, this menu is not available.) : Press TV/HDTV button on your remote controller to switch the TV mode : Press A/V in button on your remote controller to switch the external input mode 6.2.1 Channel switching Press CH +/- button to change the TV channels. - Page 32 Ultimate PVR with HD Digital Jukebox • Clicking on the REC button( ) changes the recording duration in the sequence shown below. Free Space->30min->60->90->120->180->240. When recording, you can see red-round OSD( ) on the right-top of the screen. • When recording, if the available storage space runs out, the recording will automatically stop. •...
- Page 33 Ultimate PVR with HD Digital Jukebox 6.2.3 Using DTV EPG Guide DTV EPG(Electronic Program Guide) shows the guide obtained from the real-time broadcast data stream. DTV EPG function is not supported in analog TV or external input (A/V-in) Press the Guide button( ) in DTV mode to see an EPG window similar to that shown below.
- Page 34 Ultimate PVR with HD Digital Jukebox 6.2.4 Manual Recording Manually scheduled recording is available in the TV mode. Scheduled times are based on the TViX internal clock, as shown on its VFD, so please adjust it to the correct time under the setup menu. Press BOOKMARK/SCHEDULE button ( To add new scheduler, press ADD/DELECT ( ) button.
- Page 35 Ultimate PVR with HD Digital Jukebox 6.2.5 Using Time-Shifting Time shifting is the recording of programming to a storage medium to be viewed or listened to at a more convenient time. If interrupted while watching live TV programs (for example, to pick up phone calls or answer the door), you simply press the OK button to freeze the picture for a period of time and then later press OK again to pick up right where you left off.
-
Page 36: Using The Remote Control
Ultimate PVR with HD Digital Jukebox Using the remote control Descriptions of Each Buttons Basically, for playback of multimedia files you choose the file you want by navigating to it with the menu buttons and left/right and up/down arrow buttons and then press the OK button. 7.1.1 Video Playback When you press the MOVIE button( ) on your remote controller, only the TViX MOVIE folder contents... - Page 37 Ultimate PVR with HD Digital Jukebox Pressing Info button while you are not playing files shows remaining HDD space. 4:3 Letter Box / 4:3 Pan & Scan for ordinary TVs / 16:9 for Wide TVs such as HDTV or Plasma TV. If the ratio of the TV is 4:3, select the 4:3 letter box or 4:3 Pan &...
- Page 38 Ultimate PVR with HD Digital Jukebox FF/REW Button Pressing FF button while you are playing files, you can change the FF mode. 2X 4X 32X. Up/Down Button : 15 seconds skip or 15 seconds backward. (Down button) : Back 15 seconds. (Up button) : Skip 15 seconds.
- Page 39 Ultimate PVR with HD Digital Jukebox 7.1.2 DVD Navigation For playback of DVD files copied to the HDD, navigate to the VIDEO_TS.IFO file and press OK. Full DVD navigation works as with a standard DVD player. DVD Jukebox Keys < >...
- Page 40 Ultimate PVR with HD Digital Jukebox 7.1.3 Audio Playback When you press the MUSIC button( ) on your remote controller, Only the contents of the TViX Music folder will be displayed. It applies only to the active partition(first partition) if you have more than one partition. Display OSD when you press wrong keys.
- Page 41 Ultimate PVR with HD Digital Jukebox 7.1.4 Image Playback When you press the PHOTO button( ) on the remote control, only the contents of the TViX PHOTO folder will be displayed. It applies only to the active partition(first partition) if you have more than one partition. Display OSD when you press wrong keys.
-
Page 42: Extra Features
Ultimate PVR with HD Digital Jukebox Extra Features 7.2.1 Using the AutoRun Function When you want to play music with the TViX, but do not have any display devices, the following function may come in handy. Make a folder and name it, “autorun” and place it in the root directory of the First partition. Copy media file(s) or a text list file in the “autorun”... - Page 43 Ultimate PVR with HD Digital Jukebox 7.2.2 Using File Copying TViX supports File Copy functionality without Using PC. You can now copy Contents from external USB hard disk to the internal hard disk of TViX and also Copy the contents within the internal hard disk of TViX. TViX internal HDD <...
- Page 44 Ultimate PVR with HD Digital Jukebox 7.2.3 Folder Security TViX supports folder protection by assigning a password to the folder. Select the folder that you want to password protect. Press the Function button on your remote controller. Select the Set Password icon to set up the password. Press a 1~8 digit number from the Numeric key on the remote ( Ex: 1234).
-
Page 45: Lan Connection
Ultimate PVR with HD Digital Jukebox LAN Connection 7.3.1 Connect Wireless Network via Network Connect the USB module into the enclosed cradle after connecting the AP Router to a PC. You should not connect the USB module to TViX without cradle. If you connect it by force, the TViX can be damaged. - Page 46 Ultimate PVR with HD Digital Jukebox Run TViX Netshare installer and follow the on-screen prompts to install software. The “Choose Destination Location” window will appear. Click on “Next” if you want to install the Net Share in the default directory. Otherwise, you can choose a different directory by clicking on “Browse”. Please select the location where you would like to share the folder.
- Page 47 Ultimate PVR with HD Digital Jukebox Press YES button if you want to run the TViX Net Share automatically. By clicking the Finish button, the software installation is done. Press “Unblock” for the Windows Security Alert.
- Page 48 Ultimate PVR with HD Digital Jukebox 7.3.3 Using TViX NetShare Click Start, point to Program->DVICO->TViX NetShare. If TViX Netshare is already running, you don’t need to run this program again. After starting the Net Share program, you can see the NetShare icon in the tray..
- Page 49 Ultimate PVR with HD Digital Jukebox 7.3.4 Sharing of Multi folders After running the Netshare software Application, right click on the Netshare ICON. Click on Browse, Corresponding to Folder 1 to Share. Select the Appropriate folder, Containing Media Files from desired Drive and Click OK.
- Page 50 Ultimate PVR with HD Digital Jukebox 7.3.5 Set Network Configurations Under Windows XP (SAMBA mode) Select the folder you want to share. Right-click that folder and click ‘Sharing and Security’ in the popup menu. Check ‘Share this folder’ on the network and type in the share name ‘tvixhd1 (this is the only available one at the moment)’.
- Page 51 Ultimate PVR with HD Digital Jukebox Move to 'Settings' > 'Control Panel' > 'Administrative Tools' > 'Computer Management' > 'Local Users and Groups' > 'Users', and double click ‘Guest’. CAUTION This is for Windows XP Professional. Windows XP Home users cannot see this window. If you cannot find ‘Administrative Tools’...
- Page 52 Ultimate PVR with HD Digital Jukebox ‘GUEST’ must be shown as the following image (a red X mark should not be shown on ‘Guest’). Move to 'Control Panel' > 'Network connections', and select 'Properties' s by right click on the mouse. Remove “Guest”...
- Page 53 Ultimate PVR with HD Digital Jukebox 11) Click on ‘Add User or Group’ 12) Type in “Guest” and then click on “OK” button. 13) Press OK, and Guest will be registered.
- Page 54 Ultimate PVR with HD Digital Jukebox < Disable Windows Firewall > Move to ‘Control Panel’ > ‘Network Connections’, and select ‘Properties’ by right clicking on the mouse. Click on the ‘Advanced’ tab. Disable ‘Internet Connection Firewall’. If you use service pack 2, click on ‘Settings’ at ‘Windows Firewall’. Check ‘Off’...
- Page 55 Ultimate PVR with HD Digital Jukebox 7.3.6 Setting Static IP Network Configurations in TViX Press [SETUP] button on the remote. setup screen will be displayed. On that Set UP screen, select Network setting Network disk and type the IP address in the Server IP. (ex: 172.28.1.70) The default is DHCP and if you want to set Static IP, you can select and change Static IP on the IP setting.
- Page 56 Ultimate PVR with HD Digital Jukebox 7.3.7 Wireless Network [ Connect USB wireless module ] Connect the USB module into enclosed cradle after connecting the AP Router to a PC. You should not connect the USB module to TViX without the cradle. If you connect it by force, the TViX can be damaged.
-
Page 57: Firmware Upgrade
Ultimate PVR with HD Digital Jukebox Firmware Upgrade Firmware Version Check. Connect the TViX to your TV and then turn on the TViX. Press the SETUP button on the top panel and the setup screen will be displayed. Check the latest firmware version of TViX at www.tvix.co.kr *** You’ll be notified of any firmware updates or news if you fill out the customer registration form at http://www.tvix.co.kr... - Page 58 Ultimate PVR with HD Digital Jukebox < CAUTIONS: Safe Mode Upgrading > Even if the TViX accidentally turns off during the firmware upgrade, the safe mode will enable the TViX to be re-upgraded. Please follow the steps below: Connect the TViX to your PC with a USB and then turn it on. Copy the latest firmware files into the root of the TVIX hard drive or USB memory device The Safe upgrade will check the firmware file of internal HDD in advance and then external USB host.
-
Page 59: Using Usb Connection With A Pc
Ultimate PVR with HD Digital Jukebox Using USB Connection with a PC TViX uses a SATA HDD as its contents storage device and works just like an external USB 2.0 hard drive when you connect it to your PC. The USB cable has a different shape on both ends. We use USB 2.0 "A" Plug (male) type to "B" Plug(male) type. - Page 60 Ultimate PVR with HD Digital Jukebox Choose the partition type and format the HDD. If you want several partitions, select Extended Partition. Select the partition size. If you want one partition, press “Next>”. For FAT32, size is limited to 32000MB or under.
- Page 61 Ultimate PVR with HD Digital Jukebox Select the Drive Letter. Then press the “Next>” button. Select the partition Format. If you choose FAT32 file format on Windows 2000/XP, the drives maximum size will be limited to 32GBs. If you want to use a single drive letter of 32GBs or more, you have to format on Windows 98SE/ME.
-
Page 62: Unplug Or Eject Hardware
Ultimate PVR with HD Digital Jukebox 9.2 Unplug or Eject Hardware On the windows tray, double click the hot swap icon. The “Unplug or Eject Hardware” window will appear. Press the Stop button if you want to unplug the device. Press OK on “Stop a Hardware device”... -
Page 63: Troubleshooting
Ultimate PVR with HD Digital Jukebox 10 Troubleshooting ** For detailed instructions, please refer to the the latest pdf file on the TViX Homepage (www.tvix.co.kr) or TViX FAQ. Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock. -
Page 64: Appendix - Technical Terms
Ultimate PVR with HD Digital Jukebox 11 Appendix - Technical Terms HDMI -------------------------------------------------------------------------------- The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video interface capable of transmitting uncompressed streams. HDMI is compatible with High-bandwidth Digital Content Protection (HDCP) Digital Rights Management technology. HDMI provides an interface between any compatible digital audio/video source, such as a set-top box, a DVD player, a PC, a video game console, or an AV receiver and a compatible digital audio and/or video monitor, such as a digital television (DTV). - Page 65 Ultimate PVR with HD Digital Jukebox -------------------------------------------------------------------------------- By supplying film studios with outstanding techniques for delivering soundtracks to an attentive audience, DTS digital sound is now featured on virtually 100% of major Hollywood releases. Although the technology used for motion pictures differs from that featured in consumer and professional audio music and home theater systems, their DTS heritage means end users can enjoy sound that closely matches the original.
-
Page 66: Gnu General Public License
12 GNU General Public License DVICO Co., Ltd is using a part of Free Software code under the GNU General Public License in operating TViX player. This General Public License applies to most of the Free Software Foundation’s code and to any other program whose authors commit by using it. - Page 67 Ultimate PVR with HD Digital Jukebox protection in exchange for a fee. 2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
- Page 68 Ultimate PVR with HD Digital Jukebox 7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License.
