Summary of Contents for Dvico TViX PVR R-2200

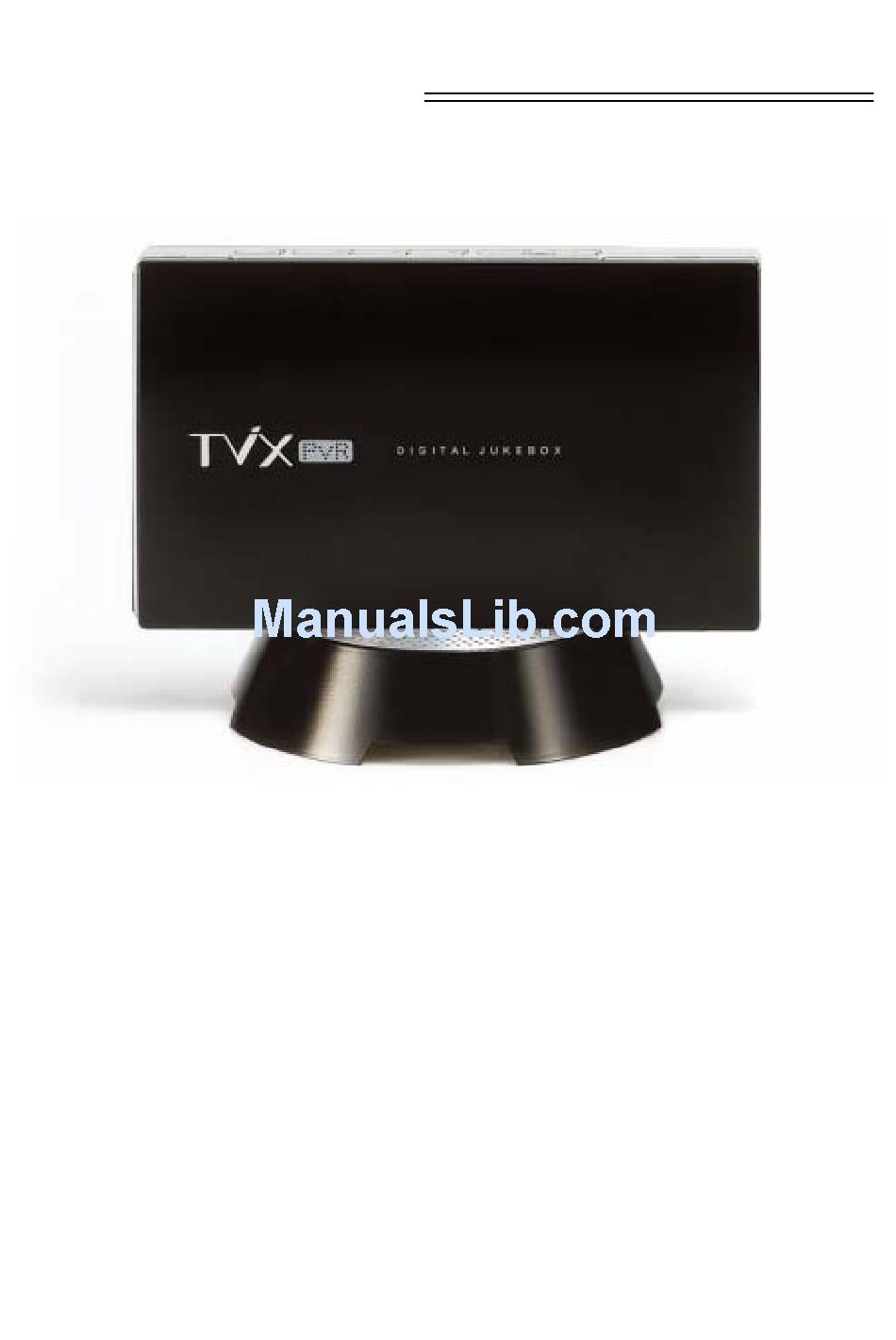

- Page 1 Quick Guide TViX PVR R-2200 Series...
- Page 2 Ultimate PVR with HD Digital Jukebox Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment FCC- Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
-
Page 3: Safety Notice
Ultimate PVR with HD Digital Jukebox Safety Notice Do not try to disassemble or remodel Place magnetized devices. Such the TViX unit. Doing so may cause speakers away from the TViX .It may erase or malfunction or fire. cause damage to the data stored in the hard disk. - Page 4 In the file list mode, the FUNCTION key performs the File copy/delete and password functions. DVICO Inc has no responsibility for recorded programs or files made or distributed for purposes of illegal, commercial, or transactional activities. The party or parties who record or distribute the contents bear all...
-
Page 5: Multimedia Player Function
Ultimate PVR with HD Digital Jukebox Multimedia Player Function The TViX is a standalone, multimedia hard disk player that plays digital videos, digital music, digital still images and DVD files to a TV display and home entertainment system. You can enjoy digital contents in your living room without having to burn discs or having to play it back on a DVD or CD player anymore. -
Page 6: Name Of Each Part
Please use DC 5V adaptor included. If you use any other products, the TViX can be damaged. ◈ TViX PVR R-2200 – Analog TV tuner + A/V IN ◈ TViX PVR R-2210 – NTSC Analog TV & ATSC Digital TV + A/V IN... -
Page 7: Package Contents
Ultimate PVR with HD Digital Jukebox Package Contents Thank you for choosing this TViX product. The TViX PVR package contains the following items. The items described below may differ from the actual contents. TViX unit Remote Controller USB -Y Cable RCA Cable Optical Jack USB HOST Cable... -
Page 8: Hdd Installation/Exchange
Ultimate PVR with HD Digital Jukebox HDD Installation/Exchange ** Installing or exchanging your HDD is very easy. Just follow up the instructions below. If you already installed an HDD, you may skip this chapter. Press HDD lock button towards the direction of the ① arrow and then slide the casing cover towards the direction of the ②... - Page 9 Ultimate PVR with HD Digital Jukebox Put TViX cover back and push it to the direction of the ② arrow until you can hear ‘click’ sound. After installing the hard disk, place the TViX unit on the cradle of cooling FAN, and push the body to the direction of the ②...
-
Page 10: Installation And Connection
Ultimate PVR with HD Digital Jukebox Installation and Connection Connecting the Video The TViX supports HDMI and Composite video output for connecting to a TV and each output needs to be selected in the settings menu depending on the cable used. Connection to Composite Connection to HDMI Output Connect the TViX output to your TV using the... -
Page 11: Connecting The Audio
Ultimate PVR with HD Digital Jukebox Connecting the Audio Connection to 2 CH Normal TV Connection to 5.1CH Amplifier (Digital) Connect the two audio cables, the left (white) and If you have a multi-channel decoder/amplifier with an right (red), to the appropriate terminal of your TV or optical input, you can enjoy 5.1 CH high-quality Hi - Fi system for sound output. -
Page 12: Connecting The Usb Host
Continue to adjust the antenna until you find the best position with the strongest signal. ◈ TViX PVR R-2200 – Analog TV only + A/V IN ◈ TViX PVR R-2210 – NTSC Analog TV & ATSC Digital TV + A/V IN. -
Page 13: Using The Remote Control
Ultimate PVR with HD Digital Jukebox Using the remote control This indicates Remote Buttons. POWER Toggle Unit Power on / off MUTE Stop Audio Output from the Player TV/HDTV Switch between TV or DTV mode MOVIE Go to Movie folder MUSIC Go to Music folder PHOTO... -
Page 14: Tvix Setup Menu
Ultimate PVR with HD Digital Jukebox 4 TViX Setup Menu SYSTEM Setting This section indicates the SYSTEM (Language or Time) settings. Press SETUP button on the remote controller and select SYSTEM. This screen allows you to adjust the SYSTEM settings of your TViX to your personal taste. Select ‘Up Folder’ menu to exit this SETUP. - Page 15 Ultimate PVR with HD Digital Jukebox This section indicates the A/V (Video or Audio) settings. Press SETUP button on the remote controller and select the A/V. This screen allows you to adjust the A/V settings of your TViX to your personal taste. Select ‘Up Folder’ menu to exit this SETUP.
-
Page 16: Misc Setting
Ultimate PVR with HD Digital Jukebox MISC Setting This section indicates the MISC (Photo effect or Subtitle) settings. Press the SETUP button on the remote controller and select MISC. This screen allows you to adjust the MISC settings of your TViX to your personal taste. Select ‘Up Folder’ menu to exit this SETUP. -
Page 17: Network Setting
Ultimate PVR with HD Digital Jukebox NETWORK Setting This section indicates the NETWORK (Network or FTP) settings. Press the SETUP button on the remote controller and select NETWORK. This screen allows you to adjust the NETWORK settings of your TViX to your personal taste. Select ‘Up Folder’... -
Page 18: Hdtv Setting
TV Input : Select your input. The TViX PVR R-2230 supports only DVB-T (Air 8VSB) signals. TViX PVR R-2200 – Analog TV only (Air & Cable) TViX PVR R-2210 – NTSC Analog TV & ATSC Digital TV (Air & Cable) TViX PVR R-2230 –...
