PT4500-TM-TRIPOD

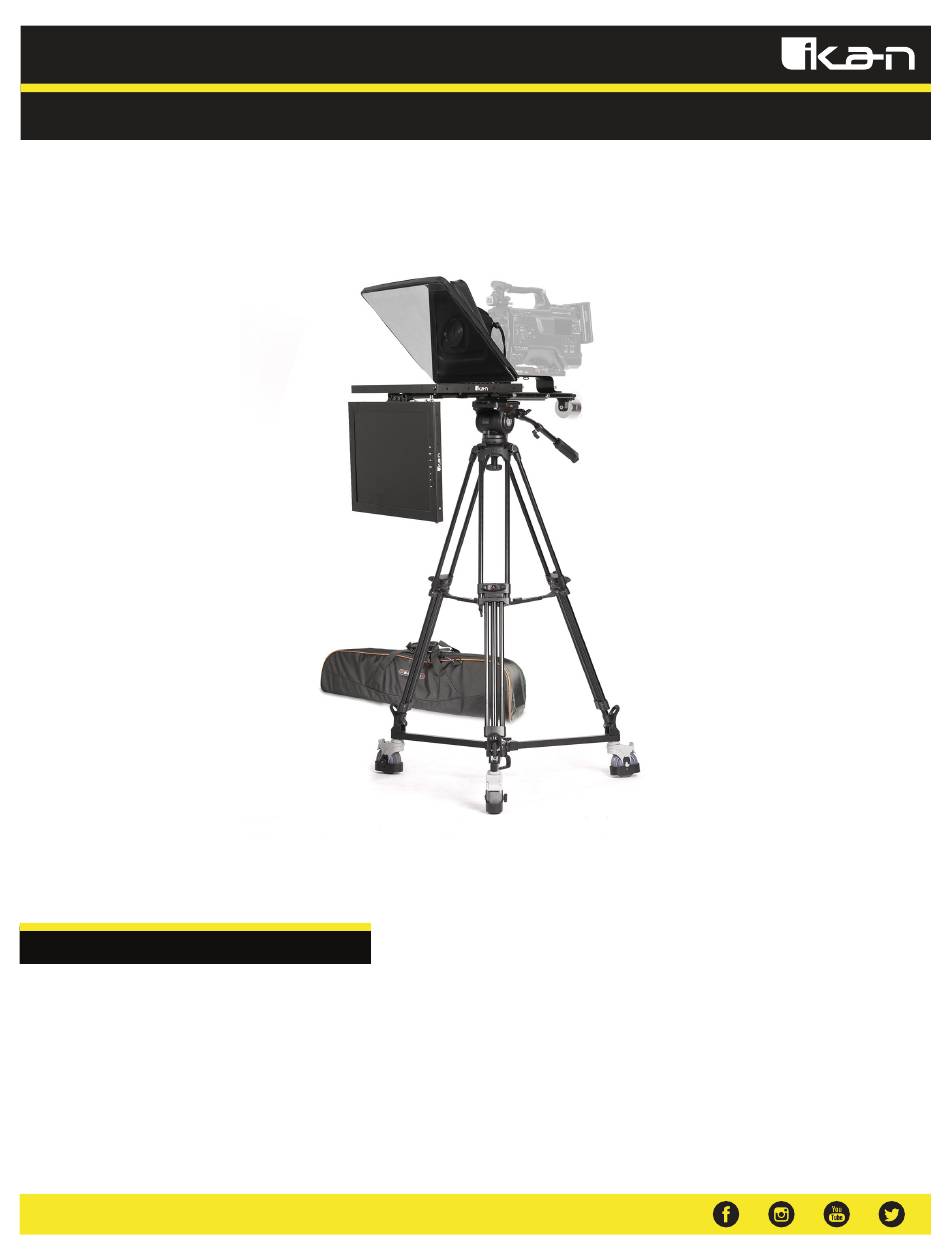

15" Teleprompter, Tripod & Dolly Turnkey w/ Talent Monitor
OVERVIEW
Ikan's Turnkey Broadcast Solutions include everything you need for your professional camera & teleprompting setup. This solution includes a
15" teleprompter w/ talent monitor, pedestal, and dolly. All of our systems have been tested internally for payload compatibility.
The remaining payload capacity, after mounting the full 15" teleprompter system without the counterweight, can accommodate camera
setups up to 21.2 lbs. The pedestal, without the teleprompter system, can accommodate cameras up to 44.1 lbs. This solution also includes a
carrying bag for the dolly.
www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com
Quick Start Guide
Advertisement
Related Manuals for Ikan PT4500-TM-TRIPOD
Summary of Contents for Ikan PT4500-TM-TRIPOD
- Page 1 15” Teleprompter, Tripod & Dolly Turnkey w/ Talent Monitor OVERVIEW Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera & teleprompting setup. This solution includes a 15” teleprompter w/ talent monitor, pedestal, and dolly. All of our systems have been tested internally for payload compatibility.
- Page 2 PT4500 What’s Included 15” High Bright Beam Splitter Teleprompter 1 x Teleprompter Base 1 x Bracket with Glass 1 x Teleprompter Hood with Boot 1 x Monitor 1 x AC Adapter with Cord 1 x PrompterPro Software 1 x Counterweight Set (2 x 2.5 lbs) 2 x D-Ring ¼-20”...
- Page 3 Step 3 Step 4 The metal frame is directional. Make sure the thicker side is on top and Put the washers on before tightening the screws. The washers and 4 the slimmer side is on the bottom. additional screws are inside a bag on the bottom foam. Step 5 Step 6 Extend the teleprompter hood open and attach teleprompter boot...
- Page 4 Step 7 Attach the monitor mounts on the back of the monitor’s VESA compatible threads using the 4 included screws and provided 2mm hex key. Step 8 After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket. Make sure the 15mm rods go through both set of monitor mounts.
- Page 5 Foam Case To make your teleprompter more portable, we packed it in a reusable, high-quality foam. The shape and size of the foam was designed to fit into Ikan’s PT-CASE-V2. ** DO NOT THROW AWAY FOAM CASE ** www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
-
Page 6: Monitor Ports
Monitor Ports Monitor Menu Settings Video Config Contrast (White Level) Brightness (Black Level) Tint (Chroma Hue) Chroma (Chroma Saturation) Sharpness (Detail) RGB Setup – Manually configure RGB Return System Config Menu Duration – Set duration of how long menu stays on screen Video Ratio –... -
Page 7: Specifications
Watch our VIDEO TUTORIAL on how to assemble Ikan Professional Telepromopters https://youtu.be/5TjIxzBc_Vc Specifications PT4500 Aspect Ratio Backlight Brightness 1000 nits Build Material Aluminum Diagonal 15” Input Signal Composite BNC, VGA, HDMI Input Voltage DC 12v / 4A Power Consumption Reading Range 17’... -
Page 8: Learn More
Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2022 Ikan International. All rights reserved. www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com... - Page 9 Quick Start Guide PT15-TM / PT17-TM Talent Monitor Add On Kit for PT4500 / PT4700 What’s Included 1 x Teleprompter Monitor 1 x Power Adapter with Cable 1 x VESA Monitor Mount 1 x 15mm Rod Adapter 1 x Mounting Knob 4 x 10mm Screws 4 x 15mm Screws 2 x Large Screws...
- Page 10 Assembly Steps Setting Up the Talent Monitor Using the shorter 4 x 10mm Screws, attach the VESA Monitor Mount. Make sure that the long end of the VESA Monitor Mount is pointing in the direction of the power button like the image above. Use the Mounting Knob to tighten the 15mm Rod Adapter to the VESA Monitor Mount. Setting Up the Teleprompter Monitor (Monitor from the PT4500/PT4700) If the mounting brackets where previously installed on the teleprompter monitor, remove those screws.
- Page 11 Attaching the Talent Monitor After both the talent monitor and teleprompter monitor are set up, slide the talent monitor on to the PT4500/PT4700. *WARNING* We recommend at least 1 inch of rod should be left inside the teleprompter base. because we’re filmmakers too www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
- Page 12 1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz 1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz Optional Accessories Some other products that work well with this item available from Ikan include: PT4500 15” High Bright Beam Splitter Teleprompter PT4700 17”...
- Page 13 Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2019 Ikan International. All rights reserved. because we’re filmmakers too www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
- Page 14 GA102 100mm Aluminum Video Tripod The GA102 two stage aluminum tripod supports a payload weighing up to 132 lbs. It is made of lightweight aluminum, has a 100mm bowl, and the legs are a twin tube design with two stages. The tripod can be adjusted to a maximum height of 63”...
- Page 15 GH20 100mm Fluid Head 212mm/8.3in 100mm 73mm/2.9in 20.0kg 175mm/6.9in 44.0lbs FEATURES Leveling bubble Fixed drag of pan & tilt Longer sliding plate 8 plus 0 steps of counterbalance SPECIFICATIONS Model GH20 Payload Range 20.0kg / 44.0lbs Counterbalance Range Grades Of Pan Drag Fixed Grades Of Tilt Drag Fixed...
- Page 16 GA101 100mm 140.5cm / 55.3in 63.5cm / 25.0in 85.0cm / 25.0in 60.0kg / 132.0lbs 4.5kg / 9.9lbs Aluminum EG20A (GH20+GA101) 20.0kg / 44.0lbs 156.0cm / 61.4in 79.0cm / 31.1in 100.5cm / 39.6in 8.4kg / 18.5lbs 100mm Packing...
