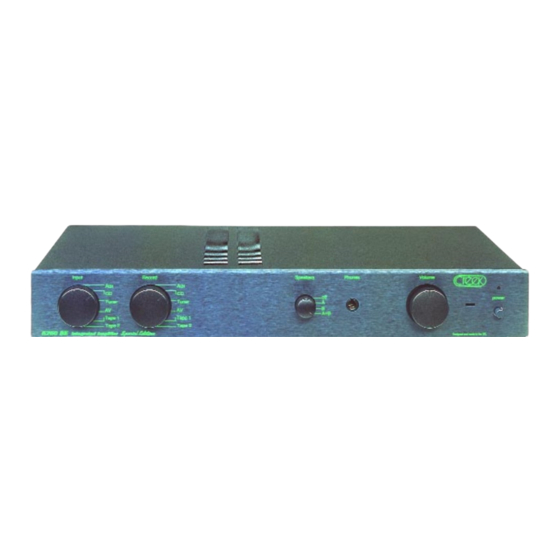

Creek Audio 5250 Operating Instructions

CREEK 5250 & 5250SE SPECIFICATION
Not recommended for use into more than two pairs of 8 Ω loudspeakers.
(20 Hz to 20 kHz)
with +3dB setting selected on pre-amp)
MAINS VOLTAGE AND FREQUENCY IS INTERNALLY SET FOR THE COUNTRY OF USE
Creek Audio Ltd reserve the right to change or modify the specification of its products without prior warning.
Creek Audio Ltd
2 Bellevue Road, Friern Barnet, London N11 3ER, England
Tel: 00 44 + (0)181-361 4133 Fax: 00 44 + (0)181-361 4136
E-mail: mcreek@ibm.net Internet: www.creekaudio.co.uk
STANDARD SE
Ω Ω
50 Watts into 8 60 Watts
60 Watts into 8 Ω Ω
70 Watts
> 20 Amps > 25 Amps
< 0·05% < 0.05%
3 Hz to 25 kHz - 1 dB
µ µ
> 50 V per S
450 mV line input 470 mV
600 mV 5 kΩ Ω 660 mV 5 kΩ Ω
> 105 dB
> 60 dB at 1 kHz
3.5 mV 47 kΩ Ω
0.75 mV 1 kΩ Ω
45 W 65 W
260 W 340 W
7kgs, 15.5lbs
420 x 60 x 280 mm,
16·5” x 2·4” x 11''
100V Japan, 115V North America
230/240V Europe, Asia and UK
Designed and made in the UK.
Creek 5250
& 5250SE
O O p p e e r r a a t t i i n n g g I I n n s s t t r r u u c c t t i i o o n n s s

MAINS CONNECTION

5 x 20mm cartridge type: T 3.15 A surge resisting for
220-240V 50Hz AC, T 6.3 A surge resisting for 110-
120V 60Hz AC or an T 8A surge resisting for 100V
(Japan).
