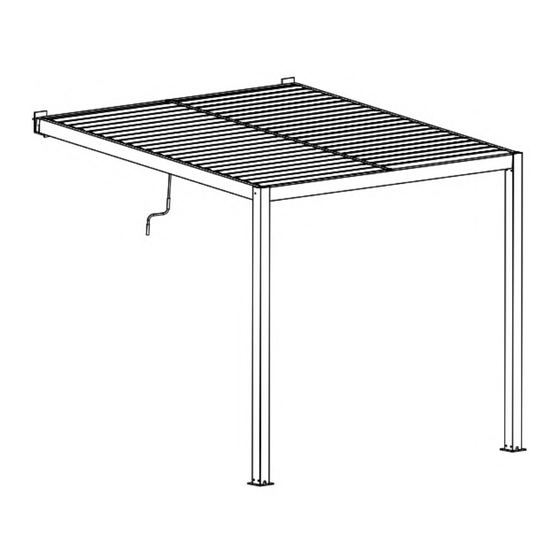

- 1 Manual Instruction Fitting Set Wall for Pergola Gazebo San Pablo 3X3M, 3X4M and 4X4M
- 2 Spare Parts List
- 3 1. Drill Holes for the Wall Brackets and Install These Brackets Q
- 4 2. Install the Corner Connector P Onto Two Ends of Front and Rear Beam C
- 5 3. Following and Next Installation Steps Please Refer to Original Pergola Manual
- 6 Contact Information
- Download this manual
Advertisement
Table of Contents
Related Manuals for Dancover AC153200
Summary of Contents for Dancover AC153200
- Page 1 Manual Fitting Set Wall Pergola San Pablo 3x3m, 3x4m and 4x4m 18-04-2023...
- Page 2 Manual Instruction Fitting Set Wall for Pergola Gazebo San Pablo 3x3m, 3x4m and 4x4m...
- Page 3 Spare parts list Label Drawing Part description 闵 Corner connector Wall bracket -- © 。 Hex Socket Flat MBX40 Head Screw with ） the gasket M8x40 Gasket 霍 叭8 Hex Head Wood M10x80 I > Screw + Ribbed （ 志 忘 叭14x70 Plastic Anchor ｀...
- Page 4 1.Drill holes for the wall brackets Step 1: Use a hand electric drill to drill hole No.1, and install these brackets Q. install the wall bracket Q with wood screw and ribbed plastic anchor, adjust the height and lever of the wall bracket, then tighten the wood screw;...
- Page 5 2. Install the corner connector P onto two ends of front and rear beam C. ． Step 1. Install the corner connector P onto two ends of front and rear beam C. Step 2. Connect the front and rear beam with screw K1 and screw K2 with gasket K3;...
- Page 6 3. Following and next installation steps please refer to original pergola manual.
- Page 7 Contact information Austria Belgium Croatia Denmark Estonia Finland France Germany Ireland Italy Latvia Lithuania Nederland Norway Poland Portugal Spain Sweden Switzerland For more information please visit: www.dancovershop.com...
