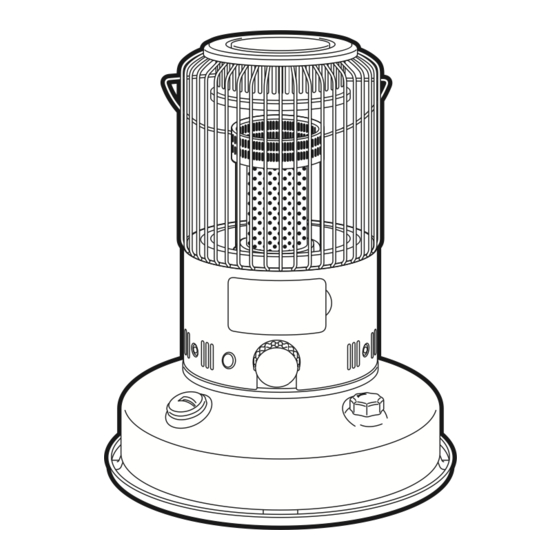

PORTABLE KEROSENE HEATER
OPERATION AND MAINTENANCE INSTRUCTIONS
MODEL
IMPORTANT
READ AND UNDERSTAND INSTRUCTIONS BEFORE USING HEATER.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
This heater is designed to be used at altitudes up to 1,300m above sea level. Consult with your dealer otherwise.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
KS-R25
. . . . . .
. . . . . . . . . . . . . . . . . . . . . .
CONTENTS
1
3
4
5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
6
10
11
13
14

Advertisement

Table of Contents
loading

Related Manuals for Toyotomi KS-R25

Summary of Contents for Toyotomi KS-R25

  • Page 1: Table Of Contents

    PORTABLE KEROSENE HEATER OPERATION AND MAINTENANCE INSTRUCTIONS KS-R25 MODEL IMPORTANT READ AND UNDERSTAND INSTRUCTIONS BEFORE USING HEATER. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. This heater is designed to be used at altitudes up to 1,300m above sea level. Consult with your dealer otherwise.

  • Page 2: Safety Tips

    SAFETY TIPS BEFORE OPERATING YOUR HEATER, PLEASE review these safety tips: WARNING RISK OF EXPLOSION RIGHT WRONG 1. NEVER use any fuel other than clean kerosene (paraffin). 1. NEVER use any fuel other than clean kerosene (paraffin). NEVER use gasoline (petrol). Use of gasoline (petrol) can lead to uncontrollable flames resulting NEVER use gasoline (petrol).
  • Page 3 3. DO NOT operate heater without protective guards completely attached. 4. DO NOT use heater to heat or boil water or as a cooking appliance. DO NOT place cooking utensils, tea kettles or any other object on top of heater while in operation. 5.

  • Page 4: Fuel Guide

    FUEL GUIDE The KS-R25 is designed for use with high-quality kerosene (paraffin) only. Use of low-quality kerosene (paraffin) will cause wick performance to drop, leading to “Iow flame” and “odor problem” conditions. Purchase only kerosene (paraffin) in non-red cans reserved exclusively for kerosene (paraffin) and marked accordingly with the word “KEROSENE (PARAFFIN)”.

  • Page 5: Operating Controls And Features

    OPERATING CONTROLS AND FEATURES 2. Safety Guard 7 Heat Chamber Handle (Inside) 1. Heat Chamber 6 Manual Shut-off 3. Wick Adjuster Knob 5 Fuel Gauge 4. Fuel Tank Cap 1. Heat Chamber: Permits adjustment of heat output without increasing unwanted combustion materials or reducing combustion efficiency.

  • Page 6: Specifications

    SPECIFlCATlONS TOYOTOMI Portable Kerosene (paraffin) Heater Model KS-R25 Heat rating 8,600 BTU/h (2.5kW) Fuel tank capacity 6.0 L Burning time/tank* 24 Hours Size (W × H × D) 388 × 475 × 388 mm Weight 5.9 kg Igniter Automatic, powered by four (4) “C” size batteries * Depending on wick setting, condition and fuel quality.

  • Page 7: Assembly And Operation

    ASSEMBLY AND OPERATlON lNSPECTlON AND ASSEMBLY NOTE: Save the shipping carton and packing materials for future storage of your heater. 1. REMOVE PACKING MATERIALS Remove all packing materials from your heater and install the guard as follows: CAUTION: Risk of fire. The packing materials are flammable. a) Remove the carrying handle, top plate and packing materials.
  • Page 8 FUELING WARNING: Use only clean Kerosene (paraffin). NEVER use gasoline (petrol) or other flammable liquids. ALWAYS extinguish heater before refill heater fuel tank. Fuel heater outside the living area. 1. lnsert the straight tube of the manual fuel siphon into the kerosene (paraffin) container.
  • Page 9 LIGHTING NOTE: When you first use your new heater, ignite it out of the living area of your house, either in a garage or an outside area protected from strong drafts. Burn it for about 15 minutes to remove all of the protective oil present on the burner parts.
  • Page 10 ADJUSTING THE FLAME 1. After lighting, wait for the heat chamber to reach operating temperature. This will take ten-fifteen minutes, then the flame will be visible. 2. CHECK THE FLAME LENGTH Look at the flame and check its length. Flame length is not necessarily even or uniform around the circumference of the center disk.

  • Page 11: Care And Maintenance

    CARE AND MAINTENANCE As with any good appliance, preventive as well as corrective maintenance is occasionally required. Please read the following section carefully in order to enjoy the greatest benefits from your heater. INSPECTlON OF THE WlCK NOTE: One of the simplest but also the most important components of your heater is the wick. With proper attention, the wick will last at least one heating season and, depending on the quality of the fuel used, possibly longer, it helps to perform routine maintenance operations of the wick.

  • Page 12: Replacement Of Parts

    3. Repeat step 1 and then shake the heater and make sure the automatic extinguisher worked. REPLACEMENT OF PARTS REPLACING THE WlCK USE ONLY GENUINE TOYOTOMI REPLACEMENT WlCK. SUBSTITUTE WICKS CAN SEVERELY REDUCE PERFORMANCE AND SAFETY. WARNING: Before disassembling your heater, allow it to cool completely.
  • Page 13 6. Place the wick adjuster on its side. Next, line up the two (2) openings in the wick adjuster: 1) the diagonal slots in the fixed part of the wick adjuster, and 2) the slots in the moving part of the wick adjuster controlled by the wick adjuster knob. Hole 7.

  • Page 14: Storage

    Wick height on position should be 6 mm (15/64 in.) when wick adjuster knob is turned fully cIockwise. Be sure to check. Wick Adjuster (Cutaway view) Wick 6 mm (15/64 in.) 12. Install the heat chamber. 13. Replace the outer cover on the fuel tank and secure it into position with three (3) screws by using the screwdriver.

  • Page 15: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTlON PAGE Wick fails to ignite Out of fuel Check fuel gauge; add fuel if necessary. Electrode does not spark Check wire connections. Replace batteries. Water in kerosene (paraffin)/ Drain tank. Install new wick. poor quality kerosene (paraffin) Refill with fresh, clean kerosene (paraffin).
  • Page 16 TOYOTOMI CO., LTD. 5-17, Momozono-cho Mizuho-ku, Nagoya, Japan Printed in Japan www.toyotomi.jp New 11/21 0606000903...
