OPERATION AND MAINTENANCE INSTRUCTIONS
KS-27A
MODEL
IMPORTANT
READ AND UNDERSTAND INSTRUCTIONS BEFORE USING HEATER.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
SAFETY TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
FUEL GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 5
COMPONENT PARTS . . . . . . . . . . . . . . . . . . . . . . 5

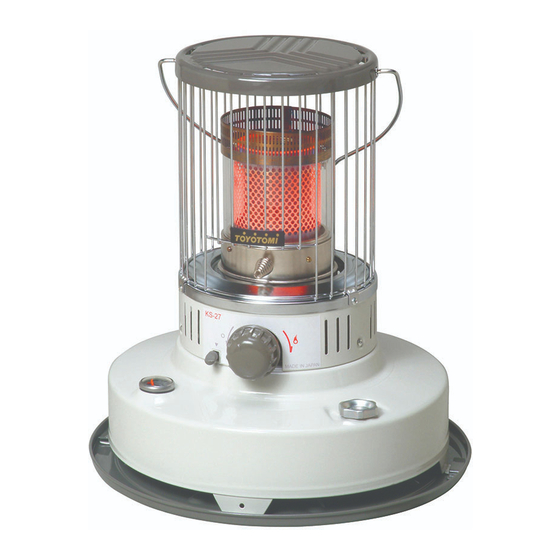

PORTABLE KEROSENE HEATER
K S - 2
7 A
CONTENTS
ASSEMBLY AND OPERATION . . . . . . . . . . . . . .
CARE AND MAINTENANCE. . . . . . . . . . . . . . . . . 10
REPLACEMENT OF PARTS . . . . . . . . . . . . . . . . . 11
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . 14
MADE IN JAPAN
6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS-27A and is the answer not in the manual?

Questions and answers

Related Manuals for Toyotomi KS-27A

Summary of Contents for Toyotomi KS-27A

  • Page 1: Table Of Contents

    PORTABLE KEROSENE HEATER OPERATION AND MAINTENANCE INSTRUCTIONS K S - 2 KS-27A MODEL MADE IN JAPAN IMPORTANT READ AND UNDERSTAND INSTRUCTIONS BEFORE USING HEATER. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. CONTENTS SAFETY TIPS ......1 ASSEMBLY AND OPERATION .

  • Page 2: Safety Tips

    Congratulations; you are ready to begin enjoying the benefits of one of the most advanced kerosene heaters ever made. TOYOTOMI, the leader in kerosene heater techonlogy, has tested and refined the KS-27A to assure you of long-term safety and satisfaction. Please study the following instructions, use and care for your heater carefully, and it will serve you well for many years.
  • Page 3 3. Do not operate heater without protective guards completely attached. 4. Do not use heater to heat or boil water or as a cooking appliance. Do not place cooking utensils, tea kettles or any other object on top of heater while in operation. 5.

  • Page 4: Fuel Guide

    FUEL GUIDE The TOYOTOMI KS-27A is designed for use with high-quality kerosene only. Use of low-quality kerosene will cause wick performance to drop, leading to ”Iow flame” and ”odor problem” conditions. Purchase only kerosene in non-red cans reserved exclusively for kerosene and marked accordingly with the word ”KEROSENE”.

  • Page 5: Operating Controls And Features

    OPERATING CONTROLS AND FEATURES 2. Safety Guard 7 Heat Chamber Handle 1. Heat Chamber 6 Manual Shutt-off Lever 5 Fuel Gauge 3. Wick Adjuster Knob K S -2 MADE IN JAPAN 4. Fuel Tank Cap 1. Heat Chamber: Permits adjustment of heat output without increasing unwanted combustion materials or reducing combustion efficiency.

  • Page 6: Specifications

    SPECIFlCATlONS TOYOTOMI Portable Kerosene Heater Model KS-27A Heat rating 2,470kcal/9,800BTU/h Fuel tank capacity 5.9 lit Burning time/tank* 21 Hours Size(W x H x D) 440 x 440 x 470mm Weight 7.7kg * Depending on wick setting, condition and fuel quality.

  • Page 7: Assembly And Operation

    ASSEMBLY AND OPERATlON lNSPECTlON AND ASSEMBLY NOTE: Save the shipping carton and packing materials for future storage of your heater. 1. REMOVE PACKING MATERIALS Remove all packing materials from your heater and install the guard as follows: CAUTION: Risk of burns. Do not operate heater without guard completely attached. a) Remove the carrying handle, top plate and packing materials.
  • Page 8 FUELING WARNING: Use only water-clear Kerosene. Never use gasoline or other flammable liquids. ALWAYS extinguish heater before refill heater fuel tank. Fuel heater outside the living area. 1. lnsert the straight tube of the manual fuel siphon into the kerosene container Remove the fuel tank cap on the heater, and insert the siphon's flexible hose into the fuel tank opening.
  • Page 9 LIGHTING NOTE: When you first use your new heater, ignite it out of the living area of your house, either in a garage or an outside area protected from strong drafts. Burn it for about 15 minutes to remove all of the protective oil present on the burner parts.
  • Page 10 ADJUSTING THE FLAME 1. After lighting, wait for the heat chamber to reach operating temperature. This will take ten (10) minutes, after which the flame will be visible through the glass cylinder. 2. CHECK THE FLAME LENGTH After (5) minutes, the entire heat chamber should be glowing red. GOOD TOO HIGH CORRECT...

  • Page 11: Care And Maintenance

    CARE AND MAINTENANCE As with any good appliance, preventive as well as corrective maintenance is occasionally required. Please read the following section carefully in order to enjoy the greatest benefits from your heater. INSPECTlON OF THE WlCK NOTE: One of the simplest but also the most important components of your heater is the wick. With proper attention, the wick will last at least one heating season and, depending on the quality of the fuel used, possibly longer, it helps to perform routine maintenance operations on the wick.

  • Page 12: Replacement Of Parts

    REPLACEMENT OF PARTS REPLACING THE WlCK USE ONLY GENUINE TOYOTOMI ”KS-27A” REPLACEMENT WlCK. SUBSTITUTE WICKS CAN SEVERELY REDUCE PERFORMANCE AND SAFETY. WARNING: Before disassembling your heater, allow it to cool completely. 1. Release the automatic extinguisher by pushing the manual shutoff down.
  • Page 13 5. Place the wick adjuster on its side. Next, line up the three (3) openings in the wick adjuster: 1) the holes in the sleeve, 2) the diagonal slots in the fixed part of the wick adjuster, and 3) the slots in the moving part of the wick adjuster controlled by the wick adjuster knob.

  • Page 14: Storage

    AFTER REPLACING THE WICK, CHECK THE OPERATlON OF THE AUTOMATlC EXTINGUISHER. Wick height on position should be 8mm when wick adjuster knob is turned fully cIockwise. Be sure to check. NOTE: lf wick does not move smoothly and easily, or wick height on position is not in the range of 7-9mm do not use heater.

  • Page 15: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTlON PAGE Wick fails to Out of fuel Check fuel gauge; add fuel if necessary. ignite Water in kerosene/poor Drain tank. Install new wick. quality kerosene Refill with fresh and clean kerosene. Smoke or odor Heat chamber tilted or Move wire handle until heat chamber is improperIy seated properly seated and moves smoothly left...
  • Page 16 TOYOTOMI CO., LTD. 5-17, Momozono-cho, Mizuho-ku, Nagoya, Japan Printed in Japan Rev. 07/03 0538000902...
