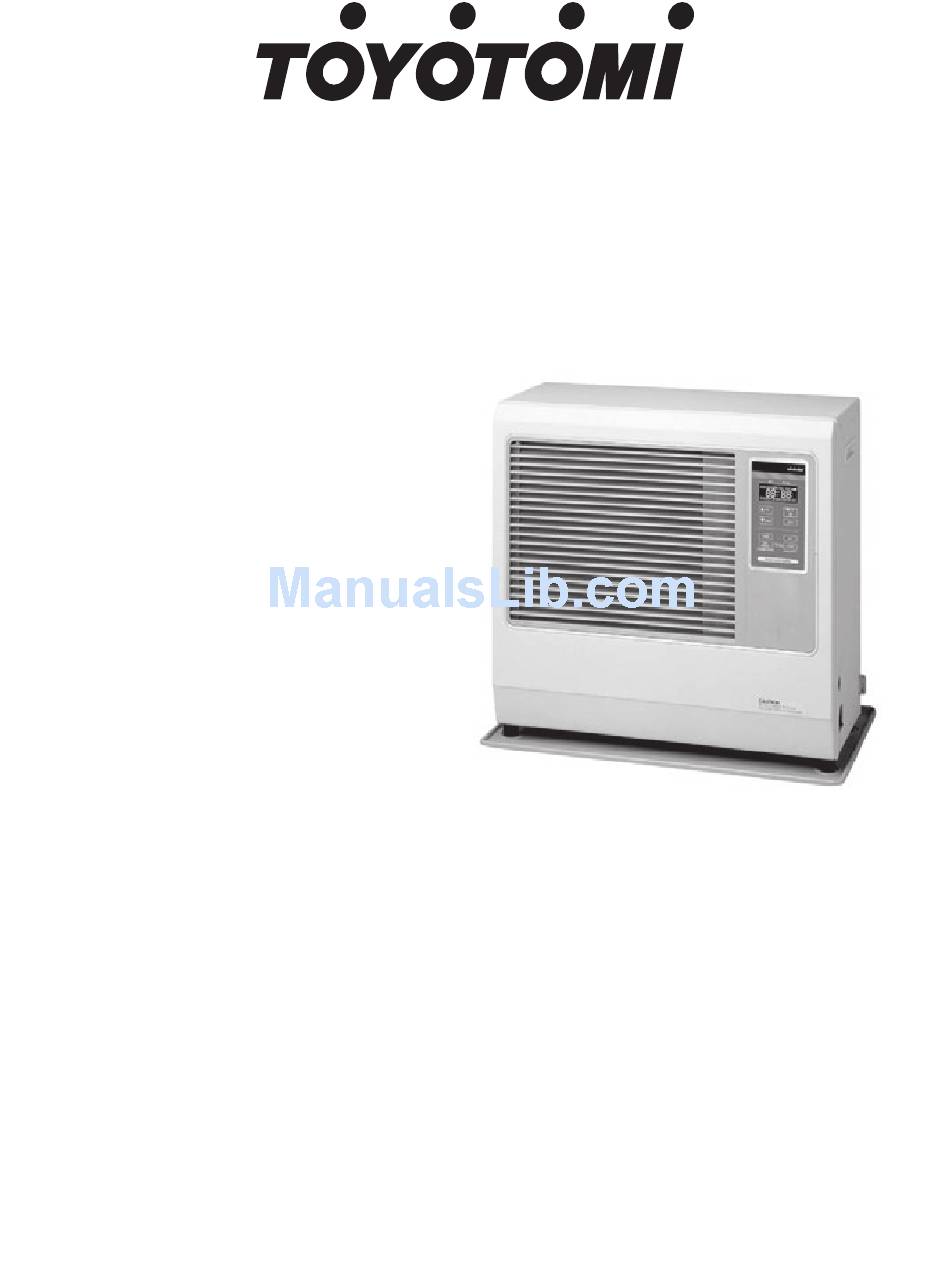

  • Page 1 FF-95 (Type C) OPERATING MANUAL ................... PAGE 1 GEBRAUCHSANWEISUNG ................... PAGE 17 MANUAL D’UTILISATION ..................PAGE 33 GEBRUIKSAANWIJZING ..................PAGE 49...

  • Page 2: Section A: Specifications

    2) RETAIN INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE. 3) CHECK LOCAL AUTHORITY & BUILDING CODES FOR INSTALLATION REQUIREMENTS. SECTION A: SPECIFICATIONS Model: FF-95 Heater Efficiency: 92.4% (1) Heat Rating: High - 9.50 kW (32,400 BTU/h) Med - 5.49 kW (18,700 BTU/h) Low - 2.96 kW (10,100 BTU/h)

  • Page 3: Section B: Safety Tips For Operation

    SECTION C: FUEL GUIDE The FF-95 is designed for use with Paraffin. Use of low-quality fuel will cause burner performance to drop, leading to abnormal combustion and reduced heater life. Purchase only Paraffin, in non-red cans reserved exclusively for fuel and marked accordingly with the word “PARAFFIN”.

  • Page 4: Section D: Operating Controls And Part Names

    ENGLISH How to Store It . . . ALWAYS: Store in a clean container, clearly marked PARAFFIN. ALWAYS: Store away from direct sunlight, heat sources or extreme temperature changes. NEVER: In a glass container, or one that has been used for other fuels. NEVER: For longer than six months.
  • Page 5 ENGLISH 12. CHILD LOCK indicator 11. POWER SAVER indicator 10. TIMER indicator 13. BURNING MODE indicator 9. AUTO indicator 16. ON/OFF TIMER indicator 15. SUN MON TUE WED 14. ˚F/˚C indicator THU FRI SAT indicator 8. ON lamp 1. ON/OFF switch 4.

  • Page 6: Section E: Operation

    ENGLISH SECTION E: OPERATION BEFORE IGNITION 1. Open the Valve(s) Open the valve(s) of the external fuel tank. 2. Start the Fuel flow Red Reset Button If using heater for the first time, press the red reset button in order to send fuel to the fuel sump and release.
  • Page 7 ENGLISH 1. Turning Heater ON 1. Press ON/OFF switch to “ON” position. The current room temperature and the set temperature will be shown on the digital indicator. ON lamp will start to flash and then blower motor and ignition will start. This lamp will continue to flash during the preheating time.
  • Page 8 ENGLISH WEEKLY TIMER OPERATION 1. Set the Weekly Timer After setting the current time and a day of the week, press the “TIMER” button to enter the weekly timer setting mode. The “TIMER” is shown on the display. When the “TIMER” button is pressed during setting of the weekly timer, the “TIMER”...
  • Page 9 ENGLISH 4) Set the temperature of the program The set temperature “21” will be shown on the display and it will flash. 1. Press the “▲MIN.” button or the “▼HOUR” button to set the temperature of the program. 2. Press the “SET” button to complete the set the temperature of the program and move to the next step (5) Set a day of the week of the program).

  • Page 10: Automatic Cleaning Mode

    ENGLISH MANUAL COMBUSTION IMPORTANT: This feature is for testing purpose only! This heater also can be kept burning at desired combustion mode (High, Medium or low) manually, regardless of room temperature. 1. Press the “▲MIN.” button and “▼HOUR” button at the same time for more than three (3) seconds when ON / OFF switch is “ON”.

  • Page 11: Turning Heater Off

    ENGLISH TURNING HEATER OFF Press ON/OFF switch to “OFF” position. ON lamp will flash and will go out. Circulation fan and blower motor continue to run for approx. three (3) minutes to cool down the heater. NOTE: ON lamp goes out when the fan stops. NOTE: If ON/OFF switch is pressed during the weekly timer operation mode, the weekly timer operation mode is canceled.
  • Page 12 This inspection should include: a combustion check; flue pipe check; burner assembly check; cleaning all necessary parts and replacing gaskets as needed. Please ask your authorized TOYOTOMI dealer for details and scheduling. AUTOMATIC IGNITER CLEANING SYSTEM The igniter cleaning mode prolongs the igniter life.

  • Page 13: Section G: Troubleshooting

    ENGLISH SECTION G: TROUBLESHOOTING BEFORE REQUESTING A SERVICE CALL The following symptoms are normal during operation of the heater. CONDITION REASON White smoke or smell inside home when the heater Machine oil used in factory assembly, or transit is first used. dust burns off the surfaces of the burner or heat exchanger.

  • Page 14: Section H: Long Term Storage

    ENGLISH SECTION H: LONG TERM STORAGE At the close of each heating season, or when you do not plan to use your heater for an extended period, the following procedures are recommended. 1. As the end of the season approaches, calculate your fuel purchases so that you can use up all the fuel you have on hand.

  • Page 15: Section I: Installation

    SECTION I: INSTALLATION GENERAL DESCRIPTION: The FF-95 is designed to be installed in an outside wall so the full advantage of installation simplicity can be made with the “Flue Pipe”, which eliminates the need for tall chimney type flues. No hearth or fire surround is required.

  • Page 16: Installation Advice

    ENGLISH INSTALLATION ADVICE 1. Intake air and exhaust flue pipe openings of the Flue Pipe must be fully exposed to outside. The Flue Pipe must not vent into a chimney, garage, basement, under-floor or ceiling cavity, or any enclosed area, or be installed vertically, because the Flue Pipe is a “Heat Exchanger”...

  • Page 17: Installation Of Heater And Flue Pipe

    Brick, Hebel, Linear, Gibraltar and Plaster Board, Tiles, Weatherboard, Plastered Polystyrene, and metal profiles etc. C) The FF-95 heater is designed to be operated at altitudes up to 900 m, above sea level. For installation at altitudes between 900 m and 1500 m, adjustments by authorized serviceperson is necessary. Consult your supplier for advice.
  • Page 18 TOYOTOMI CO., LTD. 5-17, Momozono-cho, Mizuho-ku, Nagoya, 467-0855 Japan Printed in Japan http://www.toyotomi.jp Rev. 06/17 8372002060...
