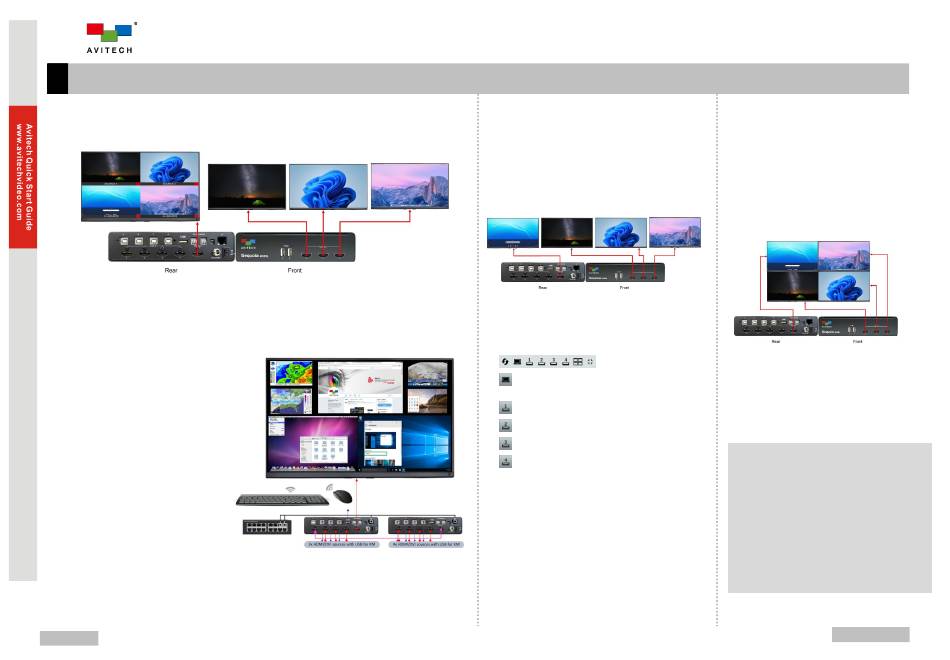

Avitech Sequoia 4K60L Quick Start Manual

1
How is the Sequoia 4K60L being used (Sequoia 4K60L Display Modes)
Quad Multiview + Bypass (Daisy Chain Capable)
In Quad + Bypass mode, the Sequoia 4K60L outputs a quad-multiview image from the HDMI out port 1 on the rear
panel, and single-view pass-through from the three HDMI output ports on the front panel.
If the unit does not show a quad-multiview on the monitor connected to HDMI output port 1, connect a keyboard to
one of the USB-A ports and press Alt – Q – B (one key at a time) to change the display mode to Quad + Bypass.
Daisy Chain –
Multiple Sequoia 4K60L units can be daisy chained to display up to 16 source images on one display. To daisy chain
multiple Sequoia 4K60L units follow the steps below:
1. Connect the HDMI out port 1 of the
secondary Sequoia 4K60L unit(s) to the
input ports of the primary Sequoia 4K60L.
2. Connect the HDMI out port 1 of the
primary Sequoia 4K60L to the display
device's HDMI in port.
3. Repeat steps 1 and 2 for all secondary
Sequoia 4K60L units and connect all
Sequoia 4K60L units to an ethernet switch,
as shown in the diagram. Using the web
GUI, make sure all Sequoia 4K60L units are
set to different IP addresses.
4. Once all those connections are made,
power on all units, and wait 100 seconds
for the units to auto-configure in daisy
chain mode before using the mouse and
keyboard or web graphical user interface
(GUI) to change any windows or settings.
Note: two Sequoia 4K60L units daisy chained can display up to 7 source images, three units daisy chained can display up
to 10 source images, four units daisy chained can display up to 13 source images, and five units daisy chained can
display up to 16 source images.
Page 1 of 4
Congratulations and thank you for purchasing the Avitech Sequoia 4K60L
This guide provides step-by-step instructions for a quick setup of your Sequoia 4K60L
Single-View Seamless Switching
In Seamless Switching mode, the Sequoia 4K60L outputs four
single-view images from each of the HDMI out ports on the rear
and front panels, with seamless switching on each of the
connected display devices.
If the unit does not appear to be in Seamless Switching mode,
connect a mouse and keyboard to one of the USB-A ports and
press Alt – S – S (one key at a time) to change the display mode to
Seamless Switching.
To switch sources, there are three methods:
1) Use the keyboard to press Ctrl – Monitor ID – Input ID. For
example, if you want input 3 on monitor 2, press Ctrl – 2 – 3.
2) Use the mouse to move the cursor to the top-right corner of
the window, and the following pop-up menu will appear:
: denotes entering a computer window to control the
computer (Remote mode)
: denotes switching to display Input 1's source
: denotes switching to display Input 1's source
: denotes switching to display Input 2's source
: denotes switching to display Input 3's source
3) Use the web graphical user interface (GUI) or HTTP Commands
– to open the web-GUI, please refer to the note on the right, or
reach out to Avitech support for more information and
assistance.
Quick Start Guide
Video Wall Control
In Video Wall mode, the Sequoia 4K60L can control
up to four display devices as a video wall, with the
ability to switch any source to any display and
stretch one source image over any number of
displays.
If the Sequoia 4K60L does not appear to be in Video Wall
a mouse and keyboard to one of the
mode, connect
USB-A ports and press Alt – V – W (one key at a
time) to change the display mode to Video Wall.
To control the video wall created by the Sequoia
4K60L and the display devices, use the web
graphical user interface (GUI) or HTTP Commands –
to open the web-GUI, please refer to the note
below, or reach out to Avitech support for more
information and assistance.
Web-browser Graphical User Interface (GUI)
To access the web-browser GUI for more advanced
functions, connect the Sequoia 4K60L IP port to a
computer using an ethernet cable.
Make sure the computer is on the same subnet as the
Sequoia 4K60 (factory default IP address is
192.168.0.5), open a web browser such as Google
Chrome, Mozilla Firefox, Apple Safari, or Microsoft
Edge, and enter "192.168.0.5" in the web browser
address bar.
Log in to control the unit with the factory default
password "admin".
June, 2023 V3.0
