Avitech Sequoia 4K60L Quick Start Manual

1

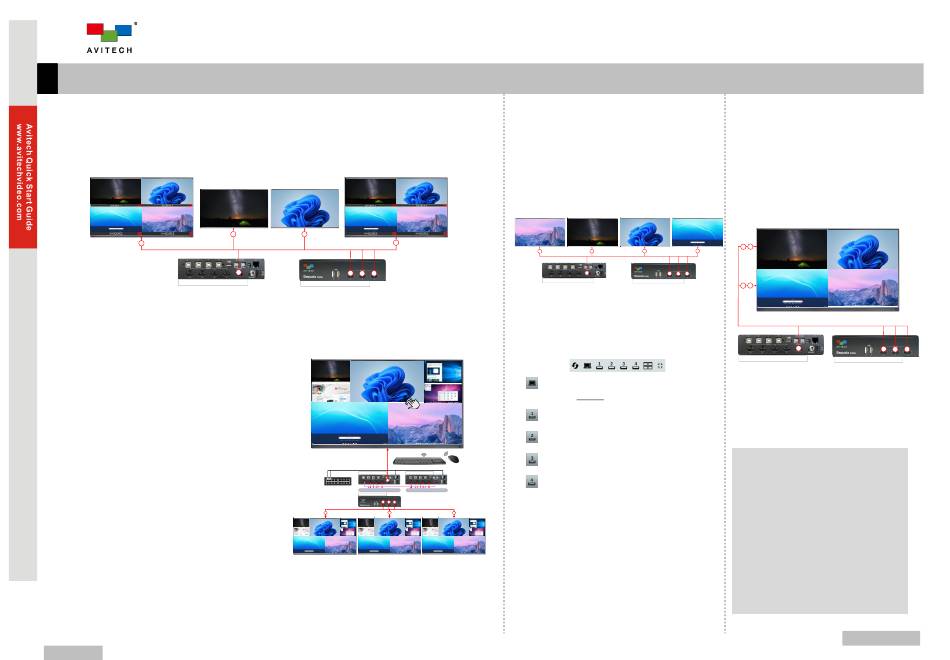

How is the Sequoia 4K60L being used (Sequoia 4K60L Display Modes)
Quad Multiview + Bypass (Daisy Chain Capable)
In Quad + Bypass mode, the Sequoia 4K60L can output a quad-multiview image from the HDMI out port 1 on the rear panel, two
single-view pass-through source signals from the two HDMI output ports on the front panel, and a duplicated quad on the fourth
output. You can fullscreen any of the sources in the quad-multiview images to make it a single-view image.
This mode supports multiview (up to 16 windows with daisy-chain), multi-touch control, single-user KVM workstation, and more.
1
Sequoia 4K60L Rear View
If the unit does not show a quad-multiview on the monitor connected to HDMI output port 1, connect a keyboard to one of the USB-A
ports and press Alt – q – b (one key at a time) to change the display mode to Quad + Bypass.
Daisy Chain –
Multiple Sequoia 4K60L units can be daisy chained to display up to 16 source images on one display. To daisy chain multiple Sequoia
4K60L units follow the steps below:
1. Move the dip switch 1 to the on (down) position for all the Sequoia
4K60L units.
2. Power on the primary Sequoia 4K60L unit alone, and using the web
GUI, make sure the IP address of the primary unit is set to a unique
IP address, different from the factory default IP address, which is
192.168.0.5. Then power off the primary unit. Note the new IP
address of the primary unit so that the web GUI can be accessed.
3. Connect the HDMI OUT port 1 of the secondary Sequoia 4K60L
unit(s) to the input ports of the primary Sequoia 4K60L.
4. Repeat step 1 for all secondary Sequoia 4K60L units.
5. Connect all Sequoia 4K60L units to an Ethernet switch and connect
the HDMI OUT port 1 of the primary Sequoia 4K60L to the display
device's HDMI in port, as shown in the diagram.
6. Once all those connections are made and the primary unit IP
address is changed to a unique IP address, power on all units,
making sure to power on the primary unit last. Wait about 100
seconds for the units to auto-configure in daisy chain mode before
using the mouse and keyboard or web graphical user interface
(GUI) to change any windows or layouts.
The primary Sequoia 4K60L has three HDMI outputs on its front panel that can duplicate the image from the HDMI OUT port 1 on
the rear panel, as shown in the figure on the right.
Note: two Sequoia 4K60L units daisy chained can display up to 7 source images, three units daisy chained can display up to 10 source
images, four units daisy chained can display up to 13 source images, and five units daisy chained can display up to 16 source images.
Page 1 of 4
2 3
4
1
2 3 4
Sequoia 4K60L Front View
Primary Unit Rear View 1 st Secondary Unit Rear View
1
3x HDMI/DVI sources with USB for KM
4x HDMI/DVI sources with USB for KM
Primary Unit Front View
2 3 4
2 3
This guide provides step-by-step instructions for a quick setup of your Sequoia 4K60L
Single-View Seamless Switching
In Seamless Switching mode, the Sequoia 4K60L outputs four
single-view images from each of the HDMI out ports on the
rear and front panels, with seamless switching on each of
the connected display devices.
If the unit does not appear to be in Seamless Switching
mode, connect a mouse and keyboard to one of the USB-A
ports and press Alt – s – s (one key at a time) to change the
display mode to Seamless Switching.
2
1
1
Sequoia 4K60L Rear View
To switch sources, there are three methods:
1) Use the keyboard to press Ctrl – Monitor ID – Input ID
(for example, if you want input 3 on monitor 2, press Ctrl
– 2 – 3).
2) Use the mouse to move the cursor to the top-right
corner of the window, and the following pop-up menu
will appear:
: denotes entering a computer window to control
the computer (Remote mode)
: denotes switching to display Input 1's source
: denotes switching to display Input 2's source
: denotes switching to display Input 3's source
: denotes switching to display Input 4's source
3) Use the web graphical user interface (GUI) or HTTP
Commands – to open the web-GUI, please refer to the
4
note on the right, or reach out to Avitech support for
more information and assistance.
Quick Start Guide
Congratulations and thank you for purchasing the Avitech Sequoia 4K60L
Video Wall Control
In Video Wall mode, the Sequoia 4K60L can control
up to four display devices as a video wall, with the
ability to switch any source to any display and stretch
one source image across all displays.
If the Sequoia 4K60L does not appear to be in
Video Wall mode, connect a mouse and keyboard
to one of the USB-A ports and press Alt – v – w
(one key at a time) to change the display mode to
Video Wall.
2
1
3 4
2 3 4
Sequoia 4K60L Front View
3 4
1
Sequoia 4K60L Rear View
To control the video wall created by the Sequoia
4K60L and the display devices, use the web
graphical user interface (GUI) or HTTP Commands.
To open the web-GUI, please refer to the note
below, or reach out to Avitech support for more
information and assistance.
Web-browser Graphical User Interface (GUI)
To access the web-browser GUI for more
advanced functions, connect the Sequoia
4K60L IP port to a computer using an Ethernet
cable.
Make sure the computer is on the same
subnet as the Sequoia 4K60 (factory default IP
address is 192.168.0.5), open a web browser
such as Google Chrome, Mozilla Firefox, Apple
Safari, or Microsoft Edge, and enter
"192.168.0.5" in the web browser address
bar.
Log in to control the unit with the factory
default password "admin".
2 3 4
Sequoia 4K60L Front View
Nov, 2023 V5.0
